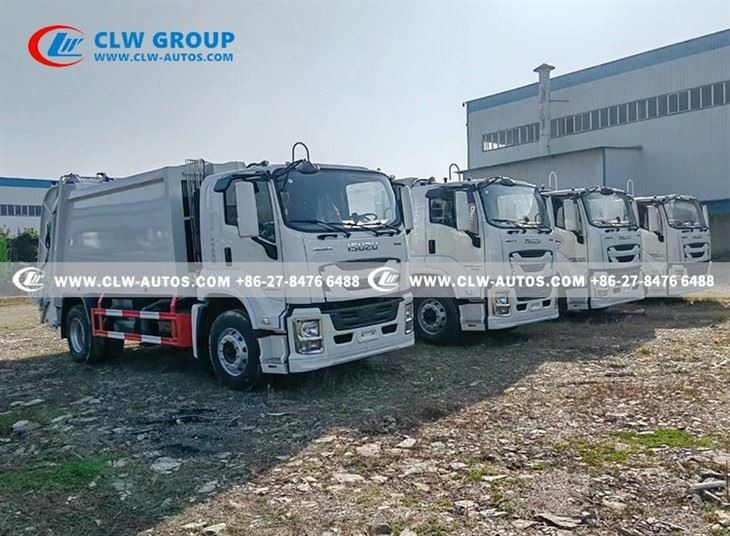

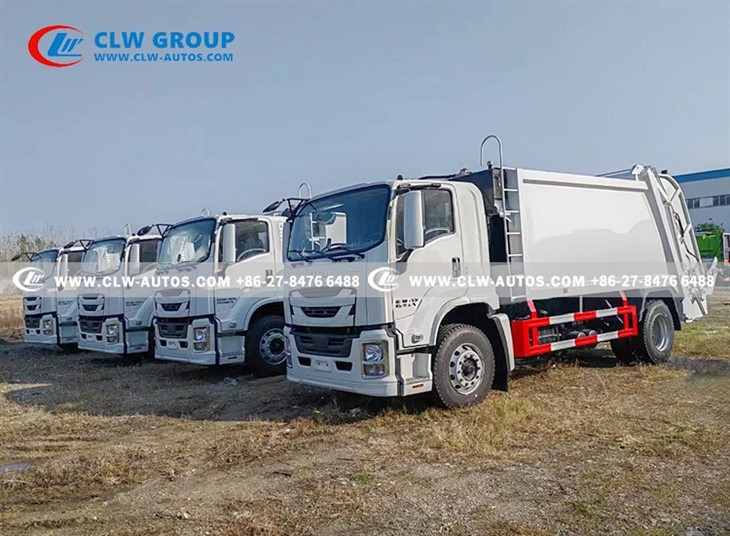

ISUZU GIGA 14cbm Garbage Compactor Truck for Russia
Products Descriptin
Waste compression truck feature:
* The garbage tank is made by high intense Q235b carbon steel, 5mm thickness
* The compression mechanism consists of a pressure plate welded with steel plates and channel steel, a guide wheel, and an oil cylinder seat. Under the push of the oil cylinder, the garbage in the hopper is compressed into the chamber. Compression cycle time: 20-25s, compression density: 0.7 t/m3.
* The unloading mechanism is composed of a unloading oil cylinder and a unloading push plate. The unloading push plate is welded from a steel plate and a bracket, positioned by a guide groove, and pushed out by the extension of the oil cylinder to discharge garbage. unloading garbage is: less than 40s
* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin
| ISUZU GIGA 14cbm garbage compactor truck for Russia | |||
| Condition | New condition/Left hand drive/4X2 | ||
| Chassis | Brand | ISUZU GIGA | |
| Curb weight(kg) | 9850kg | ||
| Wheelbase(mm) | 4500mm | ||
| Overall Dimensions(mm) | 8250*2500*3250 mm | ||
| Axle Load(kg) | 6300/13000 kg | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | air brake | ||
| Steering Gear | Power assistant | ||
| Tire | Number | 6pcs with one spare tire | |
| Specifications | 295/80R22.5 | ||
| Transmission | Manual type, ISUZU MLD, 6 Forwards and 1 Reverses | ||
| Cabin | it can accomdate 3 passengers, with Heating and cooling air conditioning, steering assistance, central locking, electric doors and windows, multifunctional steering Disc, multifunctional LCD instrument panel with ABS, air brake. | ||
| Engine | Brand | ISUZU | |
| Model | 4HK1-TC60 | ||
| Horsepower/(HP) | 205HP | ||
| Displacement | 5.193L | ||
| Emission standard | Euro 6 | ||
| Super structure | |||
| Item No. | Parameters | ||
| Volume Capacity(Garbage) | 14.0 CBM | ||
| Thickness of the tank | 5mm for the bottom and 5mm for the side carbon steel | ||
| Sewage tanker(one at side of the truck, one at rear side of the truck) | 200 L & 500L | ||
| Tail gate volume(L) | 700L(Filling structure) | ||
| Rated Pressure of Hydraulic system: 16 Mpa | |||
| Filling time of loading system: 8-10 s | |||
| Specification | Working cycle of Loading system: 50-60 s | ||
| Working cycle of the unloading system: 30-40 s | |||
| Compress ratio:0.6:0.7 | |||
| Equipped with hermetic dustbin, hydraulic system and operating system. | |||
| Automatic compress and uninstall, sewage can be collected by the sewage tank. | |||
| Equipment | Control system: China top brand operate system. | ||
| Painting and Logo | As customer's requirement | ||
| Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, | ||
| Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder. | |||
| Optional devices |
1. four way monitor camera with lcd screen at driver cabin. 2. Emergency tripod 3. First aid kit |
||
More size for your choice
Contact Alice for quick inquiry +86 180 7154 2196(whats app)
You can also choose different loading type for the garbage compactor truck
