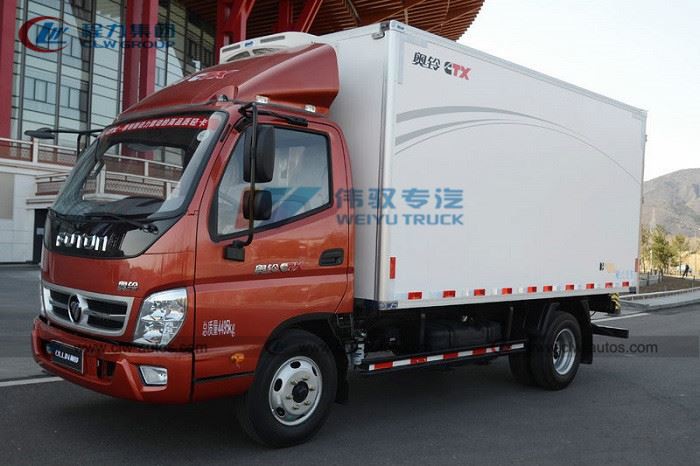

Foton 8Tons Refrigerated Transport Truck
Ice cream /Frozen Food Transport
1Ton Weight for Inside City
3 Layer Sandwich Box
Carrier Thermo King Refrigerator
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 8tons refrigerated transport truck in China. If you're going to buy high quality foton 8tons refrigerated transport truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Truck Loading Weight: 6Ton ~8Ton
2. Box Size: 45cubic meters
3. Box Material: Inner & Outter layer fiberglass wall, middle material PE Fom
4. Wall Thickness: 60mm to 80mm
5. Refrigerator: Carrier, Thermo King, Hanxue, others
6. Truck Brand: Foton, Forland
Product Function
Small refrigerated trucks are mainly used for short-distance transportation in urban areas,
such as dairy products delivery, fruit and vegetable delivery and food delivery, etc.
The small refrigerated trucks produced by Chengli Group have good insulation effect and strong overall structure!
Product Specification
Vehicle | |||
Chassis | FOTON | ||
Cabin | 2 Passengers | ||
Drive | 4 × 2 Left-hand driving or Right-hand driving | ||
Wheelbase | 3360 mm | ||
Gross vehicle weight | 8900 kg | ||
Tyre | Size | 8.25-16 | |
Quantity | 6+1 Spare | ||
Brake | Service | Front disc/Rear drum hydraulic brake | |
Parking | Central drum brake | ||
Auxiliary | Exhaust brake | ||
System | ABS (anti-lock brake system) | ||
Transmission | Gear | 6-Speed (manual) | |
Steering | Power-assisted | ||
Auxiliary | Clutch booster | ||
Engine | Fuel | Diesel | |
Intake | Turbocharged | ||
Form | Water cooling | ||
Cylinder | 4 (In-line) | ||
Displacement | 3922 ml (EURO IV) | ||
Max. Power | 130 hp (95 kw) | ||
Bodywork | |||
Refrigerated Van | Dimension (internal) | 5070*1970*1920 mm (L*W*H) | |
Thickness | Roof | 80 mm | |
Wall | 80 mm | ||
Floor | 80 mm | ||
Material | Inner | Glass fiber reinforced plastics (GFRP) | |
Outer | |||
Insulation | Material | Polyurethane foam (PUF) | |
Thickness | 8 mm | ||
Assembly | Floor | Non-slip checkered plate | |
Door/lock | Stainless steel | ||
Seal | Industrial-purpose rubber | ||
Refrigerator unit | Brand | KAILI | |
Model | KL-780 | ||
Temperature | -18~0ºC | ||
Refrigerants | Model | R404-A | |
Charge | 1.3 kg | ||
Refrigeration capacity | |||
Driven by Truck engine | 0ºC | -18ºC | |
3430 w | 1920 w | ||
Compressor | |||
Air volume | 1500 m³/h | ||
Weight (Approximation) | |||
Evaporator | 16.5 kg | ||
Condenser | 26.9 kg | ||
Dimension | |||
Evaporator | 985*585*180 mm (L*W*H) | ||
Condenser | 925*430*300 mm (L*W*H) | ||
Accessories | |||
Defrosting | Hot gas defrost (Automatically) | ||
Adjustment device | Electronic digital display | ||
Safety protect | High and low pressure switch | ||

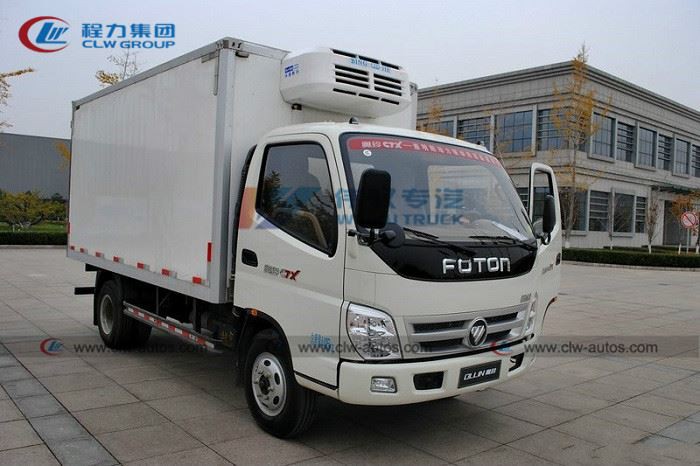

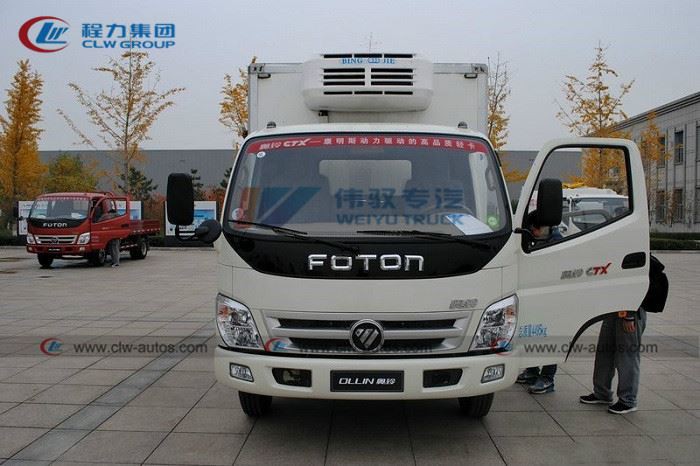

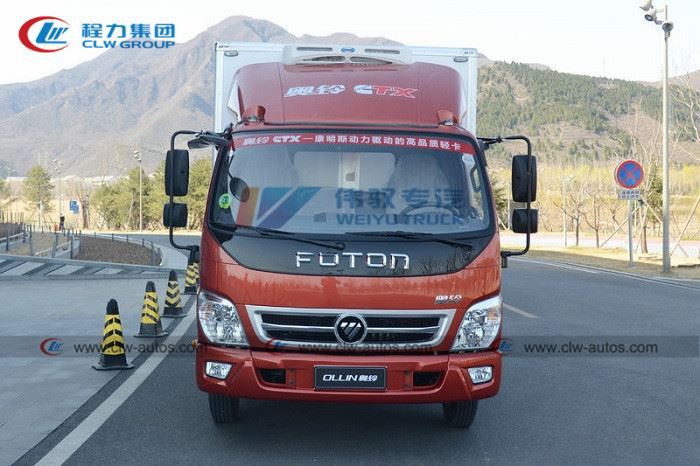

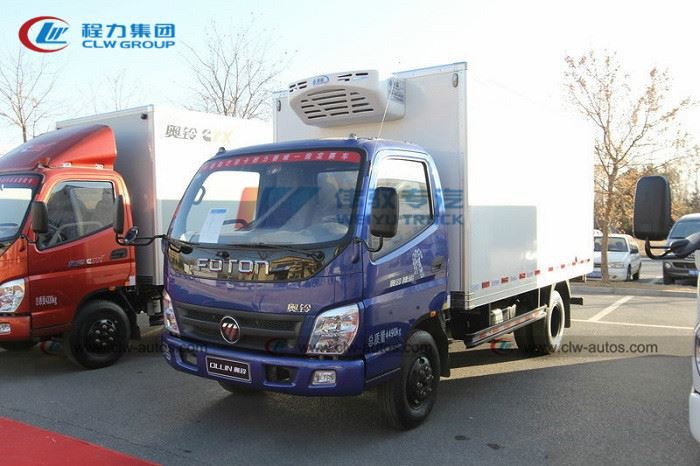

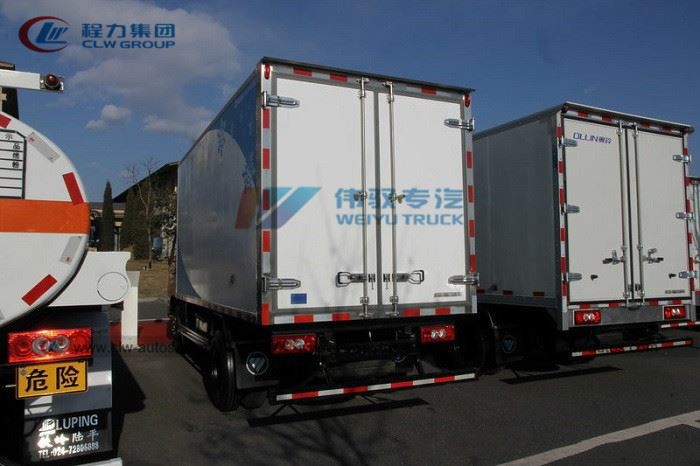

Reference Photos

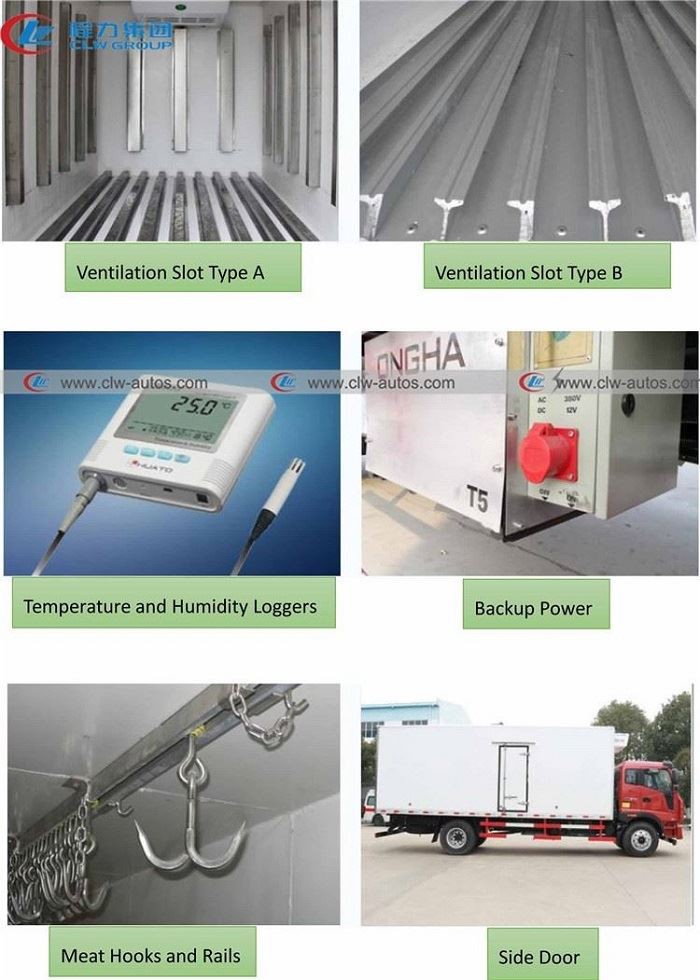

Optional Parts
