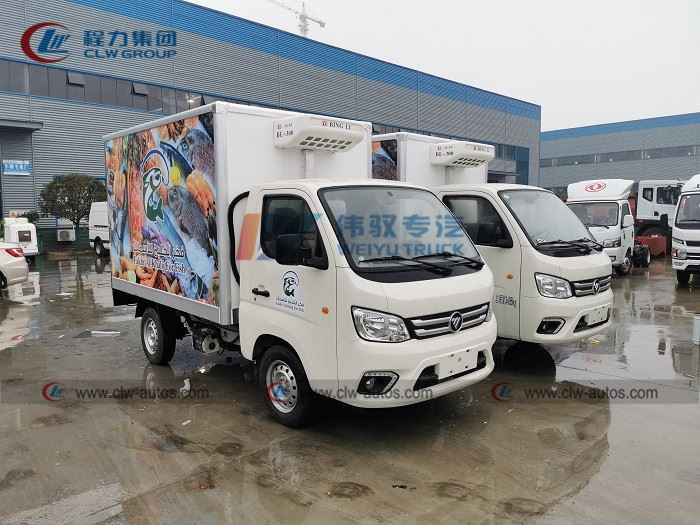

Foton Mini 1Ton Seafood And Fish Delivery Refrigerator Van Truck
Ice cream /Frozen Food Transport
1Ton Weight for Inside City
3 Layer Sandwich Box
Carrier Thermo King Refrigerator
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton mini 1ton seafood and fish delivery refrigerator van truck in China. If you're going to buy high quality foton mini 1ton seafood and fish delivery refrigerator van truck, welcome to get more information from our factory. For price consultation, contact us.
Description:
1. Truck Loading Weight: 0.8Ton ~1Ton
2. Box Size: 20cubic meters / 706 squar feet
3. Box Material: Inner & Outter layer fiberglass wall, middle material PE Fom
4. Wall Thickness: 80mm to 100mm
5. Refrigerator: Carrier, Thermo King, Hanxue, others
6. Truck Brand: Foton, Forland
Function:
Small refrigerated trucks are mainly used for short-distance transportation in urban areas,
such as dairy products delivery, fruit and vegetable delivery and food delivery, etc.
The small refrigerated trucks produced by Chengli Group have good insulation effect and strong overall structure!
| General Technical Parameters | ||||
| Overall Dimension | 5200×2300×2450(mm) | Gross Vehicle Weight | 3300(Kg) | |
| Curb Weight | 2300(Kg) | Loading Weight | 1000(Kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | Foton | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Engine | Model | 4 Cylinders | ||
| Power | 112HP | |||
| Emission standard | EURO 5 | |||
| Displacement | 2.999L | |||
| Fuel type | Petrol | |||
| Gearbox | 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2T/3T | |||
| Wheel base | 2600(mm) | |||
| Overhang( Front/Rear) | 1130/1505(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Air brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 105(km/h) | |||
| Superstructure | ||||
| Van | Box size | 4100×2300×1800(mm) | ||
| Material | Fiberglass | |||
| Insulating Layer | 10cm Polyurethane Foam | |||
| Truck refrigeration unit | Brand | Famous Chinese Brand | ||
| Model | BL300 | |||
| Applicable temperature (ºC) | -15~0 | |||
| Remarks | Part Optional: Ventilation slot Hook External power supply Side door | |||
