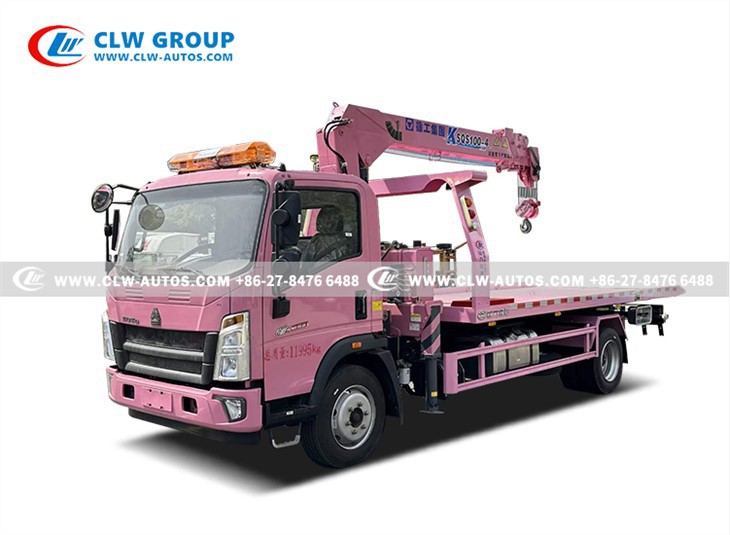

HOWO 5 Tons Wrecker Truck With 5 Tons Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 5 tons wrecker truck with 5 tons crane in China. If you're going to buy high quality howo 5 tons wrecker truck with 5 tons crane, welcome to get more information from our factory. For price consultation, contact us.





Production Introduction

•

• HOWO 5 tons flatbed wrecker(also called tilt tray road wrecker, platform tow truck,breakdown tow truck,recovery truck with crane, howo flatbed road wrecker,under lift tow truck,emergency rescue tow truck,platform recovery truck) is used to move disabled,breakdown cars,vehicles,bus,improperly parks vehicles or acts as a car carrier temperarily.

• Multifunctional flatbed wrecker truck with XCMG straight arm 5 tons crane has both function of road wrecker/recovery/towing truck and truck mounted crane.

•

• whatsapp for quick inquiry +86 135 45064324



Main technical details is as follows,

• HOWO 4X2 truck with 6-wheel
• HOWO 2080 cabin with one sleeper or without
• Yuchai diesel engine 140HP or 160HP
• 3800/4200/4500 mm as wheelbase
• 3.2 tons front axle and 8 tons rear axle
• 8.25R20 tires with one spare
• 5600X2300 mm checked plate with 4mm thickness
• 5 tons winch with 25 meter steel rope
• 3.5 tons underlift boom

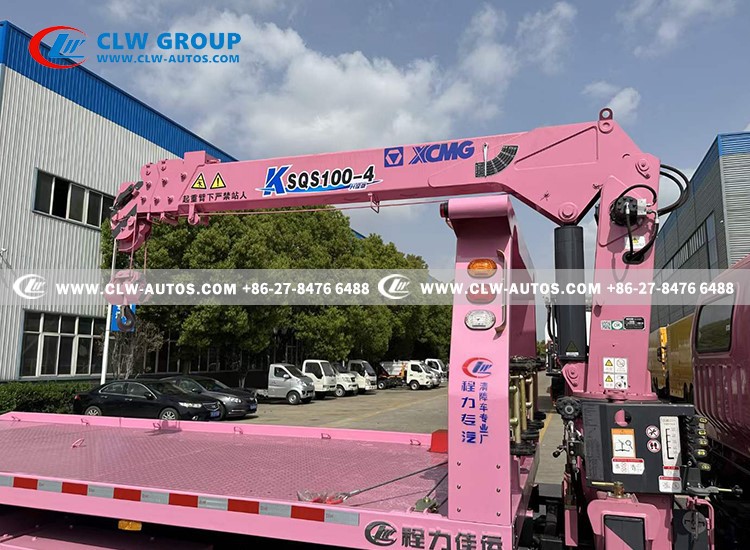

• XCMG/Palfinger/CLW 5 tons crane
• Straight or Folding boom type crane

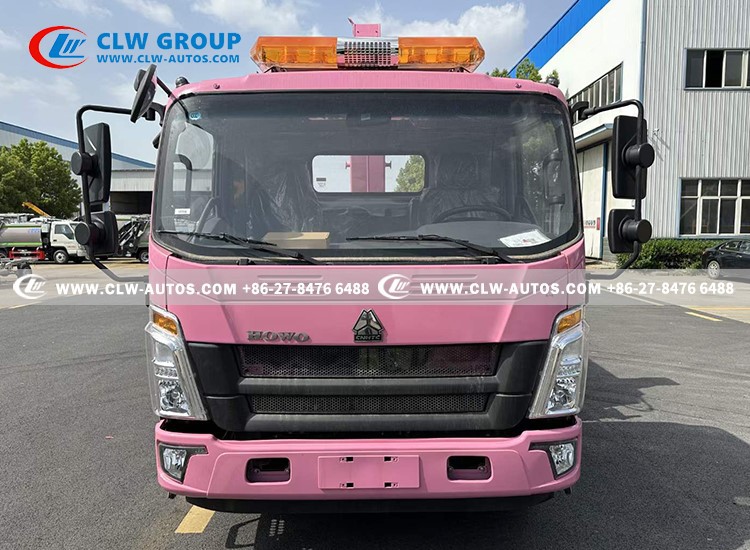

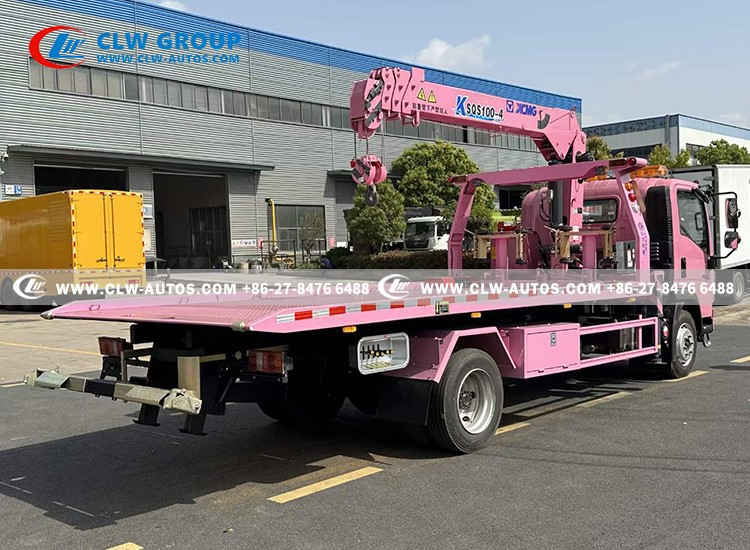

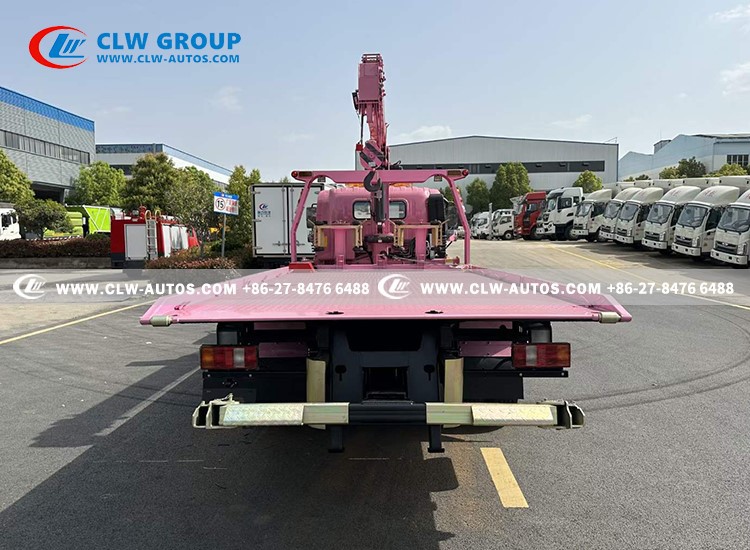

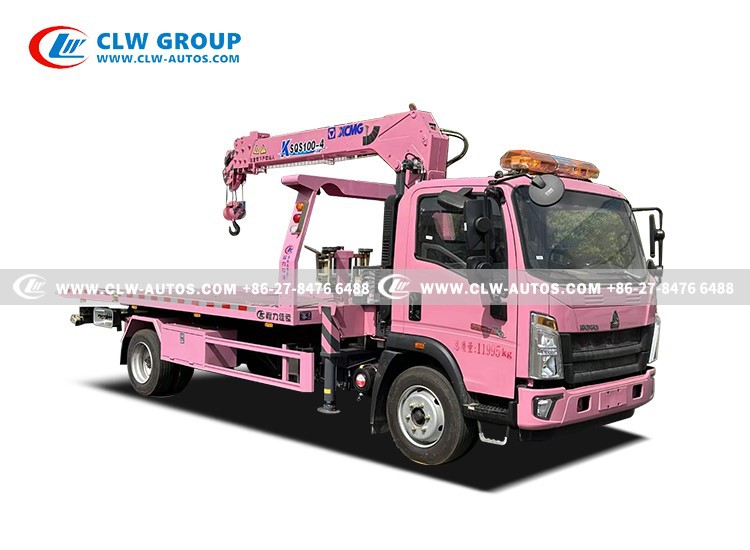

Reference pictures





Drive Model	4x2,right hand drive or left hand drive
Cabin	HOWO 2080 CABIN with one sleeper or without With A/C
Vehicle Main Dimensions	Dimensions(L x W x H)mm	7450/7850/8460×2480×3290
	Wheel base (mm)	3800/4200/4500
	Overhang (front/rear) (mm)	1180/2780
	Axle load (kg)	3200/8000
	Approach/Departure angle(°)	18/22
Weight in KGS	Curb Weight	8670
	GVW.	12000
Max. driving speed(km/h)		90
Engine	Model	YC4E160-33
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	160HP
	Emission standard	Euro III
Gearbox	DC6J65TC,6 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Tire	8.25R20 , 6pcs + 1 spare tire
UPPER BODY OF 5 TONS FLATBED TOW TRUCK
Platform	LXW(mm)	5600x2260
	Material	Carbon Steel/checked plate/4 mm
	Ground clearance	1200 mm
	Max loading capacity(kg)	6000
	Winch rating pulling capacity(kg)	5000
	Length of steel(m)	25
Under lift boom	Max under lift capacity(kg)	3500
	Fully extended max under-hoisting capacity(kg)
Crane	XCMG/CLW 5 tons crane with 4 section boom
