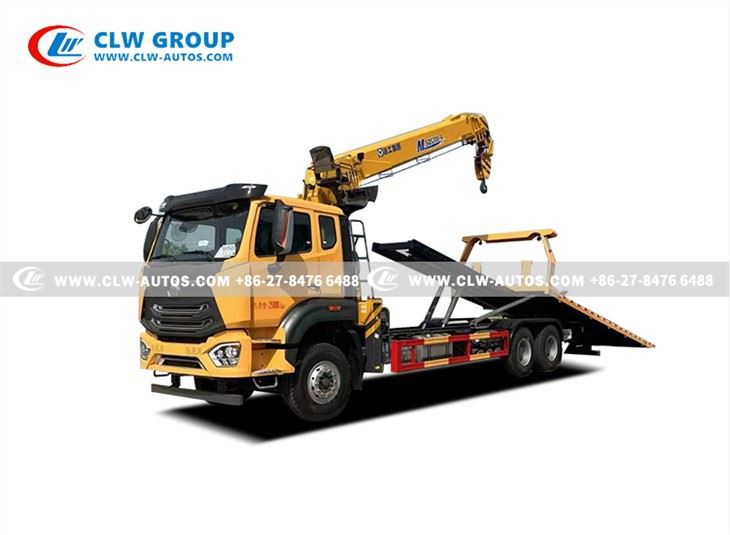

Sinotruk 16 Tons Flatbed Rollback Tow Truck With 12 Tons Crane
16 Tons Tilt tray tow truk
Rollback recovery truck
Flatbed truck with 12 Tons XCMG crane
8.5 meters flatbed tow truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 16 tons flatbed rollback tow truck with 12 tons crane in China. If you're going to buy high quality sinotruk 16 tons flatbed rollback tow truck with 12 tons crane, welcome to get more information from our factory. For price consultation, contact us.
Flatbed&Rollback tow truck,also called tilt tray truck,road wrecker truck, road rescue truck，multi-function recovery truck combines both functions of truck with crane and tow truck.
Flatbed&Rollback tow truck with crane is most commonly used to take a faulty truck,an accident truck, or a truck that has fallen into a ditch. The flatbed tow truck can lift the faulty vehicle to the flatbed or use the rear support arm to pull the vehicle to the repair shop.
Multi-functional wrecker is also to be used to pull goods, so multi-functional wrecker is not limited to repair shops, traffic police teams, and 4S shops.
Contact for quick inquiry +86 135 4506 4324 (whatsApp)
Main Feature of 16 tons flatbed tow truck with 12 tons crane
Wheelbase: 5800+1400
12-ton 4-section boom crane,
8500*2550 large flat plate,
6mm carbon steel checker plate
double-cylinder technology for flat-plate telescopic,
imported high-flow multi-way valve,
naval combat power cylinder,
16-ton three-section underlift boom
a 15-ton plate loading capacity
a 50-meter steel rope,
a warning lamp
a set of megaphones.
Specification of 16 tons flatbed tilt tray truck with crane
Truck Chassis | |||
Condition | Brand new | ||
Overall size(L*W*H) | 10200X2500X3750 mm | ||
Overall weight | 25000 kg | ||
Net weight | 17100 kg | ||
Cabin | HW76 cabin with two seats and one bed,with Air conditioner | ||
Cabin color | White,Orange,Yellow.../Military green will need extra cost | ||
Engine | Model | WD615.47 | |
Type | 6-cylinder in-line with water cooling,turbo charger and inter-cooling,4-stroke direct injection,diesel engine | ||
Power | 273KW/371HP | ||
Emission standard | EURO II | ||
Displacement | 9725 (ml) | ||
Fuel type | Diesel | ||
Wheelbase | 5800+1350 mm | ||
Transmission | HW19710,10 speed forward and 2 speeds reverse | ||
Front Axle | HF9,9Tons | ||
Driving Axle | HC16/16TonsX2 | ||
Steering system | ZF8118,hydraulic steering with power assistance | ||
Brake System | Service brake: Dual circuit compressed; Air Brake: Parking brake(Emergency brake):Spring energy,compressed air operating; Auxiliary brake: engine exhaust brake | ||
Tire | 12.00R20,10 pcs with one spare | ||
Fuel Tank Capacity | 400L | ||
Wrecker Upper Structure Body | |||
Under lift Boom | Max. Under Lift Capacity(kg) | 16000 | |
Max. Under Lift Capacity at full extension (kg) | 6500 | ||
Under lift boom Effective length(mm) | 1700 | ||
Under lift Telescopic Stroke(mm) | 1360 | ||
Ground Clearance when under lift fully retracted(mm) | 800 | ||
Flatbed | Ground Clearance(mm) | 1200 | |
Flatbed Plate Size(length*width) (mm) | 8500*2550 | ||
Min. Tilt Angle (°) | 8 | ||
Moving range (mm) | 3760 | ||
Max. Loading Capacity (kg) | 16000 | ||
Winch | Number | 1 | |
Rated towing capacity (KN) | 80~150 for option | ||
Diameter of Steel Rope (mm) | Φ16~φ22 for option | ||
Length of Steel Rope (m) | 50 | ||
Min. line speed(m/min) | 4.52 | ||
Crane | |||
Brand | Palfinger,Shimei,CLW,UNIC | ||
Capacity | 10 Tons/12Tons/14 Tons | ||
