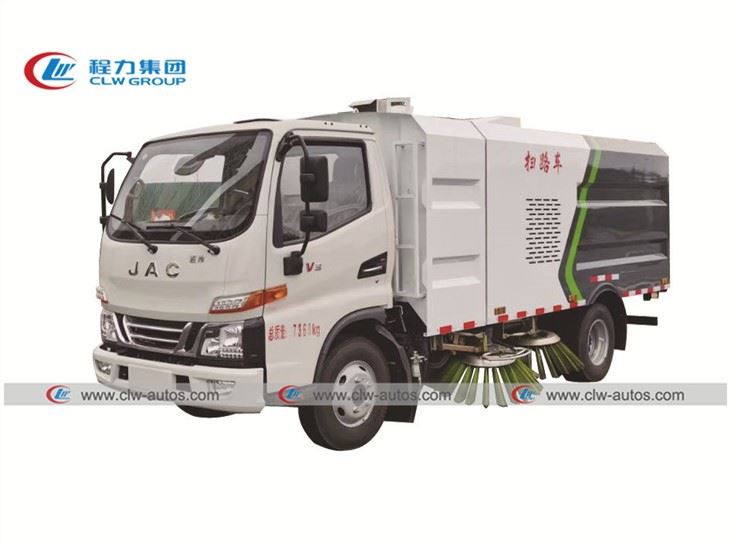

JAC Small Vacuum Road Sweeper Cleaning Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of jac small vacuum road sweeper cleaning truck in China. If you're going to buy high quality jac small vacuum road sweeper cleaning truck, welcome to get more information from our factory. For price consultation, contact us.

Road Sweeper:

New generation of environmentally friendly, combined washing, sweeping and suction special road sweeping vehicles. Suitable for mechanized sweeping and cleaning operations in urban streets, municipal squares, large factories and mines, with high operating efficiency, advanced and reliable technical performance, and all main components Using pure imported parts, beautiful appearance and strong practicability.

JAC 5 Ton Road Sweeper Chassis Configuration

Configuration:

Ø  Yunnei Dewei 150 horsepower engine (D25TCIF1), 110kw,

Ø  6 Forward & 1 Reverse Gearbox,

Ø  1.8T front axle, 3.5T rear axle, 190 frame,

Ø  7.00R16 steel wire tires,

Ø  Air brake, electric vehicle Window, central control, with air conditioning, ABS.

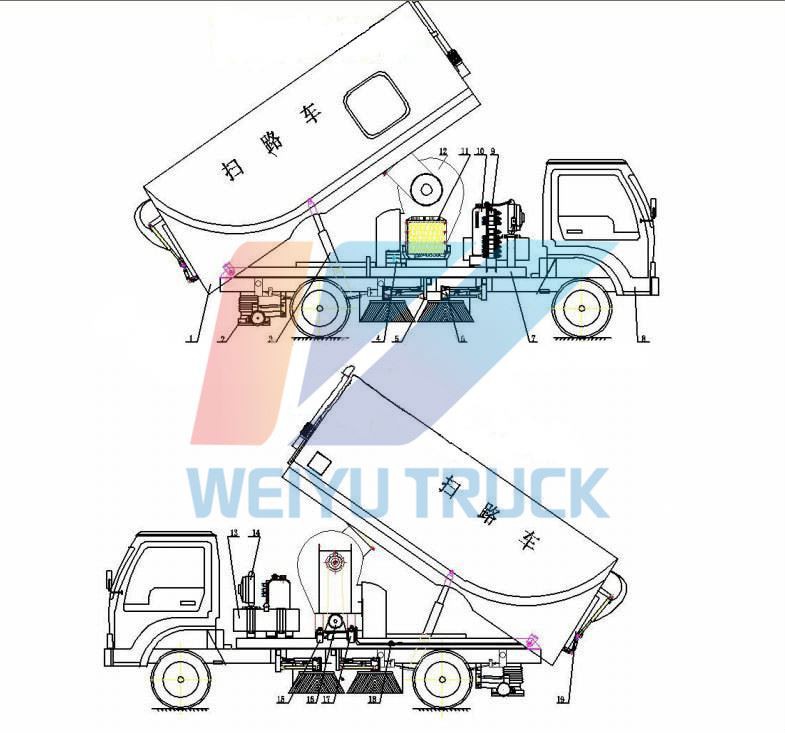

Sweeping Body Structure:

Ø  Water tank volume: 1.5 cubic meters,

Ø  garbage bin volume: 4 cubic meters;

Ø  4 sweep pans in the middle, independent three-speed speed regulation of sweep pans,

Ø  JMC 77 HP auxiliary engine, Sanyo motor, Schneider control switch, Taiwan hydraulic valve or Hypress solenoid valve Group,

Ø  Changyuan hydraulic oil pump, Xinxishan water pump, maintenance-free self-separating clutch, maintenance-free fan,

Ø  Rear LED arrow light, manual pump emergency system, front sweeping brush arm rotating mechanism uses high-tech wear-resistant engineering spacer, no grease, Precision cold-formed seamless hydraulic oil pipe,

Ø  Sweeping width: 2.8-3.2 meters, sweeping speed: 3-20km/h, maximum suction particle size: 120mm, maximum sweeping capacity: 50000m2/h.

Optional configuration for JAC 5 tons (1.5 water/4 dust) road sweeper National VI:

Optional reversing and right scan images; front and rear spraying (sprinkler pump), front green cannon; front and rear spray; enlarged auxiliary water tank; handheld dust suction pipe; low water level alarm; cab air-conditioning.

Features of JAC 5 Ton Sweeper

1.    Stainless steel Trash cans and water tanks made of are used to resist general corrosion and increase the service life of the box.

2.       4 cubic meters garbage box, can operate continuously for more than 4 hours. The clean water tank has a volume of 1.5 cubic meters, which can effectively control secondary dust during cleaning.

3.       Using a combination of suction and sweeping methods to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading operations to clean the road surface.

4.       Auxiliary engine driving the fan and hydraulic system to ensure continue working & cleaning during the driving process

5.       "four-plate brush + rear suction nozzle", which is convenient for maintenance, with good passability.

6.       Automatic Clutch: transmission is equipped to between the auxiliary engine and the fan of the road sweeper, reducing the impact on the auxiliary engine, and improves the working reliability of the auxiliary engine and service life.

7.       Obstacle avoidance protection function and a reset function. It retracts after encountering an obstacle, and resets after crossing the obstacle.

8.       Sweeping Pan Speed Adjustment: According to different cleaning conditions, sweeping pans speed can be adjusted high, middle and low.

9.       Full-floating suction nozzle can be automatically leveled with the road surface, which has good dust suction effect and long service life.

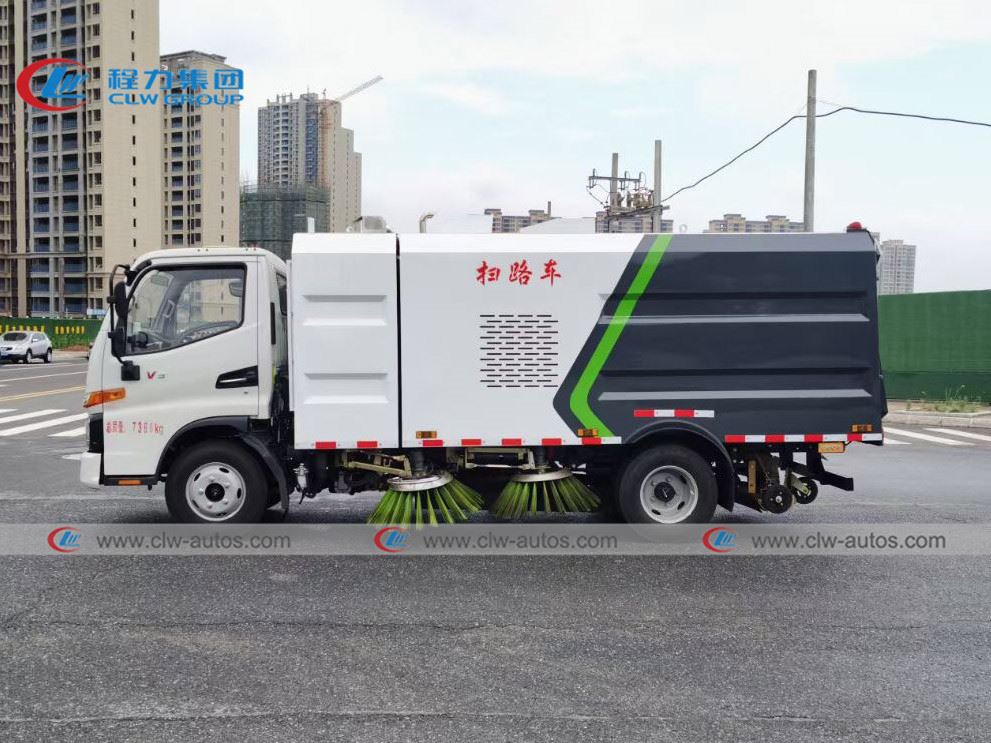

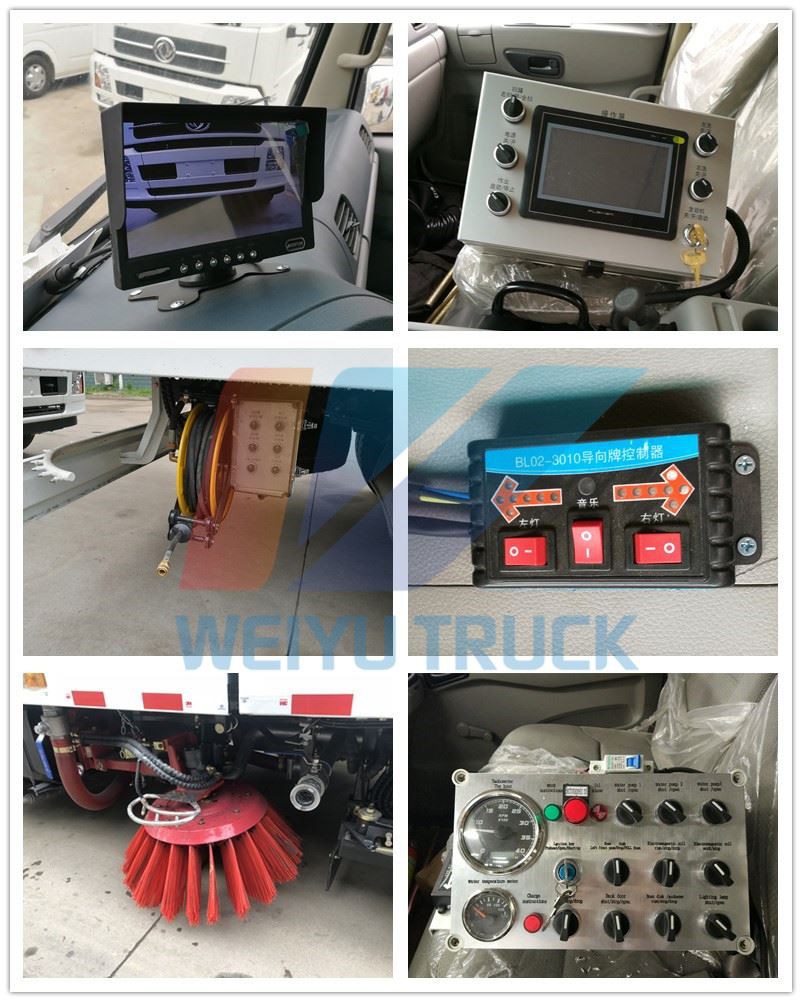

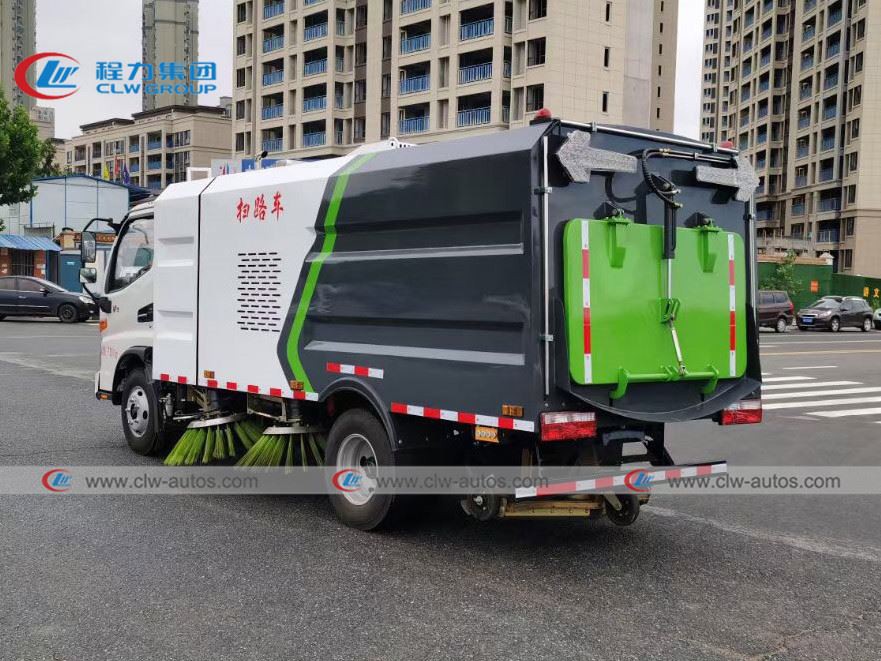

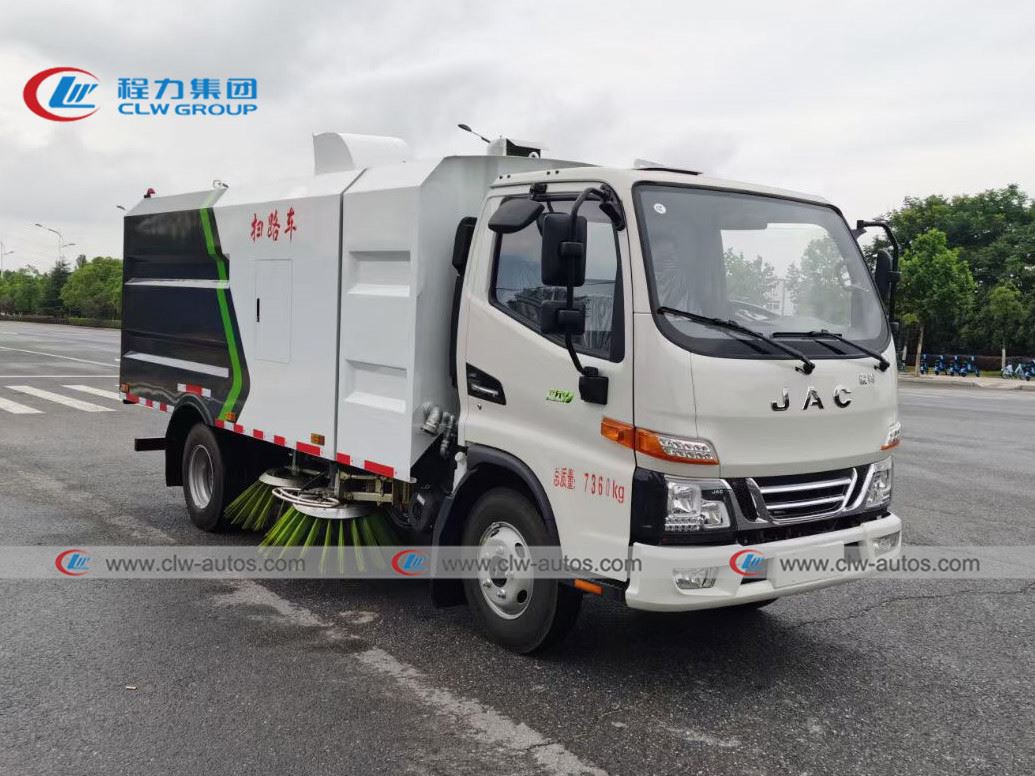

Truck Photo Detail:

Specification Details:

More Truck Brand for Option:

ISUZU,  Sinotruk, Dongfeng, FAW, Foton/Forland,

More Size for option:

4x2: 8Ton,

4x2: 10Ton ~ 12Ton

6x4: 18Ton
