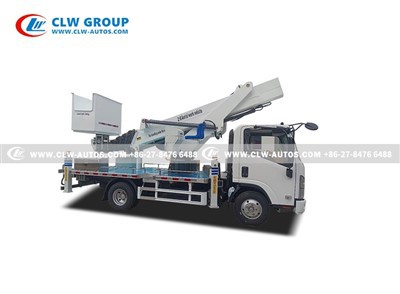

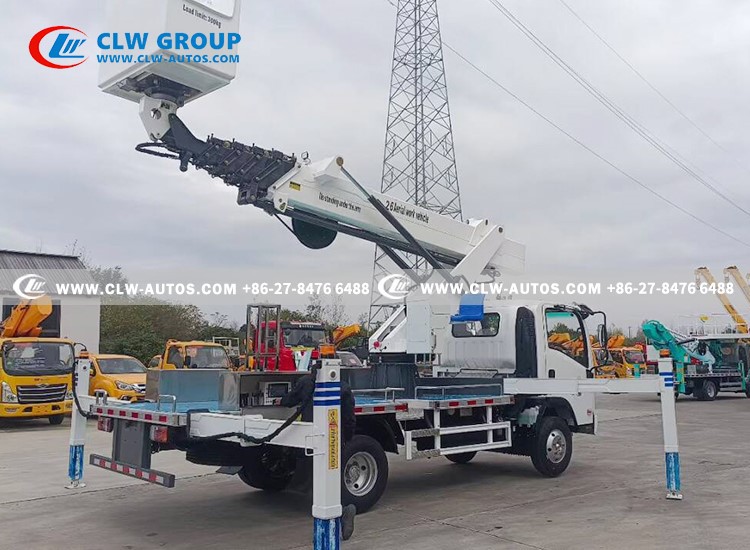

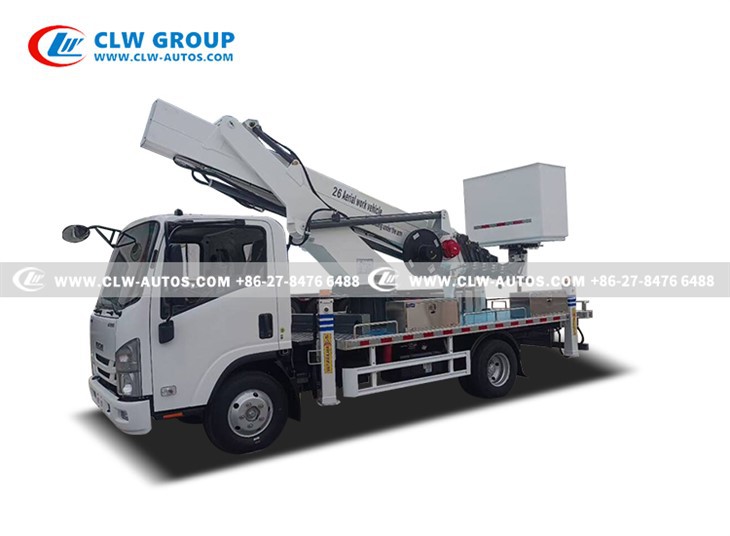

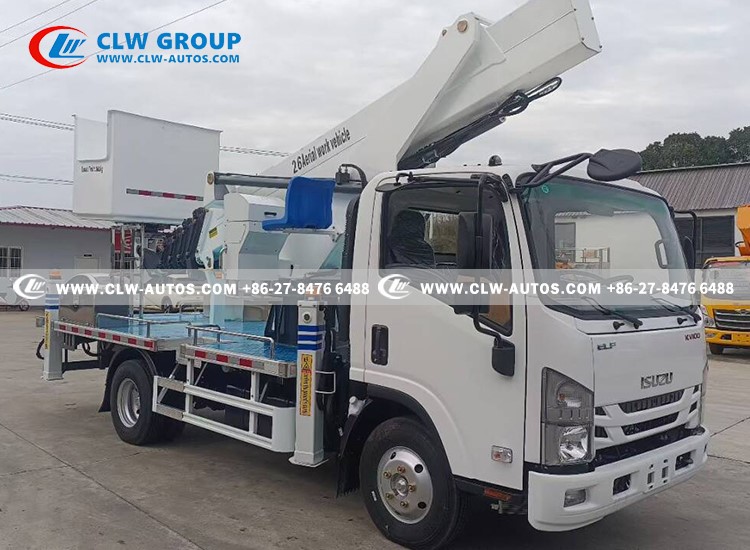

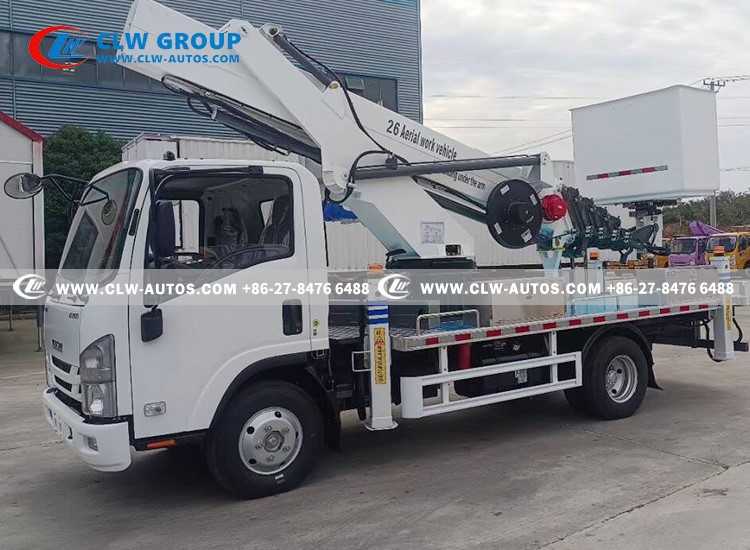

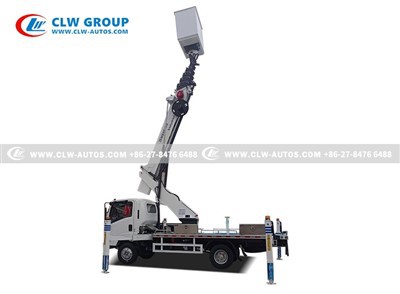

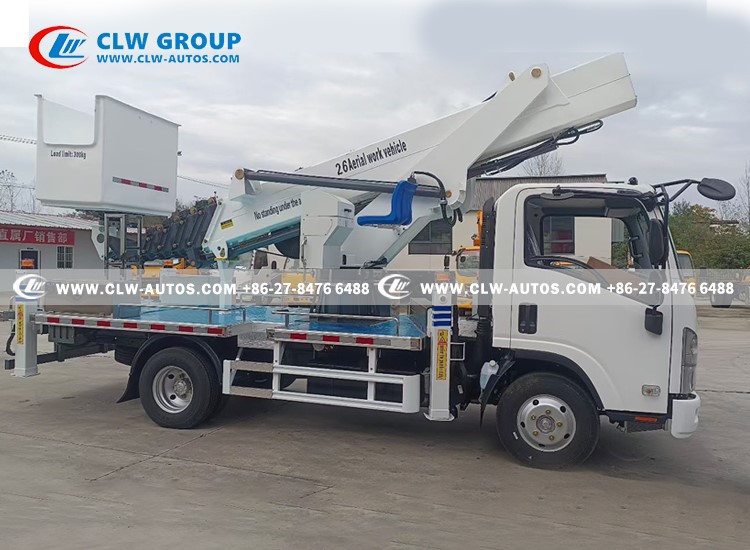

ISUZU 26m Manlift Truck
Drive Type: 4x2
Engine Power: 120 HP
Manlift Max. Lifting Length: 26meters
Basket Loading Capacity:200kg
Left Hand Drive
ISUZU KV100 Cabin
With Insulated Basket
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 26m manlift truck in China. If you're going to buy high quality isuzu 26m manlift truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU KV100 6 Wheels 4x2 26meters Aerial Work Platform Truck With Insulated Basket
product key technologies

ISUZU KV100 Chassis
- Efficient Load Capacity and Agile Maneuverability: The 3360mm wheelbase ensures ample cargo space while offering a smaller turning radius than longer models. This enhances flexibility for urban and intercity driving, balancing efficiency and adaptability.
- Reliable Power and Fuel Economy: The 120 HP engine provides ample power for standard loads in its class. Renowned for durability and advanced technology, Isuzu engines deliver excellent fuel efficiency, reducing long-term operating costs.
Application Scenarios of 26-Meter Aerial Work Platforms
- Building Exterior Construction and Maintenance
- Municipal Facility Maintenance
- Industrial Park and Plant Maintenance
- Power and Line Inspection
- Fire Rescue Support
- Film Production and Large-Scale Events

Products Parameters
|
ISUZU KV100 26meters Aerial Work Platform Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL104 |
|
Driving Model |
4x2 |
|
Dimension |
8000 x 2400 x 3500 mm |
|
Cab |
|
|
Wheelbase |
3360mm |
|
Gross vehicle Weight |
4000 kg |
|
Front Axle Loading Capacity |
2500 kg |
|
Rear Axle Loading Capacity |
4800 kg |
|
Axle Number |
2 |
|
Tire |
7.00R16 |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 4KH1CN6LB |
|
|
Horse power: 120 HP |
|
|
Displacement: 2999ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
5 Forward & 1 Reverse |
|
|
Fuel Tank Capacity |
100L |
|
Upper Specifications |
|
|
Working Platform |
Size: 1600 x 700 x 1000 mm |
|
Material: Stainless Steel |
|
|
Rated Load: 200 kg |
|
|
Boom Form |
Synchronization telescope |
|
Max. Working Height |
26 meters |
|
Outrigger Span |
Landscape: 4200 mm |
|
Portrait: 4000 mm |
|
|
Front "V" type, Rear "H" type Independently adjustable (controlled) |
|
|
Partition Boards & Walkway Boards |
Material: Stainless Steel & Anti-slip |
|
Rotator |
360 ° of continuous rotation |
|
Operation |
Electrically controlled operation Manual emergency operation |
|
Control System |
CAN control system, equipped with wireless remote control, realize stepless speed regulation |
Chassis Pictures




Features Of Insulated Basket
ISUZU 26Meter Aerial Work Platform Truck
1. Ensures Safety for Live-Line Workers (Core Advantage)
- Direct contact with live lines: The insulated bucket is made of high-strength insulating material, providing workers with a safe platform completely isolated from the ground.
- Enables safe live-line work: It allows workers to perform maintenance, installation, and other operations directly on high-voltage power lines without de-energizing them, significantly reducing the economic losses and social impact caused by power outages.
2. Improves Work Efficiency and Economic Benefits
- Avoids frequent power outages: There is no need to arrange complex power outage procedures for every operation, significantly shortening pre-work preparation time and making repairs and construction faster and more flexible.
- Reduces outage losses: For critical users such as factories, hospitals, and data centers that require continuous power supply, the ability to perform live-line work prevents production interruptions and massive economic losses caused by outages.
3. Provides Dual Safety Protection
- Backup protection against electric shock: Even in the event of accidental contact with energized equipment, the insulated bucket acts as a physical barrier, effectively preventing current from passing through the operator's body, forming a crucial "lifesaving layer."
- Boosts operator confidence: It provides aerial workers with a strong sense of psychological security, enabling them to focus more on their tasks and reducing operational errors caused by distraction due to fear.
4. Coping with Complex Environments and Emergencies
- Resists unexpected situations: During operations, if accidents such as accidental boom contact or falling branches touching lines occur, the insulated bucket can effectively prevent the escalation of electric shock incidents, buying crucial time for emergency response.
- Adapts to humid environments: In adverse conditions like dampness, fog, or drizzle, high-quality insulated buckets maintain good insulating performance, offering a higher level of protection compared to ordinary metal buckets.
