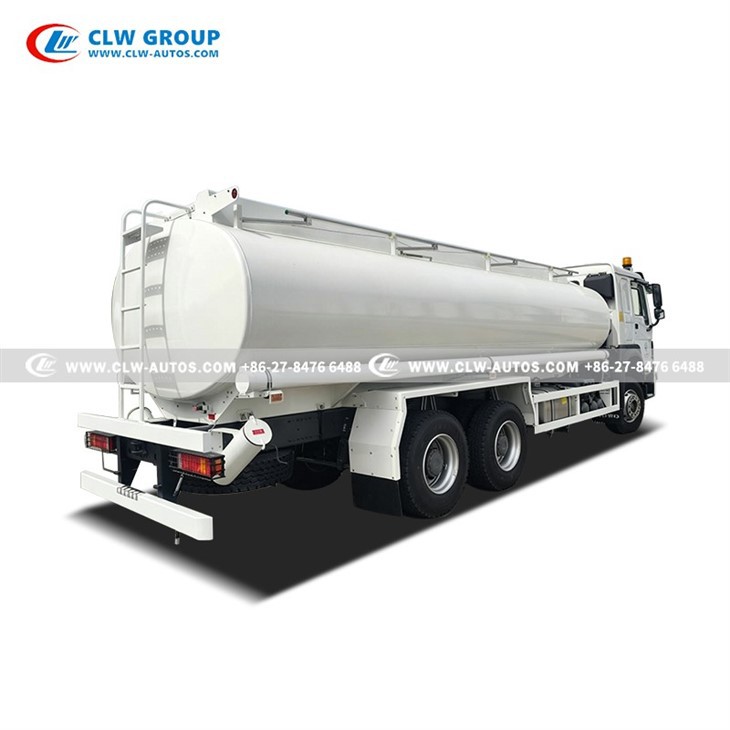

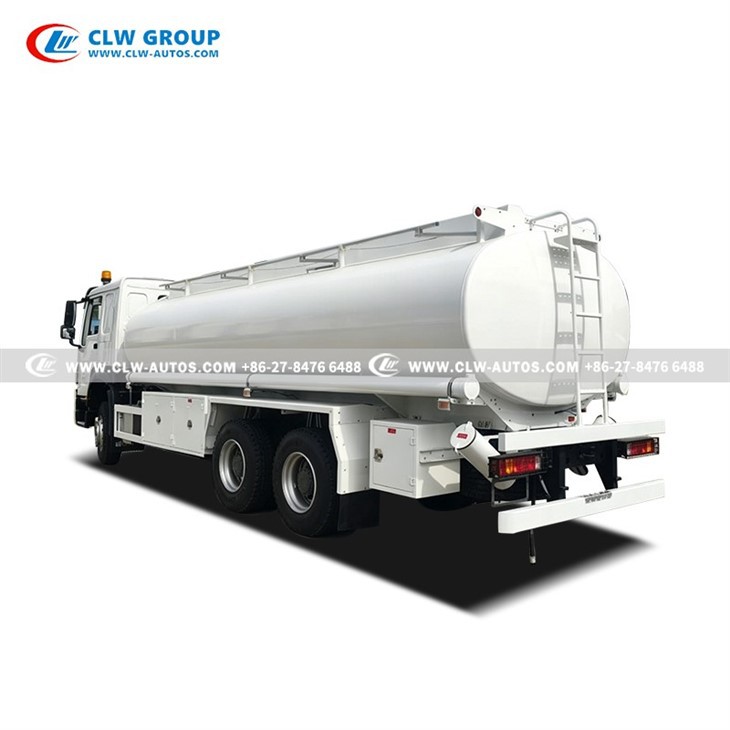

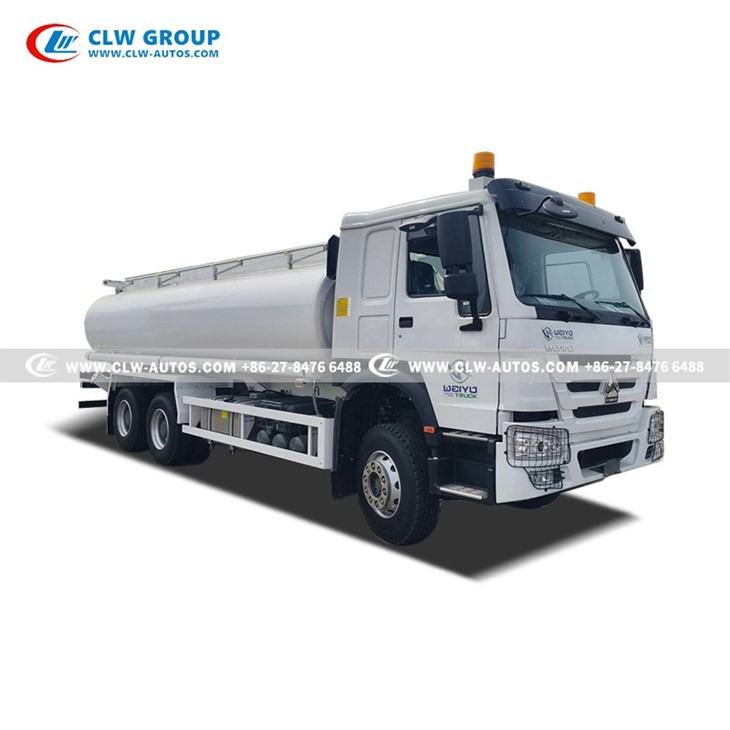

20000L Fuel Dispenser Truck Sinotruk

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20000l fuel dispenser truck sinotruk in China. If you're going to buy high quality 20000l fuel dispenser truck sinotruk, welcome to get more information from our factory. For price consultation, contact us.

mobile Petrol  or Diesel Delivery Tanker truck sinotruk howo 100% made in China Ultimate Bulk Fuel Transport & Dispensing Solution

Across Nigeria, Ghana, Kenya, Tanzania, Uganda, South Africa, and the wider African market, fuel logistics face daily challenges: poor road conditions, long distances to depots, fuel theft, lack of service stations in remote areas, and high downtime costs. The solution is a heavy-duty, high-volume, dispensing-enabled tanker that combines transport and retail fueling in one rugged platform.

The Sinotruk HOWO 340hp 20,000 Liters (20m³) Fuel Dispenser Tanker Truck from CLW Group is exactly that solution. Built on the legendary ZZ1257N4647B1 chassis, with a left-hand drive (LHD) configuration for Nigerian road networks, this truck is not just a fuel carrier – it is a mobile petrol station.

The ZZ1257N4647B1 chassis is not a random choice. It is a proven African workhorse.

CONTACT US BY EMAIL OR WHATSAPP TO GET A QUOTE.

--Shirley Fu

--Mobile:+86-135 4506 4324(whatsApp)--

--Email: shirley@clw-autos.com

• Capacity: 20,000 Liters (20m³ / 20 CBM) – optimal for bulk delivery and direct retail dispensing.
• Engine: WP10.340E22 – 340 horsepower, Euro II compliant, proven in African harsh climates.
• Chassis: Sinotruk HOWO ZZ1257N4647B1 – 6×4 drive, heavy-duty double-layer frame (8+8/300mm).
• Transmission: HW19710 gearbox + HW70 flange PTO – smooth power take-off for pump operation.
• Tank Material: Q235 carbon steel (5mm shell & 5mm dished ends) – durable, repairable anywhere.
• Dispensing System: Censtar high-flow fuel dispenser with English display + English manual.
• Hose Reel: 15-meter heavy-duty auto-return reel with nozzle, mounted on driver side (LHD).
• Bottom Loading: API-compatible dry break couplings – faster, safer, less vapor loss.
• Safety: Emergency pneumatic submarine valves (remote-controlled), anti-spark exhaust (front exit + flame arrestor), grounding reel optional.
• Chassis Safety: No ABS (by request – field repairable in remote areas); high-strength front & rear wheels; reverse buzzer; engine start/stop switch outside cab.
• Comfort: HW76 new-face cab, A/C, fire extinguisher, English instrument cluster.
• Anti-theft: Tools locked inside side toolbox; remaining tools under bunk – standard for Nigeria deliveries.
• Lights & Protection: Head/tail lights with wire mesh guards; side markers; reflective tapes.





product key technologies

20000L FUEL TRUCK

Material: Q235 carbon steel (not stainless – lower cost, field weldable).

Thickness: 5mm shell, 5mm dished heads – exceeds standard for impact resistance.

Design: Single compartment (full tank) – simpler cleaning, faster loading/unloading.

Anti-corrosion: Internal anti-rust coating (optional upon request).

Manhole: Aluminum alloy with integrated breather valve.

Bottom valves: Pneumatic emergency submarine valves (remote control from cab + manual override).

API bottom loading: Standard – connects to modern depots.

Walkway: Grit-coated anti-slip on top of tank – safe for operator.

Ladder: Rear-mounted, not exceeding tank height – safe for overhead clearance.

Tank mounting: Bolted connection to subframe – no weld fatigue





Fuel Refueling System

Pump: Aluminum alloy pump – pump-in & pump-out capable.

Flow meter: Censtar high-flow dispenser, English display, ruggedized for dust.

Hose reel: 15-meter heavy-duty auto-rewind reel, reinforced hose for diesel/petrol.

Nozzle: Automatic shut-off nozzle.

English manual: Included – crucial for local operator training.

Location: Driver side – safe for roadside dispensing without walking into traffic (LHD).



What's Included in This CLW Fuel Truck

• 20,000L Q235 carbon steel tank (5mm/5mm)
• Aluminum alloy manhole cover with breather valve
• Pneumatic remote-control submarine valve (cab + ground override)
• API bottom loading system
• Aluminum pump (pump-in/out)
• Censtar high-flow fuel dispenser (English display + manual)
• 15m auto-rewind reel + nozzle (driver side)
• 2× 8m delivery hoses with camlock couplings
• Top anti-slip walkway + rear ladder
• Side tool box (lockable) + under-bunk tool storage
• Head/tail light wire guards
• Reverse buzzer + exterior start/stop switch
• Fire extinguishers (2 pcs)
• Reflective tapes all around
• 400L fuel tank (for chassis)
• High-strength front & rear wheels
• Rear tow hook
• Standard exhaust with spark arrestor (front exit)

Application

Sector	Use Case
Mining sites	Deliver fuel to excavators, haul trucks – no fixed station needed
Construction camps	Power generators, bulldozers, concrete mixers
Agriculture	Fuel for tractors, irrigation pumps, harvesters
Fuel retail	Mobile station for remote villages without petrol stations
Military/logistics	Forward refueling points
NGO/relief	Emergency fuel supply after floods or conflicts



--fuel dispenser truck for sale in Lagos

--HOWO fuel tanker with pump and meter

-- Sinotruk fuel truck Ghana

1. Largest Tanker Manufacturer in China – Over 8,000 fuel trucks exported yearly to Africa alone.

2. Nigeria-Specific Engineering – Every configuration reviewed with Nigerian road conditions (potholes, overload, dust, heat 40°C+, high humidity, driver habits).

3. No Generic Products – Your tanker is built with:

• Bolt-mounted tank (not welded to subframe) – easy replacement.
• Tool security (side box + under bunk) – prevents theft at night stops.
• Reinforced light guards – Nigeria roads break unprotected lights.
• Front exhaust + spark arrestor – mandatory for NNPC depot access.

4. English Documentation – Instrument panel, dispenser manual, service guide all in English.

5. Spare Parts Availability – CLW stocks HOWO parts in Lagos, Accra, Nairobi, Dar es Salaam.

6. Left-Hand Drive (LHD) Expertise – Many factories focus on RHD for local China; CLW exports LHD to West Africa weekly.

7. Pre-delivery Quality Control – 100% pressure test (tank), pump calibration, hose continuity test, road simulation.

8. Custom Paint & Logo – Your company name, logo, hotline number painted before shipment. Color confirmed before production.
