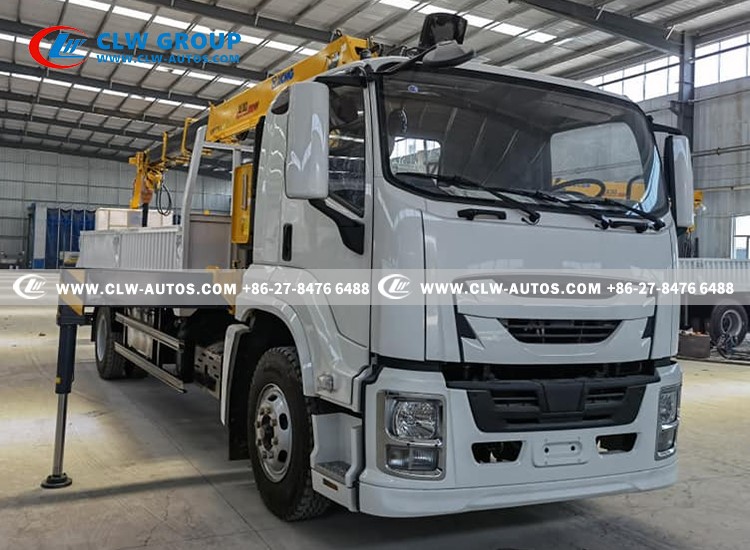

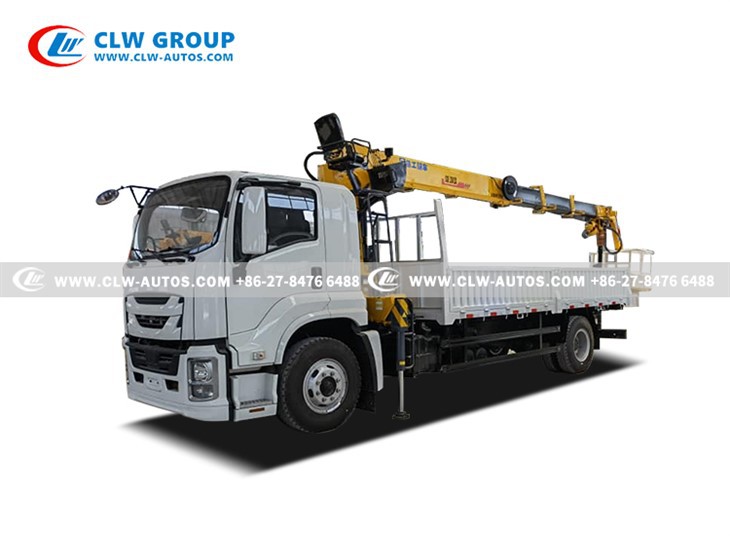

ISUZU Crane Truck With Drilling Rig
Drive Type: 4x2
Engine Power: 205 HP
Crane Max. Lifting Capacity: 8,000kg
Cargo Box Capacity: 10,000kg
Left Hand Drive
ISUZU FTR VC61 Cabin
With High-altitude Suspended Basket
With Drilling Rig
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu crane truck with drilling rig in China. If you're going to buy high quality isuzu crane truck with drilling rig, welcome to get more information from our factory. For price consultation, contact us.

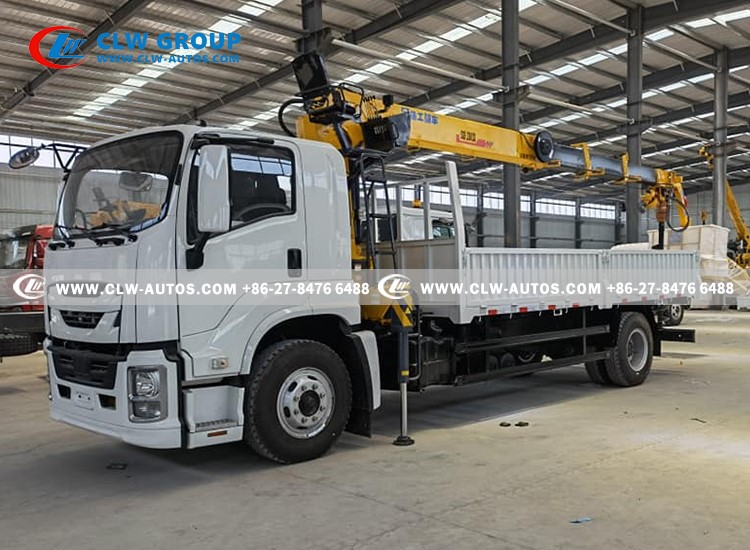

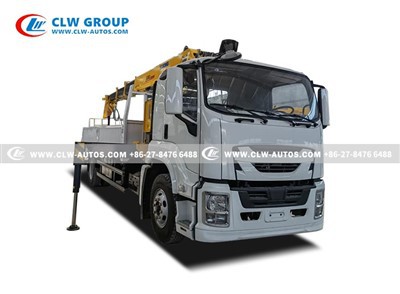

ISUZU FTR 6 Wheels 4x2 Mounted Truck With 8Ton Straight Boom Crane

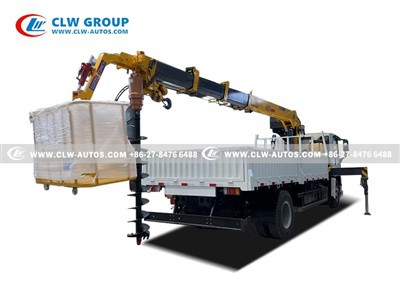

With Drilling Rig / High-Altitude Suspended Basket
product key technologies

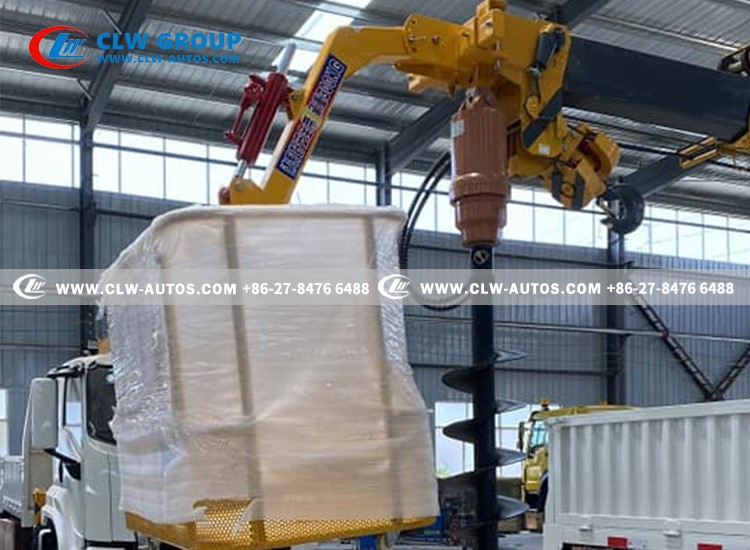

High-Altitude Suspended Basket
- Expands operational functionality: Transforms the truck crane from a lifting device into a multi-purpose platform that safely delivers personnel and tools to elevated work sites.
- Enhances work efficiency: Personnel can be directly transported to elevated work positions, eliminating the need for scaffolding or specialized aerial work platforms.
- Ensures operational safety: Provides a stable platform (300kg capacity secures workers and tools), reducing the risks associated with working at heights.

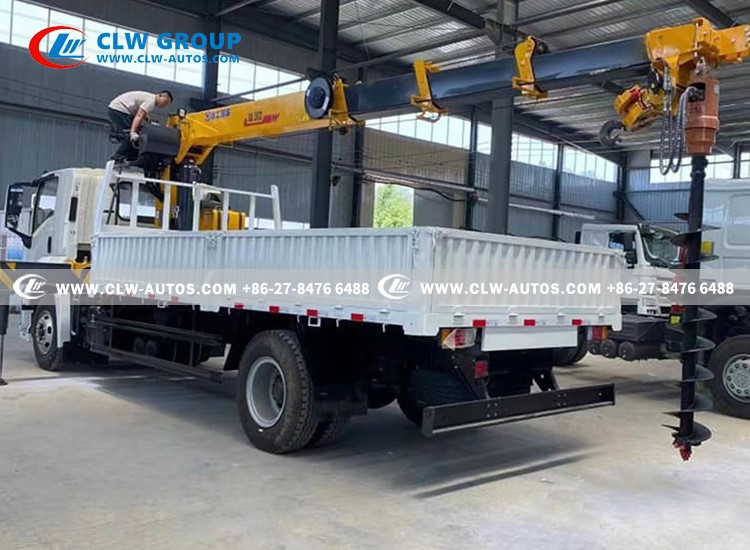

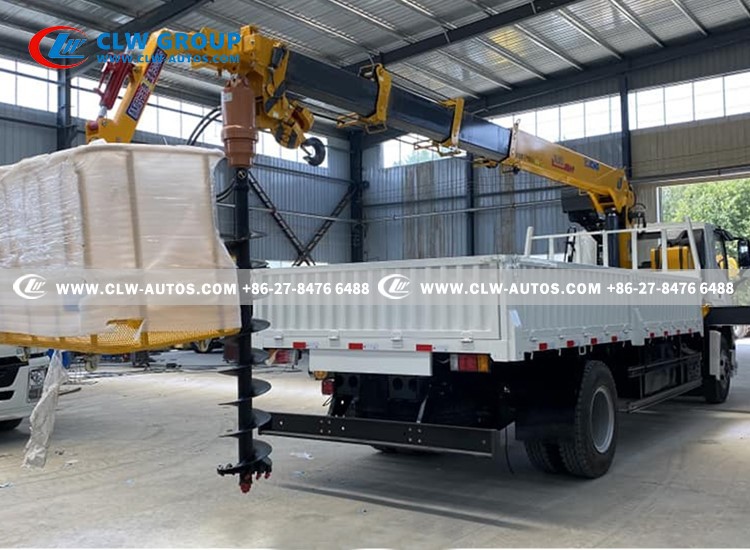

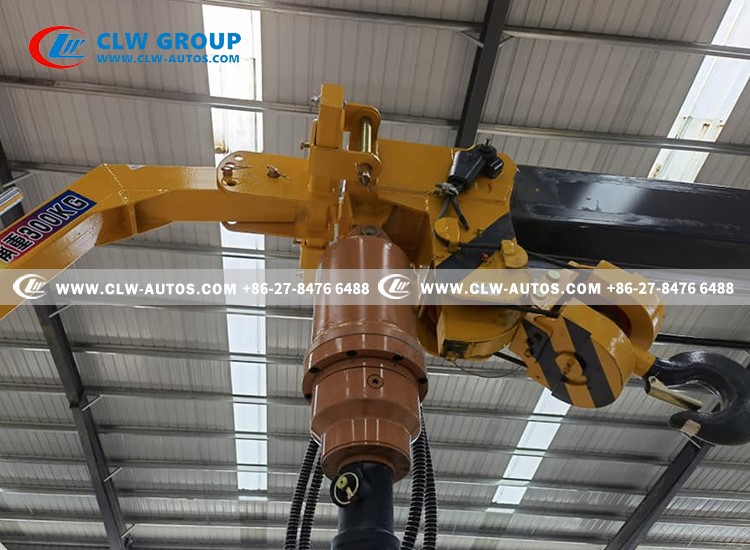

Drilling Rig
- Function integration, multi-purpose machine: Combines lifting and drilling, eliminating the need for additional cranes and drills, greatly enhancing overall functionality and work efficiency.
- Self-lifting and self-drilling, efficient and flexible: The boom precisely positions the drill to work sites like slopes or rough terrain, ideal for complex or confined spaces.
- Cost reduction, increased profitability: Saves costs on separate equipment and hiring, reduces mobilization time, and expands business scope like surveys and piling.
Products Parameters
|
ISUZU Crane Truck With 8Tons Folding Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
10000 x 2400 x 3800 mm |
|
Cab |
|
|
Wheelbase |
6300 mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
8200 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 4HK1-TCG60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5193ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forward & 1 Reverse |
|
|
Fuel Tank Capacity |
220L |
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
6500 X 2300 X 550 mm |
|
Loading Capacity |
10 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|

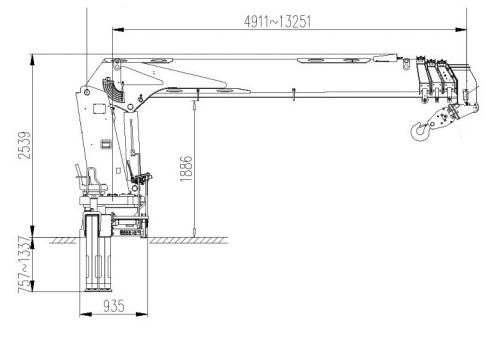

Crane |
|
|
Model |
XCMG - SQZ160 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 4 extendable boom |
|
Crane Type |
Folding Boom Crane |
|
Max. Lifting Capacity |
Effectively: 8000 kg at 2.0 meters |
|
Max. Working Radius |
12.75 meters |
|
Max. Lifting Height |
15 meters |
|
Max. Lifting Moment |
168 kN.m |
|
Max. Oil Flow of Hydraulic System |
40 L/min |
|
Max. Pressure of Hydraulic System |
28 Mpa |
|
Crane Weight |
2960 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
Hydraulic tipper box |
|
Box thickness as required |
|
|
Remote controller is optional |
|
|
Customized logo and color |
|
Chassis Pictures
Features Of ISUZU FTR Crane Truck
ISUZU FTR Chassis
- Mature Powertrain: Typically equipped with an Isuzu 4HK1-TCG61 high-pressure common rail turbocharged diesel engine, with a displacement of 5.2L, delivering robust power and complying with China's National VI emission standards. It is paired with a technologically mature Isuzu manual transmission, ensuring efficient and reliable power delivery.
- Professional Commercial Vehicle Chassis: The FTR is a heavy-duty truck chassis built with a high-strength steel double-layer frame (beam), providing a solid foundation for mounting the superstructure. The 6,300 mm wheelbase is specifically designed as an ideal size for 8-10 ton class truck-mounted cranes.
- Excellent Driving Comfort and Safety: The cab is designed with a human-centric approach, offering a wide field of vision, excellent sealing, and low noise levels. Standard safety features include ABS and exhaust brakes, while some higher-end models are equipped with air brakes, parking brakes, power steering, and other features, ensuring easy and safe driving.
XCMG - 8Ton Straight Boom Crane
- Powerful Lifting Capacity: As a globally leading construction machinery manufacturer, XCMG's cranes boast robust performance parameters. The 8-ton straight-arm crane typically features a large-section pentagonal or hexagonal boom with high bending resistance, strong lifting capacity, and a large working radius (maximum reach exceeding 15 meters).
- Flexible and Efficient Operating System: Hydraulically driven, the crane is operated via manual levers or more advanced electro-hydraulic proportional remote controls, offering fine control, precise handling, and smooth operation. The outrigger configuration, often front H-type and rear double or quadruple box, ensures stable support on various terrains.
- Comprehensive Safety Features: Standard safety measures include relief valves (to prevent hydraulic system overload), balance valves (to prevent accidental boom descent), and wire rope overwind protection devices, ensuring safe and reliable lifting operations.
Advantage of Crane Truck
- Power Performance: A lighter body allows the 205-horsepower engine to propel the vehicle more effortlessly, resulting in better acceleration and climbing performance, with a greater sense of power reserve.
- Braking and Handling: Reduced mass means lower inertia during braking, improving braking effectiveness to some extent and enhancing safety. Additionally, the vehicle becomes more agile and easier to maneuver.
- Tire Wear: Reduced pressure on tires helps extend their service life.
