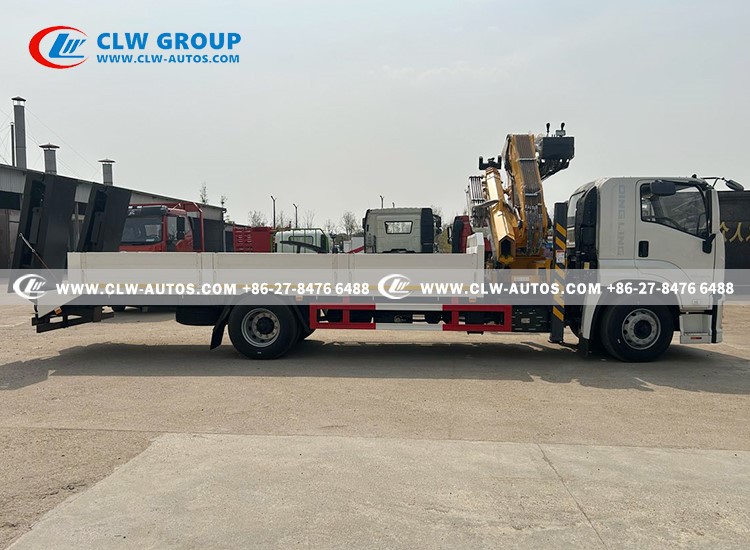

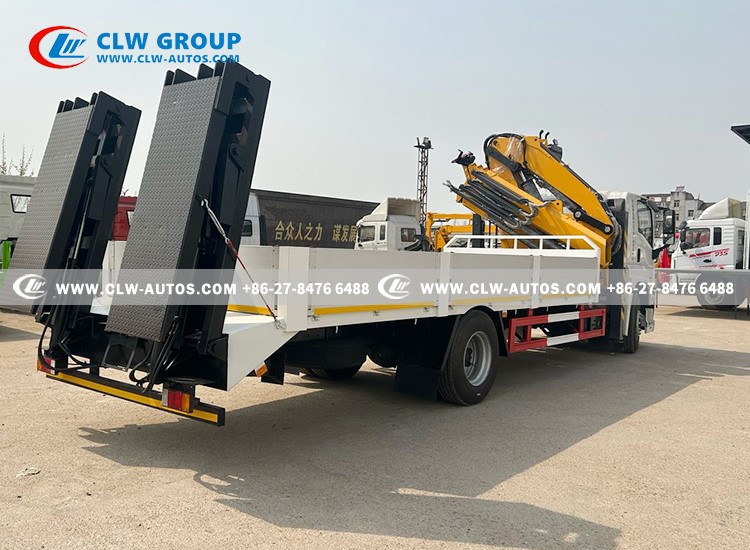

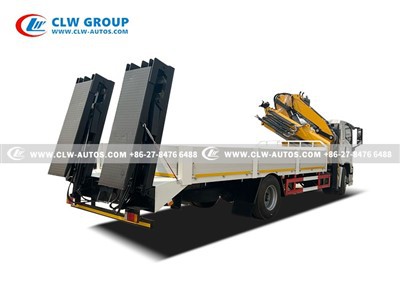

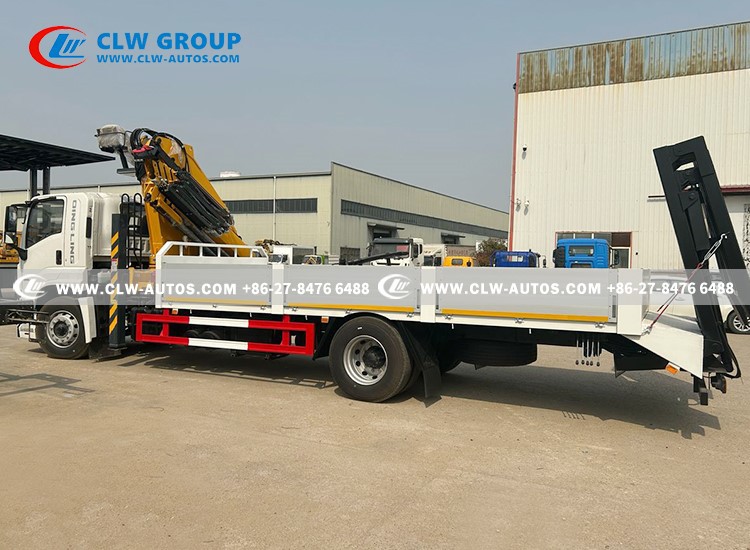

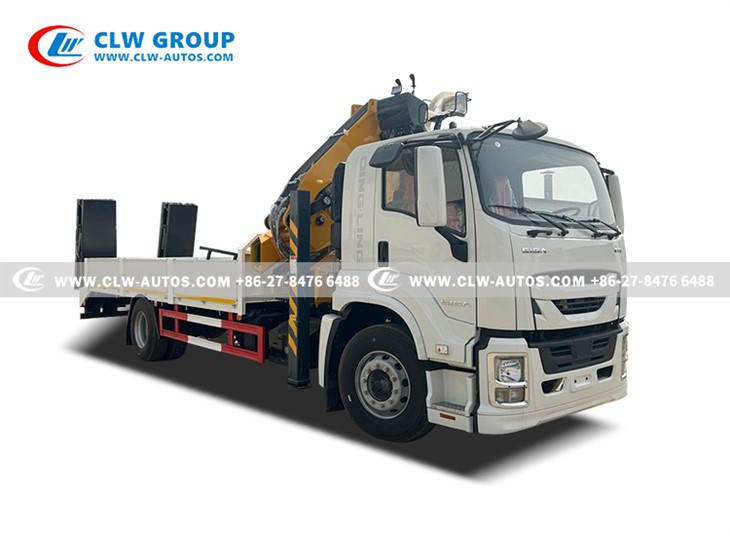

Isuzu 8Ton Crane Truck For Russia
Drive Type: 4x2
Engine Power: 205 HP
Crane Max. Lifting Capacity: 8,000kg
Cargo Box Capacity: 10,000kg
Left Hand Drive
ISUZU FTR VC61 Truck
With Aluminum Alloy Box Plate
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 8ton crane truck for russia in China. If you're going to buy high quality isuzu 8ton crane truck for russia, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FTR 6 Wheels 8Ton Crane Truck With Alumium Alloy Box Plate For Russia
Description for product use
The Isuzu FTR 205-horsepower 8-ton truck-mounted crane is a versatile model tailor-made by Isuzu for the Russian market. With its reliable quality, fuel efficiency, a 6300mm wheelbase that ensures optimal stability and cargo space, and its core capability of self-loading and unloading, it precisely addresses the key pain points of small and medium-sized enterprise owners and individual truck owners in Russia-reducing operating costs and improving operational efficiency. It is a highly competitive and efficient solution.
Efficient Power Matching
Equipped with a 205 hp Isuzu 4HK1 turbocharged engine, it delivers ample low-speed torque, well-matched to the power demands of the 8-ton crane, ensuring efficient lifting and driving.
Exceptional Operational Flexibility
The 8-ton crane features full hydraulic operation, 360-degree rotation, and multiple telescopic boom configurations, enabling flexible lifting operations even in tight spaces for versatile applications.
Excellent Chassis Stability
The 6300mm long wheelbase provides a stable platform for both driving and crane operation, significantly enhancing anti-tip capability and ensuring operational safety.
Reliable and Durable Quality
Built on Isuzu's robust chassis and axle design with high-strength steel, it offers rugged durability, adapting well to heavy-duty and frequent use in demanding conditions with high availability.
Humanized Driving Experience
The spacious, well-sealed, and quiet cab comes standard with air conditioning and air-suspension seats, reducing driver fatigue during long hours of operation.
High Cost-Effectiveness & Low Operating Costs
Isuzu's fuel-efficient engine, combined with high reliability and low failure rates of the powertrain, ensures manageable maintenance costs and a low total cost of ownership (TCO).
product key technologies
Chassis Key Technologies
- Equipped with ISUSU 4HK1 diesel engine, which suitable for transportation in the mountainous underground of Philippines.
- The load range is usually 8~10 tons, the length of the cargo compartment can be customized, and the vehicle has good passing performance.
Crane Key Technologies
- The lifting capacity of the crane covers 3~8 tons, and the arm length is 5~12 meters.
- The crane can rotate 360° to support precise operation inside and outside the cargo compartment.
Products Parameters
|
ISUZU Crane Truck With 8Tons Folding Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
10000 x 2400 x 3800 mm |
|
Cab |
|
|
Wheelbase |
6300 mm |
|
Gross vehicle Weight |
18000 kg |
|
Curb Weight |
8200 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 4HK1-TCG60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5193ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forward & 1 Reverse |
|
|
Fuel Tank Capacity |
120L |
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
6500 X 2300 X 550 mm |
|
Loading Capacity |
10 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|

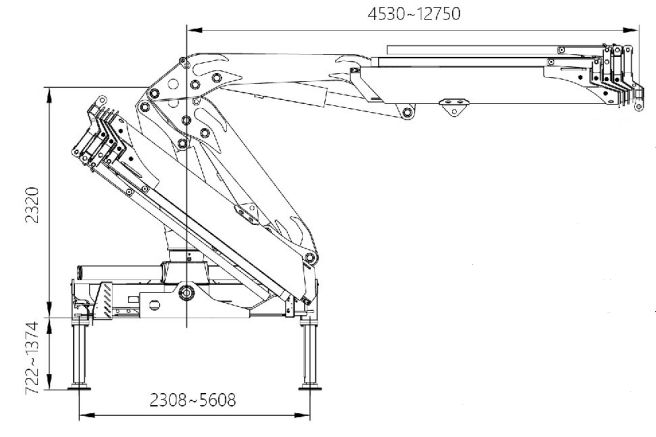

Crane |
|
|
Model |
XCMG - SQZ160 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 4 extendable boom |
|
Crane Type |
Folding Boom Crane |
|

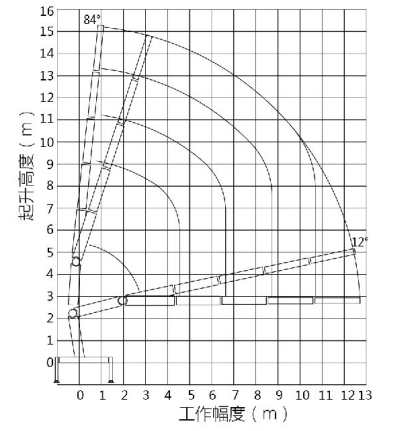

Max. Lifting Capacity |
Effectively: 8000 kg at 2.0 meters |
|
Max. Working Radius |
12.75 meters |
|
Max. Lifting Height |
15 meters |
|
Max. Lifting Moment |
168 kN.m |
|
Max. Oil Flow of Hydraulic System |
40 L/min |
|
Max. Pressure of Hydraulic System |
28 Mpa |
|
Crane Weight |
2960 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
Hydraulic tipper box |
|
Box thickness as required |
|
|
Remote controller is optional |
|
|
Customized logo and color |
|

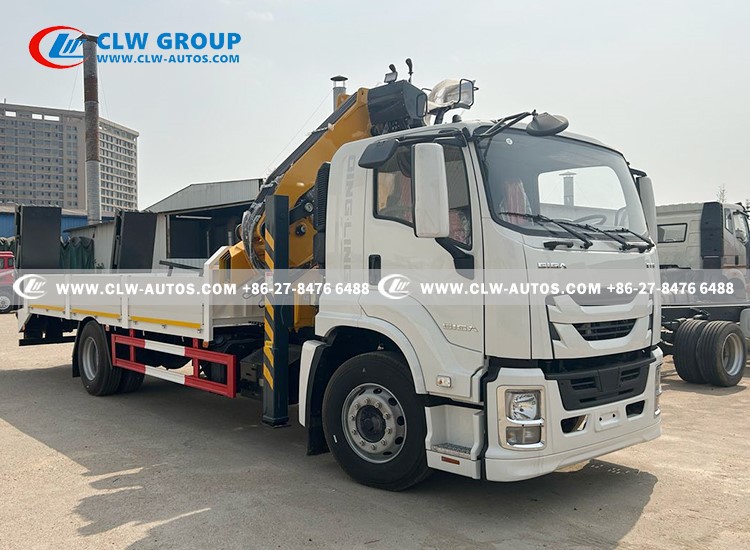

Chassis Pictures

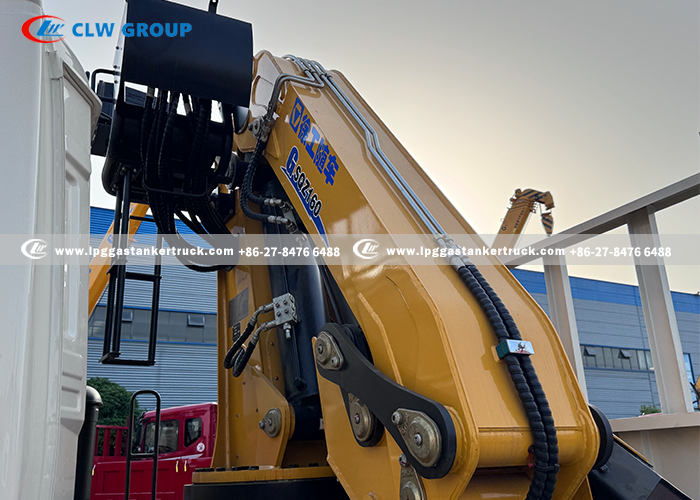

Crane Pictures
Advantages Of Aluminum Alloy Box Plate
Increased Effective Payload & Lighter Body
- The reduced self-weight can be fully converted into additional legal loading capacity. With the total weight limit remaining unchanged, the vehicle can carry over one ton more cargo, significantly boosting profit per trip.
- A lighter curb weight means the engine requires less power output, particularly in scenarios with frequent stops and starts in urban areas or acceleration on national highways, leading to noticeably lower fuel consumption.
Excellent Corrosion Resistance and Durability
- Coping with Russian Winters: Most regions in Russia experience long winters, during which large amounts of de-icing agents (chlorides) are used. These agents are highly corrosive to steel bodies, causing ordinary steel cargo compartments to rust extensively within a few years, reducing strength and compromising both service life and resale value.
- Properties of Aluminum Alloy: Aluminum alloy forms a dense oxide layer on its surface, effectively resisting corrosion from chlorides and humid environments. This means:
- Longer Lifespan: The service life of the cargo compartment far exceeds that of steel counterparts, nearly matching the lifespan of the chassis.
- Better Appearance Retention: The vehicle maintains a newer appearance over time, enhancing the company's image.
- Lower Maintenance Costs: There is no need for frequent anti-rust treatments or repairs, saving both time and maintenance expenses.
Improved Vehicle Performance
- Power Performance: A lighter body allows the 205-horsepower engine to propel the vehicle more effortlessly, resulting in better acceleration and climbing performance, with a greater sense of power reserve.
- Braking and Handling: Reduced mass means lower inertia during braking, improving braking effectiveness to some extent and enhancing safety. Additionally, the vehicle becomes more agile and easier to maneuver.
- Tire Wear: Reduced pressure on tires helps extend their service life.
