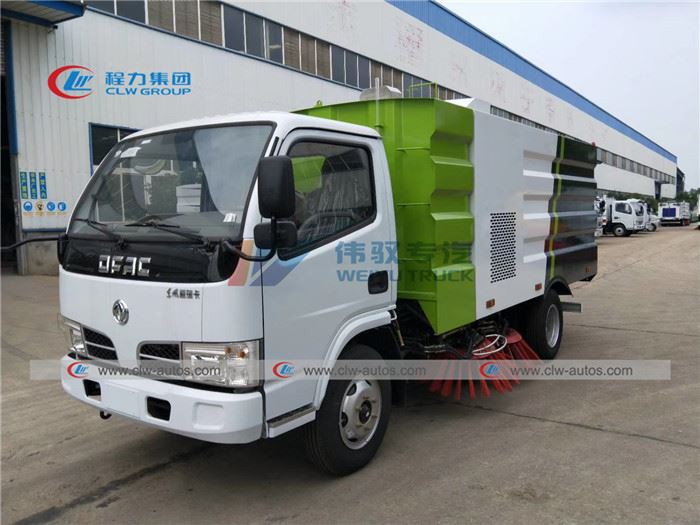

Dongfeng 5cbm Street Sweeper Truck

Truck purpose: street cleaning and dust suction
Sweeper brushes:4 units
Dust Vacuum system behind the tire
Auxiliary ISUZU Engine supply the power to the sweeper and vacuum system

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 5cbm street sweeper truck in China. If you're going to buy high quality dongfeng 5cbm street sweeper truck, welcome to get more information from our factory. For price consultation, contact us.

Feature

1. The garbage bin is made of stainless steel with a filter plate inside, which can effectively prevent light objects such as leaves from blocking the air outlet and dust from being discharged.

2. Anti-corrosion, anti-rust and anti-virus treatment inside the water tank.

3. The cleaning structure of "Center 4 brush + rear suction cup", the front sweeping disk has automatic obstacle avoidance function, and the left and right sweeping brushes can be controlled separately.

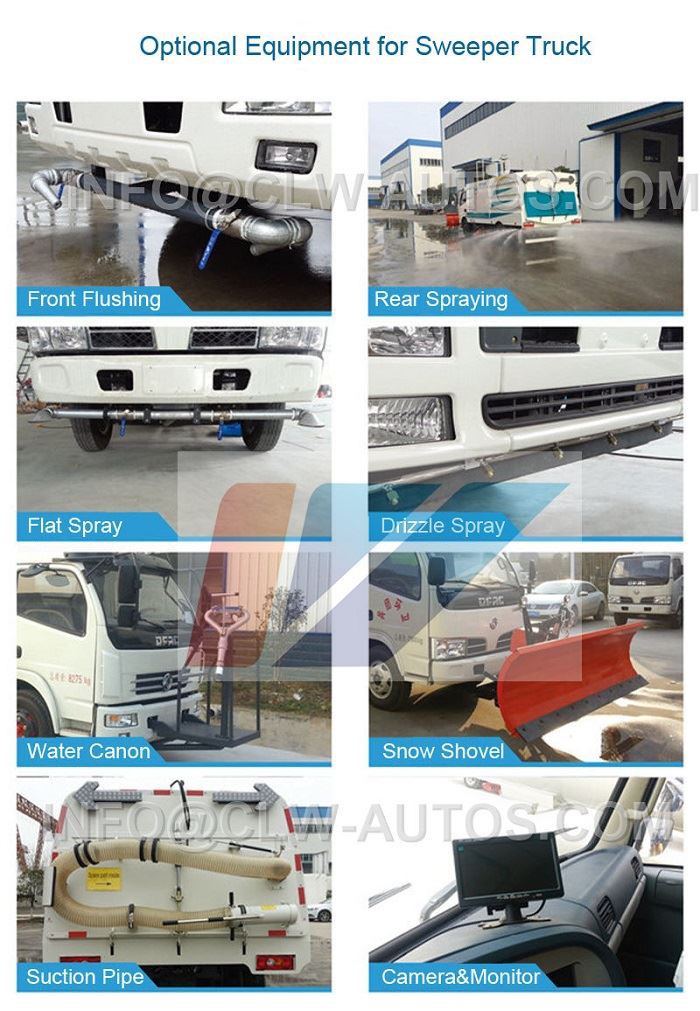

4. According to the user's needs, it can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel, operation monitoring system, auxiliary suction device and snow shovel.

Reference Picture

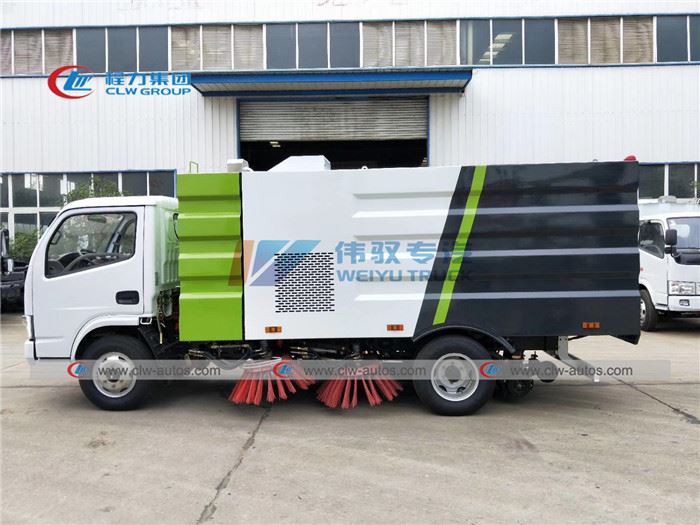

Dongfeng street Sweeper Truck 02

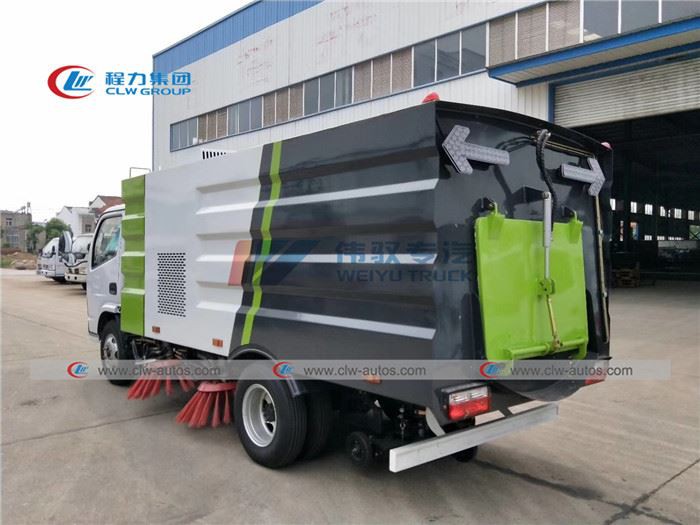

Dongfeng street Sweeper Truck 03

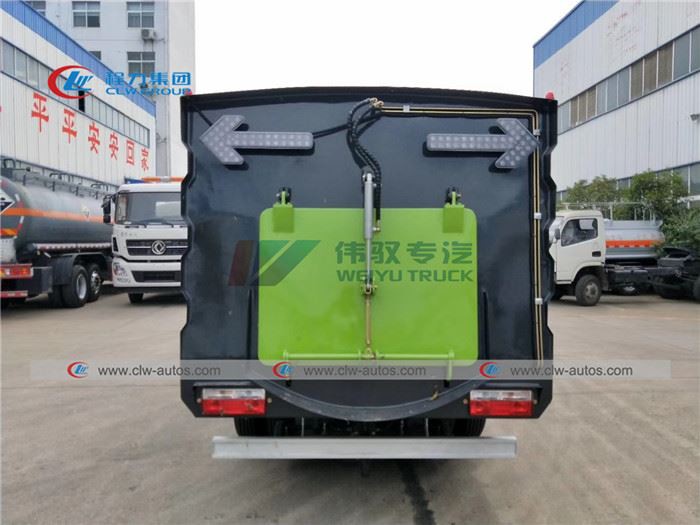

Dongfeng street Sweeper Truck 06

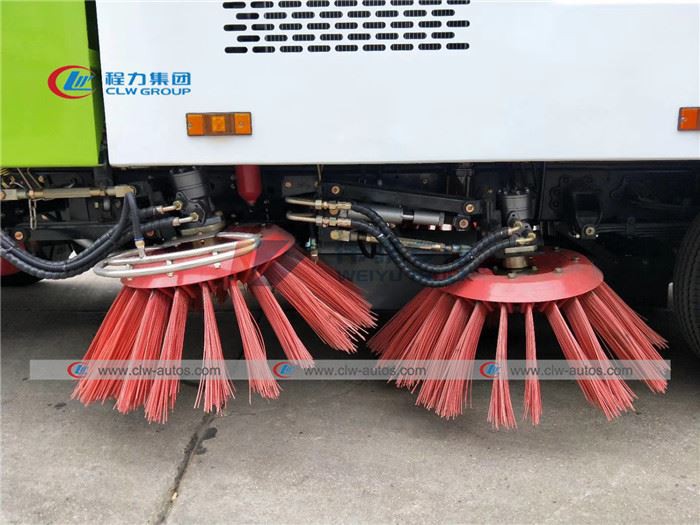

Dongfeng street Sweeper Truck 04

Technical parameter

Shacman Truck Chassis
Condition	New condition/Left hand drive/4x2
Chassis	Brand			Dongfeng
	Curb weight(kg)			4460 kg
	Wheelbase(mm)			3308 mm
	Dimensions(mm)			6200x2000x2590
	Wheel track (front/rear) (mm)			1504/1425
	Approach/Departure angle(°)			24/13
	Axle Load(kg)			5280/4720
	Max. driving speed(km/h)			90 km/h
	Tire	Specifications		6pcs with one spare tire
		Number		7.00R16
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 6 Forwards & 1 Reverse
Cabin	Left Hand Driving, 3 Passenger Allowed
Engine	Model				Diesel Engine
	Power(kw)/Horsepower(HP)				130 HP
	Emission standard				Euro III
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
	Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank		Tank material		Stainless steel 304
			Tank volume(cbm)		4 CBM
	Water tank		Tank material		Stainless steel 304
			Tank volume(cbm)		1 CBM
Auxiliary engine	Model		ISUZU
	Power(kw)		98 HP
Brush	Quantity(pc)		2 pcs
	Working area(m)		2.7-3.2 m
Cleaning	High pressure reel		18 meters
Remarks	1, With water sprayer-bar
	2, Rear vacuum cleaner
	3, Blower
	4, Rear LED pilot lamp
	5, Self unloading box body
	6, The color will be designed on basis of your requirements.
