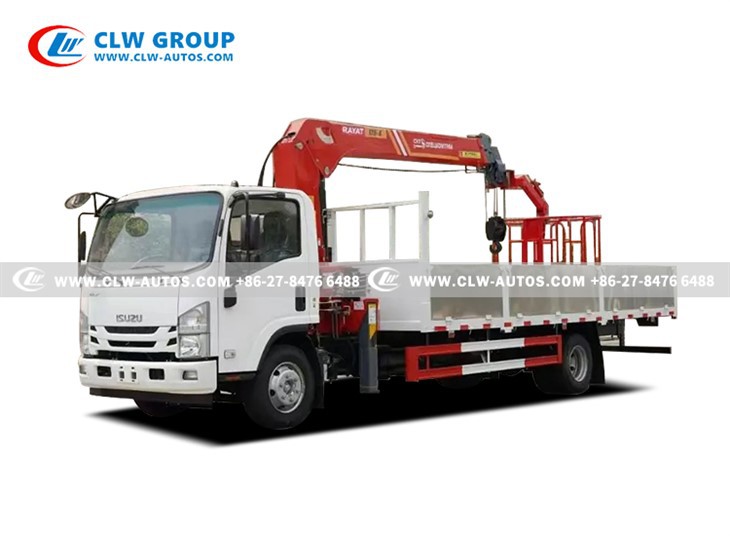

ISUZU 5Ton Crane Truck For Kazakhstan
Drive Type: 4x2
Engine Power: 190 HP
Crane Max. Lifting Capacity: 5,000kg
Cargo Box Capacity: 8,000kg
Left Hand Drive
ISUZU 3X Cabin
With High-altitude Suspended Basket
With Aluminum Alloy Cargo Box Plate
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5ton crane truck for kazakhstan in China. If you're going to buy high quality isuzu 5ton crane truck for kazakhstan, welcome to get more information from our factory. For price consultation, contact us.

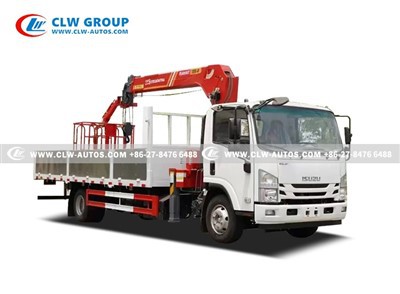

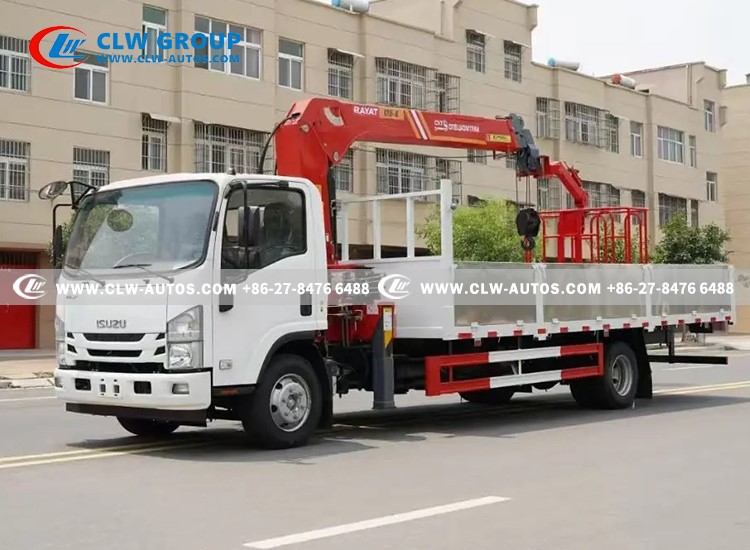

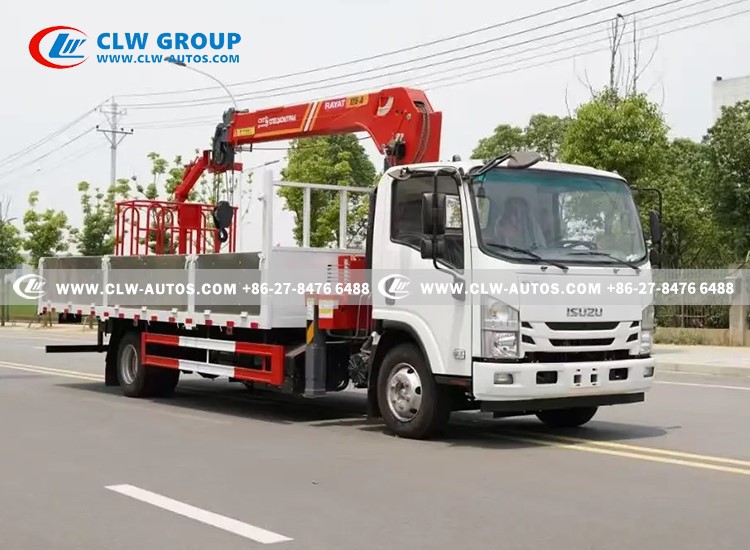

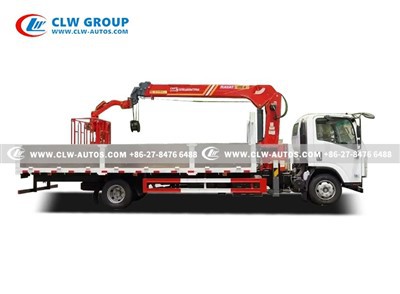

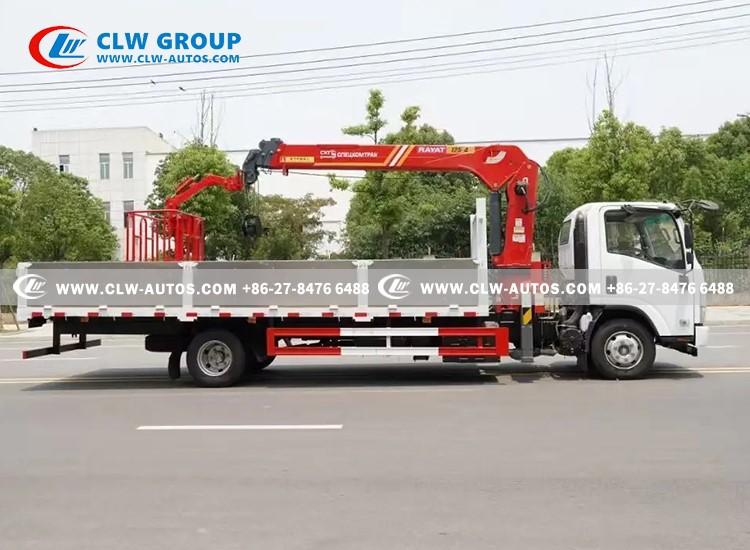

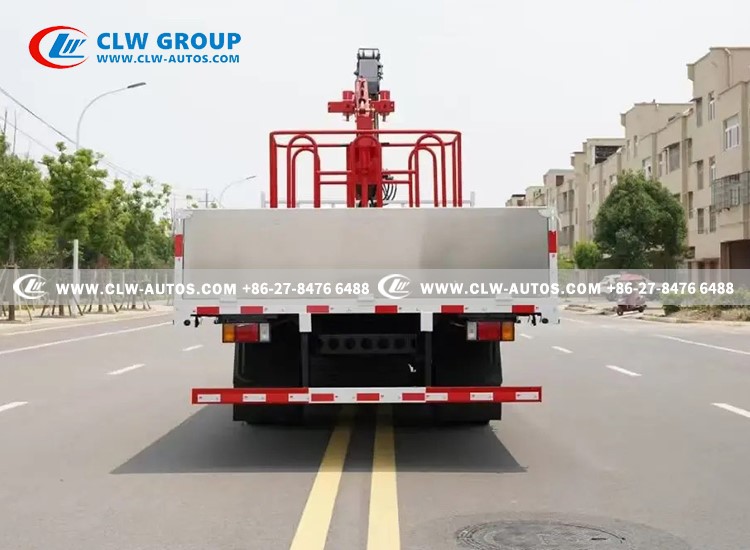

ISUZU 700P 6 Wheels 4x2 Mounted Truck With 5Ton Straight Boom Crane
With Aluminum Alloy Cargo Box Plate / High-Altitude Suspended Basket
product key technologies

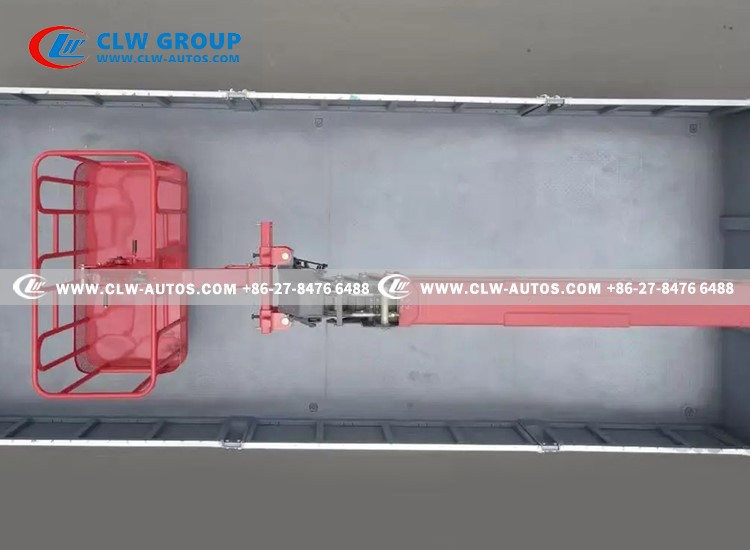

High-Altitude Suspended Basket
- Expands operational functionality: Transforms the truck crane from a lifting device into a multi-purpose platform that safely delivers personnel and tools to elevated work sites.
- Enhances work efficiency: Personnel can be directly transported to elevated work positions, eliminating the need for scaffolding or specialized aerial work platforms.
- Ensures operational safety: Provides a stable platform (300kg capacity secures workers and tools), reducing the risks associated with working at heights.
Aluminum Alloy Cargo Box Plate
- Extreme lightweight design, significantly increasing effective payload and profitability.
- The aluminum alloy surface forms a dense oxide film, effectively resisting corrosion from the atmosphere, rainwater, and especially de-icing agents.
- Aluminum alloy cargo bodies fully meet the load-bearing requirements for conventional goods such as timber, steel, machinery equipment, and building components.
Products Parameters
|
ISUZU Crane Truck With 5Tons Straight Boom Crane |
|
|
Chassis Specification |
|
|
Chassis Model |
QL111 |
|
Driving Model |
4x2 |
|
Dimension |
10000 x 2400 x 3800 mm |
|
Cab |
|
|
Wheelbase |
5200 mm |
|
Gross vehicle Weight |
11000 kg |
|
Curb Weight |
4495 kg |
|
Front Axle Loading Capacity |
4000 kg |
|
Rear Axle Loading Capacity |
7000 kg |
|
Axle Number |
2 |
|
Tire |
235/75R17.5 |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 4HK1-TCG61 |
|
|
Horse power: 190 HP |
|
|
Displacement: 5193ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forward & 1 Reverse |
|
|
Fuel Tank Capacity |
220L |
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
5500 X 2300 X 550 mm |
|
Loading Capacity |
8 Tons |
|
Bottom Thickness |
5 mm |
|
Side Thickness |
3 mm |
|
Material |
High quality Q235 carbon steel |
|

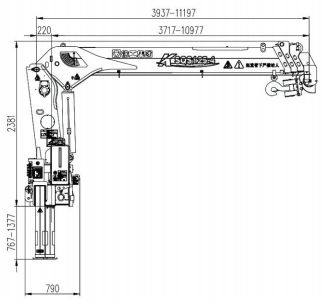

Crane |
|
|
Model |
SQS125 |
|
Working Platform |
360°turning (left or right), H-shape legs 360° |
|
Extendable Boom Section |
1 main boom + 4 extendable boom |
|
Crane Type |
Straight Boom Crane |
|

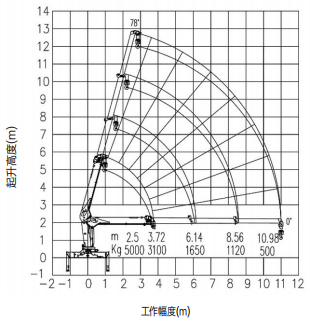

Max. Lifting Capacity |
Effectively: 5000 kg at 2.5 meters |
|
Max. Working Radius |
11 meters |
|
Max. Lifting Height |
12.75 meters |
|
Max. Lifting Moment |
125 kN.m |
|
Max. Oil Flow of Hydraulic System |
90 L/min |
|
Max. Pressure of Hydraulic System |
22 Mpa |
|
Crane Weight |
2100 kg |
|
Landing Leg |
4 Pcs hydraulic handing leg |
|
Optional |
Hydraulic tipper box |
|
Box thickness as required |
|
|
Remote controller is optional |
|
|
Customized logo and color |
|
Chassis Pictures
Features Of ISUZU FTR Crane Truck
Isuzu 700P Chassis (5,200mm wheelbase, 190 HP):
- Exceptional Reliability: Isuzu is a globally renowned manufacturer of diesel engines and commercial vehicles, known for its robust, durable products and low failure rate. In Kazakhstan, where the service network and parts supply might not be as extensive as for European/American brands, reliability is a primary consideration.
- Adequate Power: 190 horsepower is fully sufficient for a truck-mounted crane vehicle with a total weight of approximately 12-15 tons across most plains and hilly areas in Kazakhstan, ensuring good fuel economy.
- Maneuverable Dimensions: The 5200mm wheelbase results in a moderately sized vehicle with excellent maneuverability, making it highly suitable for operation on city streets, industrial parks, and general construction sites, avoiding the access issues associated with overly long vehicles.
Aluminum Alloy Cargo Body:
- Stacked Advantages: As mentioned previously, it brings extreme lightweight design, corrosion resistance, and long service life to this chassis model.escent), and wire rope overwind protection devices, ensuring safe and reliable lifting operations.
Truck-Mounted Crane:
- Versatility: It integrates lifting and transportation functions, solving the "last-mile" loading and unloading challenge and reducing dependence on additional lifting equipment.
