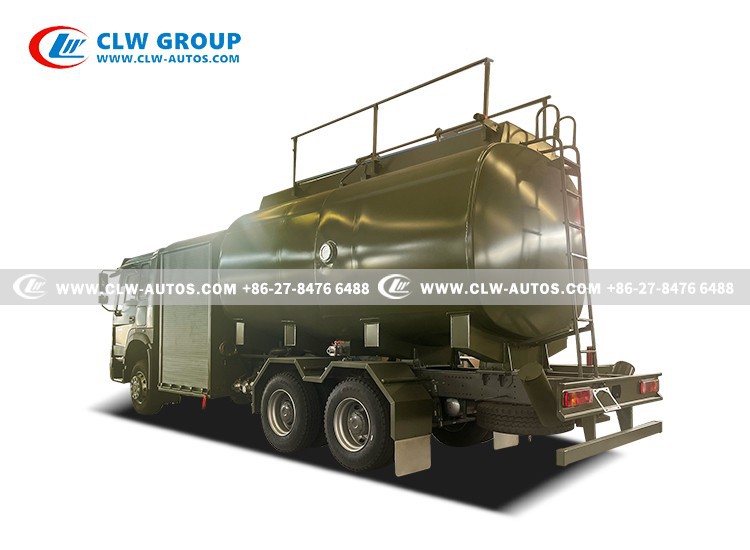

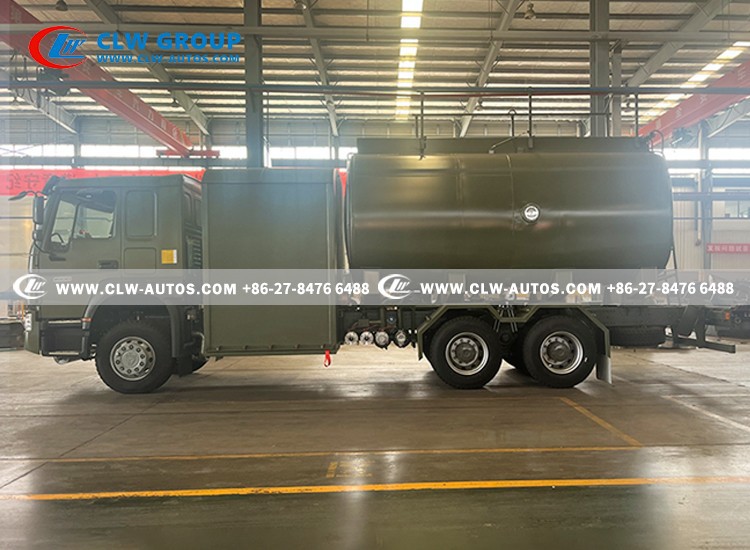

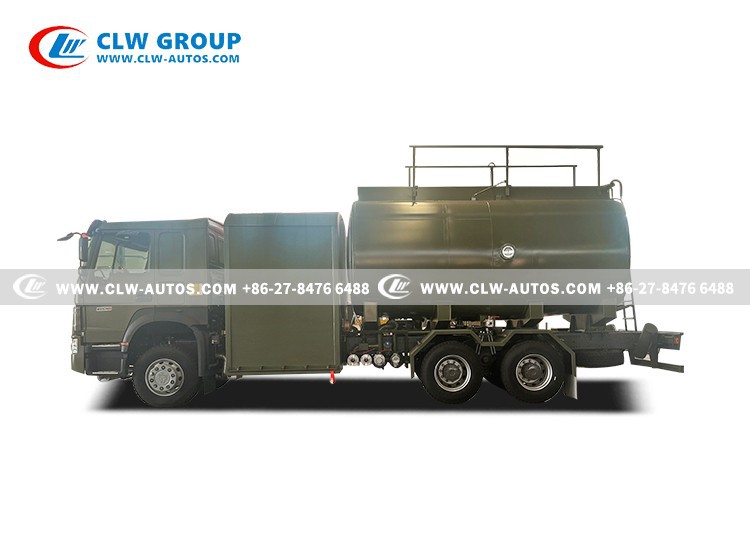

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6x4 20,000 liters jet a-1 refueler vehicle in China. If you're going to buy high quality 6x4 20,000 liters jet a-1 refueler vehicle, welcome to get more information from our factory. For price consultation, contact us.
We Are 100% Straight Factory Manufacturer For Aircraft Refueling Truck Since 2004
The aircraft refueling truck is used for helicopter refueling and mobile transporting aviation keroscene. And it's also called Aviation Jet Refueling truck, aircraft fuel servicing truck, Jet A-1 refueler vehicle, avaition bowser truck, aircraft refueling lorry, Jet refueler truck, etc. The main parts include fuel pump, flow meter and filling gun, and the brands are imported from aboard.
Features:

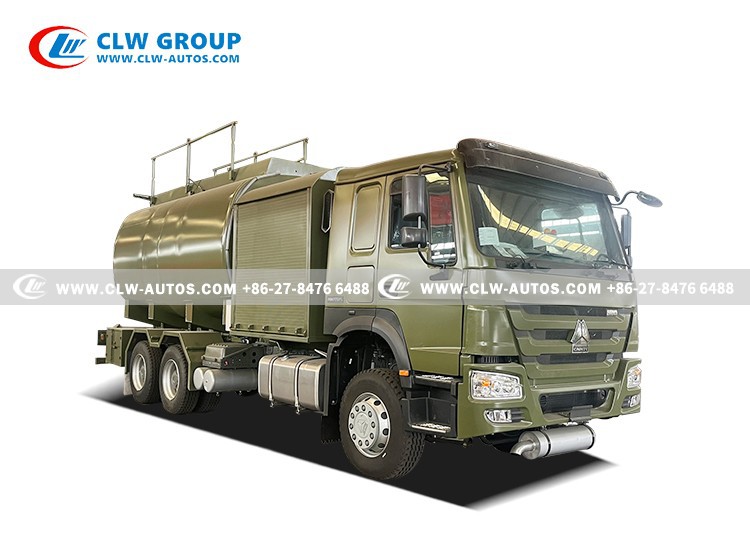

SINOTRUK 6×4 Jet A-1
Explosion-proof design
Leak detection technology
High-flow pumps
Corrosion-resistant tanks
Durability
Corrosion-Resistant Tanks: Made of aluminum or stainless steel for long-term durability.
All-Terrain Mobility: Reinforced chassis and 6x4 options for operations in harsh environments
Enviromental Protection
Vapor Recovery Systems: Capture 99% of fuel vapors to reduce emissions.
Spill Containment: Secondary containment barriers prevent soil/water contamination.
Cost-effective Solutions
Reduce ground crew labor costs by 30% through automated systems. Lower maintenance costs with modular, easy-to-replace components.
High Safety Standards
Explosion-Proof Design: Built with fire-resistant materials and anti-static systems to prevent fuel ignition.
Leak Detection Technology: Sensors monitor fuel lines for leaks, ensuring compliance with aviation safety regulations.
|
Technical Parameter |
||
|
Design standard |
GB18564.1-2006 Tank vehicles for road transport of dangerous liquid goods Part 1: Technical requirements for metal atmospheric pressure tanks |
|
|
Item No. |
Parameters |
|
|
Overall Dimension |
9350x2500x3950 mm |
|
|
Driving Model |
Left hand drive |
|
|
Gross Vehicle Weight |
25000 kg |
|
|
Curb Weight |
10,000kg |
|
|
Payload |
15,000kg |
|
|
Wheel Base |
4600+1350 mm |
|
|
Axle
|
Front Axle |
VGD95,6000kg |
|
Rear Axle |
MCX16ZG,10000kgX2 |
|
|
Suspension |
Front Axle |
1500 mm |
|
Rear Axle |
2445 mm |
|
|
Max. Speed |
≥ 90 km/h |
|
|
Min. Turning Diameter |
19 m |
|
|
Max. Grade-ability |
30% |
|
|
Fuel Box |
400L |
|
|
Engine Model |
WP12.340E201 |
|
|
Engine Type |
4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
|
|
Engine horsepower |
340HP EUROII |
|
|
Max. Torque |
1500N.m |
|
|
Gearbox |
HW19710+HW70 PTO,10-speed forward and 2 reverse |
|
|
Clutch |
Φ430 pull-type diaphragm clutch |
|
|
Cabin |
Standard HW76 cabin with one sleeper 2 Passenger allowed with Air Conditioner |
|
|
Tire |
12R22.5 (10 pcs with one spare) |
|
|
Fuel box |
Aluminum Alloy material |
|
|
Exhaust Pipe |
At front of Cabin for safety |
|
|
Loading Medium |
Aviation kerosene or aviation gasoline |
|
Volume: |
20,000liters |
|
Tank material: |
Tank shell: Aluminum alloy 5182, 5.6mm thickness End plate: Aluminum alloy 5182, 5.8mm thickness Baffles: Aluminum alloy 5182, 5.6mm thickness |
|

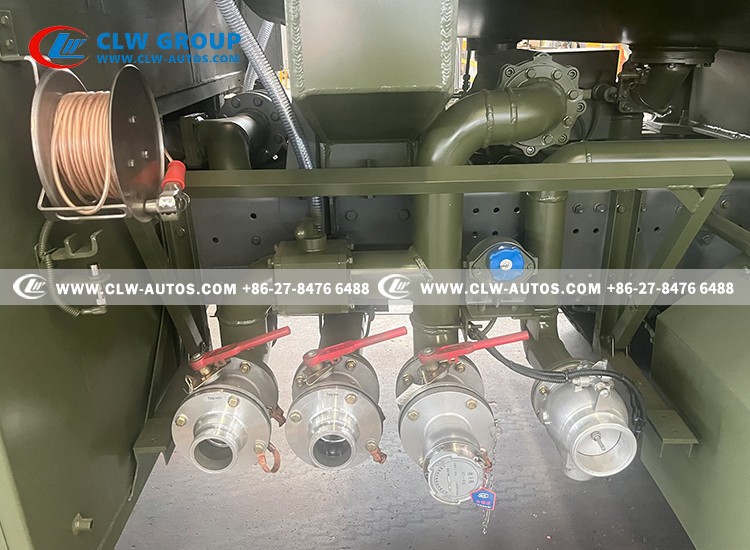

Main equipment |
|
|
Pumping system |
Self-priming centrifugal oil pump, 2500L/min |
|
Filter separator |
2500L/min |
|
Differential pressure gauge |
Equipped |
|
Air eliminator |
Equipped |
|
HEPCV underwing refueling nozzles |
Single tube 1200L/min, double tube 2200L/min |
|
Fuel filling tube |
DN63 |
|
Reel expansion joint |
Equipped |
|
In-line pressure control valve |
Equipped |
|
DeadMan system |
Equipped |
|
Valve |
Equipped |
|
Bypass valve (overflow pipe pressure) |
Equipped |
|
Pneumatic system |
Equipped |
|
Dial gauge |
Equipped |
|
Main valve with Venturi tube |
Equipped |
|
Swivel joint compensator |
Equipped |
|
Flow meter |
2500L/min |
|
Electrostatic reels |
Equipped |
|
High level sensor |
Equipped |
|
Straight through valve |
Equipped |
|
Pipeline fittings |
|
|
Manhole |
European standard aluminum alloy explosion-proof manhole *2 |
|
Breather valve |
4 sets, Aluminum alloy |
|
Bottom loading |
Aircraft fuel coupling |
|
ARVR |
Aircraft refueling vapor recovery |
|
Overflow prevention |
With anti-overflow system |
|
Safety bottom valve |
8-inch seabed valve*1, high-level valve*1 |
|
Fuel truck gun |
DN38 |
|
Hydraulic reel |
20m |
|
Refueling flow |
350L/min |
|
Accessories |
|
|
Roof guardrail |
Segmented lifting guardrail, tank top anti-slip net |
|
Ladder |
Inside and external of the tank |
|
Mudguard |
Factory aluminum alloy integral (module stamping) |
|
Side guard |
Factory-fitted aluminum profiles |
|
Rear bumper |
Factory-fitted aluminum profiles |
|
Fireproofing |
8kg fire extinguisher *2 |
|
Antistatic device |
One electrostatic cable, one electrostatic cable tray |
|
Electrical system |
|
|
Lamp |
24V system, 7-core socket, LED lamp |
|
Circuitry |
Explosion-proof junction box |
|
Wires |
Turn signals, brake lights, reverse lights, running lights and fog lights are installed on the left and right of the rear bumper |
|
All wires are sealed with corrugated pipes |
|
|
Brake system |
Relay valve |
|
ABS system |
|
We also provide different brands of Jet A-1 refueler vehicle, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.
Our advantages:
Scalable tank capacities (5,000 to 50,000 liters) for small airports or mega-hubs.
Regular audit-ready documentation for fuel quality traceability.
360° Visibility: LED lighting and cameras enhance safety during night or low-visibility refueling.
Spill Containment: Secondary containment barriers prevent soil/water contamination.
