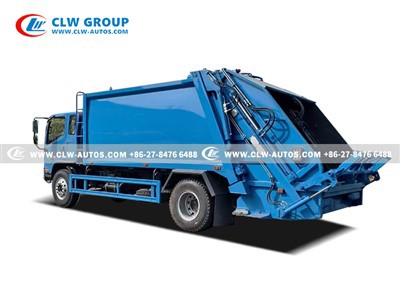

FAW 14m3 Compactor Garbage Truck
Brand:FAW
Driving mode:4x2
Wheelbase:4700mm
Engine:YUCHAI4E160-33
Emission standard: Euro 2
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 14m3 compactor garbage truck in China. If you're going to buy high quality faw 14m3 compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.
FAW 14m3 Compactor Garbage Truck
We Are 100% Straight Factory Manufacturer For Compactor Garbage Truck Since 2004
Products Description
The compactor garbage truck also called Compactor truck/Refuse compactor truck/Rear-loading compactor truck/Front-loading compactor truck/Side-loading compactor truck/Rubbish compactor truck/Waste compactor lorry/Trash compactor truck/Commercial compactor truck/Mechanical compactor truck/Compressed waste collection vehicle/ Pack rat/Crusher truck/ Compactor unit.
Function:
- Waste compaction: Compresses trash to increase load capacity and reduce transport trips.
- Automated collection: Uses hydraulic systems to lift and empty bins, like front or rear loaders.
- Sealed transport: Prevents leakage and odor with enclosed compartments.
Different Uses and Scenarios:
- Municipal waste management: Urban and routine garbage collection
- High-density areas: Cities, residential zones, and commercial districts.
- Hygiene maintenance：Reduces litter and pest risks.
Features:
High-Capacity 14m3 Compactor Garbage Truck
Q345 Carbon Steel Material
FAW 4X2 Compactor Garbage Truck
Heavty Duty Municipal Waste Truck
Low-Noise operation
Cost-Effective Maintenance
High-Performance Yuchai Engine
Powered by a Yuchai 160 HP engine (4.26L displacement) for unmatched torque, fuel efficiency, and reliability in heavy-duty waste management.
Meets stringent emission standards, ensuring eco-friendly operation in urban and industrial environments.
Heavy-Duty Chassis & Axle System
4700mm wheelbase ensures superior stability and maneuverability for large-scale waste operations.
Reinforced axles (front: 3.2T, rear: 11.5T) provide exceptional load-bearing capacity and durability.
Advanced FAST 8-Speed Transmission
FAST 8-speed manual transmission (8 forward + 2 reverse gears) delivers smooth gear transitions, durability, and adaptability to heavy loads.
Ideal for long-distance transport and challenging terrains.
High-Strength Q345 Carbon Steel Body
Arc-shaped garbage compartment constructed with 5mm-thick Q345 carbon steel (sides and floor) for maximum resistance to corrosion, impact, and deformation.
Reinforced structure ensures longevity even under extreme compaction cycles.

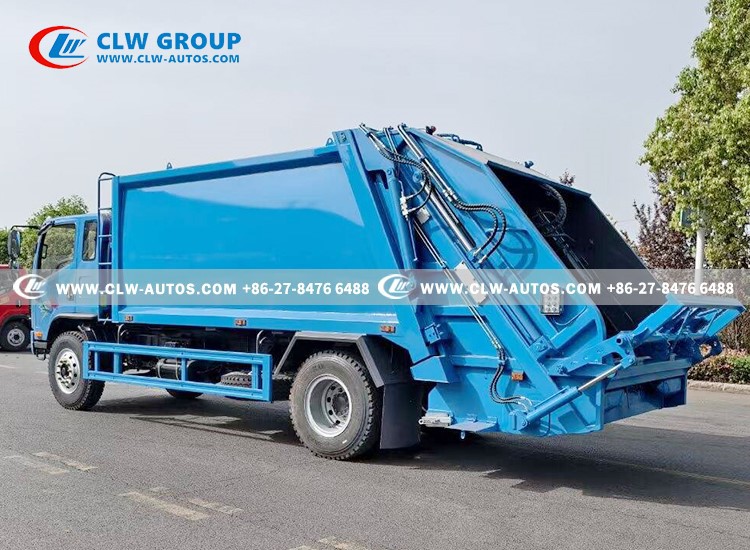

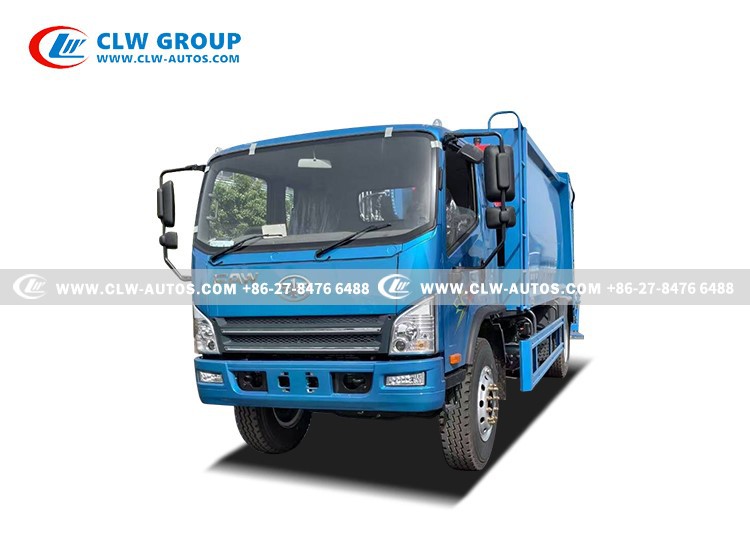

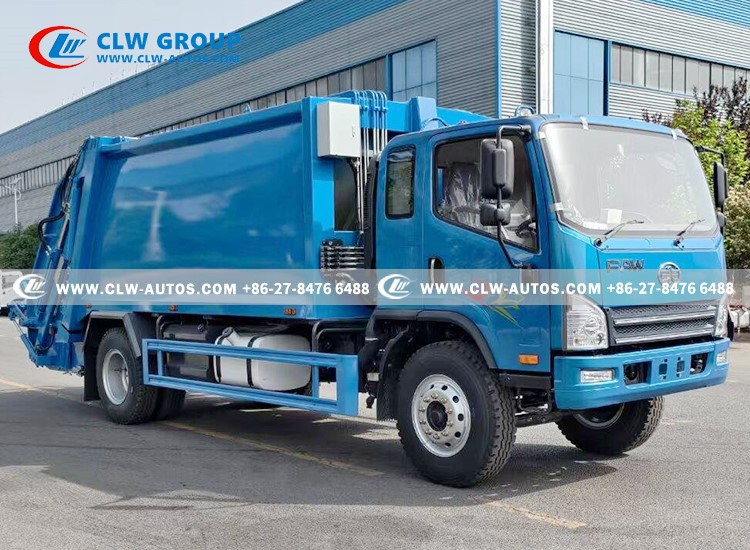

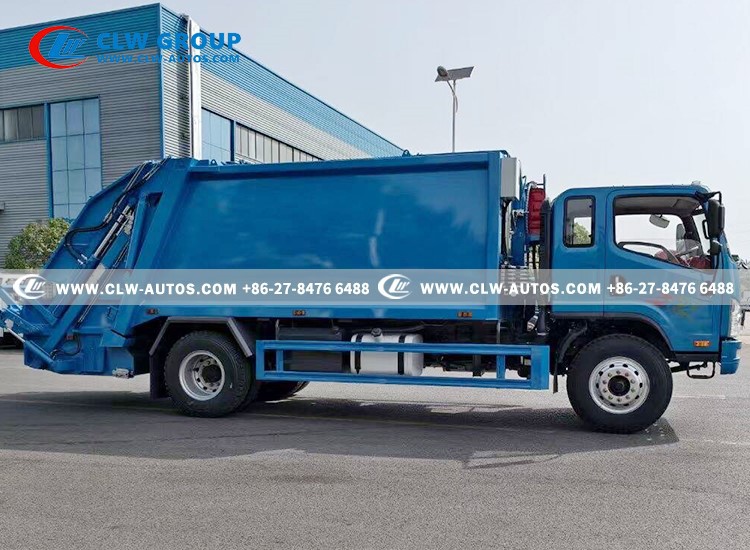

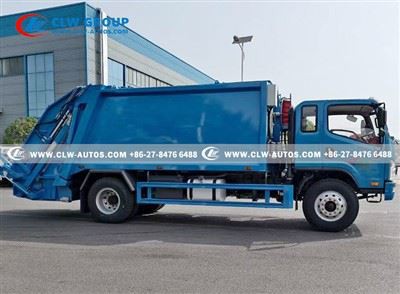

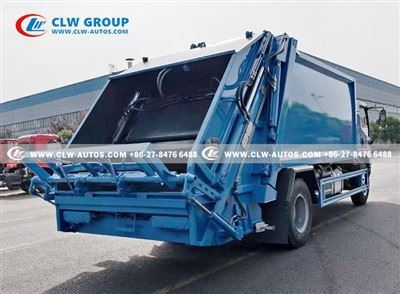

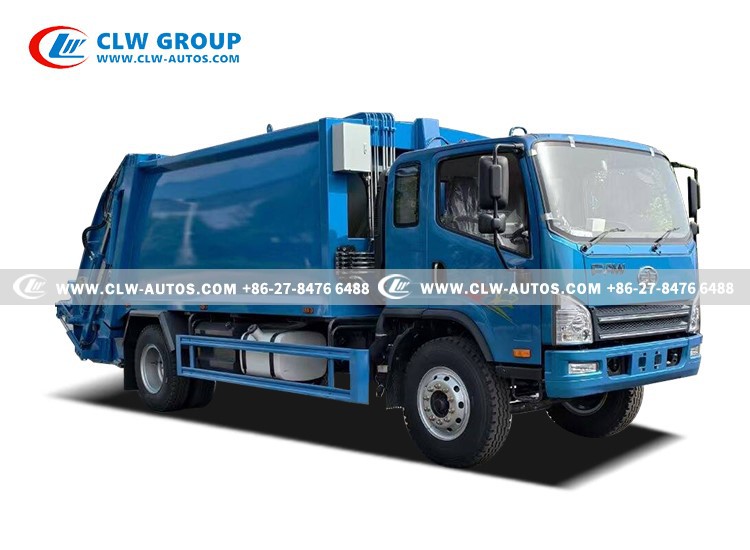

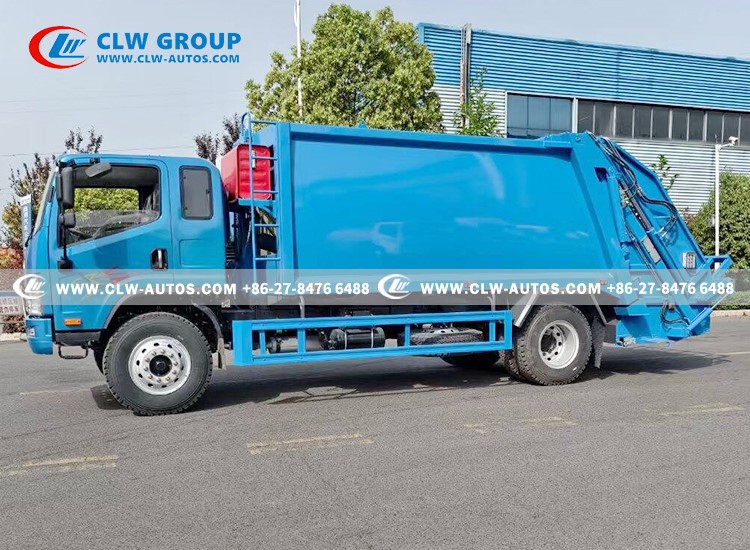

Reference pictures
Products Specification
|
Technical Specification |
|
Chassis model |
CA6160P412L5EYA83 |
|
|
Driving model |
4X2 |
|
|
Cab |
|
|
|
Wheelbase |
4700mm |
|
|
Extenal dimension (L X W X H) |
7500*2500*2950mm |
|
|
Engine |
Model |
YC4E160-33 |
|
Type |
Diesel engine 4 cylinders in a line Vertical, inline, water-cooled, four-stroke, direct injection |
|
|
Horsepower |
160hp |
|
|
Max output power |
118kw |
|
|
Rated rotation |
2600r/min |
|
|
Emission standard |
Euro 2 |
|
|
Displacement |
4.26L |
|
|
Max torque |
520N.m |
|
|
Max torque rated rotation |
1700r/min |
|
|
Gear box |
Manual type FAST 8JS75TC, 8 forward gears and 2 reverse |
|
|
Axle loading (front and rear) |
3.2T ; 11.5T |
|
|
Speed ratio |
6.833 |
|
|
Wheel track |
1800mm |
|
|
Clutch |
Ф350 |
|
|
Fuel box |
200L, iron material |
|
|
Tyre |
10.00R20 18PR |
|
|
Max. driving speed |
95km/h |
|
|
Garbage truck body |
||
|
Garbage Container Size |
14 m3 |
|
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
|
Shape |
Rectangular box, arc-shaped rear |
|
|
Thickness |
Side 5mm, bottom 5mm |
|
|
Filling hopper volume |
0.7 m3 |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤23 s |
|
|
Loading cycle time |
≤10 s |
|
|
Unloading cycle time |
≤45 s |
|
|
Oil pump displacement |
40 ml/r |
|
|
Hydraulic oil box size |
60 L |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Optional device |
|
|
Why do you choose us?
We also provide different brands of compactor garbage Truck, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.
Our advantages:
- High strength steel compactor body resists corrosion and deformation.
- High pressure hydraulic cylinders ensure fast and efficient compaction.
- Fully sealed compression design prevents leakage and odor.
- PLC control system allows for one-touch dumping and compaction.
- Ergonomic cabin design with air conditioning for driver comfort.
- Suitable for household waste, industrial garbage, and landfill transport.
- Optional side-loading, rear-loading, or lift mechanisms for different collection needs.
- Easy-access service points for quick repairs.
- Long lasting components reduce downtime and operational costs.
