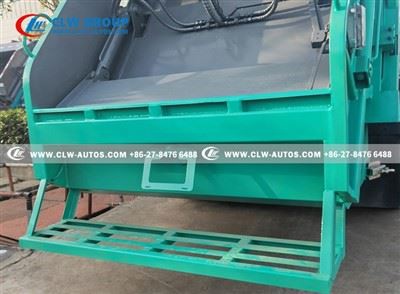

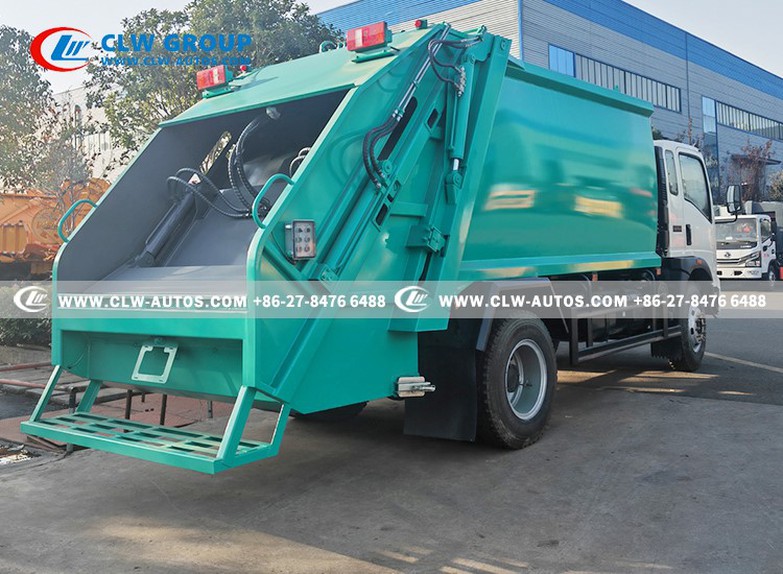

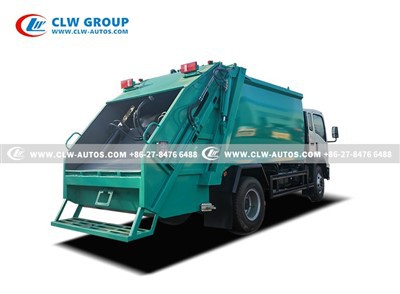

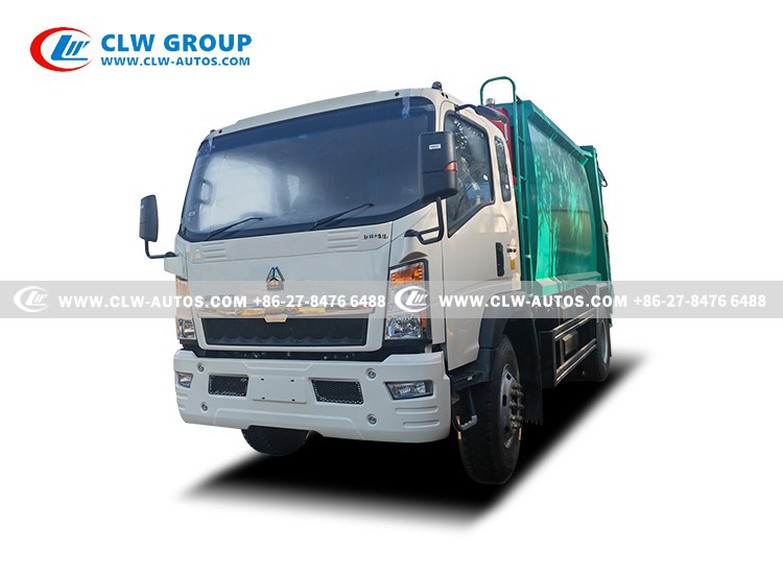

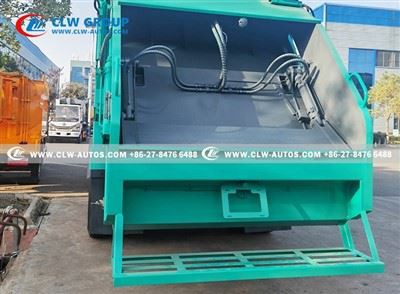

HOWO 12cbm Garbage Compactor Truck
SINOTRUK HOWO truck, 2080 cabin
Yuchai 160HP diesel engine
China Top brand hydraulic cylinder
PLC control system
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 12cbm garbage compactor truck in China. If you're going to buy high quality howo 12cbm garbage compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
HOWO 12cbm Garbage Compactor Truck
The compressed garbage truck consists of a sealed garbage bin, hydraulic system, and operating system. The whole vehicle is fully sealed, and the sewage generated to prevent secondary pollution during garbage transportation. CLW Group has more than 20 years experience design and produce garbage trucks. Our engineer continuously improving according to customer needs.
Waste compression truck feature:
* The garbage tank is made by high intense Q235b carbon steel, 5mm thickness
* The compression mechanism consists of a pressure plate welded with steel plates and channel steel, a guide wheel, and an oil cylinder seat. Under the push of the oil cylinder, the garbage in the hopper is compressed into the chamber. Compression cycle time: 20-25s, compression density: 0.7 t/m3.
* The unloading mechanism is composed of a unloading oil cylinder and a unloading push plate. The unloading push plate is welded from a steel plate and a bracket, positioned by a guide groove, and pushed out by the extension of the oil cylinder to discharge garbage. unloading garbage is: less than 40s
* PLC control system: left & right control panel at rear part of truck, operation hanle at side of the truck, control panel at driver cabin
* Rear loading : lifting mechanism working with 120L/240/600L plastic garbage, can be customized as per customer's request
Weekly Maintenance tips:
Compression system and chassis:
1. Regularly check the compressor, compression cylinder, hydraulic system and other key components of the compressed garbage truck to keep them clean and perform lubrication maintenance.
2. Regularly check the bolts at the chassis connection parts to ensure that they are tightened reliably to prevent failures caused by looseness.
3. Clean the chassis and waste box of the compressed garbage truck regularly to avoid odor and corrosion caused by waste residue.
Long term Maintenance tips:
- Change hydraulic oil every six months
- Clean sewage tank regularly
- Grease the grease fitting and the slide inside the garbage bin can every week.
- Cean the sticky garbage and debris on the hydraulic cylinder to avoid the dust ring or oil seal of the oil cylinder is damaged.
-
Clean the engine fuel filter, air filter, and engine oil Filters, hydraulic system air filters regularly.
| HOWO 12cbm Garbage Compactor Truck | |||
| Condition | New condition/Left or Right hand drive/4X2 | ||
| Chassis | Brand | SINOTRUK HOWO | |
| Curb weight(kg) | 950kg | ||
| Wheelbase(mm) | 4200mm | ||
| Dimensions(mm) | 8250*2490*3250 mm | ||
| Axle Load(kg) | 3200/8000 kg | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | air brake | ||
| Steering Gear | Power assistant | ||
| Tire | Number | 6pcs with one spare tire | |
| Specifications | 8.25R20 | ||
| Transmission | Manual type, 10 Forwards and 2 Reverses, HW90510C2 | ||
| Cabin | 1080 cabin, It can accommodate three people, With Air conditioner. | ||
| Engine | Brand | Yuchai | |
| Model | YC4E160-33 | ||
| Horsepower/(HP) | 160 HP | ||
| Emission standard | Euro II | ||
| Upper Body | |||
| Item No. | Parameters | ||
| Volume Capacity(Garbage) | 12.0 CBM | ||
| Thickness of the tank | 5mm for the bottom and 5mm for the side carbon steel | ||
| Sewage tanker(one side of the truck) | 200 L | ||
| Tail gate volume(L) | 600L(Filling structure) | ||
| Rated Pressure of Hydraulic system: 16 Mpa | |||
| Filling time of loading system: 8-10 s | |||
| Specification | Working cycle of Loading system: 50-60 s | ||
| Working cycle of the unloading system: 30-40 s | |||
| Compress ratio:0.6:0.7 | |||
| Equipped with hermetic dustbin, hydraulic system and operating system. | |||
| Automatic compress and uninstall, sewage can be collected by the sewage tank. | |||
| Equipment | Control system: China top brand operate system. | ||
| Painting and Logo | As customer's requirement | ||
| Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, | ||
| Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder | |||
Equipment |
1. Emergency triangle 2. Standard set of tool and keys 1 set |
||
| Warranty | One year for major component such as engine, gear box, and alxes | ||
| Service |
1. English user manual 2. English operation video ( or any other language ) |
||
Contact Alice for quick inquiry +86 180 7154 2196(whats app)
You can also choose different loading type for the garbage compactor truck
