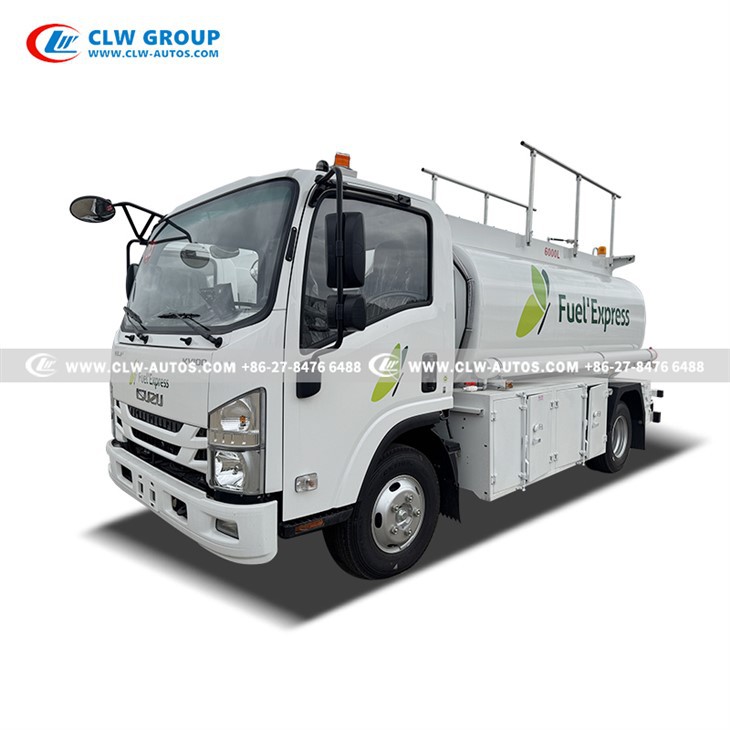

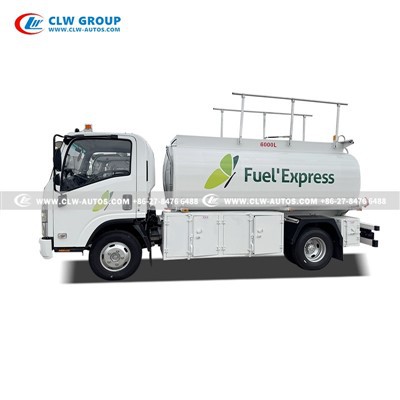

ISUZU KV100 6CBM Refueling Truck
Drive Type: 4x2
Engine Power: 120 HP
Tank Capacity:6,000Liters,6CBM
With Fuel Dispenser
With Reel Hose
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu kv100 6cbm refueling truck in China. If you're going to buy high quality isuzu kv100 6cbm refueling truck, welcome to get more information from our factory. For price consultation, contact us.

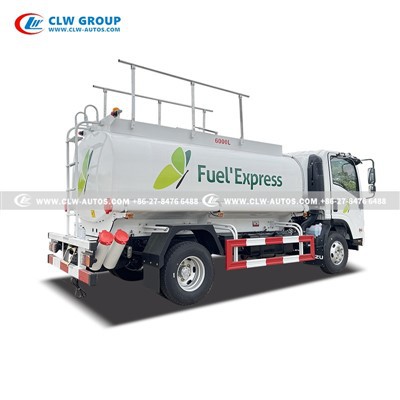

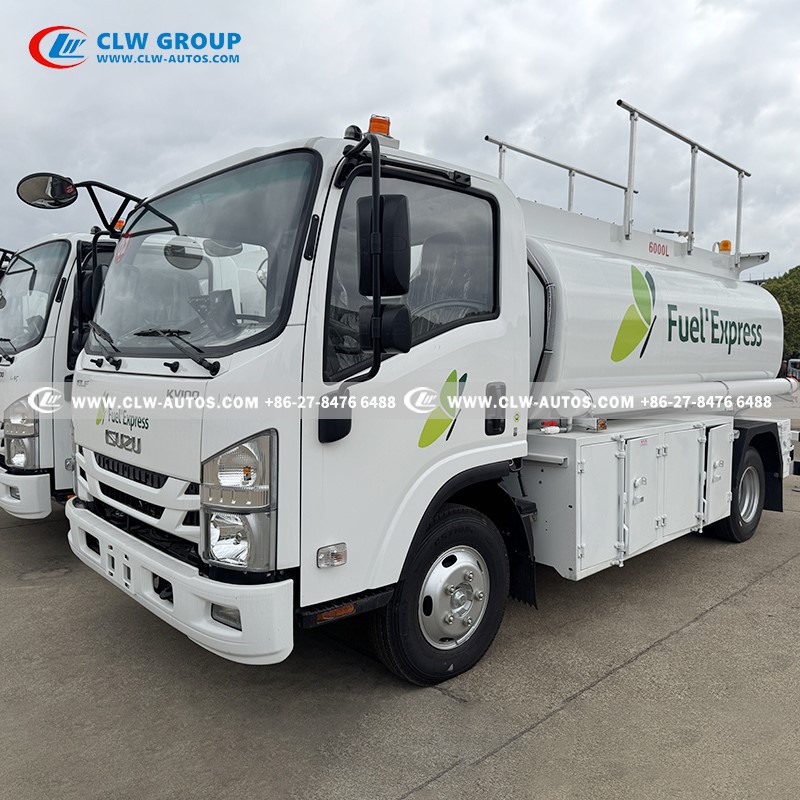

ISUZU KV100 4X2 6,000Liters Refueling Truck For Fuel Express
Products Description
🚛 Vehicle Overview

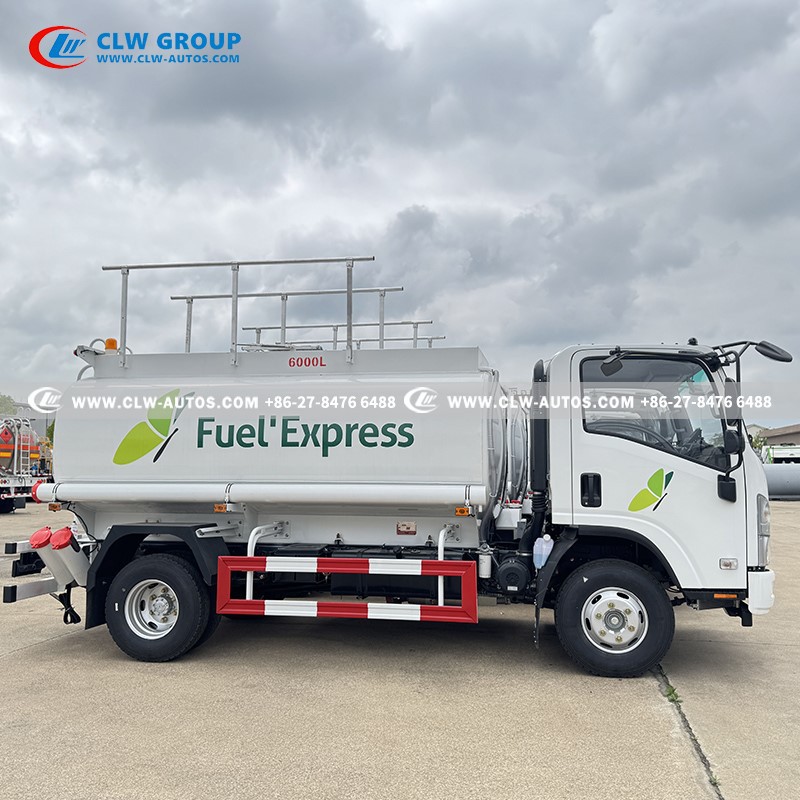

- This is an ISUZU KV100 chassis-based 6000L small mobile refueling truck (oil transport vehicle), belonging to the Fuel Express brand. It is a dedicated oil tank truck for finished oil transportation and onboard refueling, commonly used for internal diesel/gasoline refueling at construction sites, factories, and fleet depots.
📌 Applications and Scenarios
- Primary uses: Refueling construction machinery, internal refueling for logistics fleets, self-supply refueling on farms and mines, and small-scale fuel distribution.
- Compliance reminder: This type of vehicle is classified as a dangerous chemical transport vehicle and requires a full set of hazardous materials vehicle plates, operating permits, and qualified drivers and escorts. Daily parking and operations must strictly follow safety management regulations for flammable and explosive oil products.
Products Parameters
|
ISUZU KV100 6CBM Fuel Tank Truck |
||
|
Chassis Specification |
||
|
Chassis Model |
QL104 |
|
|
Driving Model |
4x2 |
|
|
Dimension |
8000 x 2400 x 3500 mm |
|
|
Cab |
|
|
|
Wheelbase |
3360mm |
|
|
Gross vehicle Weight |
4000 kg |
|
|
Front Axle Loading Capacity |
2500 kg |
|
|
Rear Axle Loading Capacity |
4800 kg |
|
|
Axle Number |
2 |
|
|
Tire |
7.00R16 |
|
|
6pcs with 1 spare tire |
||
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
|
Model: 4KH1CN6LB |
||
|
Horse power: 120 HP |
||
|
Displacement: 2999ml |
||
|
Emission standard: Euro 6 |
||
|
Transmission |
Model: ISUZU |
|
|
5 Forward & 1 Reverse |
||
|
Fuel Tank Capacity |
100L |
|
|
Upper structure parameter |
||
|
Fuel tank capacity |
6m3/6,000liters |
|
|
Tank material |
Carbon steel/ Stainless carbon/ Aluminum alloy |
|
|
Compartment No. |
ONE |
|
|
Fuel dispenser |
|
|
|
Oil pump |
2 Nos of 2.5'' Oil pumps, driven by TPO Independent pump in and pump out for each compartment |
|
|
Filling hose |
|
|
|
Filling hose reel |
2 Nos |
|
|
Filling nozzle |
2 Nos |
|
|
Manhole cover |
2 sets with breath valves |
|
|
Bottom valve |
2 sets of APL aluminum pneumatic bottom valves |
|
|
Level gauge |
Each tank top is equipped with an electronic level meter |
|
|
Operation compartment |
Located at rear of truck with aluminum alloy door |
|
|
Control system |
|
|
|
Others |
2 sets of 4kg extinguishers 1 set of static belt |
|
|
Painting |
Color and design as customer's requirement |
|
|
Special design |
Tank body is covered by carbon steel van |
|
Products Description
Chassis Load Capacity
- Built on the ISUZU KV100 light truck chassis, offering reliable power and lightweight design for strong mobility in urban areas and construction sites, with compliant load capacity suitable for a 6m³ volume.
- Tank rated volume: 6000L (6m³), suitable for transporting flammable fuels such as gasoline and diesel.

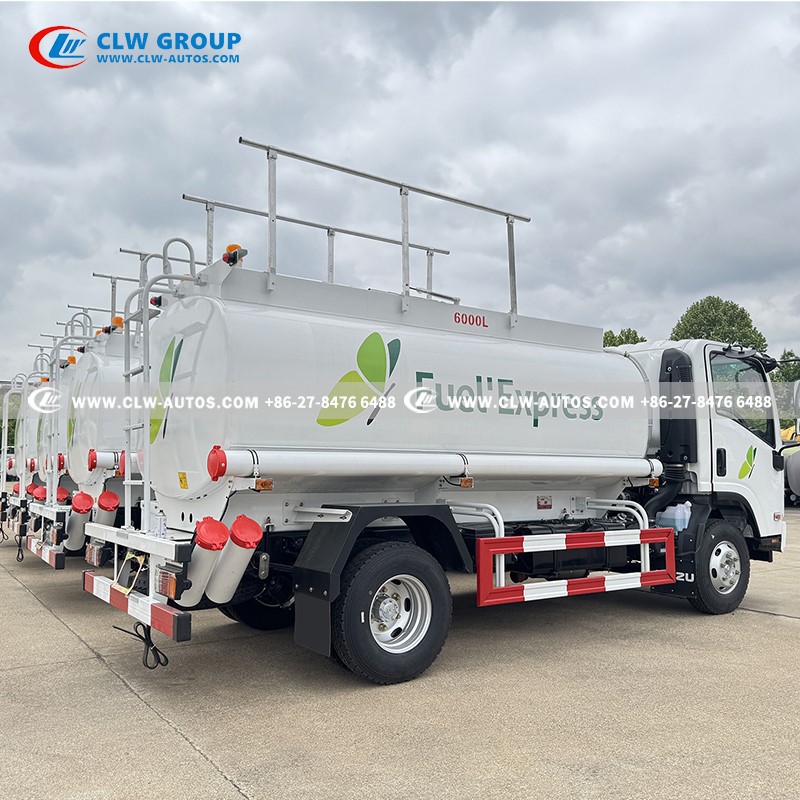

Tank Body and Structure
- The tank is made of explosion-proof and corrosion-resistant materials, with standard protective handrails, maintenance ladders, loading/unloading ports, and safety warning lights on the top.

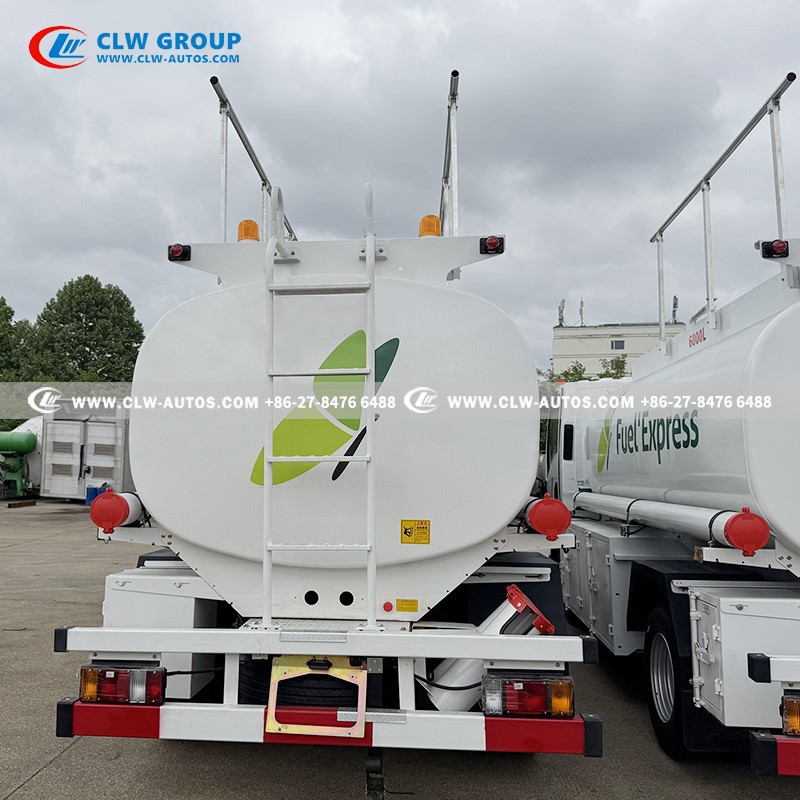

- The rear is equipped with an anti-collision bumper and tail light assembly, with reserved brand markings and maintenance access points.
Core Refueling and Metering System
- Onboard explosion-proof refueling machine assembly: Includes an SPV-brand metering refueling host, automatic retractable hose reel, and refueling nozzle, supporting precise refueling by quantity or amount, with cumulative flow statistics.
- High-precision helical rotor flow meter: Manufactured by Chongqing NaiDe Industrial, with a nominal diameter of 50mm and 0.5-level metering accuracy, allowing direct reading of instantaneous flow and cumulative refueling volume, suitable for custody transfer metering.
- Oil inlet/outlet ports: Marked IN and OUT quick-connect couplings, equipped with manual ball valves and pneumatic emergency shut-off valves.
Safety and Explosion-Proof Design
- The vehicle's electrical system features an EX-class explosion-proof control box, labeled "Danger: Live Parts, Do Not Open Under Power," designed for flammable and explosive hazardous environments.
- Equipped with pneumatic emergency shut-off valve controls, vapor recovery, emergency cut-off, and static grounding as part of a full set of safety devices for hazardous materials vehicles.
- A sealed toolbox is standard on the side for storing maintenance parts and tools.
Detailed Photos

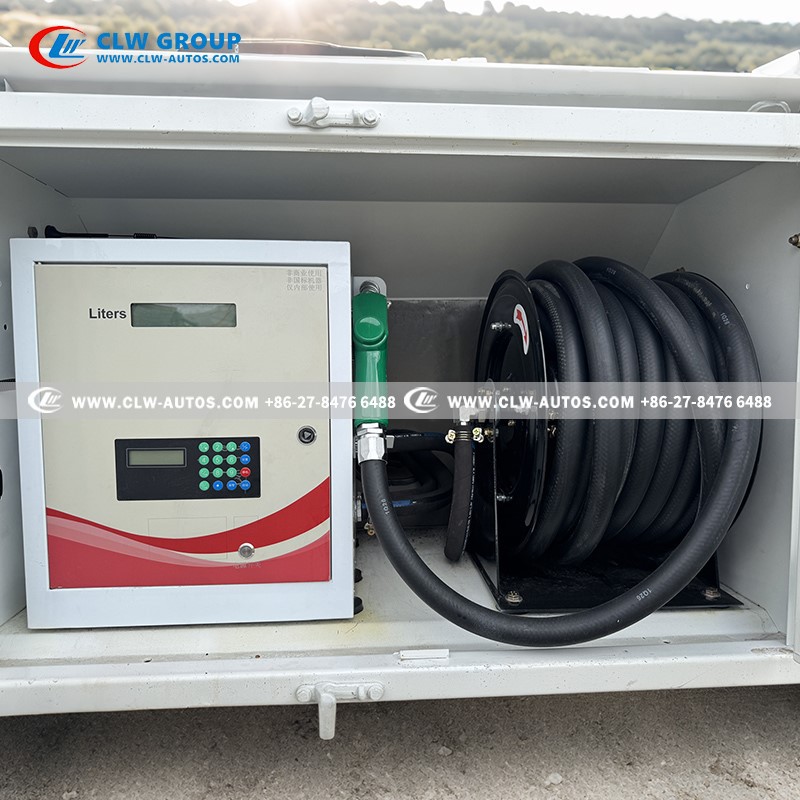

Refueling Compartment
- Contains an explosion-proof refueling machine and automatic retractable hose reel for onboard self-service fast refueling.

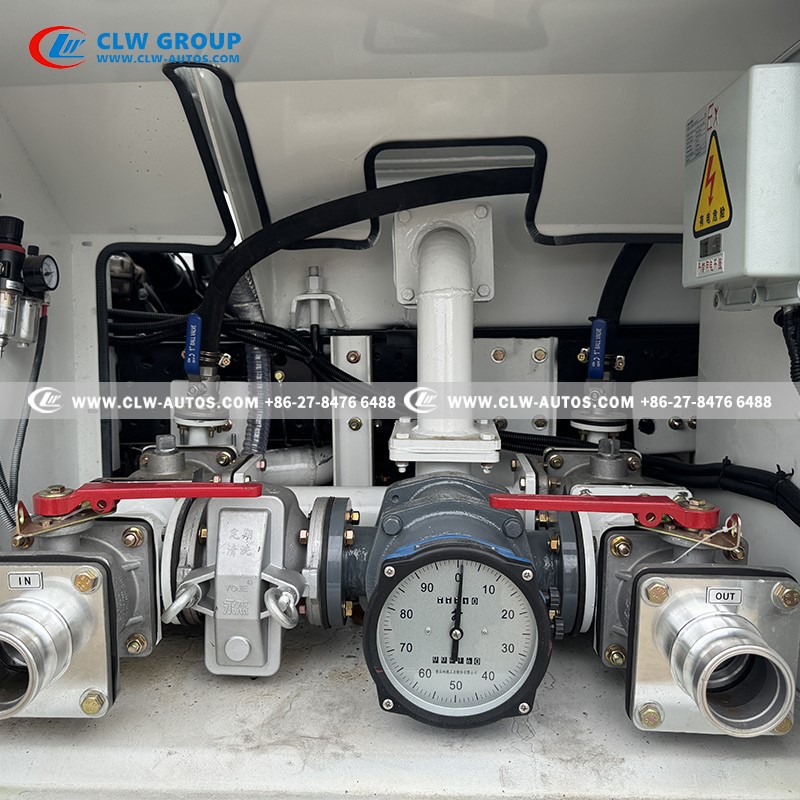

Piping and Valve Assembly
- Includes main fuel inlet/return control, precision mechanical flow meter, and emergency shut-off valve to ensure safe and accurate loading and refueling.

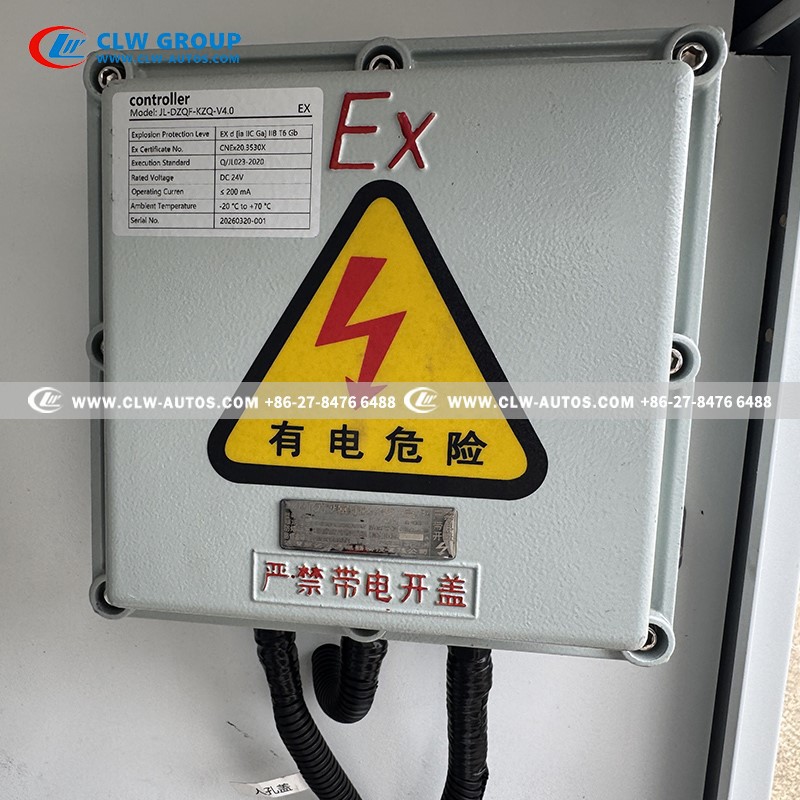

Explosion-Proof Electrical Control Box
- Entire vehicle's electrical system is explosion-proof to eliminate fire hazards caused by sparks.
Emergency Shut-Off Valve Control
- Pneumatically controls the emergency cut-off at the tank bottom, automatically stopping fuel flow in the event of a rollover or accident to prevent leaks.
