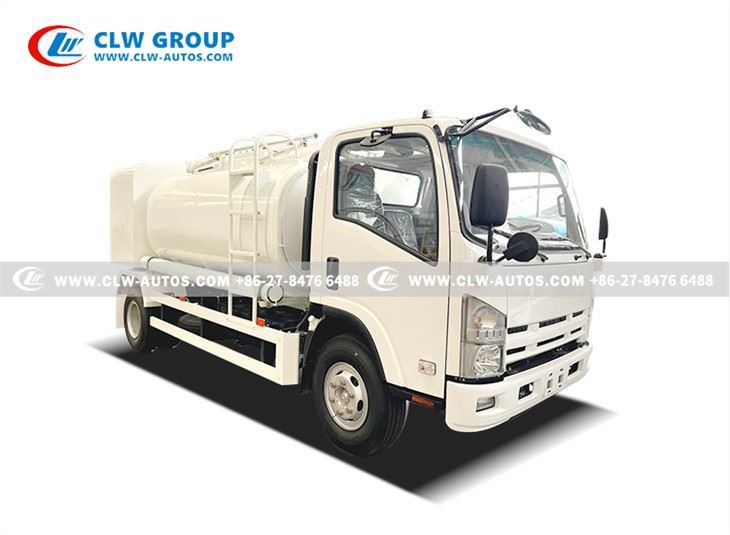

ISUZU FRR 6000 Liters Fuel Refilling Truck With Double Oil Dispenser
ISUZU 130HP Fuel Tanker Truck
ISUZU oil tanker truck to Philippines
ISUZU refueling truck with 2 sets of dispensers
6tons 6000L oil dispenser truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu frr 6000 liters fuel refilling truck with double oil dispenser in China. If you're going to buy high quality isuzu frr 6000 liters fuel refilling truck with double oil dispenser, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FRR fuel refueling truck for Philippines/Vietnam(also called mobile fuel filling truck,oil dispenser truck,CAFU design fuel truck,fuel delivery truck,oil truck,oil tanker truck,6cbm oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck,fuel bowser truck,fuel truck with metering system) is used to transport fuel,oil,diesel,gasoline,kerosene and refill cars or trucks and other automobiles easily.
With 2 sets of censtar fuel dispensers and independent compartment,above ISUZU FRR 6 tons oil refilling truck can transport and refuel two types of fuels with one truck for mobile fuel refueling business.
whatsapp for quick inquiry +86 135 45064324
Structure of a fuel refueling truck
1. Fuel refilling truck chassis:
The tanker chassis is optional for ISUZU,Dongfeng, FAW, Foton, Shacman, Sinotruk, JAC, JMC and other large automobile manufacturers.
2. Tank body part:
Equipped with anti-scouring plates
Tank body accessories are equipped with manholes, liquid outlet valves, etc.
Optional for flowmeter,level gauge,dispenser
3. Fuel dispenser:
A fuel dispenser uses the power of a truck and can be moved with the truck to meet the needs of mobile fuel sales in urban or rural areas.
suitable for gasoline, diesel, ethanol gasoline
small size and convenient operation.
brands: Shanghai Seck refueling machine, Guangdong Hengshan refueling machine, Beijing Sanjin refueling machine, Zhengzhou censtar refueling machine, Shanghai Bolai refueling machine.
4. Automatic return reel:
The automatic return reel is available in 10 meters, 15 meters, 18 meters, and 20 meters.
Usually we supply 15 meters hose
5. Fuel pump:
self-priming pumps, gear pumps, stainless steel pumps, centrifugal pumps

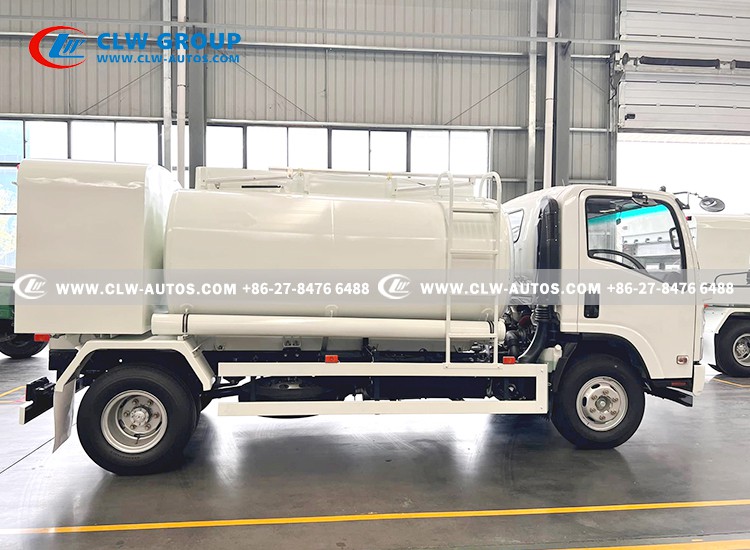

〔side view of ISUZU 6 Tons fuel truck with 2 compartments〕

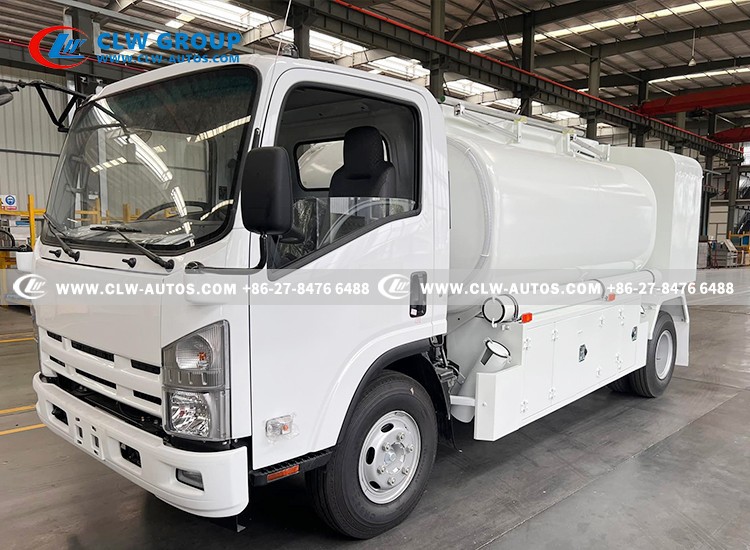

〔Front view of ISUZU 6 Tons fuel truck with 2 compartments〕

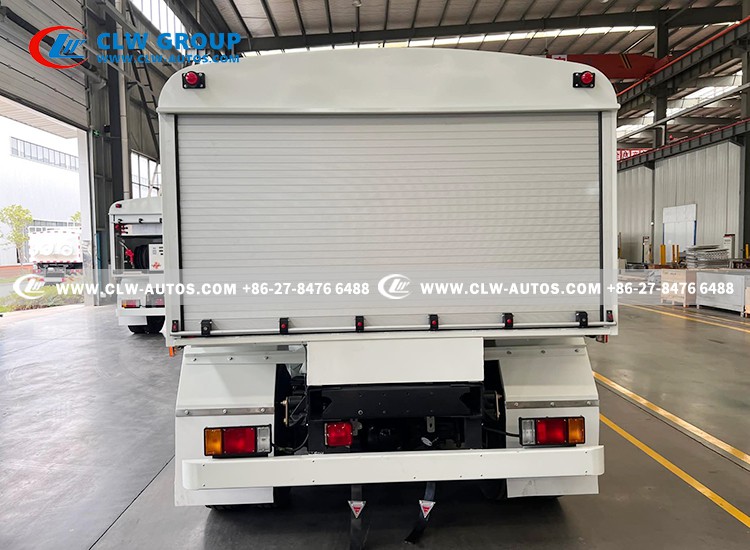

〔Rear view of ISUZU 6 Tons fuel truck with 2 compartments〕

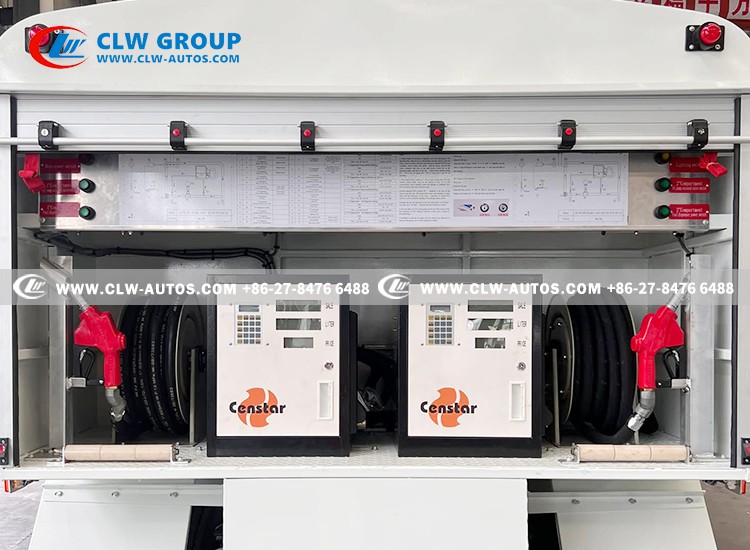

〔2 sets of Censtar fuel dispenser of ISUZU 6 Tons fuel truck with 2 compartments〕

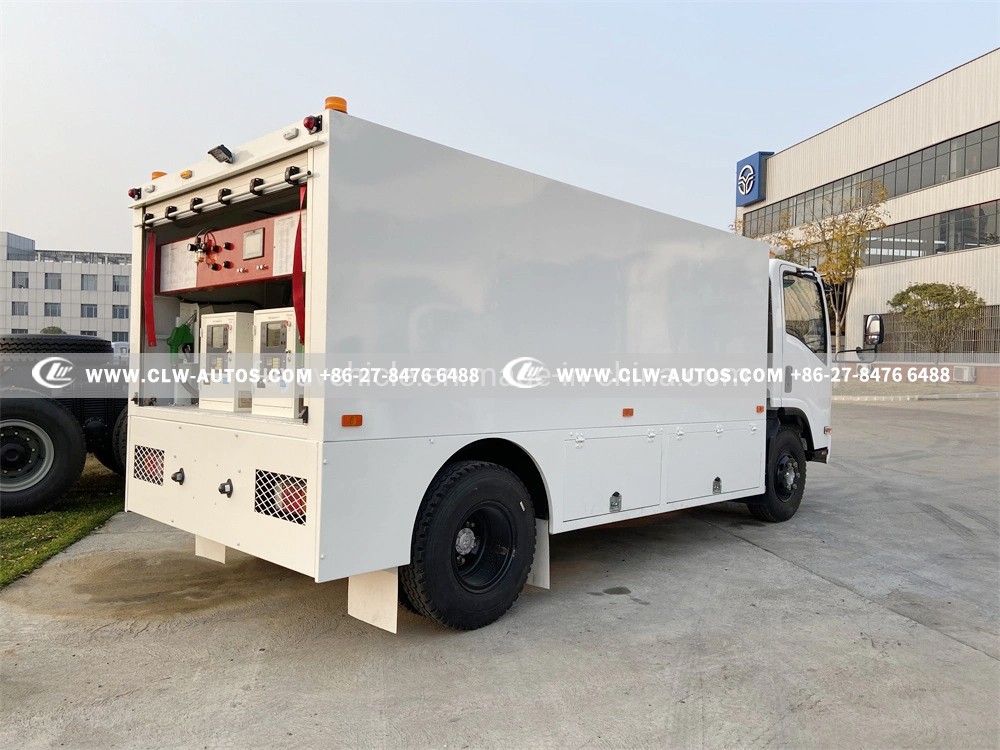

〔CAFU design ISUZU 6 Tons fuel truck with 2 compartments and filling system〕
Description | Original 4x2 6ton 6m3 6 cubic 6000 litres Japan oil tank truck | |
Drive Model | 4x2 | |
cabin | ISUZU KV600 Cabin, with AC, FM. can be right hand or left hand drive model. | |
Fuel Type | Diesel | |
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6500X2500X3420 |
Wheel base (mm) | 3360 | |
Overhang (front/rear) (mm) | 1410/2555 | |
Wheel track (front) (mm) | 1990 | |
Wheel track (rear) (mm) | 1800/1800 | |
Approach/Departure angle(°) | 16/25 | |
Weight in KGS | Curb Weight | 12270 |
GVW. | 25000 | |
Max. driving speed(km/h) | 95 | |
| Engine | 4KH1CN5HS | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 130 HP | |
Emission standard | Euro 5 | |
Gearbox | 5 forwards & 1 reverse | |
Clutch | Reinforced diaphragm clutch | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 350 /400 | |
Tire | 7.00R16, 10pcs + 1 spare | |
Number of axles | 3 | |
Brakes | Dual circuit compressed air brake | |
Tank | ||
Material | Q235 carbon steel(Aluminum, stainless steel optional) | |
Tank Shape | Trapezoidal cylindrical | |
Medium and density | Petrol or disel 700 kg/cbm -850 kg/cbm | |
Body Internal Dimension | 5810x2200x1755mm | |
Thickness | 5mm | |
Fact cubage | 6m3-8m3 | |
compartment | 1-5 compartments for option as need. | |
Standard equipment | 1. one set PTO | |
2. two aluminum balls | ||
3. one stainless ball | ||
4. one breathing valve | ||
5. one reel gun | ||
6. two flanges | ||
Optional Equipment | 1. Fuel Dispenser | |
2. Adding compartments as need. | ||
3. European standard vapor collecting system | ||
4. Flow meter | ||
5. Refuel machine | ||
6. Revenue control fuel dispenser | ||
7. Air conditioner | ||
8. One fuel pump | ||
