Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 20m3 20-ton chip sealing machine in China. If you're going to buy high quality shacman 20m3 20-ton chip sealing machine, welcome to get more information from our factory. For price consultation, contact us.

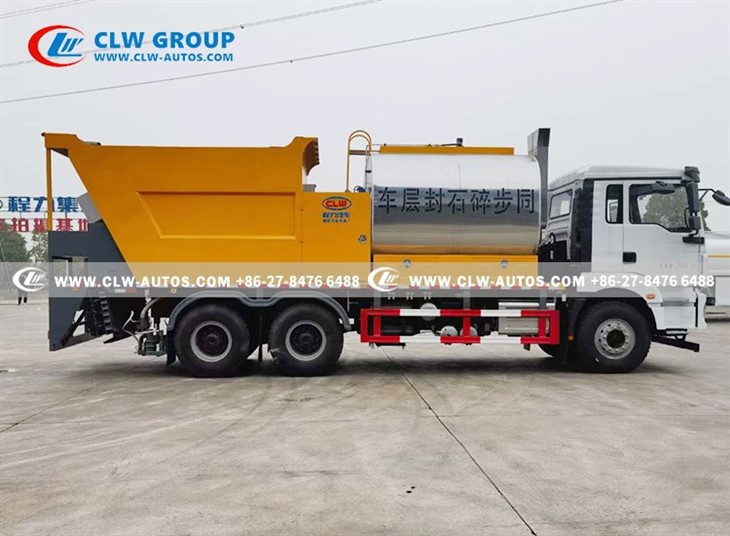

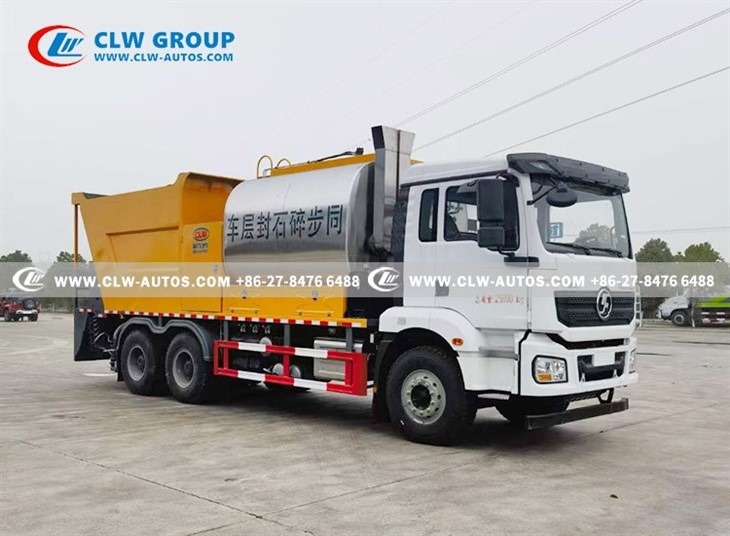

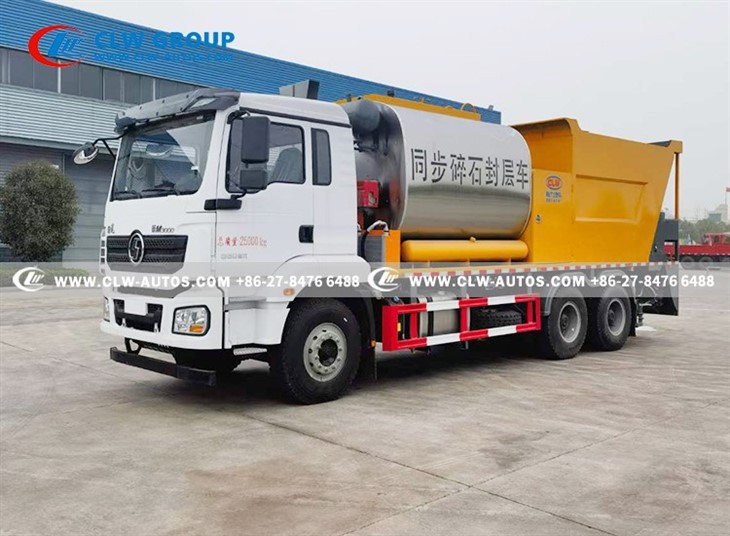

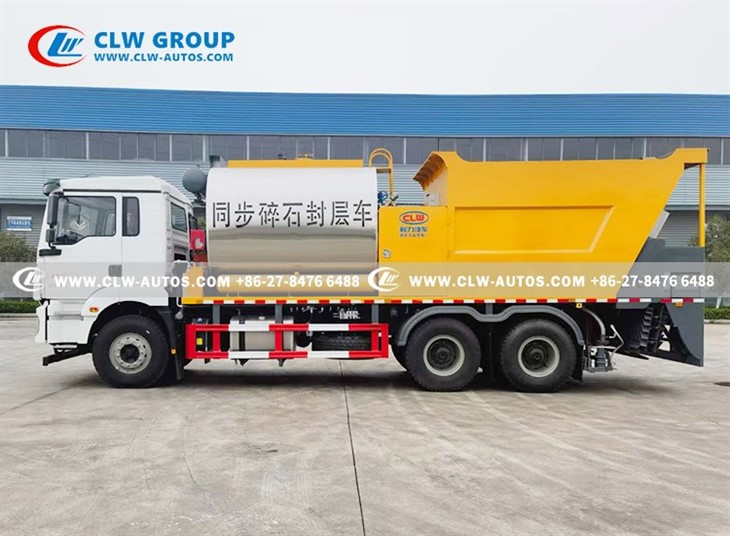

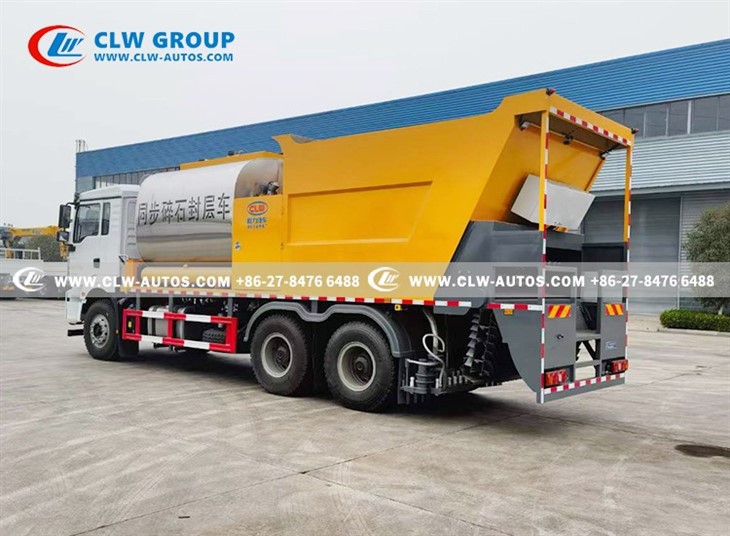

Shacman M3000 20-Ton Chip Sealing Machine
Shacman M3000 6×4 Chip Sealing Machine, Asphalt Chip Sealer, Synchronous Chip Sealer Truck, Synchronous Sealing Truck is a high-efficiency bitumen and aggregate sealing vehicle, Bitumen Sprayer with Aggregate Spreader designed for large-area asphalt surface treatment. Integrating asphalt spraying and chip spreading into one synchronized operation, it ensures uniform coverage, strong adhesion, and improved pavement durability. Equipped with a Weichai 350HP engine, 7000L asphalt tank, and 12000L chip hopper, this chip sealer offers fast heating, smart PLC control, and up to 4.5m spray width, making it ideal for highways, municipal roads, and preventive maintenance. With high automation, precise output control, and low operating cost, it is the preferred choice for professional road maintenance contractors worldwide
| Chassis Model | SHACMAN M3000 6x4 350HP | ||||
| Overall Dimensions | mm | 9880*2550*3820 mm | |||
| Wheelbase | 4575+1400 mm | ||||
| Tank Capacity | m3 | Asphalt Tank 7m3 | |||
| Gravel Tank 12m3 | |||||
| Curb Weight | kg | 17,800 kg | |||
| Gross Vehicle Weight (GVW) | 25,000 kg | ||||
| Engine | Power | 257 kW / 350 HP | |||
| Displacement | 7,800 mL | ||||
| Max Torque | 1400 N.m | ||||
| Max speed | km/h | 103 km/h | |||
| Tire specification | 12.00R20 | ||||
| Electric System | 24 V | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | FAST brand, 10 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tank Material | Carbon Steel | ||||
| Insulation Thickness | 50 mm Rock Wool Insulation | ||||
| Exterior Stainless Steel | 1 mm thick stainless steel plate | ||||
| Bitumen Pump | QGB950, Flow Rate: 950 L/min | ||||
| Proportional Valve |
CL-BLTS120.00 |
||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 32 pcs | ||||
|
Aggregate Gate |
16 way | ||||
| Burner | 2 × Riello G20 (Italy), 200,000 kcal/h each | ||||
|
Thermal Oil Pump |
RY40-25-160, from a well-known Chinese brand |
||||
| Spray Width | 4.5 m | ||||
|
Nozzle Spacing |
125 mm | ||||
|
Asphalt Spraying Rate |
0.25 to 3 L/m2 | ||||
|
Chip Spraying Rate |
2 to 22 L/m2 | ||||
| Asphalt Heating Speed | 20 °C/h | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
Sodron SNG12 |
||||
| Temperature Controller | Pt100, from a well-known Chinese brand | ||||
