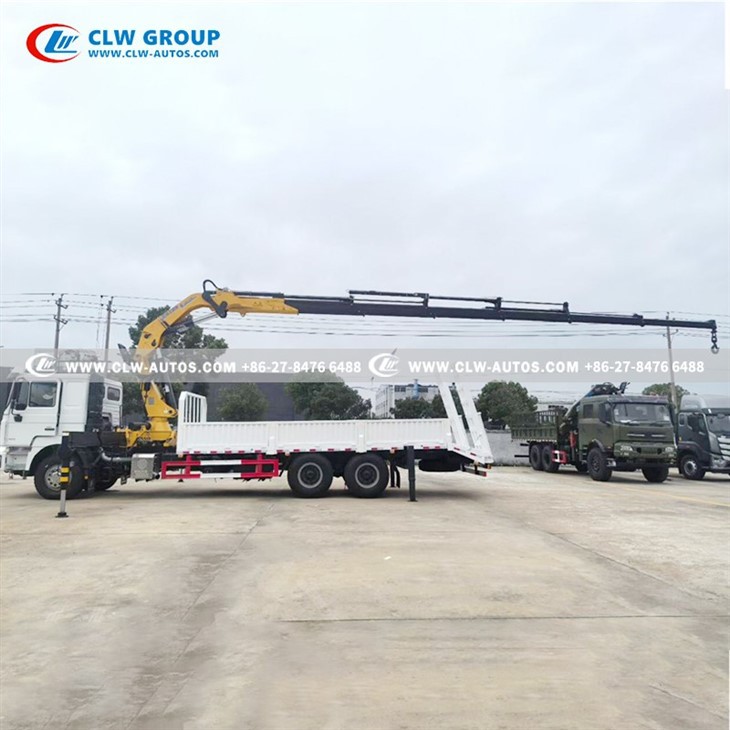

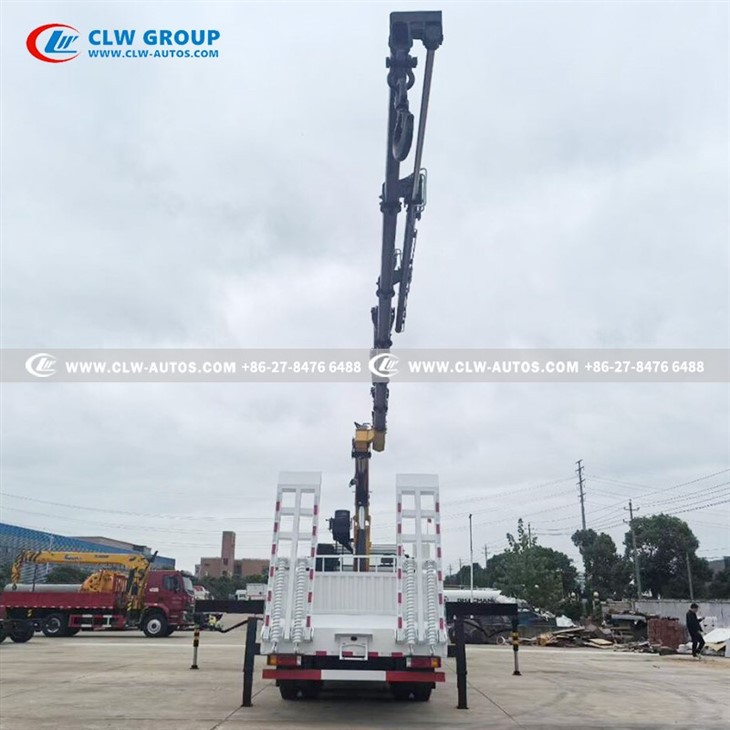

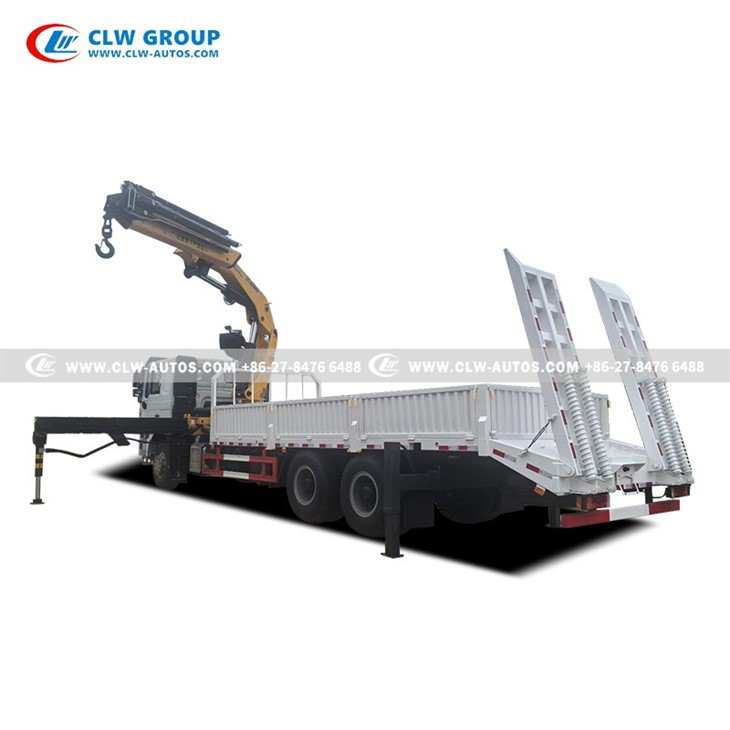

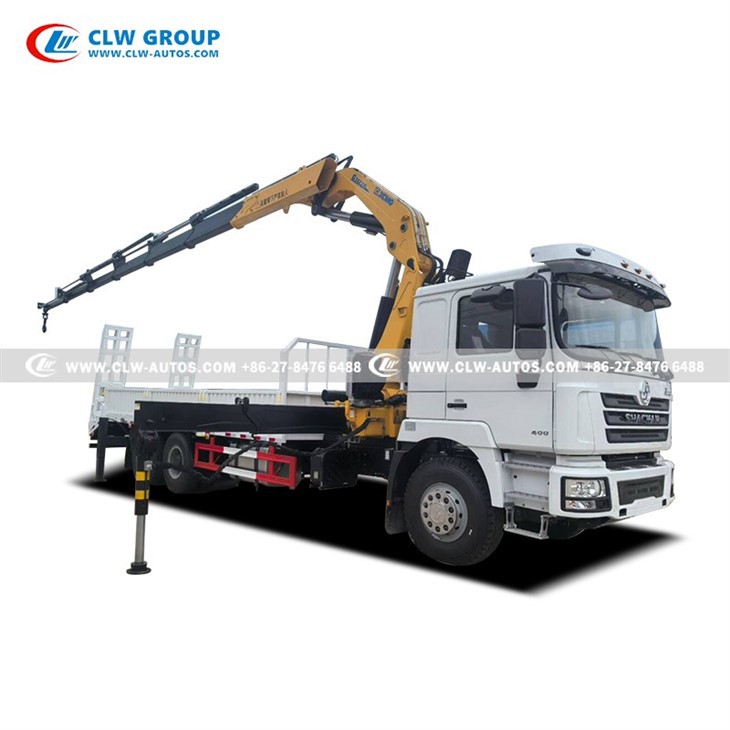

6X4 Powerful 16-Ton Shacman Knuckle Boom Truck
Your Versatile and Compact Lifting Solution
Our 16-ton Folding Boom Truck Crane, mounted on a reliable Shaanxi truck chassis, is engineered to deliver exceptional lifting power and remarkable flexibility in confined spaces. This robust Knuckle Boom Crane (also known as an Articulating or Folding Boom Crane) is designed for contractors and businesses that require a mobile, all-in-one solution for loading, unloading, and precise placement of heavy materials-4. It perfectly combines the mobility of a truck with the powerful, articulated lifting capabilities of a crane, making it indispensable for a wide range of industrial and construction applications
High Efficiency: 6x4 chassis + 16T crane enables single-vehicle load-and-lift operations.
Durability: Reinforced Q235 steel bed withstands heavy-impact loads.
Mobility: Optimized wheelbase (4600+1350mm) ensures stability on rough terrain.
Cost-Effective: Eliminates need for separate crane + transport vehicles.
Versatility: 16tons XCMG knuckle boom reaches confined spaces with 360° rotation.
Main Scenario
Construction Sites: Material handling in confined or uneven terrain.
Utility Maintenance: Pole installation, cable handling, and equipment lifting.
Remote Logistics: Off-grid cargo transport + self-loading capability.
Disaster Relief: Rapid deployment in flooded/muddy conditions.
Industrial Yards: Machinery relocation and container loading/unloading.
Logistics Hubs: Container loading, machinery relocation
Energy Sector: Wind turbine components, transformer transport
Emergency Services: Disaster recovery operations
|
Chassis technical specification |
||
|
Chassis brand |
SHACMAN F3000 |
|
|
Driving mode |
6X4 |
|
|
Wheelbase |
4600+1350mm |
|
|
Cabin |
Left hand driving; 2~3passengers; |
|
|
Engine |
Engine brand |
WEICHAI, WP10.400E22, 6 cylinders |
|
Fuel type |
Diesel |
|
|
Horsepower |
400hp |
|
|
Displacement |
12L |
|
|
Emission standard |
Euro Ⅱ |
|
|
Transmission |
FAST 10JSD180, Manuel, 10 forward gears and 2 reverse |
|
|
Front axle |
9,500kg |
|
|
Rear axle |
16,000kg |
|
|
Tyre |
12.00R20, 12 pieces with one spare |
|
|
Fuel tank |
300L |
|
|
Cargo box |
||
|
Material |
Q235 carbon steel |
|
|
Material thickness |
Side 3mm, bottom 5mm |
|
|
Crane |
||
|
Brand |
XCMG GSQZ330.4 |
|
|
Boom type |
Folding arm |
|
| Max. Lifting moment | 338 kN.m | |
| Max. hydraulic outreach | 12.0 m | |
|
Max. Lifting weight |
16,000kg |
|
|
Slewing angle |
400°continuous |
|
|
Stabilizer spread |
2312-5750mm |
|
|
Max.operatingl pressure |
31MPa |
|
|
Recommended pump capacity |
63L/min |
|
|
Oil tank capacity |
200L |
|
Crane Truck with LOG Grapple Attachment
Crane Truck with Brick Clamp Attachment
Crane Truck with Drilling Rig Attachment Crane Truck with Personnel Basket
