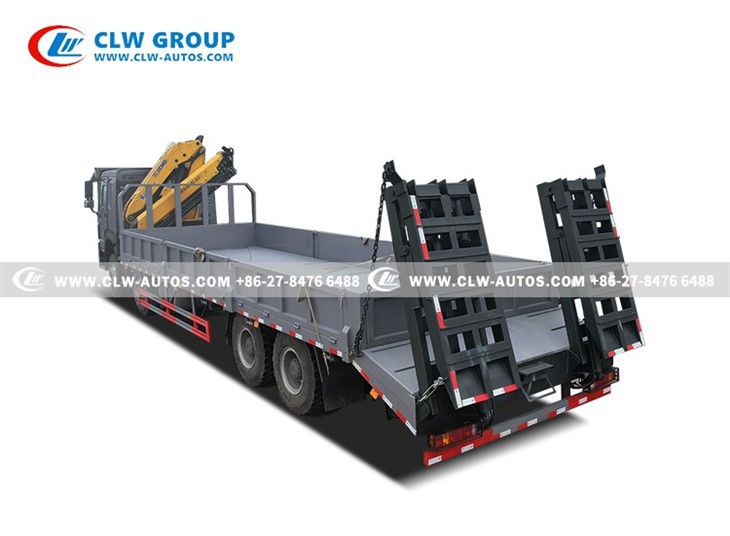

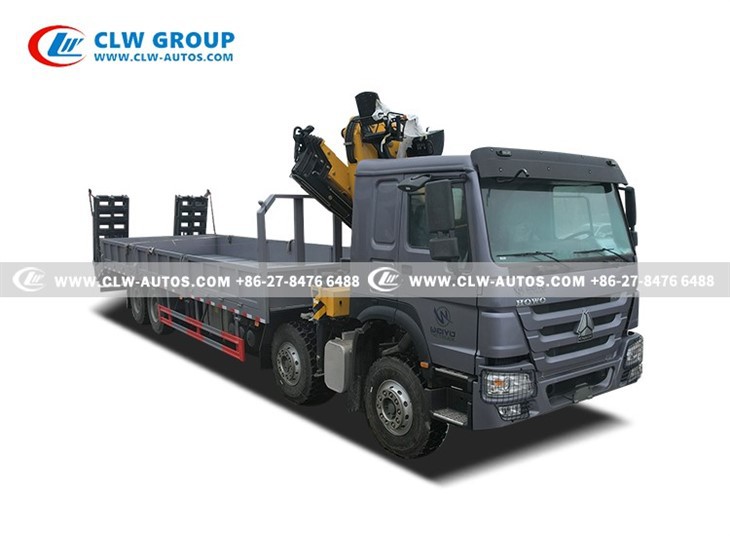

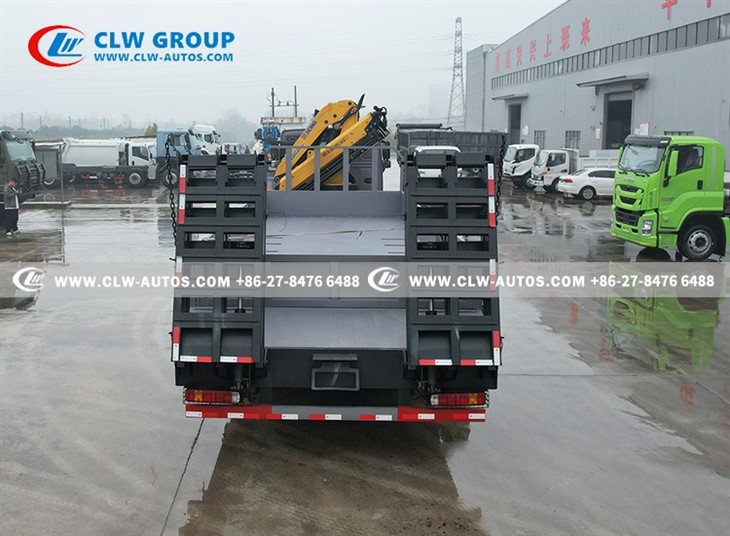

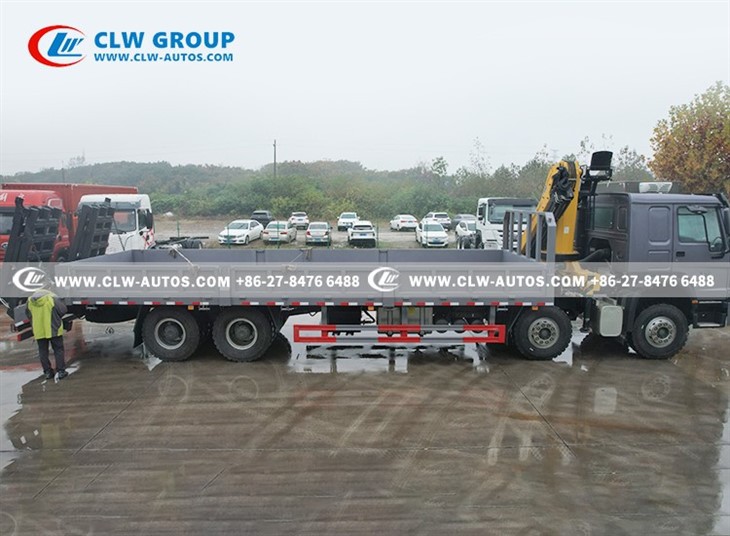

HOWO 8X4 Truck with 10Ton XCMG Knuckle Crane and Hydraulic Ladder
This specialized HOWO 8x4 truck, integrated with a 10-ton XCMG folding-boom crane and a hydraulic access ladder, is engineered as a versatile and self-sufficient heavy-duty service vehicle. Its primary function is to independently handle and transport heavy equipment, machinery, or materials, effectively combining the roles of a carrier, a mobile crane, and a service platform.
1. Integrated Material Handling & Transport
The core purpose is all-in-one lifting and hauling. The robust HOWO 8x4 chassis provides a stable and powerful carrier capable of transporting significant payloads (e.g., machinery, generators, construction materials). The onboard 10-ton XCMG crane transforms the truck into a self-contained loading/unloading unit, eliminating absolute dependence on external cranes. This is crucial for fieldwork in areas with limited infrastructure or for urgent tasks requiring immediate deployment.
2. Versatile & Maneuverable Crane Operation
The folding (knuckle) boom crane design is key to its functionality. It offers:
Flexible Reach & Precision: The articulating boom allows for precise placement of loads, even over obstacles or into confined spaces where a straight boom might not operate.
Compact Stowage: When folded, the crane occupies minimal space on the truck bed, maximizing cargo area and ensuring better road travel stability and compliance with transport dimensions.
3. Enhanced On-site Accessibility & Safety
The hydraulic ladder is a critical safety and efficiency feature. It provides operators with safe, stable, and quick access to:
The crane operator's cab (if the crane is cabin-operated).
The transported cargo for securing, inspection, or minor adjustments.
Elevated work points on-site, improving utility beyond just crane operations.
4. Target Applications & Industries
This configuration is ideal for sectors requiring mobile, heavy-lift capability combined with transport. Key uses include:
Power & Utility: Transporting and installing transformers, cable reels, and pylons.
Construction & Infrastructure: Handling structural components, pipes, and equipment.
Industrial Maintenance & Logistics: Moving heavy machinery, presses, or generators to and from facilities.
Recovery & Emergency Services: Assisting in equipment recovery or disaster response operations.
In summary, this vehicle is a highly adaptable multi-role asset designed to perform complex logistics tasks-transport, precise lifting, and on-site service-with a single crew and vehicle, significantly improving operational efficiency and reducing costs in demanding industrial and service environments.
| Main Dimensions | ||||
| Overall Length | Approx. 14000 mm | |||
| Overall Width | 3000 mm | |||
| Overall Height | Approx.3900 mm | |||
| Tare Weight | Approximate 22800 KGS | |||
| XCMG Knuckle Crane | ||||
| Brand | XCMG | |||
| Model number | SQSZ200-4 | |||
| Extendable boom section | 5 | |||
| Boom Type | Knuckle type | |||
| Max. Lifting Moment | 210 kN.m | |||
| Max. Lifting capacity | 1000kg | |||
| Max. Hydraulic outreach | 12.75 m | |||
| Slewing angle | 410°/360° continuous | |||
| Stabilizer spread | 5608mm | |||
| Max.operating pressure | 30Mpa | |||
| Oil tank capacity | 160 | |||
| Bare weight | 3169 | |||
| Cargo Body | ||||
| Front fence | 3 mm Checkered Plate | |||
| Dimension | 9500x3000x550mm | |||
| Material | Manganese steel, Anti-slip pattern plate. | |||
| Material Thickness | bottom : 8 mm | |||
| Hydraulic ladder | ||||
| Hydraulic cylinder | 1 unit per ladder, | |||
| Dimension | Length 3800 mm, width 800mm | |||
| Chassis | ||||
| Condition | New condition/Left hand drive/8x4 | |||
| Brand | SINOTRUK | |||
| Model | HOWO | |||
| Front/Rear Axle loading(kg) | 9500/9500/16000/16000 kg | |||
| Wheelbase(mm) | 1800+4600+1350 mm | |||
| Max. driving speed(km/h) | 95 km/h | |||
| Clutch | Reinforced diaphragm clutch | |||
| Brakes | Service brake: dual circuit compressed air brake | |||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | ||||
| Auxiliary brake: engine exhaust brake | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||
| Tire | Quantity | 12 pcs with one spare tire | ||
| Specifications | 12.00R20 18PR | |||
| Transmission | Manual type, HW19710, 10 Forwards and 2 reverses | |||
| Cab | Cabin, with one sleeper (berth), Air-conditioner, safety belts etc. | |||
| Fuel Tank | 1 unit 400L with 1 unit 600L, | |||
| Model | WP12S400E201 | |||
| Fuel type | Diesel | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Displacement(ml) | 12L | |||
| Power(kw) | 294 kw | |||
| Horsepower(HP) | 400 HP | |||
| Cylinder number | 6 | |||
| Emission standard | Euro 2 | |||
| Other details | ||||
| Remark | 1. Mudguards | |||
| 2. Spare tire carrier | ||||
| 3. One unit truck chassis tool | ||||
| 4.Anti-rust metallic paint, Color is optional | ||||
