CLW Group Launches CL5186TDYBEV - 18-ton Pure Electric Multi-Function Dust Suppression Truck
Products Description
A dust suppression vehicle, also known as a spray truck, water sprinkler truck, or dust control truck, is a specialized vehicle designed to suppress and control airborne dust particles in urban and industrial environments. Equipped with a high-pressure water spraying system, it effectively reduces dust pollution, mitigates environmental hazards, and improves air quality.
Advantages And Characteristics Of The Chassis
01 Customized Design: Tailored to dust suppression needs, minimizing chassis modifications.
02 Data-Driven Specs: Axle distance, power, and dimensions optimized based on real-world usage.
03 Lightweight Construction: CAE analysis ensures industry-leading lightweight design.
04 Integrated Systems: Chassis and upper unit share a cooling system for improved efficiency and reliability.
05 Advanced Monitoring: 360-degree view, cruise control, energy recovery, and various safety warnings..
06 Versatile Functions: Front spray, flush, rear/side spray, water cannon, mist cannon, and manual spray gun. Large 9.65m³ tank..
Main Technical Parameters
| Announcement Parameter |
|
Mass Parameters (kg) |
|
| Dimensions (mm) |
|
Power Battery |
|
| Chassis Motor |
|
Chassis Motor Controller |
|
| Maximum Speed (km/h) | 90 | Range (km) | 360 |
| Charging Time (min) | 30 | Effective Capacity of Water Tank (m³) | 9.65 |
| Total Capacity of Water Tank (m³) | 10.1 | Rated/Peak Power of Upper Mounted Motor (kW) | 30/45 |
| Brand of Low-Pressure Water Pump | Hangzhou Weilong | Model of Low-Pressure Water Pump | 65QZ-50/110N-K-T2-YW1 |
| Lifting Height (m) | 110 | Flow Rate (m³/h) | 50 |
| Front Flush Width (m) | ≥8 | Center Flush Width (m) | ≥24 |
| Rear Dust Suppression Width (m) | ≥14 | Dust Suppression Speed (km/h) | 7~20 |
| Water Cannon Range (m) | ≥40 | Sprayer Model | M10 |
| Static Wind Jet Range (m) | 100 | Coverage Area (m²) | 20900/31400 |
| Total Power (kW) | 39 | Fan Motor Power (kW) | 30 |
| Pump Power (kW) | 7.5 | Number of Fans | 2 |
| Number of Nozzles | 90 | Water Consumption (m³/h) | 9.5 |
| Pump Pressure (Mpa) | Centrifugal 1.5-2.0Mpa | Water Droplet Diameter (μm) | 20-200 |
| Rotation Angle | ±120° | Pitch Angle | -10° ~ 45° |
| Noise Level (dB) | 82dB at 7.5 meters |
Operating Environment Temperature (°C) |
|
| External Dimensions (mm) | 2435x1155x2360 | Mass (Kg) | 1370 |
Noise Control |
Double-Wall Noise Reduction |
Spray Nozzle Type |
International Dual-Spray Pattern |

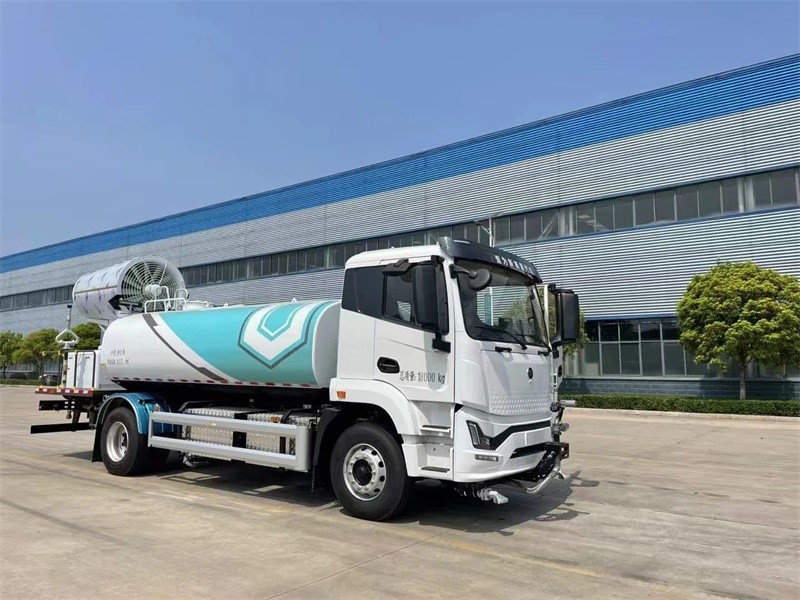

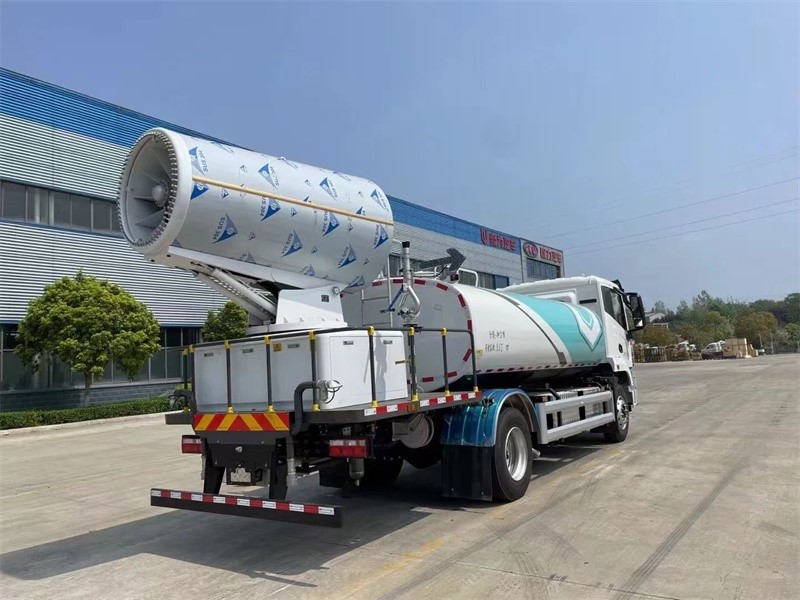

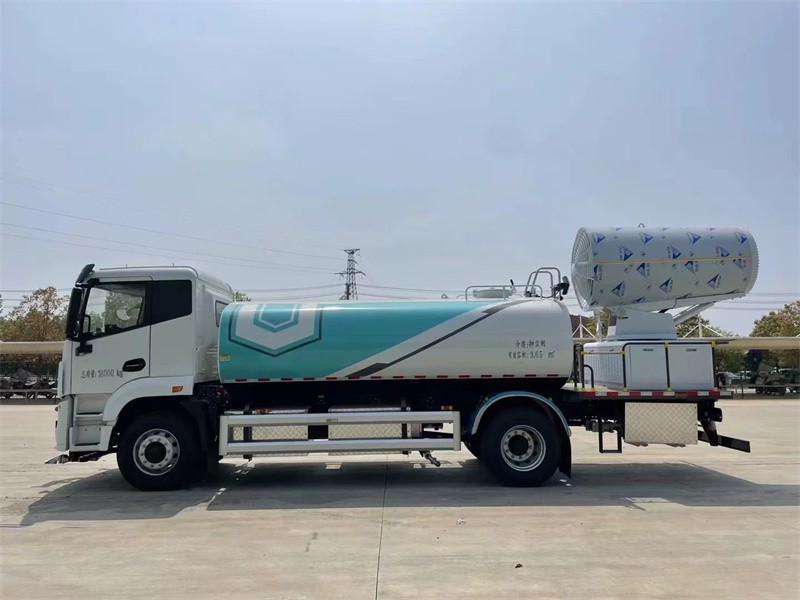

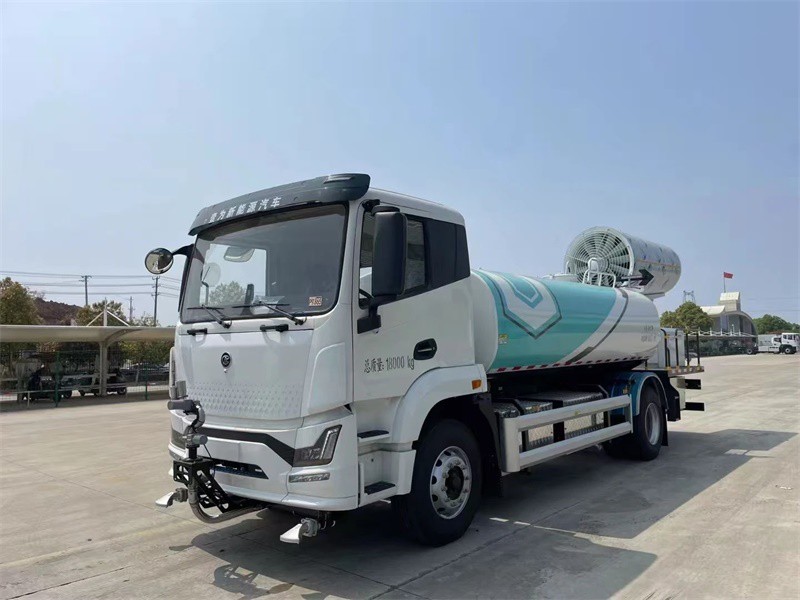

Products Pictures
Structure And Function
Tank
- High-Quality Material: The water tank is welded from high-strength carbon steel.
- CAE Stress Analysis: The elliptical tank undergoes comprehensive CAE simulation tests for optimal structural design.
- Automated Production: Utilizes automated welding lines for consistent, high-quality welds.
- Advanced Corrosion Protection: Electrophoretic coating forms a dense protective film; the inner wall is treated with imported eco-friendly anticorrosive paint and high-temperature baking paint for durability.
- Robust Structure: Internal baffles reduce water impact and enhance rigidity.
- Safety Design: A vortex prevention device at the bottom prevents air吸入 (air intrusion) into the pump, ensuring stable operation and extending pump life.
Water Circuit System
1. Working Principle: A custom-developed low-pressure water pump motor drives the pump, generating high-pressure, large-volume water flow for various cleaning and dust suppression tasks.
2. Standard & Optional Features:
- Standard: Front duckbill nozzle, flush, rear sprinkle, green water cannon, mist cannon, manual hose reel.
- Optional: Side spray, vertical spray, front remote water cannon.

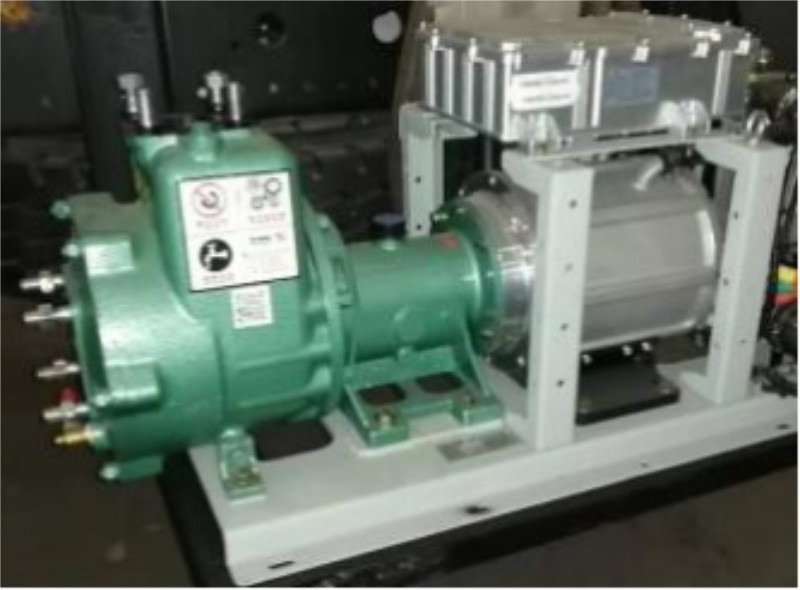

3. Low-Pressure Cleaning System: High-performance cast iron water pump with 50m³/h flow and 110m lift; pneumatic ball valve controls for easy operation.
4. Functionality:
- Low-Pressure Rinsing: Includes front spray, rear flush, rear sprinkle, vertical spray, and green water cannon for versatile cleaning.
- Mist Cannon: Horizontal spray distance over 100m with adjustable intensity; high-strength nylon impeller for strong wind, low energy, and noise.
- Green Water Cannon: 360° rotation, column or mist mode, up to 40m range.

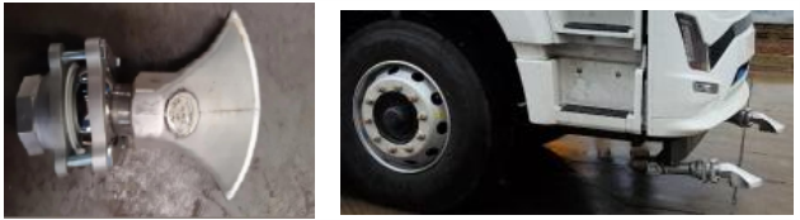

Front Spray (with Universal Joint)

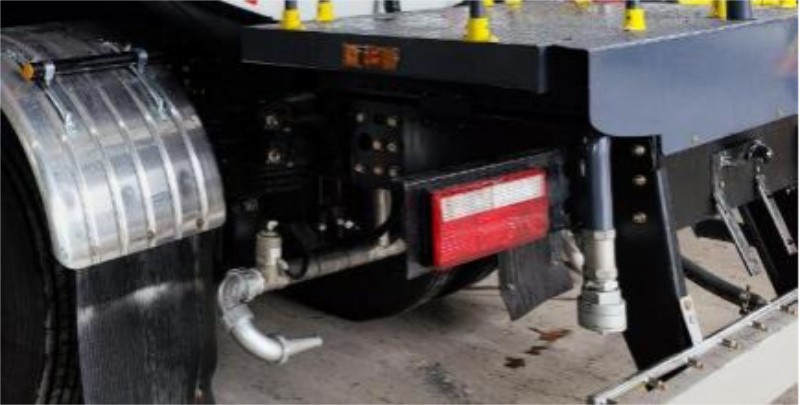

Rear Sprinkle with Counter-Flow
Intelligent Control System
- CAN Bus Control: Real-time status display and speed control via rotary knob.
- Safety Features: Low water level voice alarm and automatic shutdown to prevent pump damage.
- Winter Drainage: One-touch drainage from the cabin to empty all water circuits.
Power Unit

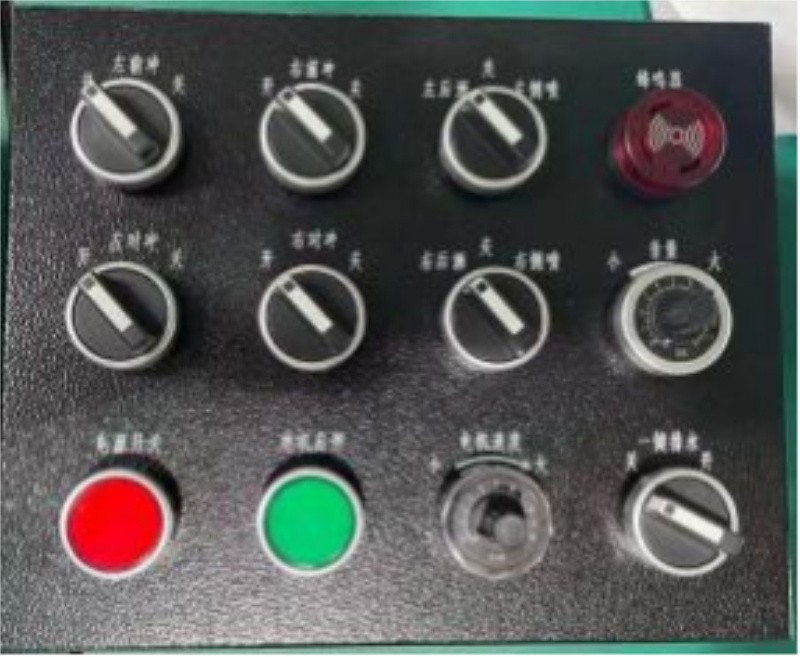

4. Control Box: Simple, convenient operation with speed adjustment knob and voice announcements for safety and faults.
