Chengli CLW5100JGKCDT Shanqi K3000 Insulated Boom Aerial Work Platform Truck
Products Description
An Aerial Work Vehicle, also known as a cherry picker, bucket truck, elevating work platform (EWP), or mobile elevated work platform (MEWP), is a specialized vehicle designed for accessing high or hard-to-reach areas. These vehicles are crucial in various industries, including construction, maintenance, telecommunications, and utilities.
comparison of product parameters
| Chassis Model | Shaanxi Automobile YTQ1111KK422 | Wheelbase (mm) | 4200 |
| Engine Model | WP3NQ160E61 | Engine Power (kW) | 118 |
| Dimension | 8300x2450x3500 | Seating Capacity (including driver) | 3 |
| Total Mass (kg) | 10970 | Front Overhang (mm) | 1130 |
| Rear Overhang (mm) | 2690 | Rear Extension (mm) | 240 |
| Maximum Driving Speed (km/h) | 95 | Minimum Ground Clearance (mm) | 215 |
| Approach Angle (°) | 19 | Departure Angle (°) | 9 |
| Rated Voltage GB/T9465 (kV) | 35 | Rated Load of Working Platform (kg) | 280 |
| Maximum Working Height (m) | 18 | Working Amplitude at Maximum Working Height (m) | 4.7 |
| Maximum Working Amplitude (Lateral) (m) | 9 | Working Height at Maximum Working Amplitude (m) | 18 |
| Working Platform Rotation (°) | ±180 | Platform Lifting Height (m) | 0.6 |
| Outrigger Span (Horizontal/Vertical) (mm) | 4180/4550 | Platform Lifting Time (s) | 60≤t≤100 |
| Outrigger Rotation Speed (s/r) | 100≤t≤150 | Outrigger Retraction Time (s) | ≤60 |

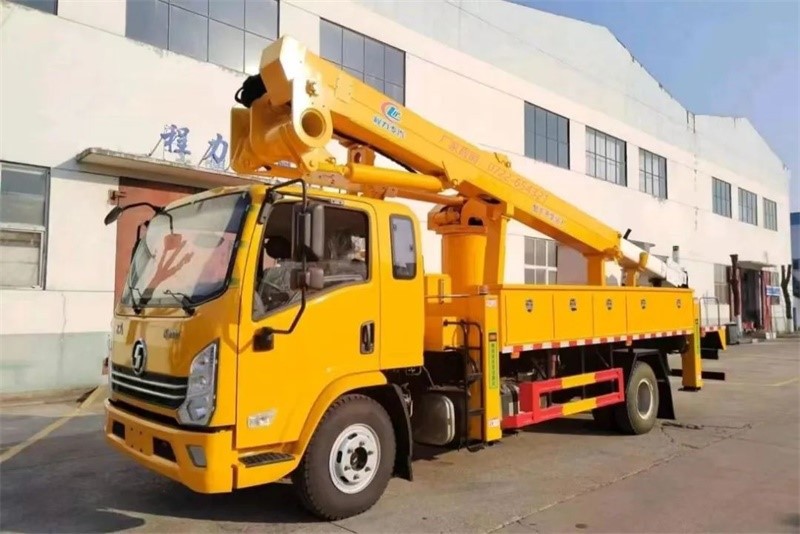

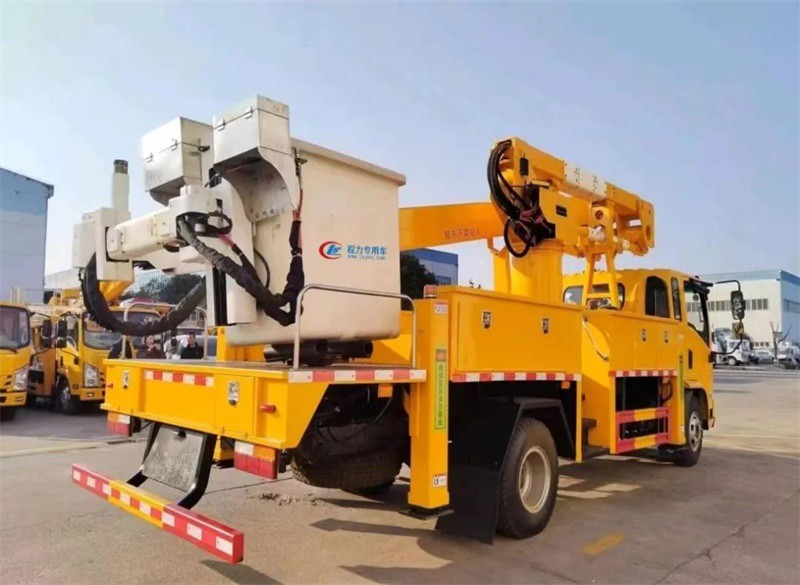

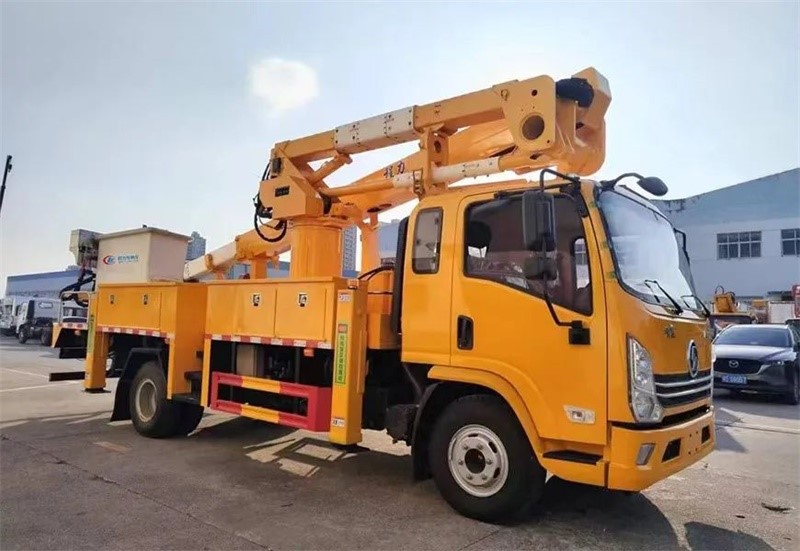

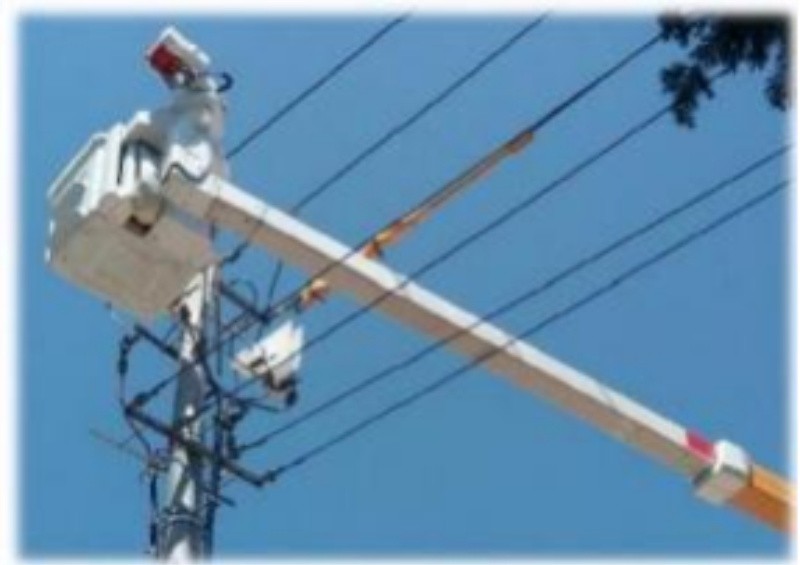

Products Pictures
Products Main Features
01 Insulation Performance
- Insulation Extension: 0.6m pre-extension ensures safe reach.
- Glass-Steel Boom: 2.0m insulation length; 0.4m gap in folding boom for chassis insulation.
- High-Strength Material: Glass fiber wet winding for durability and insulation.
02 Operating System

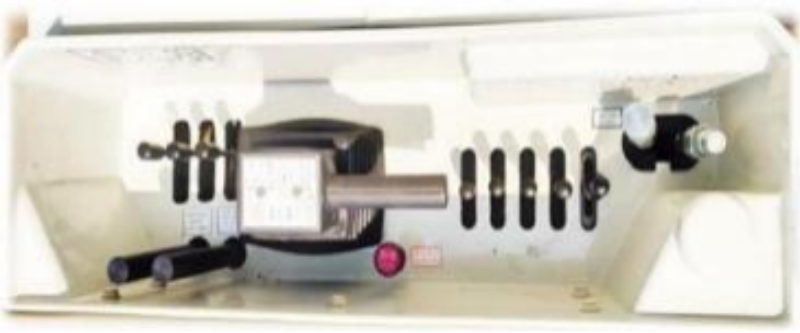

- 3D Handle: Controls arm movement and platform rotation.

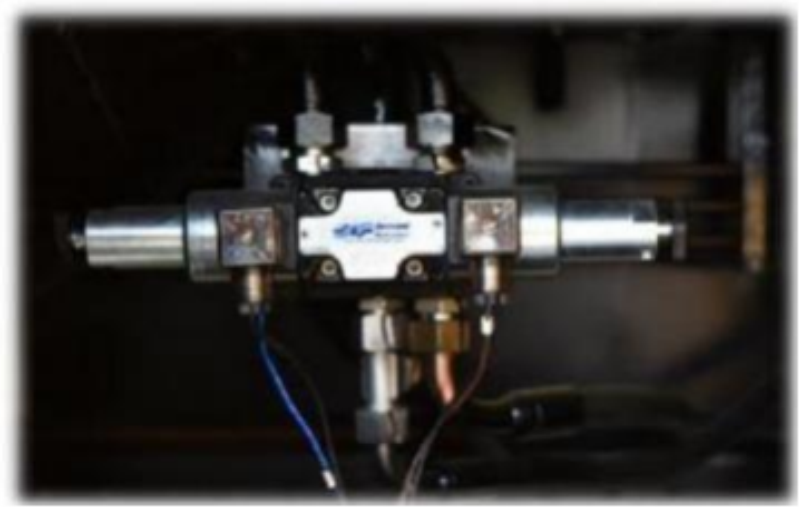

- Hydraulic Valves: Easy operation, smooth speed control.
- Outrigger Layout: At rear for safe observation.
- Platform Access: Safe and convenient from walkway.
- Concealed Piping: For complex operations.
03 Upper Structure
- Hydraulic System: Imported valve sets for stability.
- Hybrid Boom: Folding + telescopic for obstacle crossing.

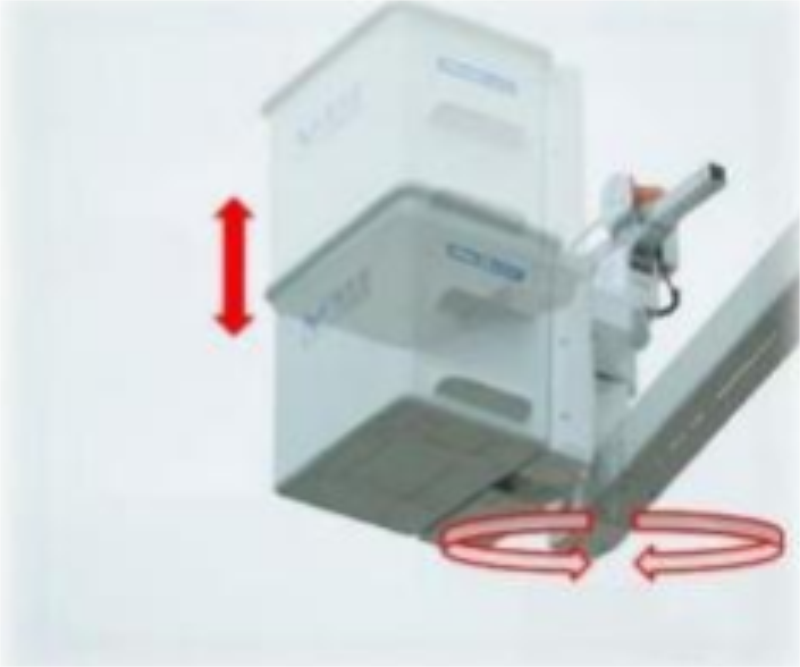

04 Working Platform
- Rotation: ±100°
- Lift: 0.6m for expanded range.
- Access: Dual-step for easy entry/exit.
- Protection: Weatherproof cover.
05 Insulation Boom Support
- Roller Guide: Reduces friction, protects glass-steel.

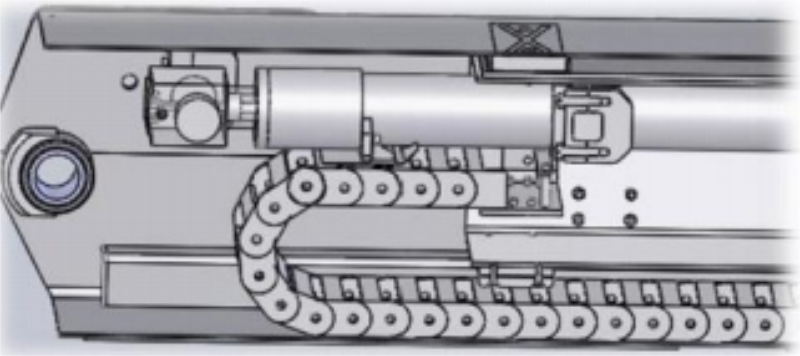

06 Hose Protection
- Drag Chain: High-strength plastic, protects hoses.
07 Direct Cylinder Push
- Telescopic Boom: Two-section, driven by cylinder for safety.
08 Safety Devices
- Anti-Retraction: For cylinders and outriggers.
- Emergency Pump: Electric hydraulic.
- Interlocks: Boarding and platform.
- Stop/Test: Emergency stop, level status test.
- Support Detection: Outrigger force detection.
09 Auxiliary Devices
- Hydraulic Interface: For tools.
- Toolbox: Large, sealed for storage.
- Boarding Ladder: Stepped for safety.

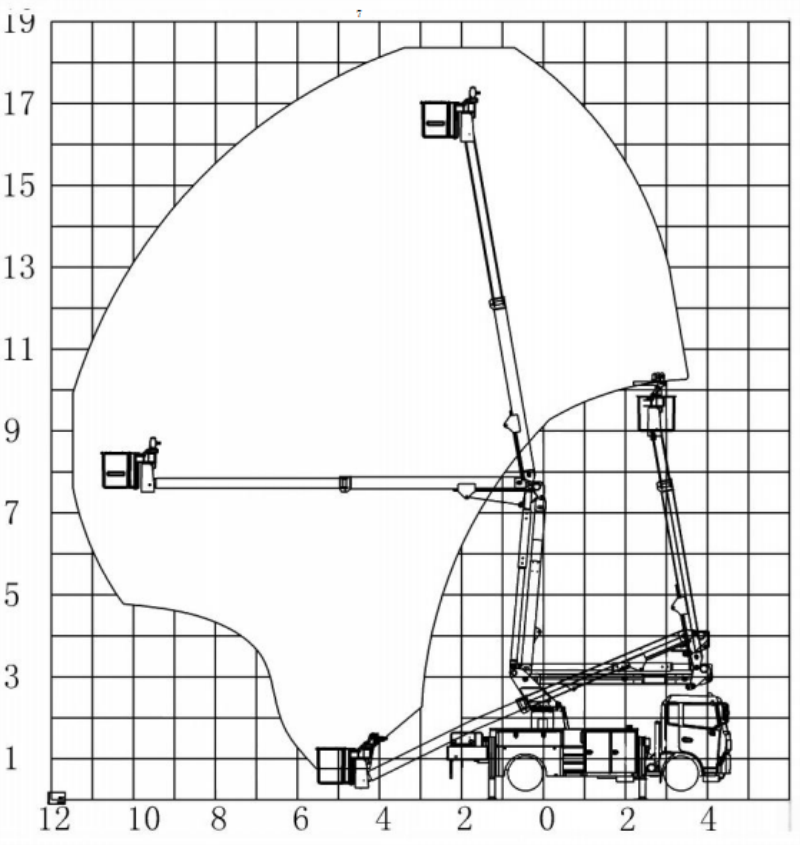

Working Range Diagram, Rated Load of Working Basket: 280kg
