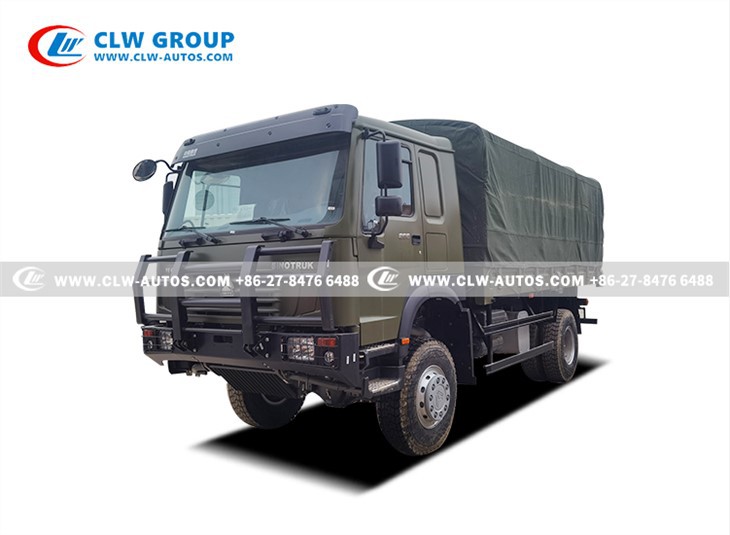

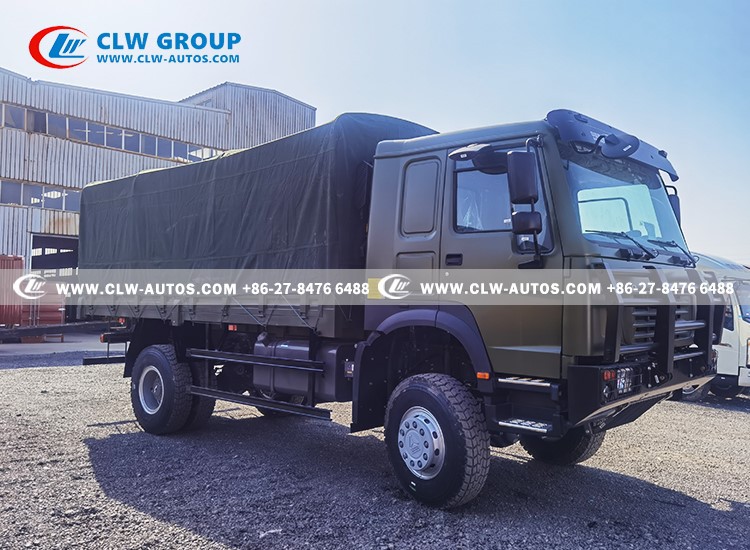

HOWO 4X4 Off Road Troop Carrier With Tarpaulin

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road troop carrier with tarpaulin in China. If you're going to buy high quality howo 4x4 off road troop carrier with tarpaulin, welcome to get more information from our factory. For price consultation, contact us.





Troop carrier(also called army use personnel transport truck,army soldier delivery truck,20-person military personnel transport truck,4WD troop carrier) is designded and used for transporting,delivering military soldiers. We can design accoding to your request with ISUZU/HOWO/SHACMAN 4X4/6x6/8x8 truck chassis with detachable two row bench.

For quick inquiry

Feature

• Strong SINOTRUK HOWO truck chasis

• Large horsepower 266 hp/290HP for option

• 4X4 or 6X6 off road drive

• Strong cargo box with Tarpaulin cover

• Two rows of benches with safety belt



• Military green/Khaki/white/blue color for option
• front protection device is optional

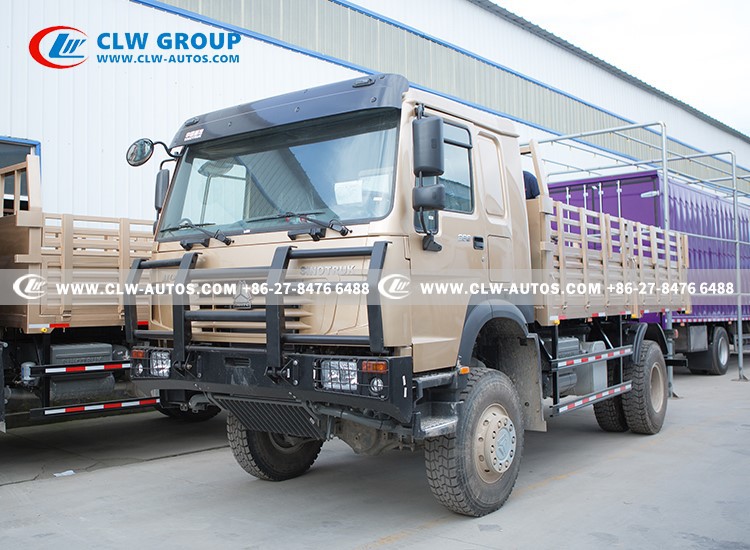

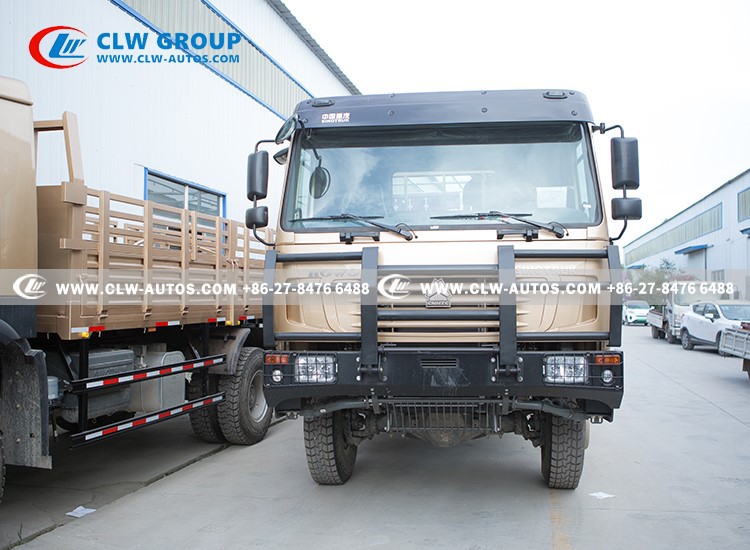

• 4X4 Khaki color off road military soldier transport truck

• HOWO cabin with high passing ability

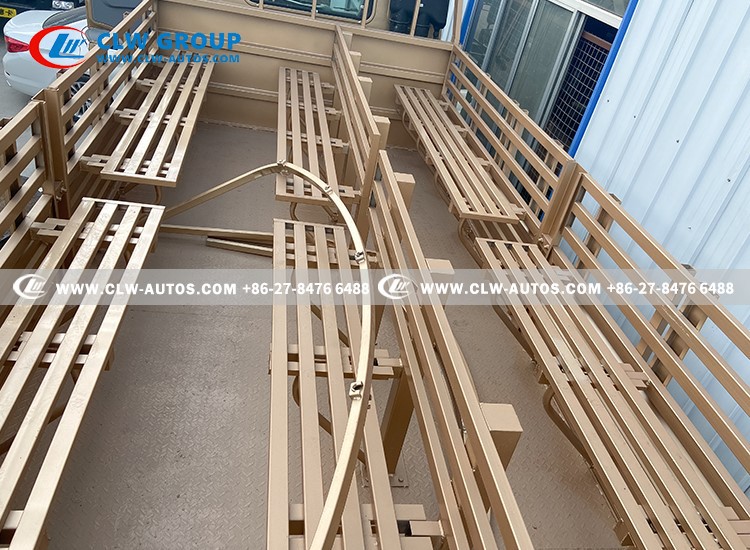

• 3 row of bench inside 4x4 troop carrier truck

• off road troop carrier is optional for army use Tarpaulin









Truck Brand		SINOTRUK HOWO
Driving Type		Left Hand Driving/Right Hand Driving
Dimension(Lx W x H)(unloaded)(mm)		8268*2496*3200
Cargo body dimension (L x W x H)mm		5500*2326*600
Cargo body		Special type(with Seat, tent holder and tent, ladder)
Oil Tank		Standard
Wheel base (mm)		4300/4600/5200
Max speed(km/h)		95
Curb weight(kg)		7870
Loading Weight(kg)		16000
Engine	Model	WD615.87/ WD615.62/ D10.31-40/ D10.34-40, water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
	Fuel type	Diesel
	Horse Power	290HP/266HP/310HP / 340HP
	Emission	EURO II/III/ IV
Fuel tanker capacity(L)		400
Transmission	Model	HW19710,10 forwards and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	8198 hydraulic steering with power assistance
Front axle	STR
Rear axle	ST16, Loading: 16000KG
Color	White( Optional)
Tyre	12.00R20 steel wire tire
	Option: 14.00-25, 14.00R25 (Single tire)
Tyre quantity	6pcs + 1 spare
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500w
	Starter	7.5Kw/24V
Cab	HOWO76 cab, single sleeper with air conditioner,



Contact us for more military use/off road/4x4/6x6 truck with different functions.

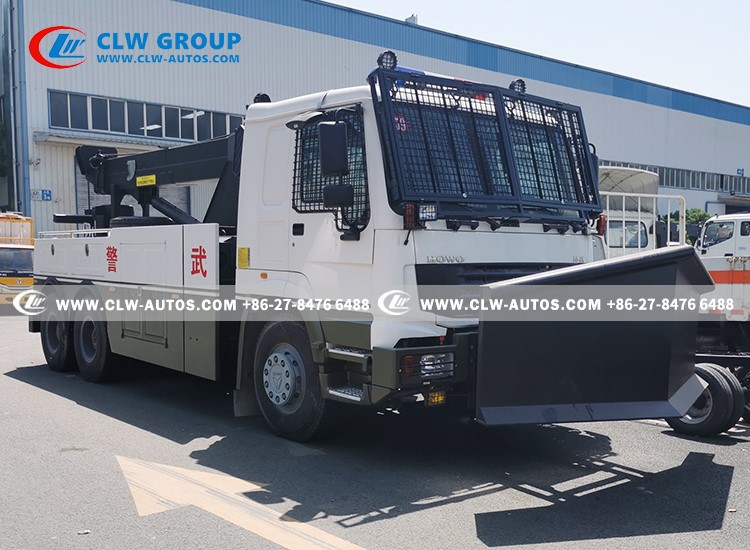

• howo 4x4 off road recovery road wrecker truck

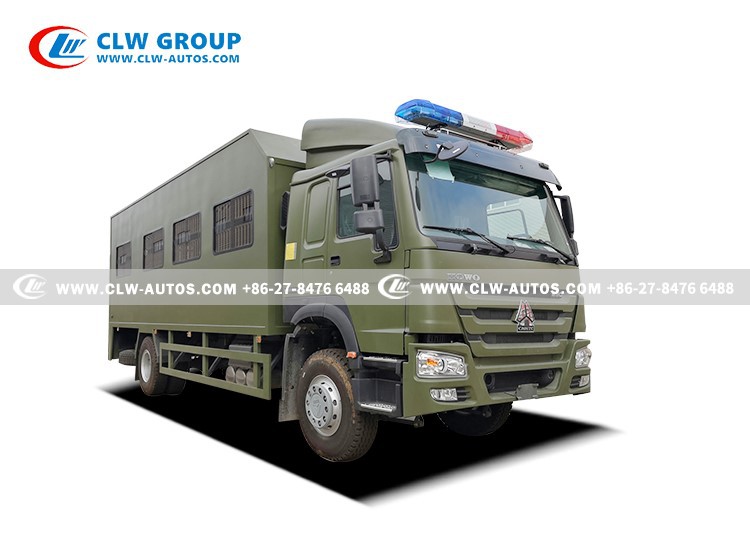

• military green howo 6x6 30 prisoners Transport Van Truck

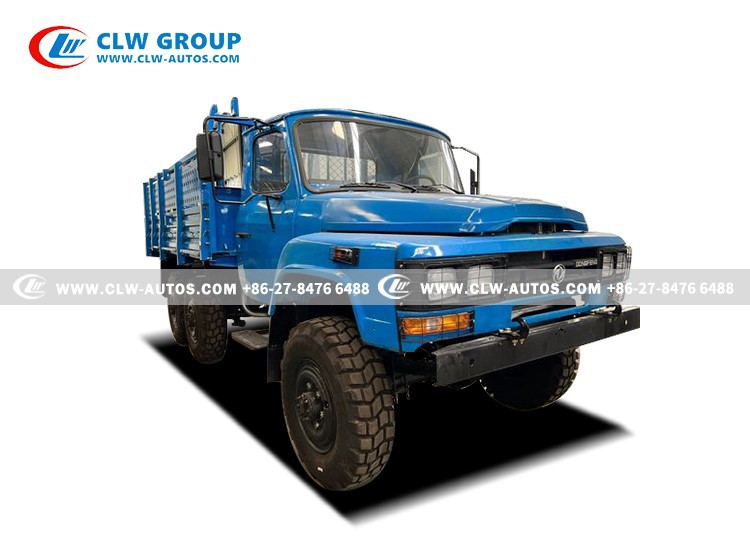

• Dongfeng EQ troop carrier

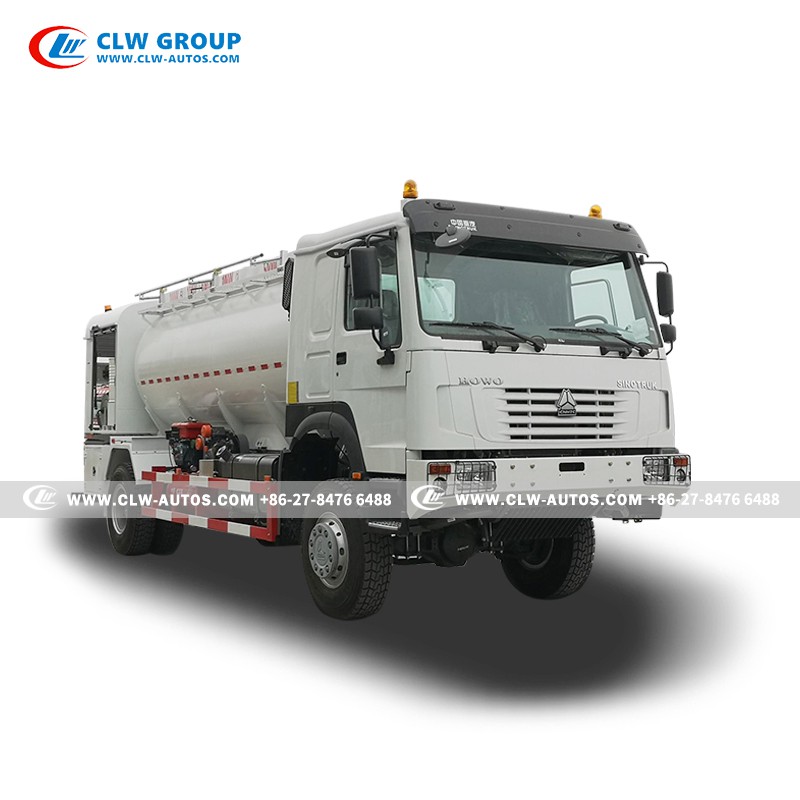

• Howo 4x4 3000 gallons/4000 gallons fuel tank truck

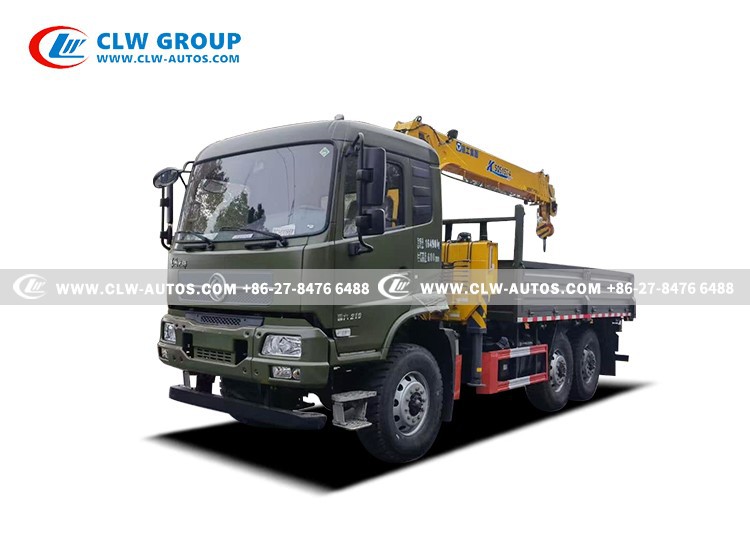

• 6X6 off road truck mounted with 6.3 tons crane



• howo 4x4 10 tons/15 tons refrigerator van truck

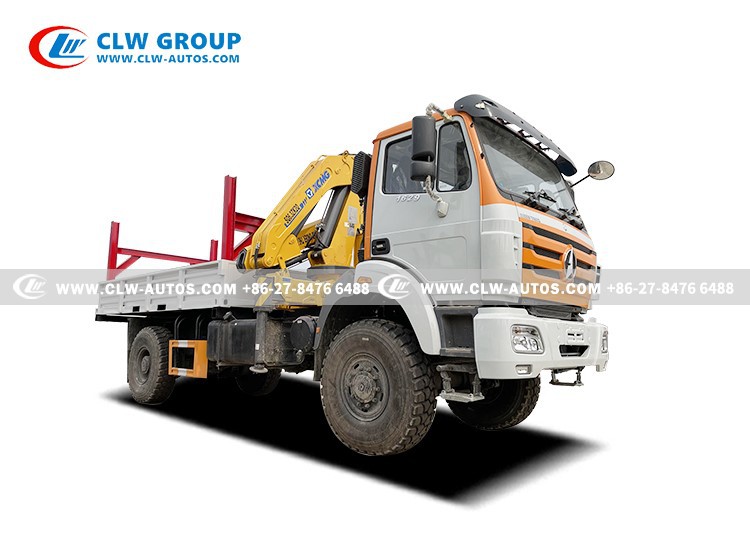

• Beiben 4x4 truck mounted with XCMG crane
