40% Less Material Waste: New Chengli Tri-Axle Distributor Achieves ±1% Spray Uniformity
Products Description
Asphalt Distributor Truck (also known as Asphalt Sprayer Truck, Bitumen Distributor Truck, or Bitumen Sprayer Truck), is a specialized vehicle designed for the uniform spraying of asphalt or bitumen in road construction and maintenance projects. This versatile equipment plays a crucial role in ensuring the proper application of binding agents for road surfaces, enhancing durability and longevity.
Chassis configuration
| Chassis Model | SX1259LB9F1 | Chassis Name | Shaanxi Automobile Group Delong Minor Three-axle |
| Wheelbase | 1800+4000mm | Number of Axles | 3 |
| Engine Model | YWP6H270E61 | Engine Power | Weichai 270 Horsepower |
| Engine Displacement | 6220ml | Tire Specification | 10.00R20 Steel-belted Radial Tire |
| Number of Tires | 8+1 (pieces) | Fuel Type | Diesel |
| Fuel Tank Capacity | 450 (L) | Transmission | Shaanxi 8-speed Transmission |
| Seating Capacity | 2, 3 (persons) | Maximum Speed | 105 (km/h) |
| Central Locking | Shaanxi Automobile Group Original | Electric Windows | Shaanxi Automobile Group Original |
| Air Conditioning | Shaanxi Automobile Group Original | Emission Standard | GB17691-2018 China VI (National VI) |
Superstructure Configuration
| Products name | Asphalt Distributor Truck | Vehicle Model | GL5250GLQ6BLS |
| Announcement Batch | 369 | Exemption Status | Yes |
| Tank Volume (m³) | 16 | Total Mass (Kg) | 25000 |
| Rated Load Capacity (Kg) | 12670 | Curb Mass (Kg) | 12200 |
| Tank Material | Q235 High-quality Carbon Steel | Insulation Layer | Rock Wool |
| Tank Surface | Stainless Steel | Vehicle Dimensions (mm) | 9750×2500×3380 |
| Strainer | Customized | Heat Transfer Oil Pump | RY40-25-160 |
| Handheld Spray Gun | 6m Hose + Spray Gun | Proportioning Valve | GL-BLTS120.00 |
| Speed Sensor | GTS211B-N016 | Temperature Sensor | WZF-230 |
| Pneumatic Butterfly Valve | GLD6H3-16C | Shut-off Valve | PN16DN50 |
| Engine | 7kW Gasoline (Diesel Optional) | Operation Mode | Cab or Remote Operation |
| Control System | PLC Control System | Nozzle Control Method | One-button Control |
| Asphalt Pump | QGB950 | Rear Nozzles | 36 Pneumatic Asphalt Spray Nozzles |
| Asphalt Pump Flow Rate | 950L/min | Asphalt Spray Volume | 0.25-3L/m² (±2% Error) |
| Spray Medium | Emulsified Asphalt, Hot Asphalt, etc. | Heat Transfer Method | Heat Transfer Oil with Circulation Heating |
| Spray Width (m) | 4.5m (6m with Optional Spray Bar) | Burner | G20 (Optional Dual Burner) |
| Spray Area Calculation | Spray Area = Tank Volume ÷ Spray Volume | Cleaning Method | Pneumatic Self-cleaning, Diesel Cleaning |

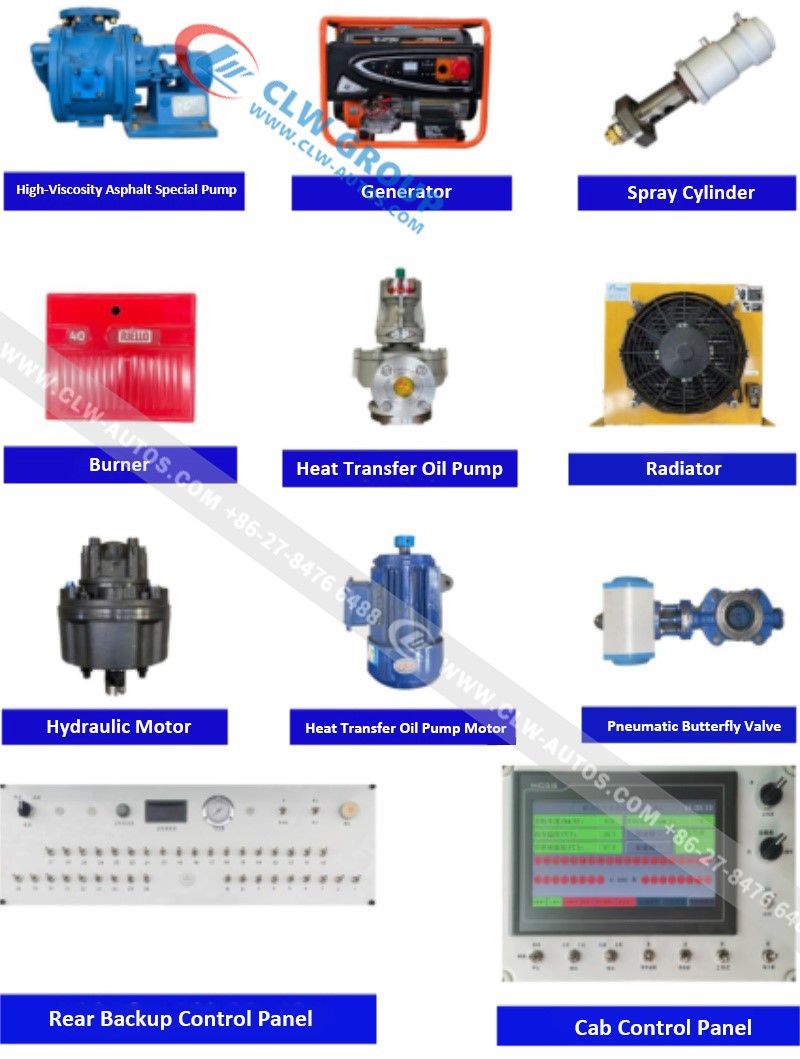

Products Parts Images
What's The Price And How To Buy?
Please contact with us directly to get more info.
