Dongfeng Tianjin KR Series 45m Telescopic Boom Aerial Work Platform Enters Market With 360° Continuous Rotation
Products Description
An aerial work platform (AWP), also known as an elevated work platform (EWP), cherry picker, boom lift, or scissor lift, is a mechanical device used to provide temporary access for people or equipment to inaccessible areas, usually at height.
Main Technical Parameters
| Dimension (mm) | 9550x2550x3990 | Seating Capacity | 3 persons |
| Total Mass (kg) | 13495 | Rated Load of Working Platform (kg) | 200 |
| Maximum Working Height (m) | 45 | Working Range at Maximum Working Height (m) | 5 |
| Maximum Working Range (m) | 18 | Working Height at Maximum Working Range (m) | 17 |
| Outrigger Span - Horizontal (mm) | 6600 | Longitudinal (mm) | 4500 |
| Front/Rear Suspension (mm) | 1430/3020 | Wheelbase (mm) | 4700 |
| Approach/Departure Angle (°) | 17/9 |
Configuration Instructions
| Chassis |
|
Engine |
|
| Driver's Cab |
|
GCRT-125EWCE |
|
| Rotation Device |
|
Temperature Regulation |
|
| Guardrails and Walking Platform |
|
Power Take-off System |
|
| Working Platform |
|
Boom Configuration |
|
| Outriggers |
|
Operation |
|
| Control System |
|
Leveling System |
|
Basic Functions And Safety Configuration
The 45-meter aerial work platform truck features a 200KG platform load capacity, 45m max working height, and 18m max working range. Key safety components:
- Boarding Interlock: Prevents misoperations.
- Emergency Pump: Returns vehicle to safe state during failures.
- Platform Emergency Stop: Halts operations instantly.
- Range Limiter: Auto-restricts unsafe boom movements.
- Outrigger Stability Control (Optional): Limits work with unstable outriggers.
- Night Warning: Strobe & LED lights for visibility.
- Engine Control: Manages ignition/shutdown.
- Forced Operation: Overrides restrictions for specific tasks.
Aerial Work Vehicle Introduction And Performance Characteristics
Functional Introduction
Chengliwei straight-boom aerial work trucks offer heights from 12m to 45m. With fully telescopic booms, stable wide-span outriggers, and flexible operation, they're safe, efficient, and ideal for various industries like municipal, power, and emergency rescue.
Product Overview

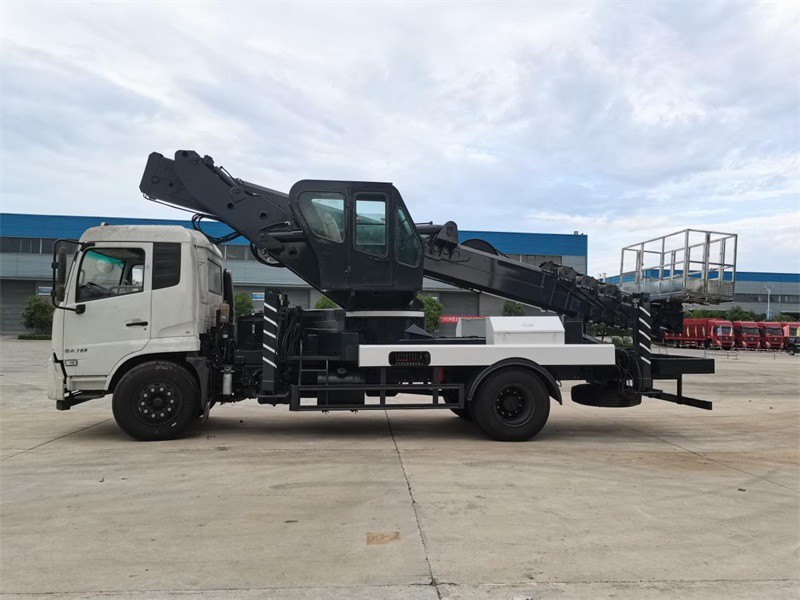

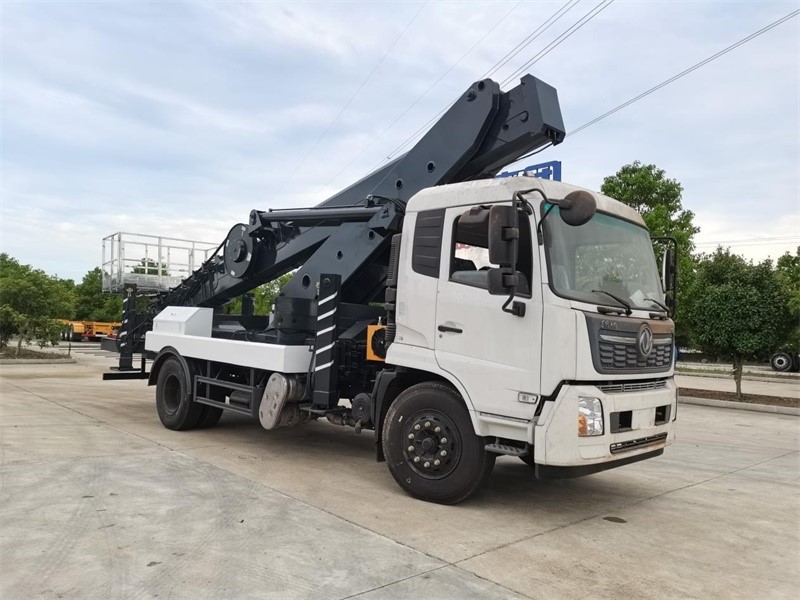

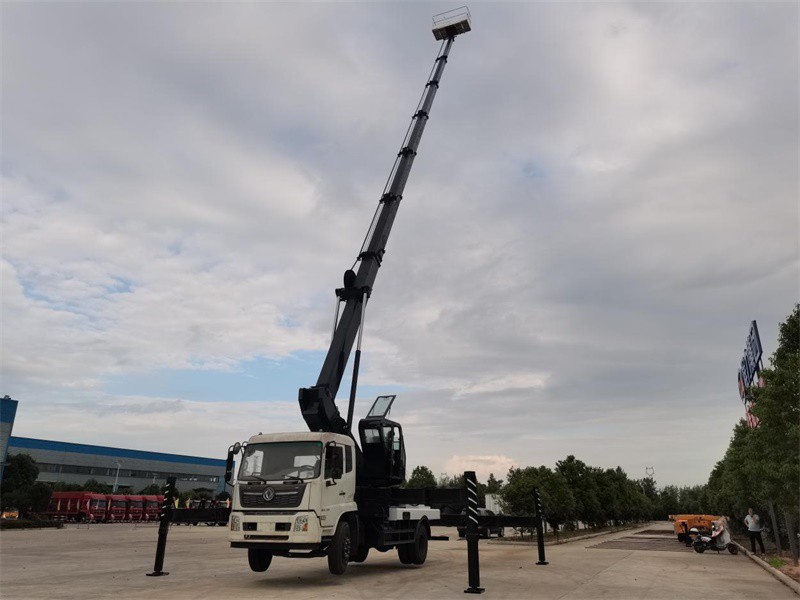

- 45m truck with 7-section telescopic boom, 360° rotation, remote/turntable control, 200kg basket capacity, and anti-slip platforms.
- Self-balancing work basket.
- Night operation lights for safety.
- Computer-controlled with auto-limit and alarm systems; real-time display.
- Hexagonal booms for strength; easy maintenance with external cylinders.
- V-type outriggers for stability; individually adjustable.
- Bilateral hydraulic locks on outriggers and balancing valves on booms for safety.
- High-quality domestic and imported components ensure smooth, safe, and reliable operation.
Basket Control Panel Diagram

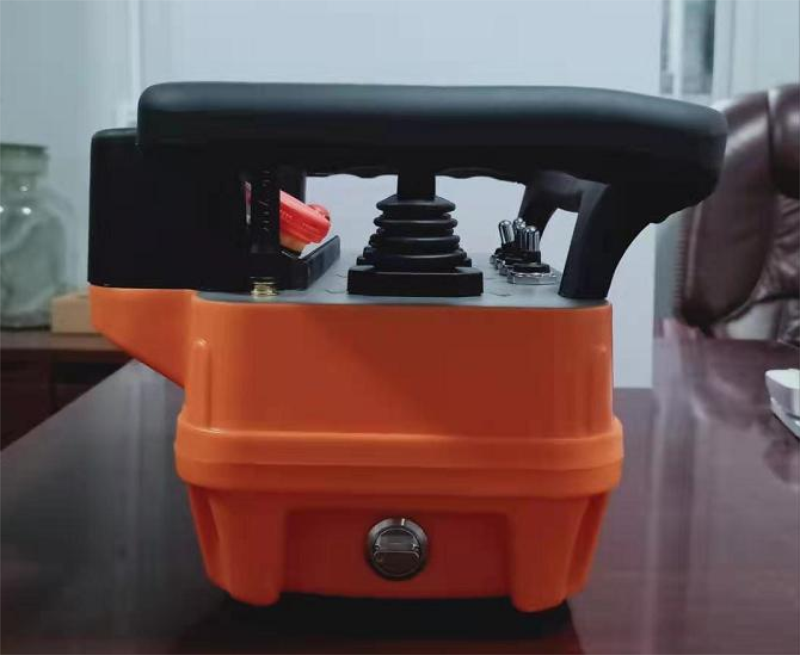

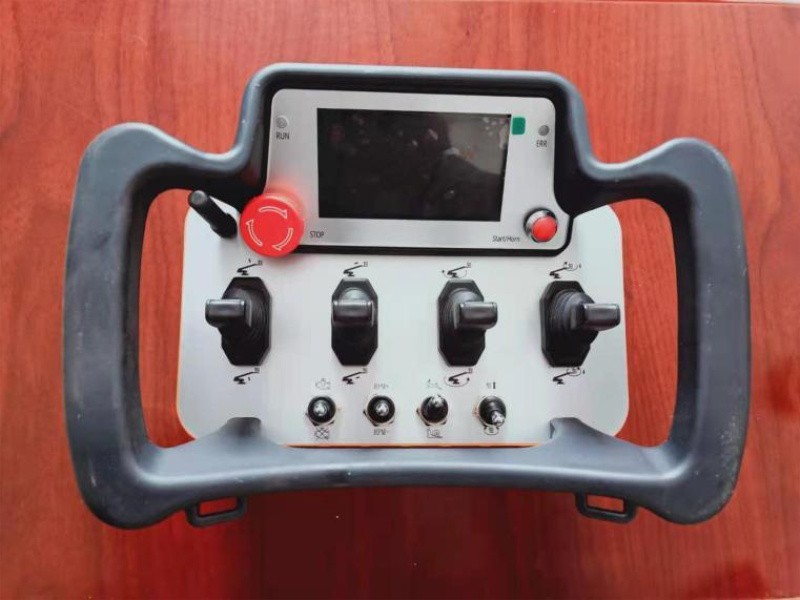

- Computer & Wireless Remote Control
- Auto-Limit & Alarm: Enhances safety. Real-time monitor displays working conditions.
- Quadrilateral Boom: Synchronous telescoping, compact, efficient, wide range. External cylinders and wire rope/chain mechanism simplify maintenance.
- CAN Bus System: Neat, simple wiring. Three operation modes (platform, wired, wireless) for better workspace observation, safety, and efficiency.
Please contact with us directly to get more info.
