Zero-Emission Urban Cleaning: CLW Group's New EV Water Truck Reduces CO2 By 50T Annually
Products Description

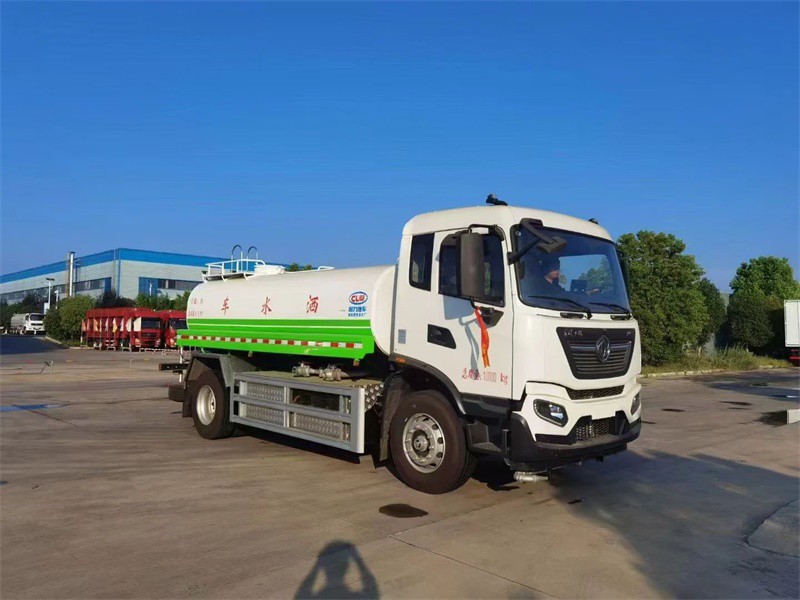

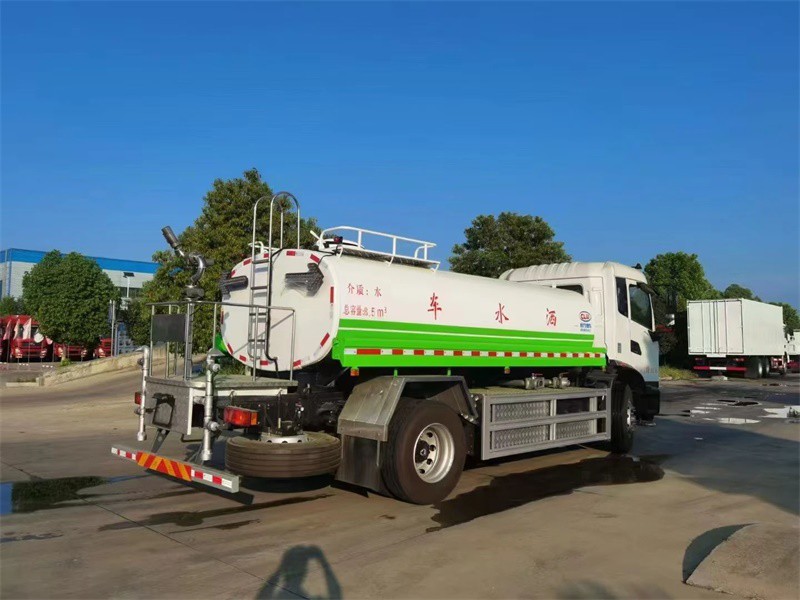

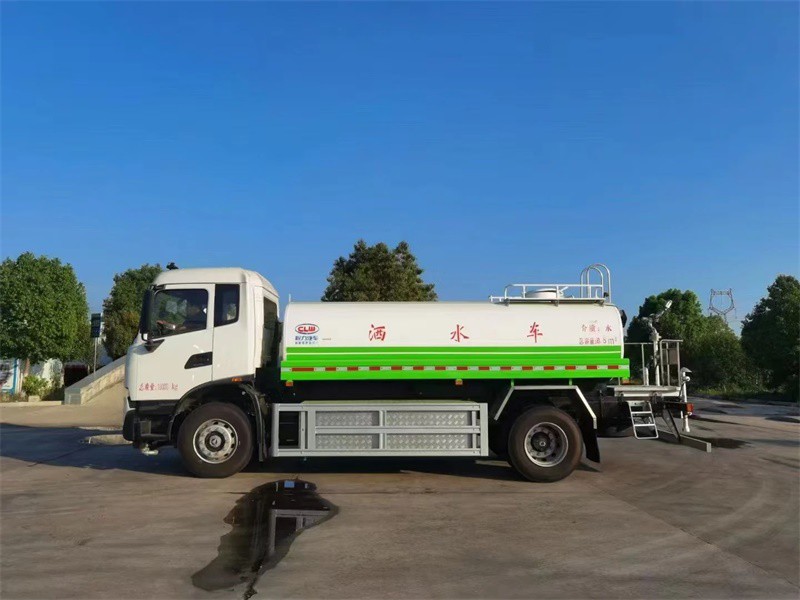

A pure electric water sprinkler truck, also known as an all-electric street sprinkler, battery-powered water truck, or electric-powered sprinkler vehicle, is an environmentally friendly solution designed for urban street cleaning, dust suppression, and green space irrigation. This type of truck utilizes electric power exclusively, eliminating tailpipe emissions and reducing noise pollution compared to traditional diesel-powered models
Main Technical Information
| Products name | Chengli Dongfeng Tianjin Pure Electric Water Sprinkler Truck | External Dimensions (mm) | 8200x2500x3200 |
| Products model | Chengli Brand CL5182GSSBEV Type | New Energy Chassis | Dongfeng Tianjin New Energy Special Vehicle Chassis |
| Chassis Model | DFH1180BEV1 | Tank Body Actual/Announced Capacity (mm) | 10.7/8.6(m³) |
| Total Mass (kg) | 18000 | Tank Body External Dimensions (mm) | 4800x2100x1270 |
| Rated Mass (kg) | 8450, 8385 | Front/Rear Overhang (mm) | 1430/2270 |
| Complete Equipment Mass (kg) | 9420 | Maximum Speed (km/h) | 89 |
| Approach/Departure Angle (°) | 16/11 |
Chassis Parameters
| Chassis Model | DFH1180BEV1 | Number of Axles | 2 |
| Wheelbase (mm) | 4500, 4700 (mm) | Front Wheel Track (mm) | 1900, 1920, 1940 (mm) |
| Front Seating Capacity | 2, 3 | Rear Wheel Track (mm) | 1860, 1880 (mm) |
| Number of Tires | 6 | Number of Leaf Springs | 8/10+8 |
| Tire Specification | 295/80R22.5 18PR | Chassis Motor Max Power | 160KW |
| Battery Pack Rated Voltage | 598.9V | Battery Capacity | 241KWH |
| Chassis Full-load Range | 300KM | Battery Type | Lithium Iron Phosphate Battery |
| Battery Brand | CATL | Onboard Motor Rated Power | 30KW |
| Onboard Hourly Power Consumption | 20KWH | Recommended Charging Pile Power | 120KW |
| Charging Time | Approximately 2 hours |
Motor Parameters
| Motor Type | Permanent Magnet Synchronous Motor | Motor Rated/Peak Power (kW) | 80/160 |
| Motor Rated/Peak Torque (Nm) | 600/1100 | Motor Rated/Peak Speed (rpm) | 3473/8700 |
| Motor Cooling Method | Water-cooled | ABS Model | JABS |
| ABS Manufacturer | Jiaozuo Borui Control Technology Co., Ltd | Energy Storage Device Type | Lithium Iron Phosphate Battery |
| Energy Storage Device Manufacturer | CATL New Energy Technology Co., Ltd. | Rear Protection | Side and rear protections use aluminum alloy 100; rear protection device is Q345A, both connected by bolts. Rear device cross-section: 60x120mm, ground clearance: 460mm. |
| Tank Body Effective Capacity/External Dimensions |
capacity: 8.6 m³; transport medium: water; density: 1000 kg/m³; external dimensions (mm): 4800x2100x1270. |
Special Function and Device | Special device: tank and water spraying system for landscaping and road watering. Motor power: 80kW rated / 160kW peak. |
Top-mounted Configuration
| Tank Material | Q235 carbon steel / 304 stainless steel | Tank Thickness | 4.5mm |
| Drive Method | Permanent magnet synchronous motor drive allows real-time speed adjustment, independent of the chassis drive | Water Pump Model | 60/90 or 50/110 |
| Spray Width | ≥24 meters | Water Cannon Range | ≥40 meters |
| Coating Process | Electrophoretic coating process | Special Function Description | Equipped with cab electrical controls. Front flush, rear/side spray use stainless steel pneumatic ball valves. High-power pump with self-priming/draining. Rear LED lights. Working platform, ladder, guards are 304 stainless steel with stainless filters. Thickened main pipeline with fire interface; rear high-pressure cannon is stainless steel. |
Find About More

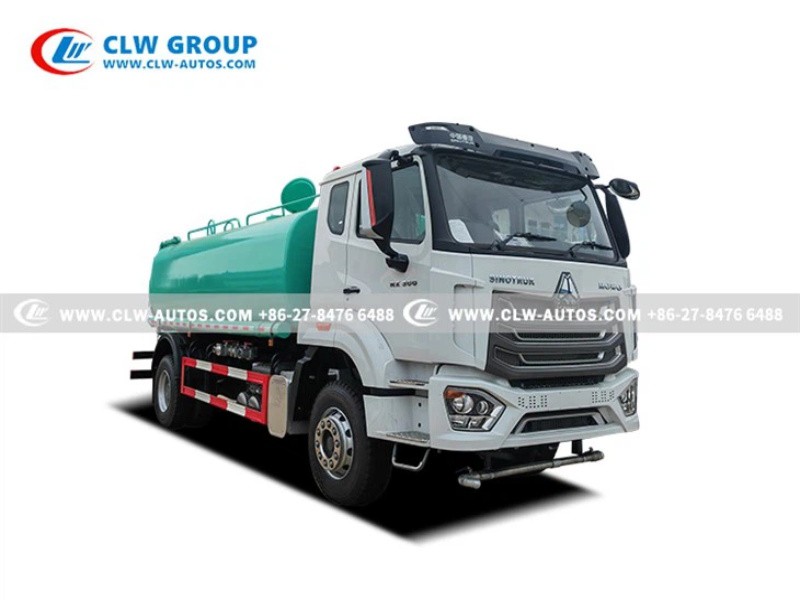

Sinotruk HOWO Water Truck

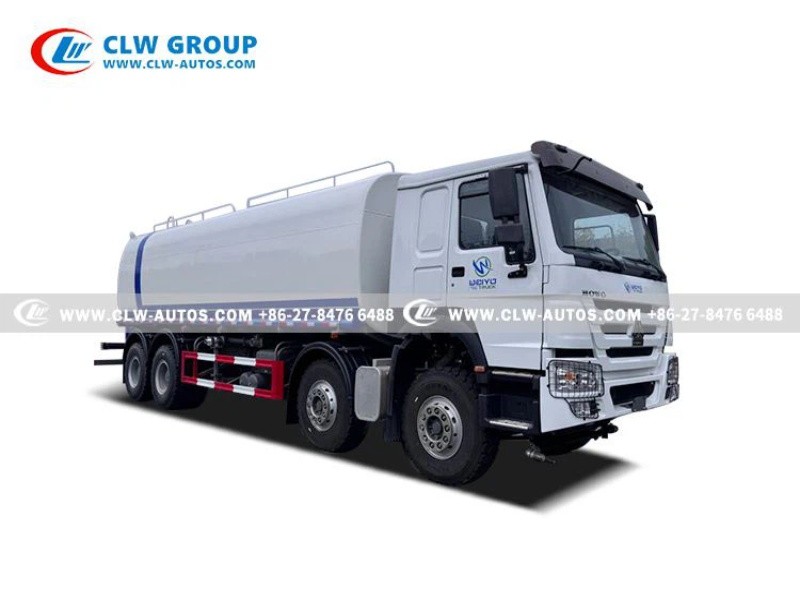

HOWO 35000L Water Truck

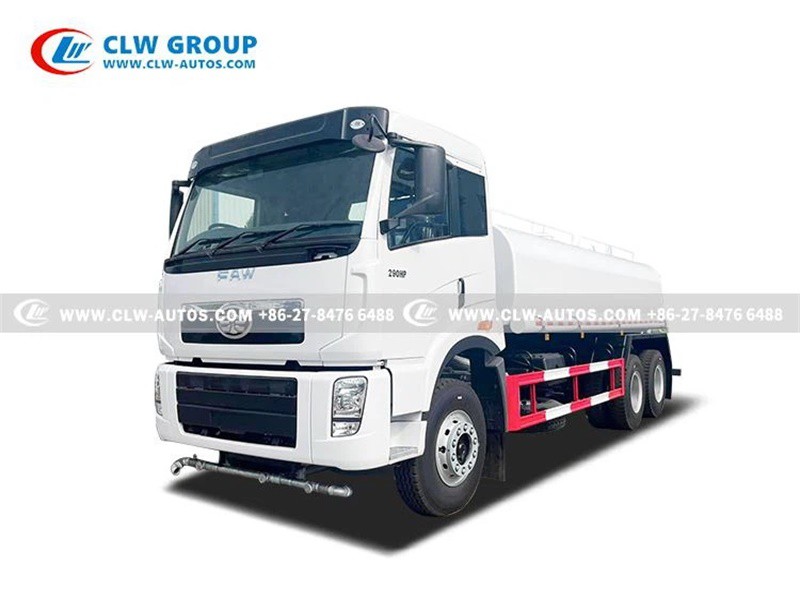

FAW 20m³ Water Sprinkler Truck

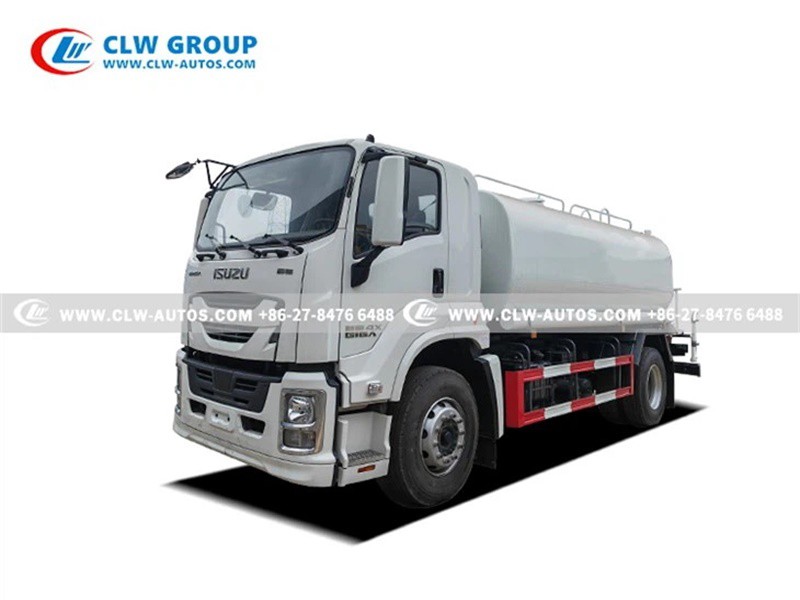

ISUZU Giga Water Sprinkler Truck

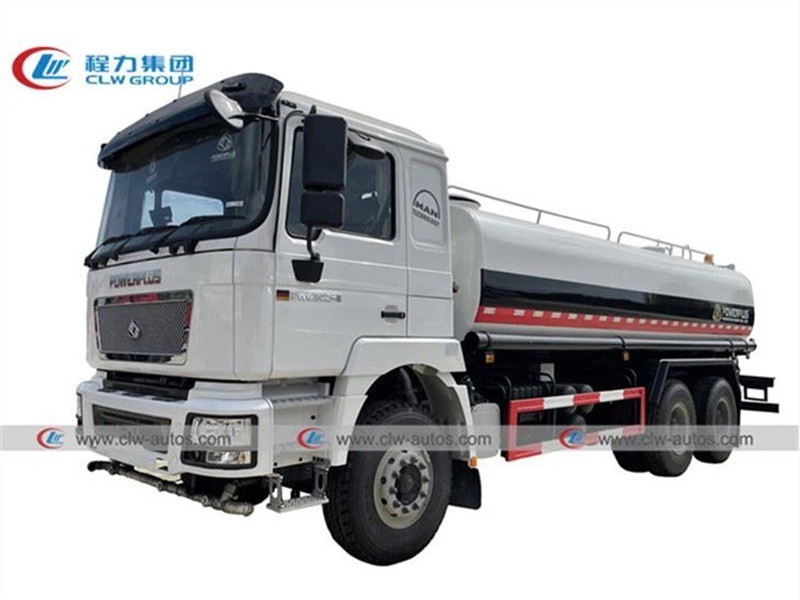

SHACMAN 20m³ Water SprinklerTruck

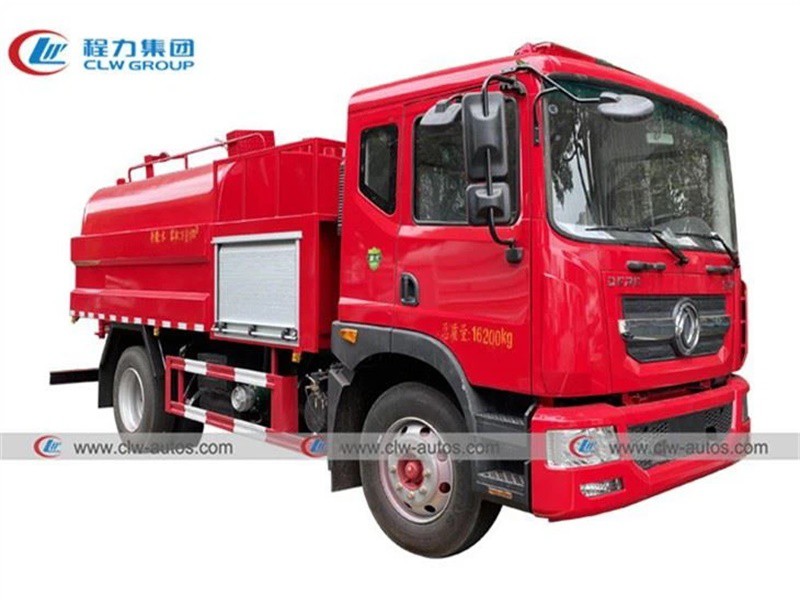

Dongfeng Fire Fighting Water Sprinkler Truck
