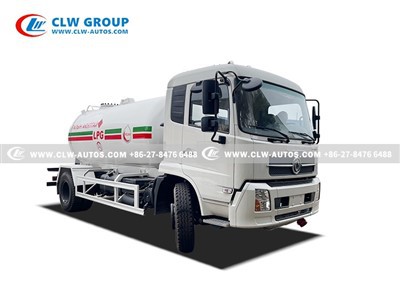

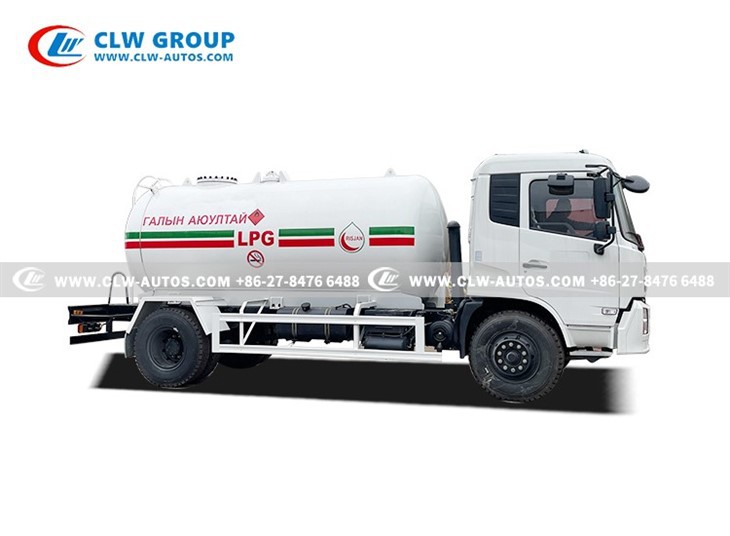

Dongfeng Tianjin 8tons LPG Tank Truck

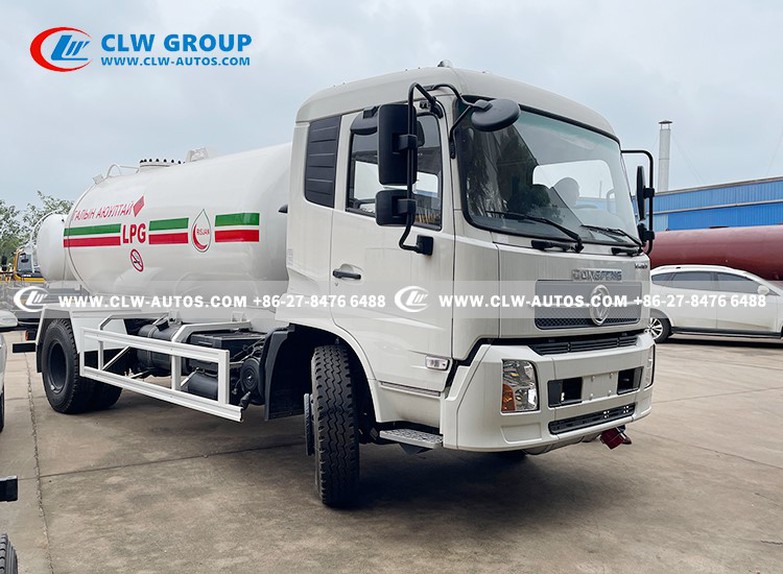

Dongfeng Taianjin Cabin

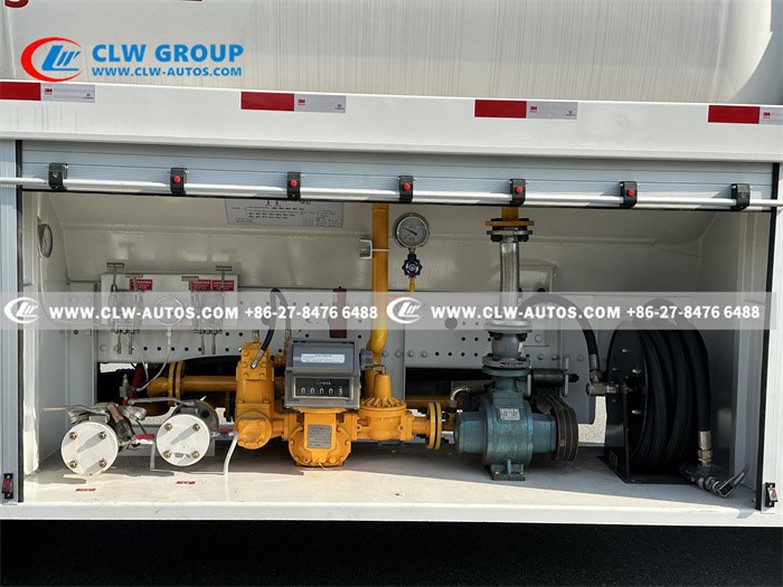

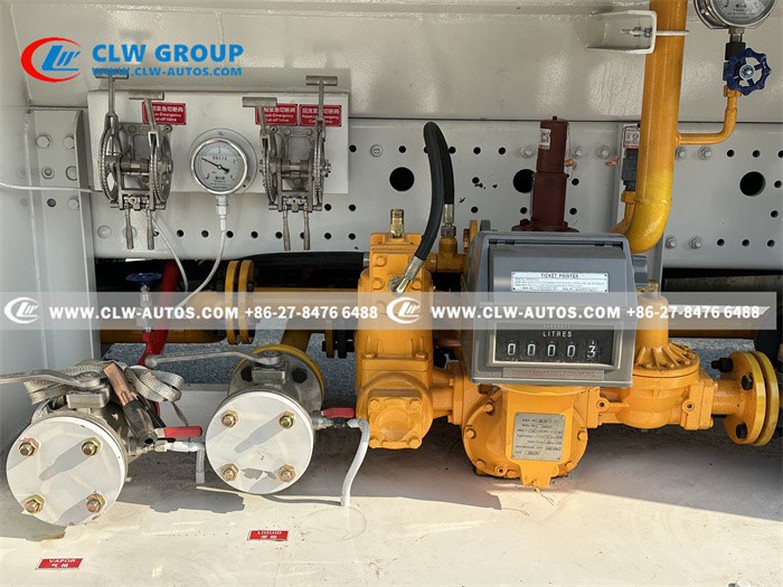

LPG pump, flow meter for small tank refill
Rego Adapter
15 meters filling hose
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng tianjin 8tons lpg tank truck in China. If you're going to buy high quality dongfeng tianjin 8tons lpg tank truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
Dongfeng Tianjin 8tons LPG Tank Truck, which also known as LPG tanker truck, gas refiiling truck, Propane tank truck, LPG bobtail tanks, butane bobtail, lpg gas tank truck,is customized for small tank or cooking cylinder refilling, mainly used to refueling urban areas or hotel or restaurants or small gas station etc. Our factory supply lpg products including LPG sotrage tank, LPG tank truck, LPG skid station, LPG tank semi trailer, lpg pump, lpg compressor, lpg dispenser, lpg filling scales etc.
Factory supplied bobtail trucks;
Truck brand: HOWO, dongfeng, Shacman, Foton, Faw, ISUZU, JAC, JMC etc.
The tank capacity varies from 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 16000L, 20000L, 25000L, 30000L etc.
Pump brand: Chinese brand, or US corken Z2000 or US blackmer LGLD2.
Level gauge: Chinese brand or Rochester brand.
Filling system one: LPG pump with flow meter, rego adapter for small tank refilling. Filling system two: LPG pump with LPG dispenser for cooking cylinder refill. Factory can also combined two function to support multi purpose.
Filling hose 15m, 20m, 25m, 30m, can be customized.
Our LPG tank truck has been sold to Zimbabwe, Kenya, Zambia, Nigeria, Niger, Uganda, Guinea, Mongolia, Kazakhstan etc.
Contact Alice for a quick quote +86 180 7154 21969 whats app

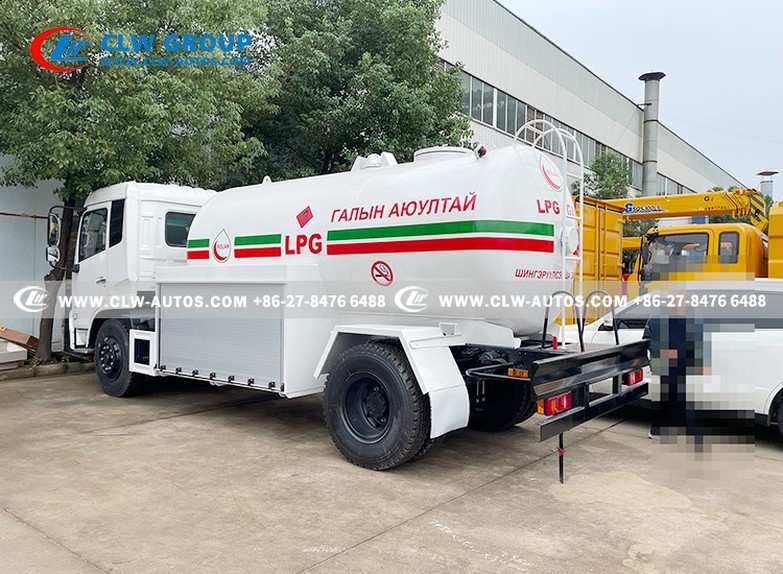

Reference Picture
|
Specification of Truck Chassis |
||||
|
Chassis Model |
Dongfeng Tianjin, Left hand driving | |||
|
Cabin |
Dongfeng Tianjin,Tiltable cabin for easy maintenace One and half cabin with air conditioner |
|||
|
Wheel Base |
5000mm |
|||
|
Axle Loading (front/rear) |
5000/10000 kg |
|||
|
External Dimensions (L x W x H) |
7850X2490X3250mm |
|||
|
Max. driving speed |
95 km/h |
|||
|
Engine |
Model |
Cummins B190-33 | ||
|
Type |
6-cylinders in a line, turbo-charging and inter-cooling |
|||
|
Horse Power |
190Hp |
|||
|
Max output power |
140 kW |
|||
|
Emission standard |
Euro 2 |
|||
|
Displacement |
5.9 L |
|||
|
Gearbox |
Manual type, 8 forwards & 1 reverse |
|||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Tire |
10.00R20, 6 pieces with 1 spare tire. |
|||
|
LPG tank |
||||
|
Filling Medium |
Liquefied Petroleum Gas |
|||
|
Working temperature |
-40~50 ℃ |
|||
|
Volume: |
16,000Liters |
|||
|
Tank material: |
Q345R |
|||
|
Tank diameter: |
2000mm |
|||
|
Tank thickness: |
10mm |
|||
|
End plate thickness: |
12mm |
|||
|
Tank length: |
As designed |
|||
|
Gas phase |
Flange type,DN50/2" or according to customer request |
|||
|
Liquid Phase |
Flange type,DN50/2" or according to customer request |
|||
|
Filling gas |
Propane(LPG) |
|||
|
Working Pressure: |
1.61Mpa |
|||
|
Design Pressure |
1.71 Mpa |
|||
|
Testing pressure |
2.21Mpa |
|||
|
Corrosion Allowance |
1.0 mm |
|||
|
Refilling Accessory |
||||
|
Directly driven by PTO |
||||
|
LPG Pump |
Chinese brand CLW 15-5 |
|||
|
Inlet 2" NPT and Outlet 2" NPT |
||||
|
Flow rate :15.5 m3/h |
||||
|
780 r/min for rotation speed |
||||
|
LPG Flow meter |
TSC-50 model Showing filling volume Inlet/Outlet 2"/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer. |
|||
|
Filling hose |
15M-30M,retractable with REGO adapter for small tank refilling |
|||
|
Level Gauge |
Rochester level gauge or Chinese brand |
|||
|
Safety Valve |
Model No. |
A412F-25-16 |
||
|
Type |
Built-in |
|||
|
Nominal Pressure |
2.5 Mpa |
|||
|
Safety return valve |
1 PC |
|||
|
Pipeline safety valve |
1 PC |
|||
|
Manhole |
DN450 |
|||
|
Thermometer |
1 pc WTQ-280 |
|||
|
Pressure Gauge |
2 pc YN-100T |
|||
|
Emergency shut off Valve |
2 pcs with switch inside valve box and at rear of truck |
|||
|
Fender |
Steel |
|||
|
Fire Extinguisher Holder |
1 set |
|||
|
Static conductive tape |
1 pc |
|||
| Painting | customized logo painting | |||
