Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 33m awd aerial platform truck in China. If you're going to buy high quality isuzu 33m awd aerial platform truck, welcome to get more information from our factory. For price consultation, contact us.

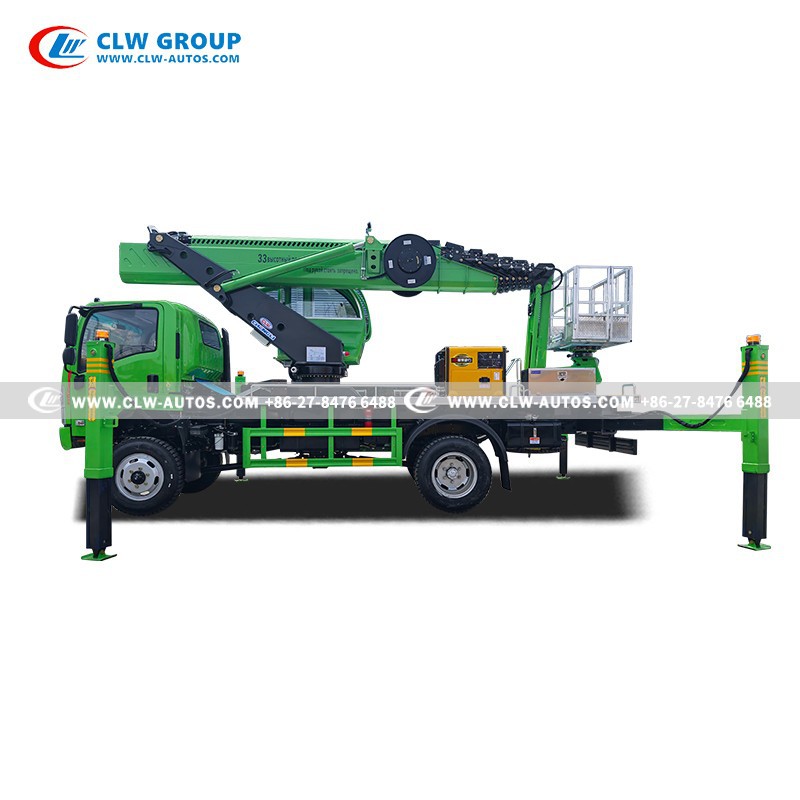

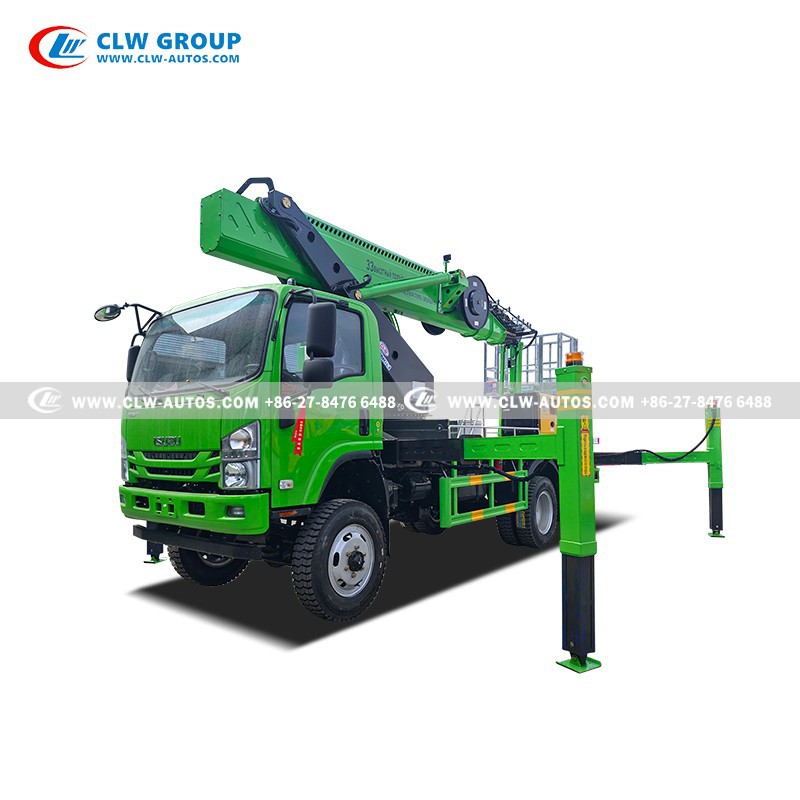

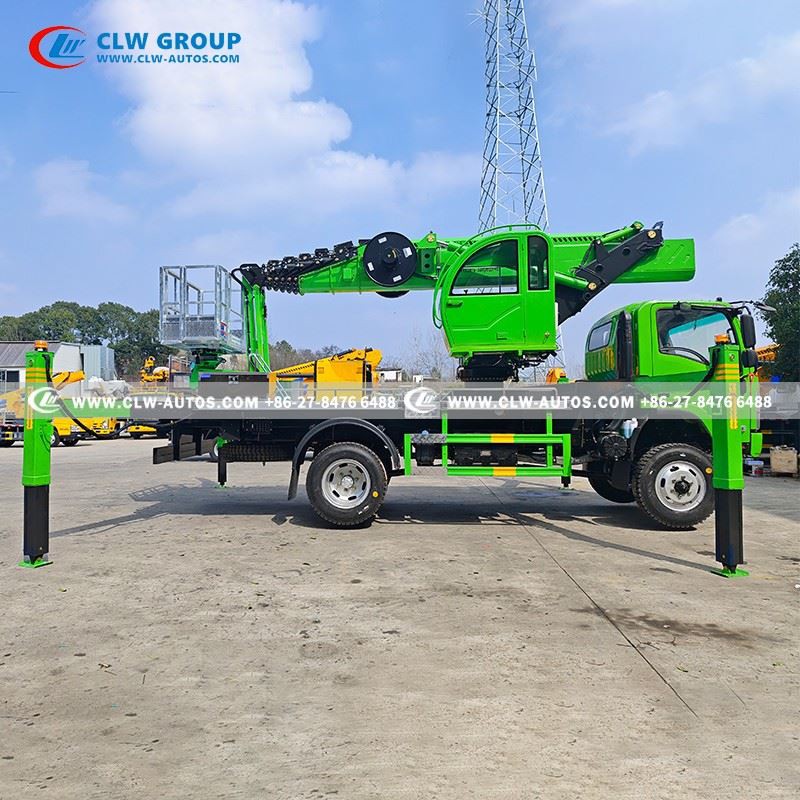

ISUZU 700P 190hp Telescopic Boom Lift Truck
33m telescopic reach, 200kg load capacity, and precision safety controls for reliable!
Built on the ISUZU 700P 4x4 chassis with a 190HP engine, this truck delivers robust all-wheel-drive (AWD) performance. The left-hand drive (LHD) setup ensures intuitive control, while the durable chassis supports stable operation even on rough terrain, meeting heavy-duty aerial work demands.
Equipped with a 33m telescopic boom, it offers extended reach for high-altitude tasks. The 200kg load capacity platform, wind speed sensor, and emergency stop systems prioritize operational safety. Precise control levers and dual control panels enable smooth, accurate positioning for diverse maintenance and construction jobs.
The ergonomic cab with a comfortable seat and clear control layout reduces operator fatigue. A detailed lubrication chart simplifies upkeep, while cooling fans and durable components ensure long-term reliability. The compact design enhances maneuverability in confined workspaces, boosting overall productivity.
keywords
#ISUZU700P/#4x4AWD/#190HP/#33mTelescopicBoom/#AerialWorkPlatform/#LHD/#200kgLoadCapacity/#SafetyFeatures/
#EasyMaintenance/#HeavyDutyPerformance
Product Name: Isuzu 4x4 Aerial Work Platform Truck
Application: Municipal maintenance
Telescopic Boom: 33m
Cab: Single row cabin, LHD, A/C
Wheelbase: 3815 mm
Engine: 4HK1-TCG61
Horsepower: 190HP
Emission standard: Euro VI
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 10550 kg
Front/Rear Axle loading: 4000kg /7000kg
Tires: 235/75R17.5 16PR, 6 pcs with one spar
|

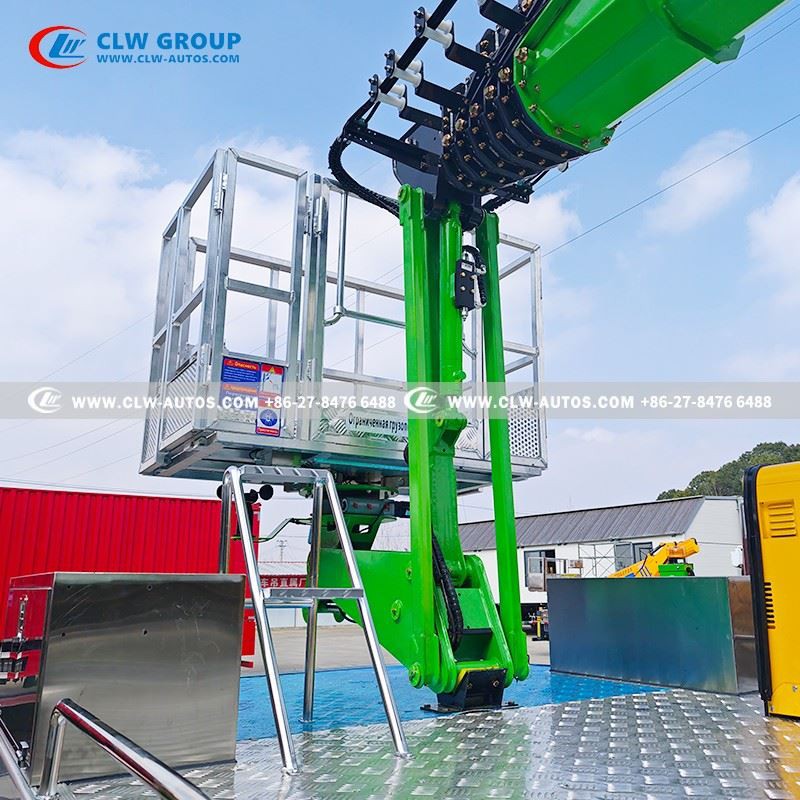

Working Bucket |
|
|
Max.work height |
33 meters |
|
Dimensions |
1200 x 750 x 1150 mm |
|
Bucket material |
High-strength aluminum alloy,anti-slip floor |
|
Rated Load Capacity |
200 kg |
|
Operator Capacity |
2 Persons |
|
Rotation Angle |
360° Hydraulic Rotatio |
|
Hoardings and walkways |
Aluminum plate |
|
|
Automatic Hydraulic Leveling The linkage mechanism composed of the main cylinder at the boom base and the slave cylinder under the basket ensures that the work platform remains horizontal during the lifting and lowering of the boom |
|
Telescopic Boom |
|
|
Number of Boom Sections |
1 main boom + 5 telescopic boom |
|
Max Horizontal Reach |
Approx. 19 m |
|
Boom Material |
High-strength Steel |
|
Driving Method |
By hydraulic drive |
|
Boom Lift Time (Full Extend) |
Approx. 150 s |
|
Outtriggers |
|
|
Outtriggers Type |
Front V + rear H outrigger (Four Independent Outriggers) |
|
Outtriggers span |
Front 5500mm Back 6200mm |
|
Adjustment |
Adjusted separately, or controlled in a coordinated manner |
|
Supporting leg Control mode |
Manual hydraulic operation |
|
Hydraulic lock |
Two-way hydraulic lock for four legs |
|
Strobe light on legs |
Yellow lights |
|
Power Supply System |
|
|
|
6KW Diesel Generator Provides power for the aerial work platform, supporting electric tools Platform lighting and communication equipment |
|
|
Explosion-proof Socket Allowing operators to use electric tools directly at 33m height without extra cabling |
|
Control System |
|
|
|
Outrigger control panel 6 Manual levers For independent extension Retraction of front/rear left/right outriggers |
|
|

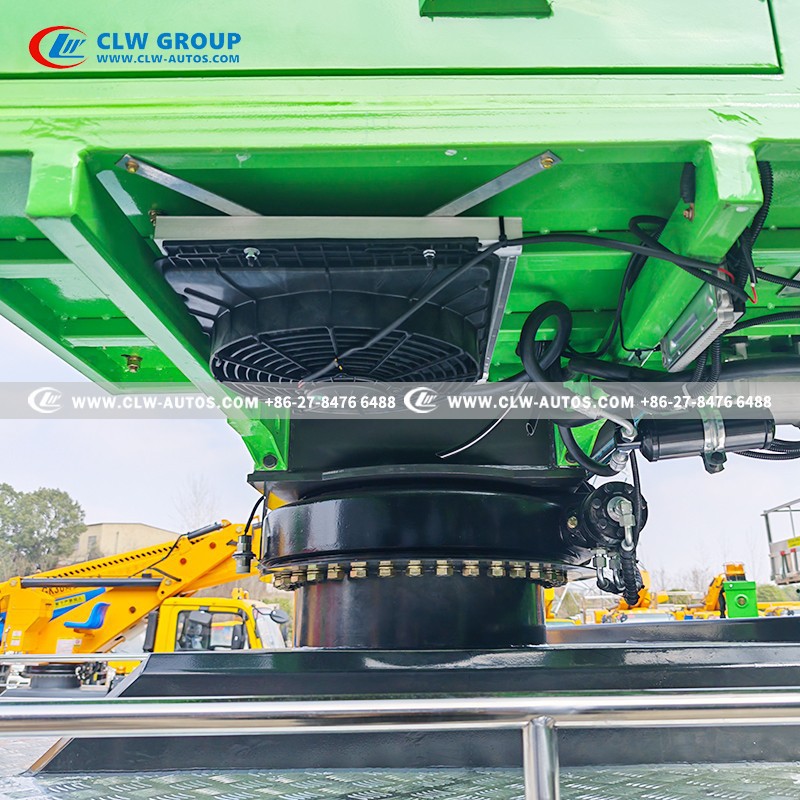

Intermediate Control Cab Switches for boom lifting, rotation, platform leveling, Auxiliary functions (lighting, horn, RPM adjustment) The bottom is equipped with a fan. |
|
|
Ground Main Control Panel Power switch, emergency pump, warning lights, Remote/close control, platform leveling, Rotation, and emergency stop |
|
|
Basket Remote Controller Portable multi-axis joystick control For boom telescoping, lifting, rotation, Platform leveling, with E-stop and start/home buttons |
33m telescopic reach, 200kg load capacity, and precision safety controls for reliable!

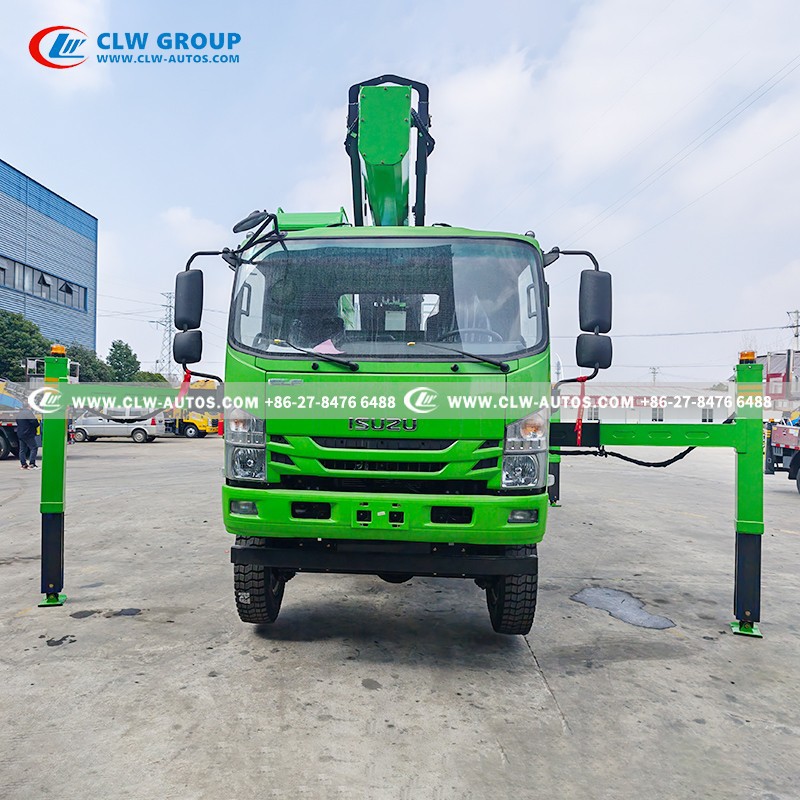

ISUZU 700P cab
4x4 All-wheel drive chassis
3 Seat With One Sleeper
With Air Conditioner
Electric Window
Euro VI emission standards
Powerful off-road truck

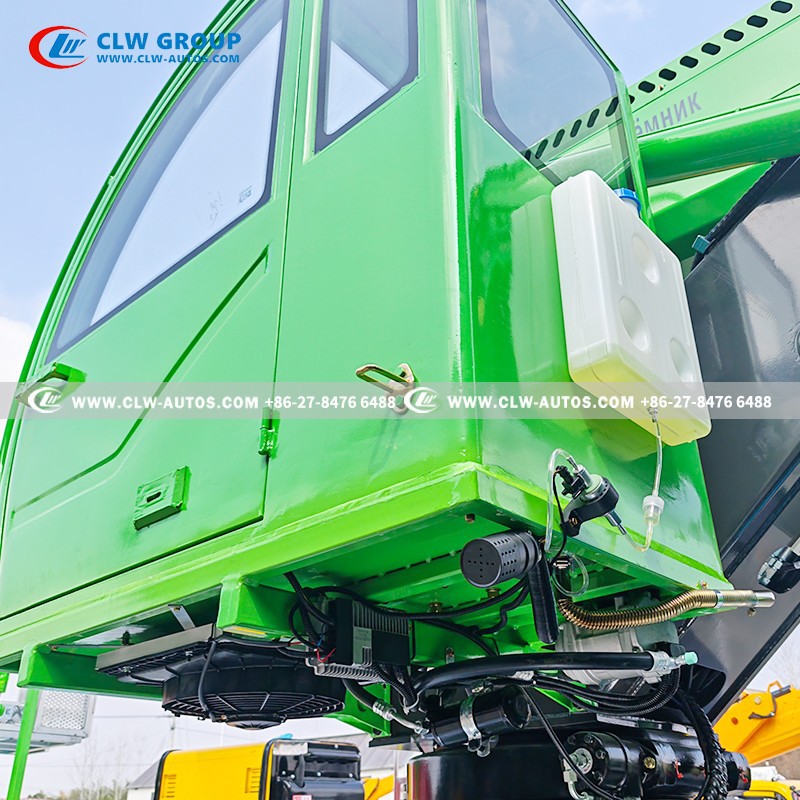

Intermediate Control System
Control of platform attitude
Control of boom movements
Red emergency stop button
Customized language labels
Stainless steel/painted protective panel
Integrated multi-station control terminal
Ground Dual Control System
Basket Remote Controller
Ground Main Control Panel
4000W Inverter
Multi-axis joysticks control boom telescoping
Display screen shows real-time system status
Stainless steel protective cabinet
Outrigger controller
Outrigger Control
6-section Manual Levers
Boom/Luffing Control
Manual Emergency Operation
Integrated Hydraulic Valve Block
Customized language of function markings
Multi-functional and suitable for various scenarios.
Power Line Maintenance
Cable erection, inspection, emergency repair.
Municipal engineering
Street lamp maintenance, billboard installation, tree trimming
Emergency rescue
High-altitude rescue, fire support.
Building facade construction
Maintenance,painting,cleaning, installation
