Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 22m manlift truck in China. If you're going to buy high quality isuzu 22m manlift truck, welcome to get more information from our factory. For price consultation, contact us.

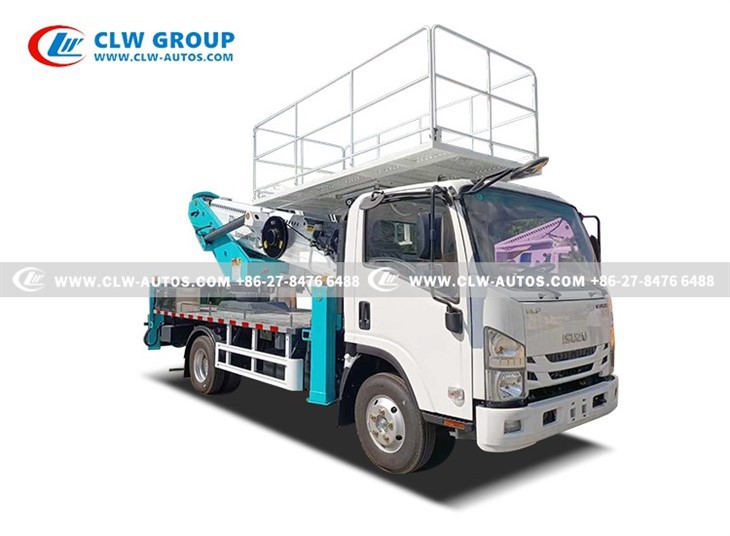

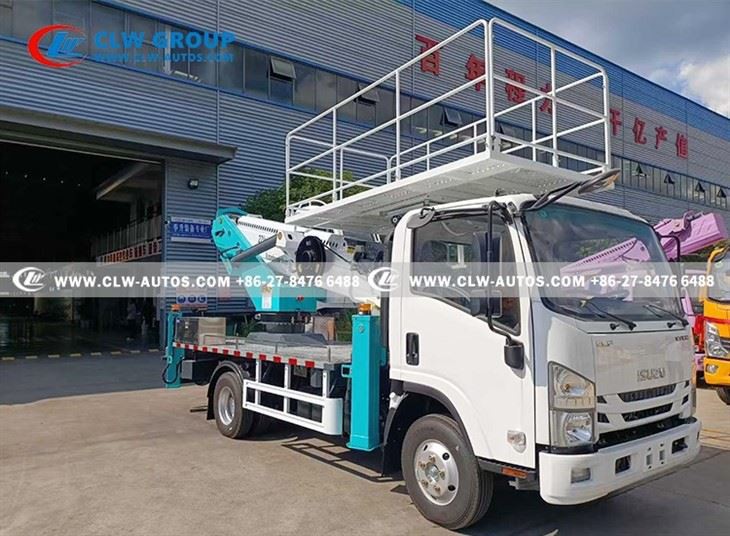

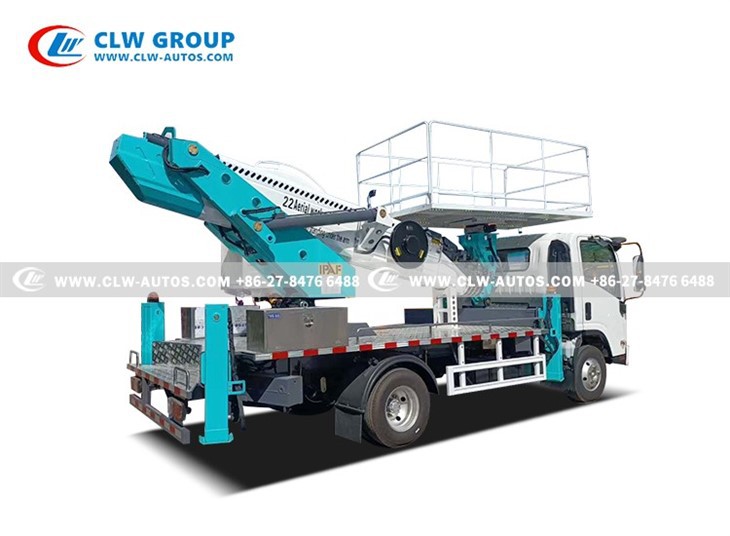

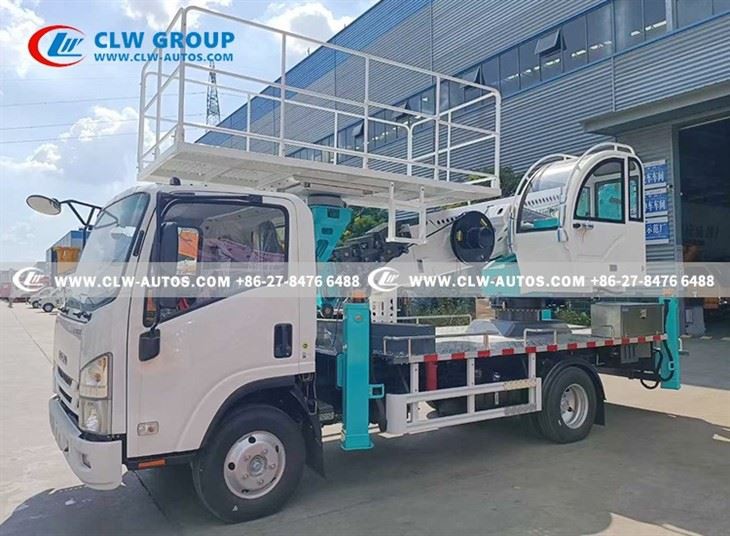

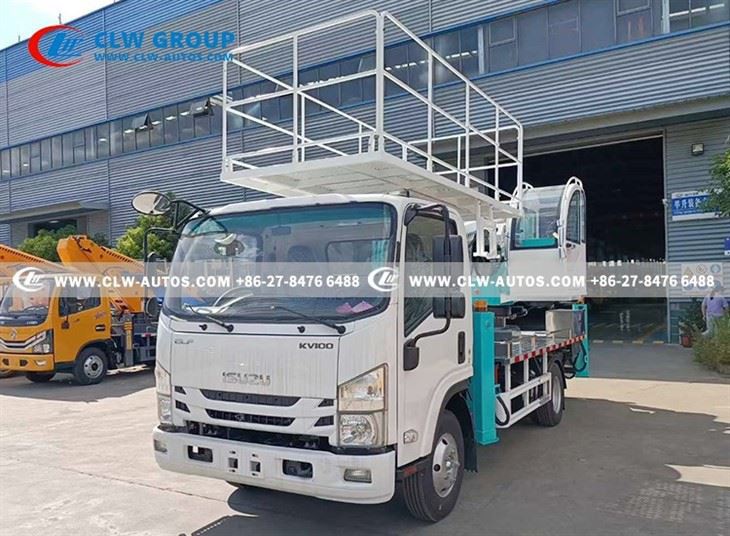

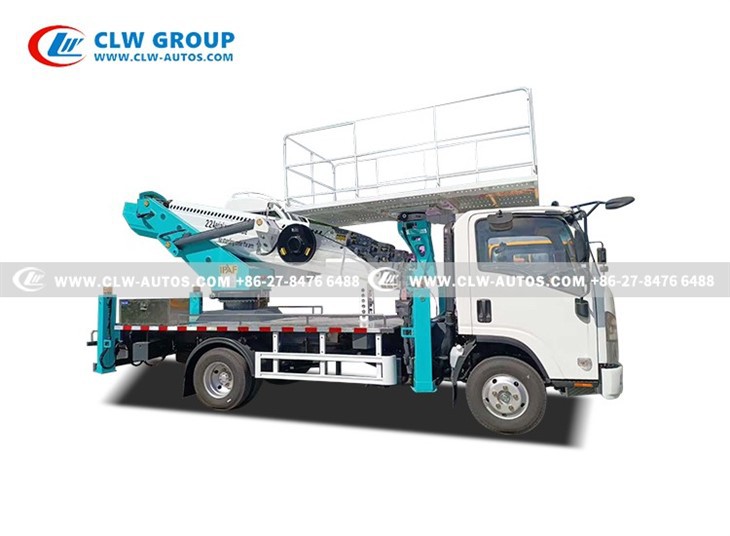

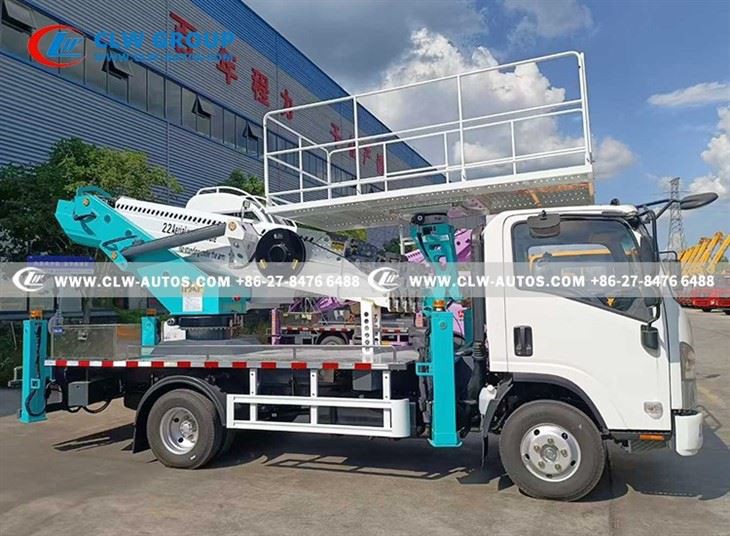

ISUZU KV100 22m Manlift Truck
We are professional special vehicle manufacturer in China since 2004
Brand New Truck Factory Price For Sale
ISUZU KV100 22m Manlift Truck, also known as 22m aerial work platform truck, 22m high attitude working truck, 22m cherry picker truck, 22m bucket truck, is manufactured by CLW Group. ISUZU 22 meter aerial work platform with a 3-meter basket is engineered for efficiency, safety, and versatility. Designed to meet the demanding requirements of construction, maintenance, and utility projects across Southeast Asia, the Philippines, and South America, this vehicle combines Isuzu's renowned reliability with advanced aerial functionality.
Key Features:
Reaches elevated areas with ease, ideal for high-rise maintenance, lighting installation, and tree trimming.
Provides ample space for workers and tools, enhancing productivity and safety during operations.
Built to withstand tough terrains and climates, ensuring durability in regions like the Philippines and South America.
Offers full-range mobility for precise positioning and efficient workflow.
User-friendly controls and stable performance reduce training time and operational errors.
Applications:
Qiuck Inquiry,contact Juniper:
Whatsapp: +86 139 2570 3918
Email: juniper@clw-autos.com
|
Parameters Of Truck Chassis |
|
|
Overall Dimension(LxWxH) |
7260 x 2550 x 3550 mm |
|
Wheel Base |
3360mm |
|
Cab |
ISUZU KV100 Left hand drive 2 or 3 seats Air conditioned Power steering Central locking |
|
Engine |
Diesel Engine, ISUZU 4KH1CN6LB, 120HP, Euro VI 6 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection |
|
Gearbox |
Manual type ISUZU 5 Forward & 1 Reverse Speed |
|
Axle Loading |
Front axle 2500kg Rear axle 4800kg |
|
Tire |
7.00R16 6 pieces with 1 spare tire |
|
Parameters Of Upper Structure |
|
|
Boom type |
7 sections sexangular telescopic boom |
|
Max. working height |
22 meters |
|
Max. working radius |
12 meters |
|
Bucket lifting capacity |
200kg |
|
Bucket material |
High-strength stainless steel |
|
Bucket size(LxWxH) |
3000x1500x1100mm |
|
Rotation Angle |
360 degrees continuous rotation for the main boom |
|
Landing leg |
4 units, front V rear H type, individually adjustable |
|
Leveling system |
Hydrostatic self-leveling |
|
Anemometer |
When wind speed reaches level 5 or higher, the aerial work platform activates the alarm and restricts operations to ensure operator safety. |
|
Basket load sensor |
It precisely measures basket's load, enabling operators to monitor current weight and prevent overload-related safety incidents. |
