ISUZU 4Tons Medical Waste Delivery Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4tons medical waste delivery truck in China. If you're going to buy high quality isuzu 4tons medical waste delivery truck, welcome to get more information from our factory. For price consultation, contact us.



Function

--Medical waste delivery truck(also called cooling van truck,refrigerated truck,refrigerator truck,refrigerator wagon,refrigerated box car,freezer wagon,temperature controlled vehicle,preservation vehicle) is used to deliver and transport medical waste/garbage at specific temperature.

--The refrigerated unit brand is optional,such as themo king,carrier,chinese brand hanxue,huatai and so on.

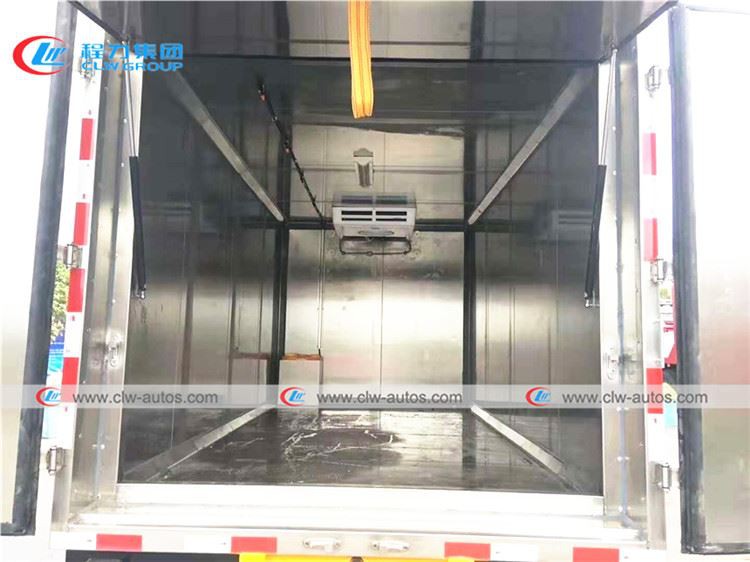

--The Medical waste delivery truck body adapts the whole metal skeleton structure, the inner wall plate uses the anticorrosive stainless steel plate, the bottom of the truck around and corner smooth processing, easy to clean the dead corner and to disinfect.

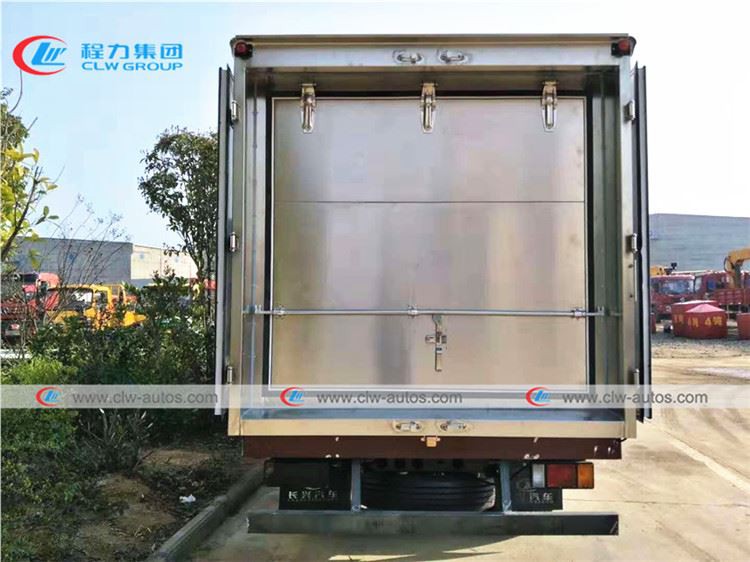

-- back door is double-layer airtight structure with labyrinth sealing strip, which makes the carriage completely closed to prevent the leakage and diffusion of medical waste bacteria and gas.

--Equipped with refrigeration unit, ultraviolet sterilization lamp, disinfection nozzle, dustbin positioning lock and pull belt, with anti-liquid treatment box.When the ultraviolet sterilization lamp is working normally, a large amount of 253.7nm ultraviolet radiation is emitted, which is highly destructive to microorganisms. Disinfection and sterilization can be completed within 30-45 minutes.

--L-shaped compartments are arranged at the side of the truck body.The truck body is completely sealed without leakage and is sterilized by low temperature, ultraviolet light and drug spray.

-- Medical waste delivery truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc Medical waste delivery truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 Medical waste delivery truck;

3) according to temperature request during delivery,there are fresh transport freezer truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .

Feature

--high quality ISUZU truck chassis;

--Spacious truck cabin with A/C;

--Powerful engine for tough road with reliable performance;

--high quality temperature preservation van body;

--Reliable chinese or USA brand refrigerated unit;

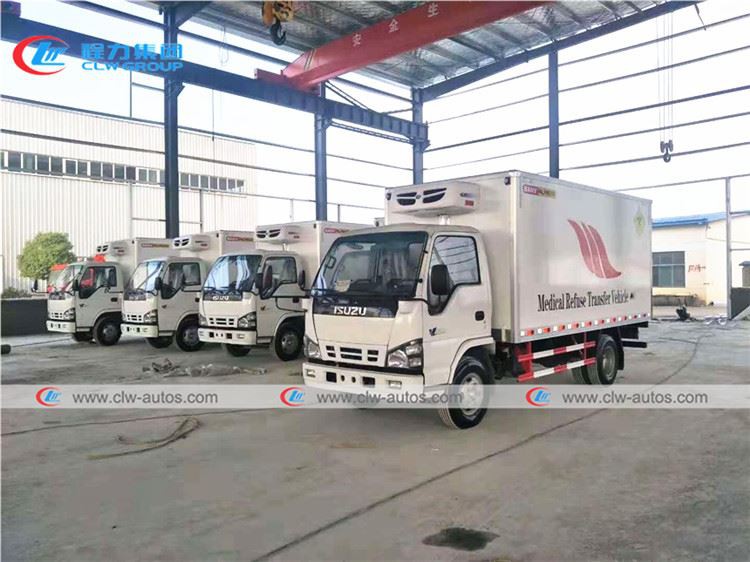

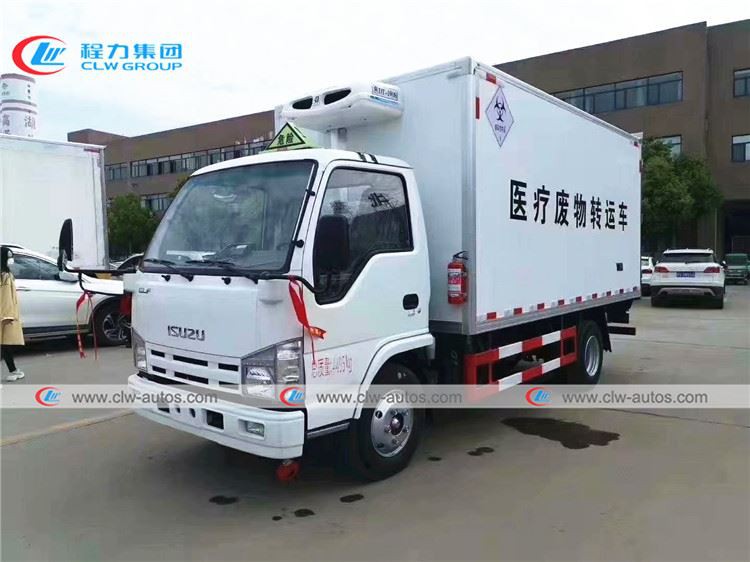

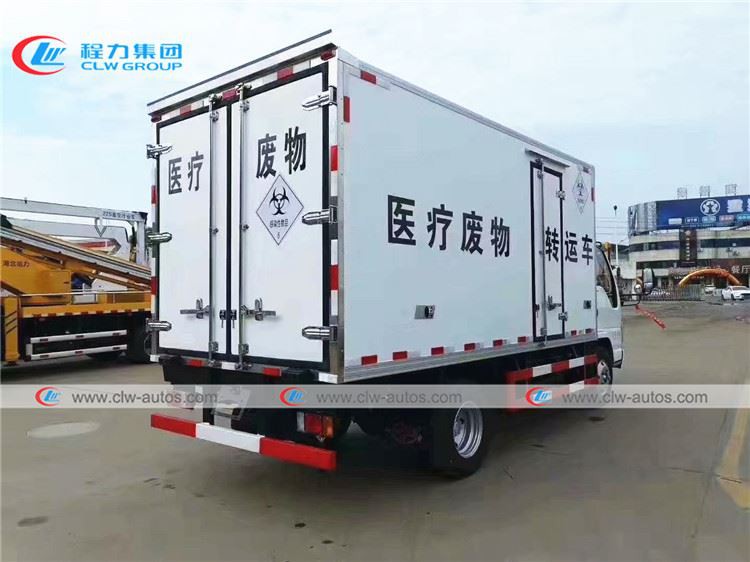

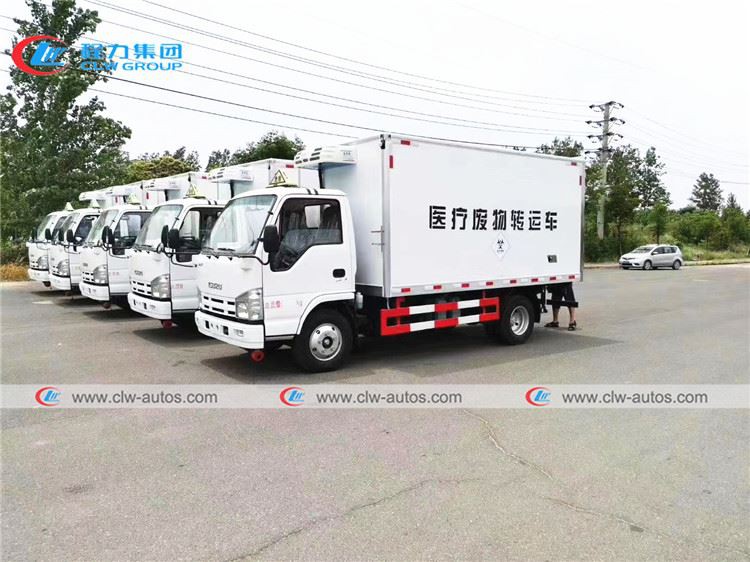

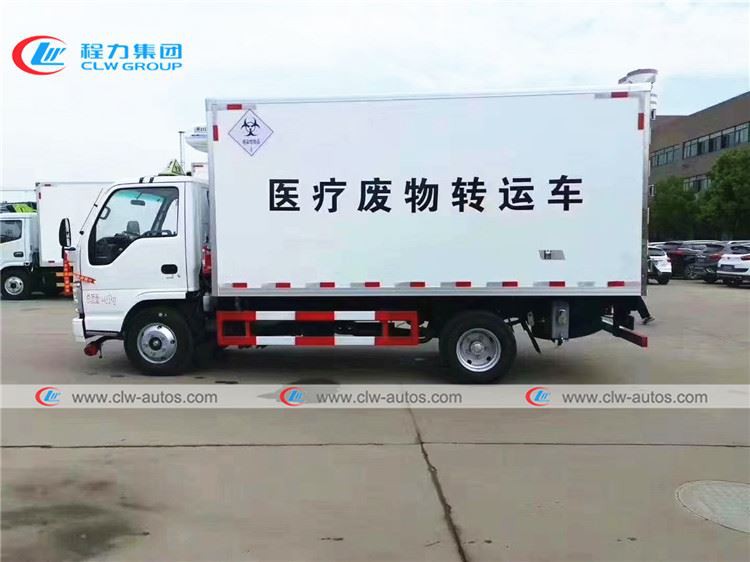

Reference picture

Specification

Condition	New condition/Left hand drive/4x2
Chassis	Brand		ISUZU
	Model		100P
	Curb weight(kg)		2740 kg
	Payload(kg)		2000 kg
	Wheelbase(mm)		3360 mm
	Dimensions(mm)		5995×1950×2860 mm
	Front/Rear axle loading(kg)		2000/4000 kg
	Front/Rear overhang(mm)		1160/1520 mm
	Wheel track (front/rear) (mm)		1515/1495 mm
	Approach/Departure angle(°)		20/16
	Max. driving speed(km/h)		90 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Hydraulic oil brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6pcs with one spare tire
		Specifications	7.00R16
Transmission	Manual type, 5 Forwards and 1 reverse
Cab	Single row seat, Tiltable. It can accommodate three people. With air conditioner.
Engine	Brand		ISUZU
	Model		4KH1CN5LS
	Fuel type		Diesel
	Displacement(ml)		2999ml
	Power(kw)		72 kw
	Horsepower(HP)		98 HP
	Maximum torque(N.m)		220 N.m
	Maximum torque speed(rpm)		1700 rpm
	Minimum fuel consumption under full load		≤210g/kW.h
	Cylinder number		4 pcs
	Emission standard		Euro V
Upper
Box	1. Box Size: 3950×1850×1750 mm,divided into 2 parts:cleaning area 2000×1900×2000（mm）with side door,contaminative area  2000×1900×2000（mm） 2. Box Material: glass epoxy in the surface; insulation Foam in the middle,inner stainless steel 3.Thickness of side ,top ,front ,rear 80mm;
Refrigerating System	1. Working temperature setting range: +30℃ to -30℃ 2. Refrigerating unit brand Thermo King,carrier,hanxue,huatai
Remarks	1) Spray disinfection 2) ultraviolet sterilization lamp 3) Anti-leakage double sealed door at the end, 4) sewage tank, low temperature disinfection.
