Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 2 axle 40tons lowbed semi trailer in China. If you're going to buy high quality 2 axle 40tons lowbed semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
Low-Bed Semitrailer with Mechanical/Hydraulic Opptional from Chinese professional manufacturer is used to transport non-removable equipment, eg: agricultural machinery, excavators, etc. The ladder of the rear of the car is very convenient and fast for loading and unloading.
Main Features
1. Torsion - resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.
2. Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
3. Stability when loading heavy duty marchine. The QUEST low bed trailer can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
Parameters for 2 Axle 40Tons Lowbed Semi Trailer:
Product Name | Low bed Semi Trailer | ||||
Certification | CCC ISO9001 SGS BV | ||||
Outside Dimensions (L*W*H) | (6000-17000)*2500*1550mm | ||||
Payload | 40T-80T | ||||
Tare Weight | 7000 kg | ||||
Wheel Base | 8390+1310+1310 (mm) | ||||
Tires | specification | 11.00R20 12R22.5-18 315 385 | |||
No. of tires | 8/12/16 | ||||
Spare tire carriers | 1 or 2 | ||||
Axles
| Brand | FUWA (BPW optional) | |||
No. of axles: | 2/3/4 | ||||
Axle-load | 13000kg | ||||
Brakes | brand | TKL brand | |||
Brake chamber | double air chamber | ||||
System | Dual line braking system /ABS | ||||
Main Beam | material | I beam ,Q345B, automatic submerged arc welded | |||
specification | Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm | ||||
Cross Beam material | Q235B | ||||
Side beam | Channel steel | ||||
Plate form | Steel Sheet 4mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm) | ||||
Accessory | One tooling box with a set of standard trailer tool | ||||
Receptacle | 7 ways (7 wire harness) | ||||
Lights | Front corner marker lamp :red ;reflector lamp :white | ||||
Side marker :orange | |||||
Rear lamp :red; rear reflector :white; turn single lamp :orange | |||||

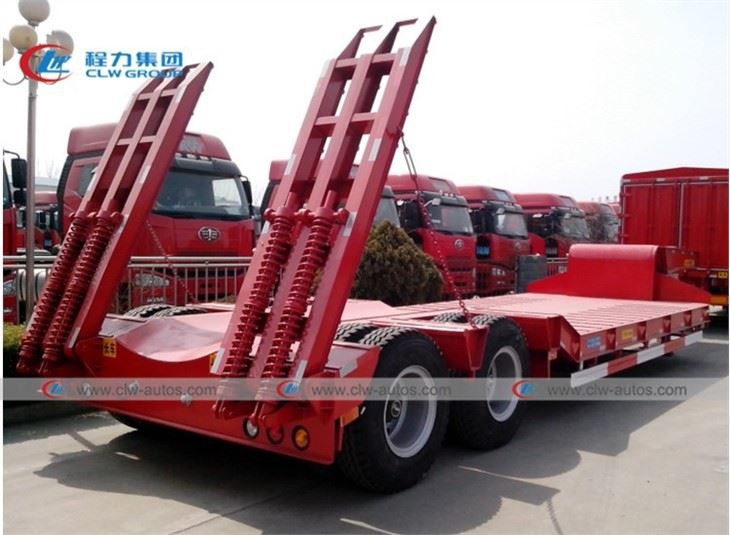

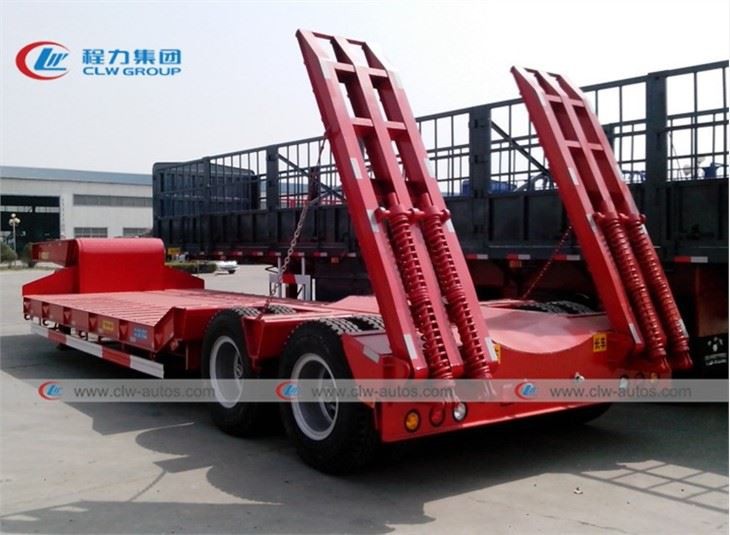

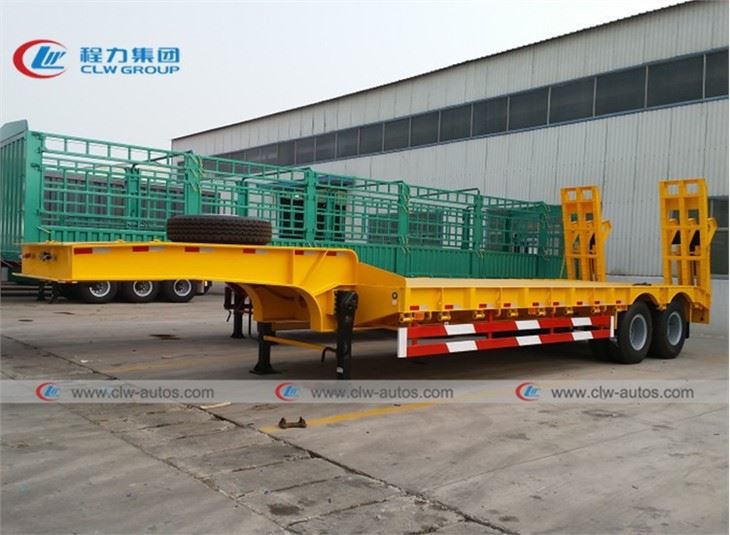

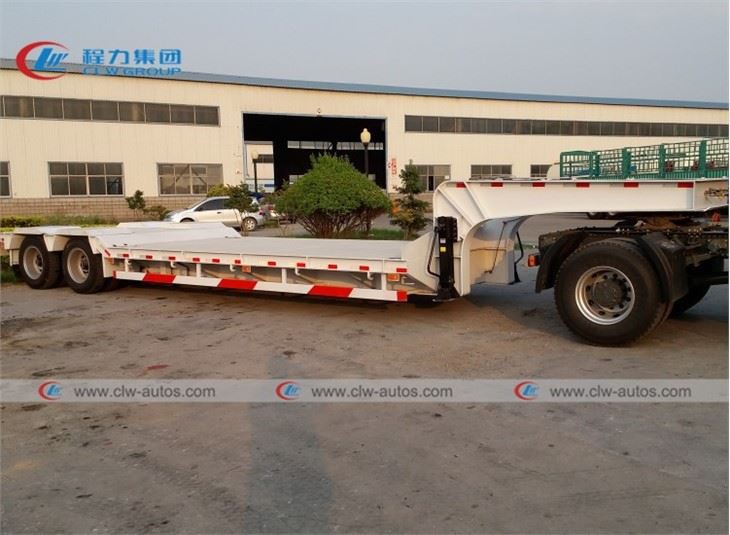

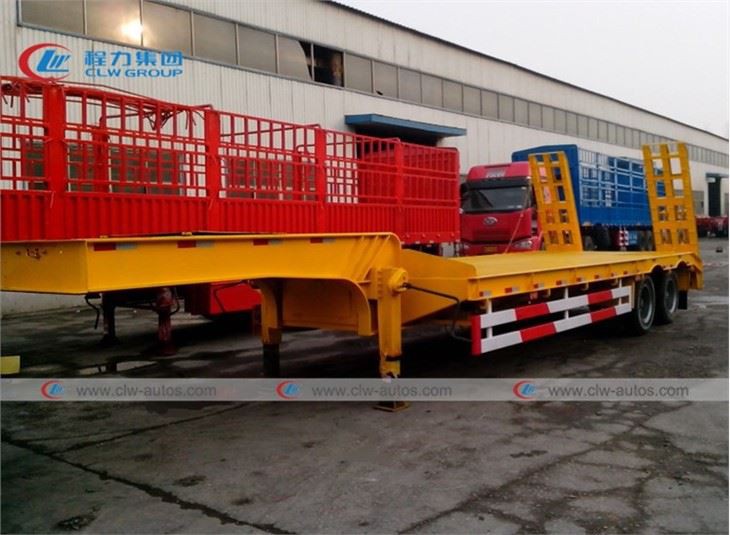

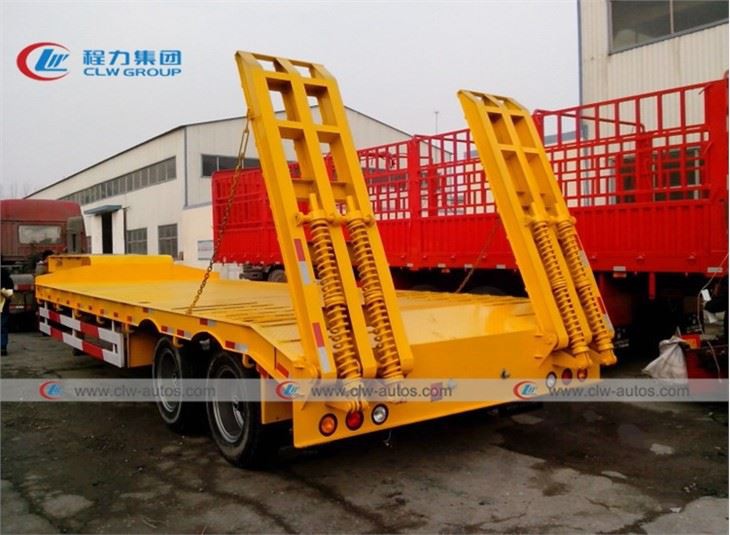

More pictures for lowbed Semi trailer:
Packed for delivery:
