Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 13.75m 40-ton curtain side semi trailer in China. If you're going to buy high quality 13.75m 40-ton curtain side semi trailer, welcome to get more information from our factory. For price consultation, contact us.

13.75m 40-Ton Curtain Side Semi Trailer

Products Description

If you're searching for a dependable and high-capacity solution for international palletized freight, our 13.75-meter Curtain Side Semi Trailer offers the perfect combination of strength, accessibility, and efficiency. Designed for modern logistics, this trailer is ideal for pallet transport, general cargo delivery, warehouse-to-store distribution, and cross-border export operations. Its quick-access curtain system enables rapid side loading via forklifts or cranes, significantly improving turnaround time. Built to withstand varying road conditions and equipped with E-mark certified components, it meets both European standards and global transport requirements, making it a top choice for logistics providers, freight forwarders, and industrial shippers worldwide.

Palletized Cargo Transport: Efficient loading/unloading of Euro pallets with forklifts or cranes from the side, saving time in high-frequency delivery environments.
General Freight Logistics: Suitable for transporting boxed goods, packaged consumer products, light industrial materials, and bulk retail shipments.
Warehouse-to-Store Distribution: Commonly used in retail and FMCG supply chains where flexibility and quick access are essential.
Export & Cross-Border Shipping: Designed to meet European road regulations and equipped with E-marked components, making it ideal for international transport routes.
Weather-Sensitive Cargo: The heavy-duty curtain material and sealed structure provide protection against rain, dust, and UV, making it suitable for cargo that needs shelter but doesn't require full refrigeration.
Construction & Manufacturing Supplies: Capable of handling palletized steel parts, timber, packaged machinery, or building materials.

Key Features

Optimized Dimensions: Overall size of 13,885×2,550×4,000mm, offering a generous internal volume of 13,640×2,480×2,700mm-ideal for Euro pallets.
Efficient Loading/Unloading: Designed for forklift and crane operations; equipped with side curtains and removable slats for rapid access.
Superior Chassis Design: Built with factory-customized main beams, carbon steel side rails, and waterproof phenolic plywood flooring that supports 7.2-ton forklifts.
Reliable Suspension System: European-style air suspension with front axle lift and full-height adjustment, ensuring smooth and stable rides on international roads.
Heavy-Duty Axles & Brakes: Fitted with 9t disc-brake axles, imported calipers, ABS, and WABCO EBS with RSS for enhanced safety.
Export-Ready Configuration: Comes with E-mark certified tires, LED lights, and an aluminum roof and side protection system.
Durable Curtain Material: Side curtain made from 900 GSM PVC, cold-resistant to -25°C, and available in dual-color (white/blue) for added visibility and brand distinction.

Products Parameter

Overall Dimensions	13885×2550×4000 mm
Internal Dimensions	13640×2480×2700 mm
Load Capacity	35-40 tons
Cargo Type	Pallet Transport
Loading/Unloading Method	Forklift, Crane
Saddle Height	1150 mm
Chassis System
Kingpin	JOST 50# Assembly Type
Floor	30mm thick waterproof plywood with phenolic resin (double-sided), suitable for 7.2t forklift load
Suspension System	9 tons / European air suspension / Front axle lift / Whole vehicle lifting (imported airbag)
Running Gear
Axle	3 x 9 tons / Disc Brake / Track 2050 mm / (Imported Caliper), 2 Axles with ABS
Tire	385/65R22.5 / 20PR / (E) Code Certified / 7 pcs / Factory Brand
Rim	Carbon Steel 11.75×22.5 / Zero Offset / 7 pcs
Supporting System
Landing Gear	Fuwa 28t / Interlinked
Reinforcement	Cross Brace & Diagonal Brace
Accessories
Toolbox	Rear Axle Mounted / 1 pc
Spare Tire Rack	Rear Axle Mounted / 2 pcs
Side Guard	Aluminum Alloy
Rear Guard	Carbon Steel / Bolted Connection
Mudguard	1/4 Plastic Fender / 4 pcs
Mud Flaps	Factory Standard
Rain Curtain	Included
Side Curtain	Included
Wheel Chock	Included
Floor Hooks	Included
Lighting System
Wiring Harness	Factory Standard / Waterproof Connectors
Lights	Standard LED / E-Mark Certified
Brake System
EBS	WABCO 2S/2M with RSS Road Stability System
Relay Valve	Integrated in WABCO EBS
Air Chambers	4 Double + 2 Single
Air Tanks	Factory Standard / Aluminum Alloy
Parking Brake	Included
Body System
Front Compartment	Aluminum Alloy / Wooden Interior Wall
Rear Compartment	Concealed Lock Bar Swing Doors
Side Wall	4 Layers of Removable Cross Bars / 32 pcs
Front & Rear Stanchions	Factory Standard
Central Pillars	Adjustable Sliding Pillars / 6 pcs
Curtain System
Roof Curtain Rail	Factory Standard
Roof Curtain	750 GRM / Cold Resistant to -25°C
Side Curtain	900 GRM / Cold Resistant to -25°C
Side Curtain Color	White & Blue

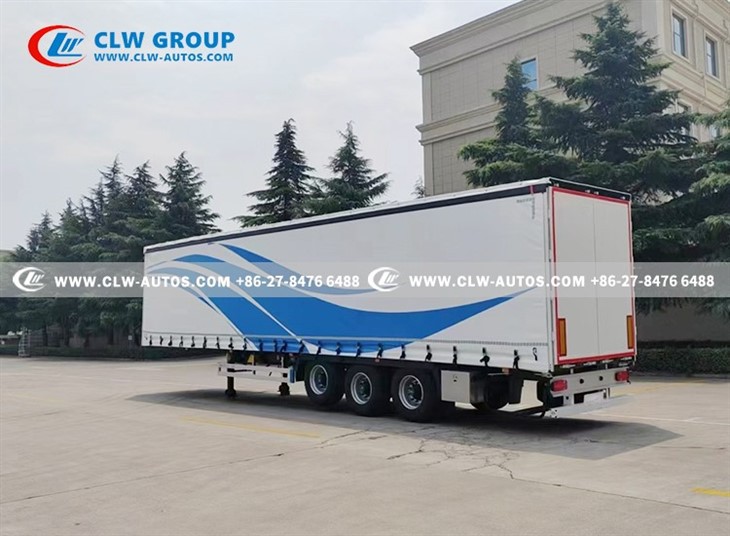

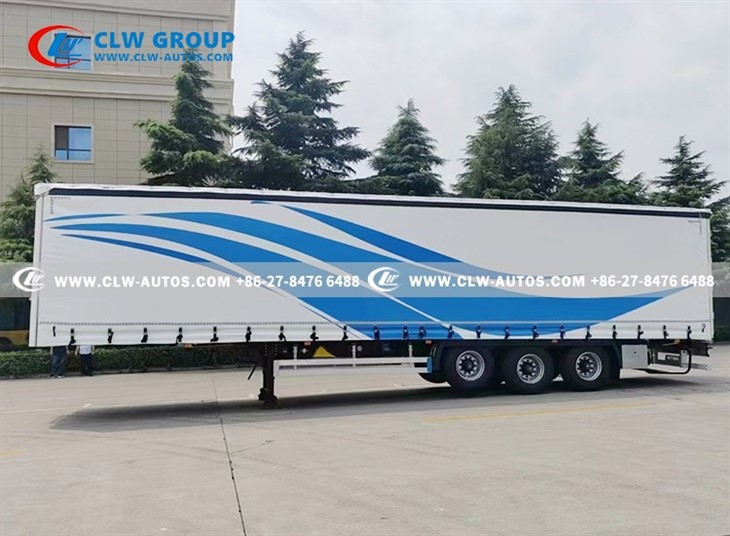

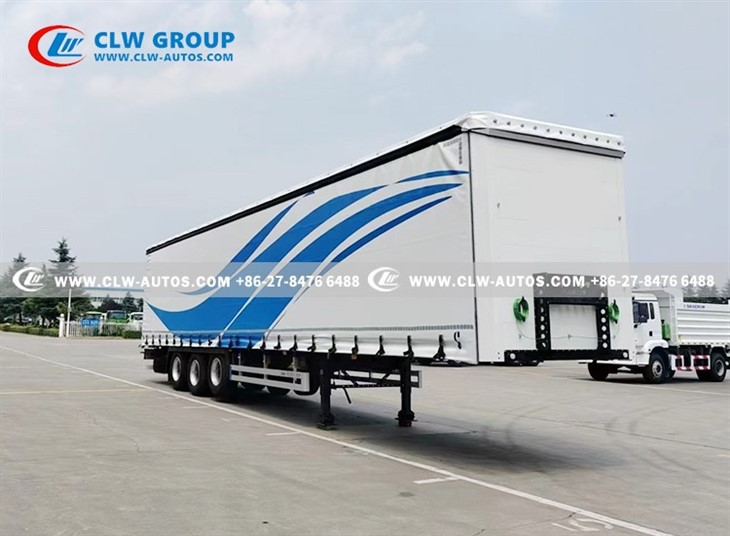

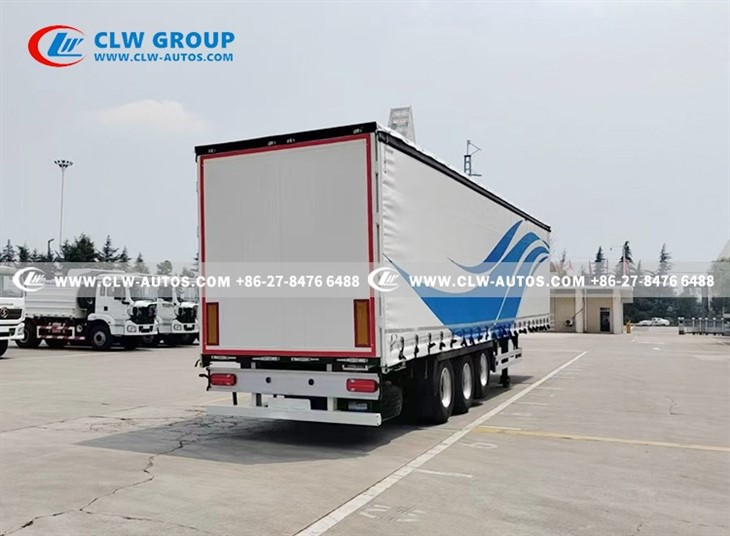

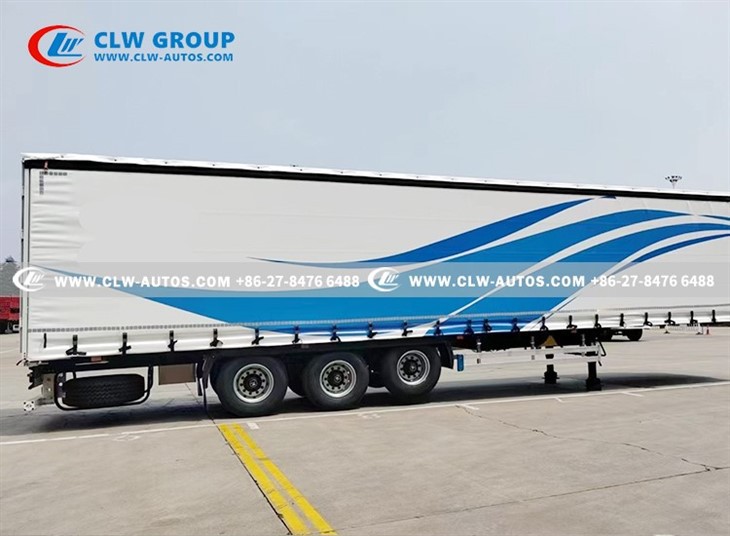

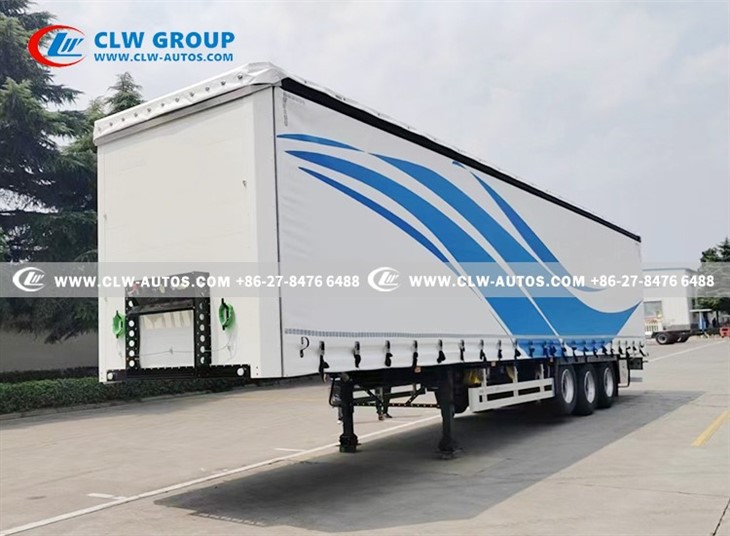

Products Show
