Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman l3000 8t foam tank fire truck in China. If you're going to buy high quality shacman l3000 8t foam tank fire truck, welcome to get more information from our factory. For price consultation, contact us.

Products Description

The SHACMAN 4x2 Fire Engine Figting Fire Truck is a heavy-duty, multi-role firefighting and emergency response trucks designed for large-scale fire suppression and rescue operations. With a 8-ton total liquid capacity (6,000L 6T water + 2,000L 2T foam), powerful chassis, and integrated rescue features, it serves as a frontline asset for industrial zones, airports, and municipal fire brigades, forest etc.

Technical Specifications

1. Chassis Main Parameters

Chassis Model: SHACMAN L3000
Drive Configuration: 4x2 (three axles, 6 Wheels, rear dual-drive for enhanced stability and load distribution)
Engine Power: 200-240 HP WEICHAI diesel engine (Euro II/ V/VI compliant)
Transmission: 12-speed manual transmission
Suspension: Heavy-duty parabolic leaf springs or optional air suspension
Tires: 12.00R20 or 315/80R22.5 radial tires (10+1 configuration)
RHD & LHD Both Available.

2. Tank System

Water Tank Capacity: 6,000 liters (around 1,600 gallons) / 6 metric tons
Foam Tank Capacity: 2,000 liters (around 500 gallons) / 2 metric tons
Tank Material: Stainless steel (SS304) or corrosion-resistant polyethylene
Compartment Design:
Baffled Tanks: Minimize fluid surge during movement
Separate Fill/Discharge: Dedicated ports for water and foam refilling

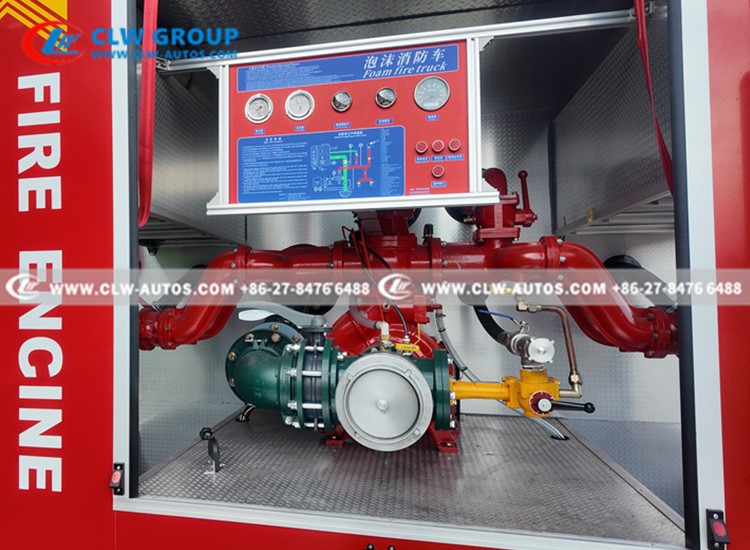

Pump System:

Type: Single-stage centrifugal fire pump

Flow Rate: 4,000–6,000 L/min (1,057–1,585 GPM)

Pressure: 10–12 bar (145–174 PSI)

Water/Foam Cannon:

Range: ≥70 meters (230 feet) for water; ≥60 meters (197 feet) for foam

Rotation: 340° horizontal, +90°/-15° vertical

Double Rw Cabin

Accommodates 4–6 firefighters (including the driver) in a single cabin, compared to 2–3 in standard single-row cabs.

Ensures the entire team arrives simultaneously, reducing response time and enabling immediate deployment.

Aluminum Roll-Up Doors for Fire Trucks:

Lightweight, Durable, and Efficient.

One-Handed Operation: Smooth vertical retraction allows firefighters to open/close doors quickly, even with gloved hands.

Integrated Locking: Robust latch systems with central locking options enhance security during transit.

Brand Quality Parts

Fire Pump-1

Qualified Fire Pump

Fire Monitor-2

High Efficient Fire Monitor

Full power sandwich power take-off

Full power sandwich power take-off (PTO)

Detailed English signage

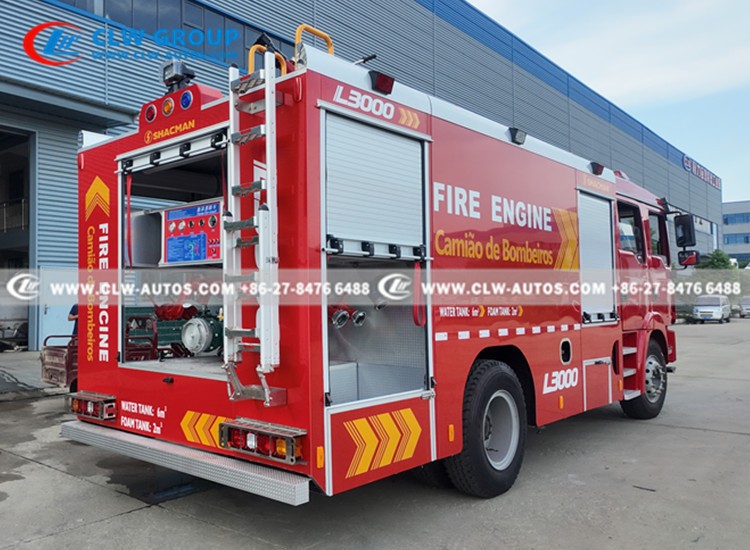

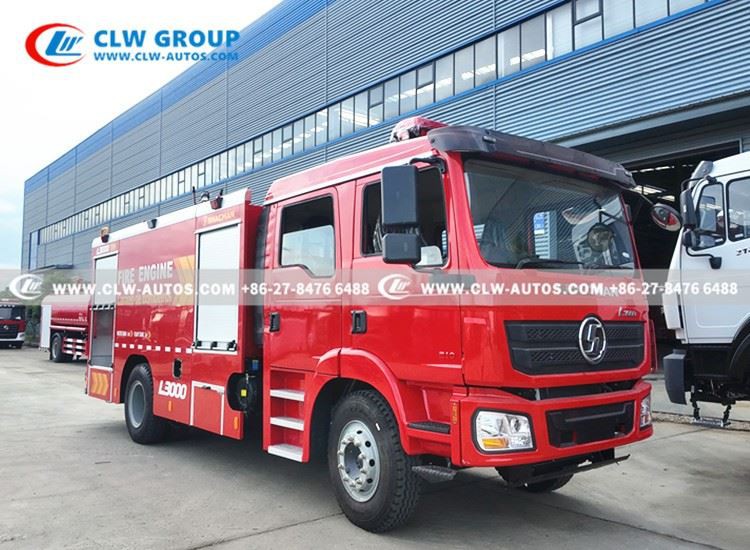

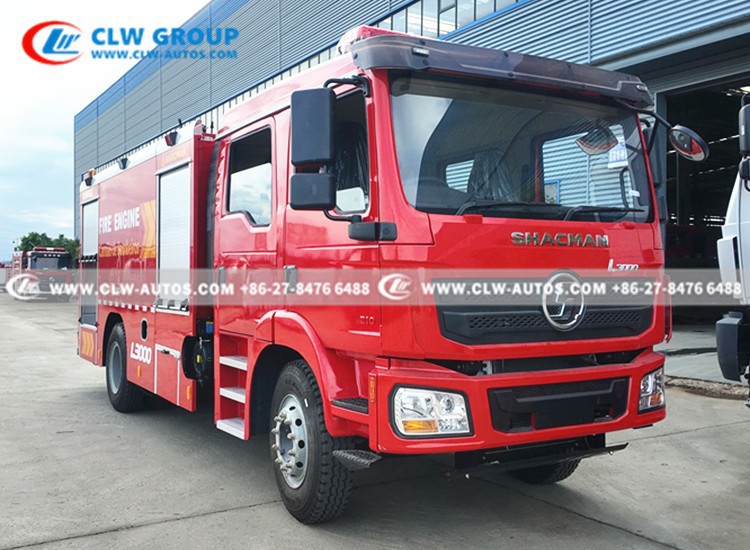

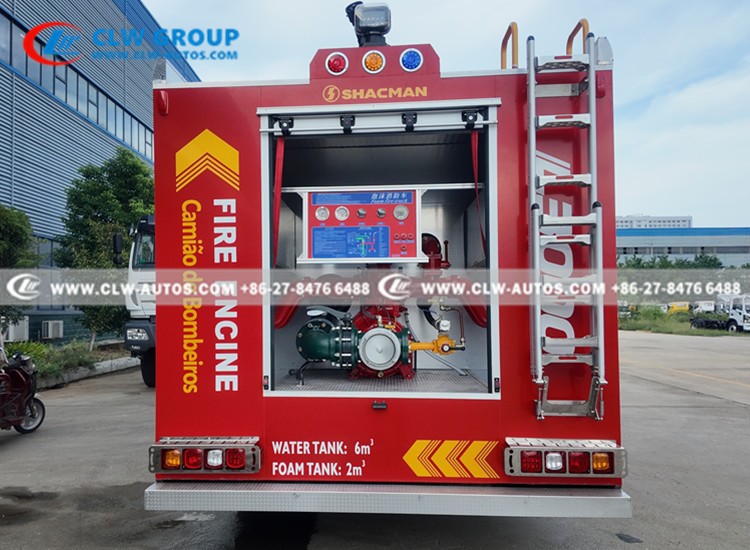

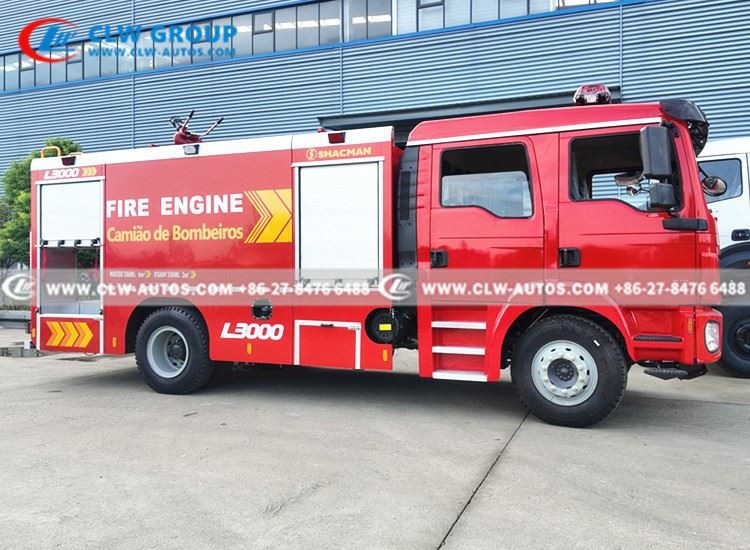

Products Pictures

Truck Main Parts

A full-power sandwich PTO is a critical power transfer system integrated between the fire truck's engine and transmission. Designed to drive auxiliary equipment (e.g., fire pumps, compressors, hydraulic systems) at 100% engine power without compromising vehicle mobility, it ensures simultaneous driving and firefighting operations-a hallmark of modern fire apparatus.
