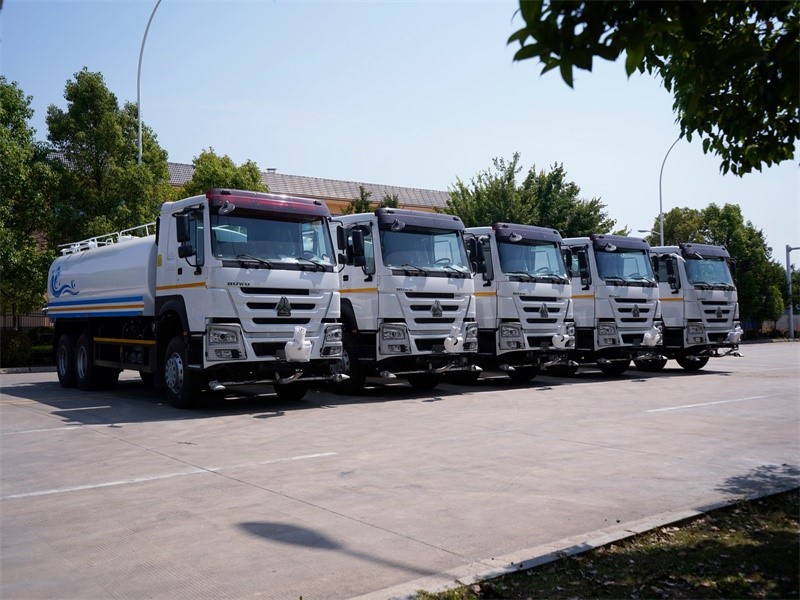

5 Units of Sinotruk HOWO 20m³ 380HP Water Tanker Trucks for Export to Ghana

Products Description



HOWO 6X4 20,000 Liters Water Bowser Truck
(Also known as: Water Tanker Truck, Water Carrier, Water Distribution Vehicle, Water Sprinkler Truck, Potable Water Truck, Mobile Water Tanker, Water Delivery Vehicle)






Product Overview:

The HOWO 6X4 20,000 Liters Water Bowser Truck is a heavy-duty, high-capacity water transport solution designed for municipal water distribution, dust suppression, irrigation, firefighting support, and disaster relief operations. Manufactured by Chengli (程力), a leading specialist in commercial vehicles, this truck combines robust construction, advanced hydraulics, and user-friendly controls to ensure reliable performance in demanding environments.









Chassis parameters

Brand

HOWO

Dimensions(mm)

9350*2500*3200 mm

GVW (kg)

25000

Front/Rear Axle loading(kg)

7500/16000X2

Wheelbase(mm)

4600+1350 mm

Max. driving speed(km/h)

95 km/h

Clutch

Reinforced diaphragm clutch;

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

  • Quantity: 10 pcs with one spare tire
  • Specifications: 12R22.5

Transmission

Manual type,HW19710,10 forward gears & 2 reverse

Engine

  • Brand: WEICHAI
  • Model: WP10.340E22
  • Fuel type: Diesel
  • Displacement(ml): 9726 ml
  • Power(kw): 250kw
  • Horsepower(HP): 340HP
  • Cylinder number: 6
  • Emission standard: Euro III

Cabin

  • Left hand drive
  • 6X4/3 axles in total
  • HOWO HW76 cabin,one and a half row cab
  • Power steering
  • Air conditioned
  • Audio System
  • High mental bumper

Oil box

400L

Power Supply

With PTO,PTO control mounted in cabin

Accessories

  • Standard tool kit
  • Mud flaps
  • Safety belts

Brakes

  • Dual circuit,pressure-air,disc brake with ABS,air dryer;
  • Service brake:dual circuit pressure-air brake-spring type brake acting on wheels of all axles.
  • Emergency brake:spring type, acting on wheels of rear axles.
  • Parking brake - spring type, acting on wheels of rear axles.
  • Auxiliary brake - engine brake, flap type exhaust brake.

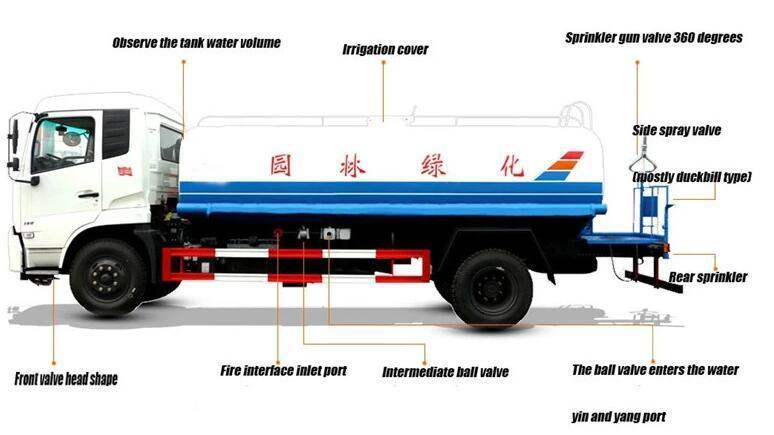

Structure of Water Browser Truck







3







Water Tanker Specification

Dimension

According to drawing

Material

Carbon steel Q235

Tanker volume

20,000L

Thickness of Tanker

  • 5mm at end plate
  • 5mm at tank shell
  • 4mm for baffle

Water Pump

Chinese top brand WEILONG 65QZB-50/110

Flow rate of Water Pump

50,000Liters/H

Range of Water Pump

110 meters

Suction Length of Water Pump

6.5 meters

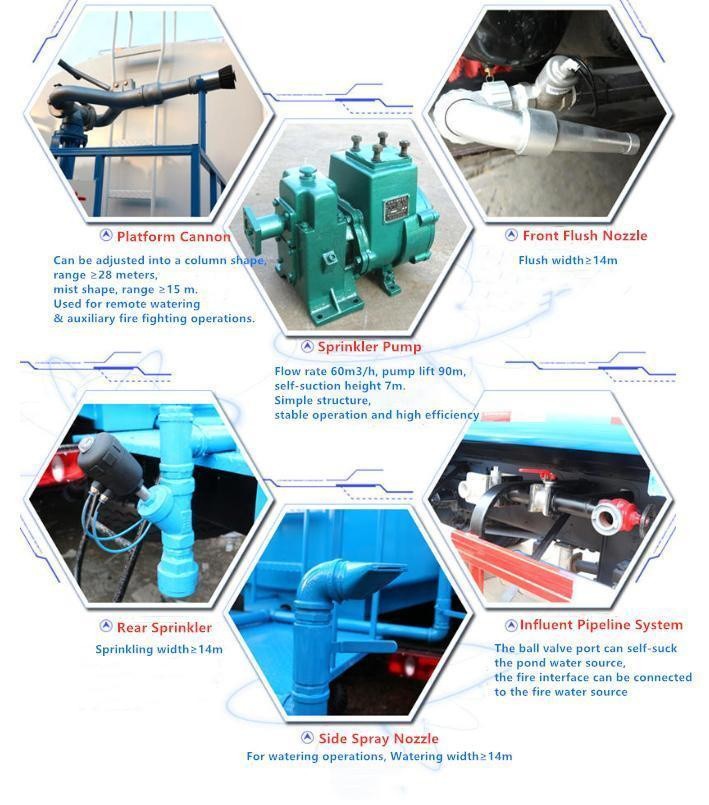

Front

(rear,side) sprinkler

Sprinkling width>14m,sprinkling range>35m

Rear working platform

One people can standard on the platform

High pressure water cannon

360 ° rotation,sprinkling range>35m

Other Configuration

  • power take off;
  • stainless steel 304 large diameter ball valve with anti-collision gasket;
  • Cast aluminum pipe joints: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet, aluminum alloy pump inlet.
  • Fire coupling valve
  • Music louder
  • 2 Nos of water hoses,;
  • DN450 manhole and cover,
  • Ladder at truck rear



4

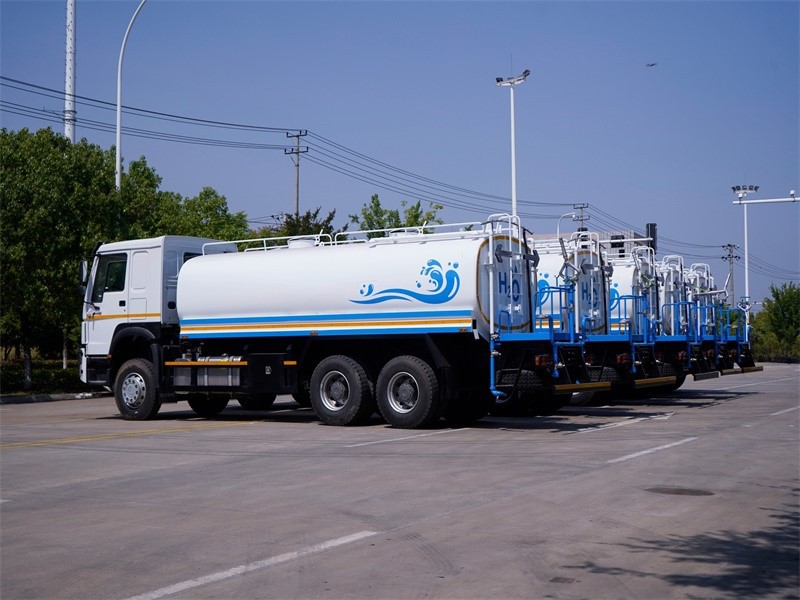

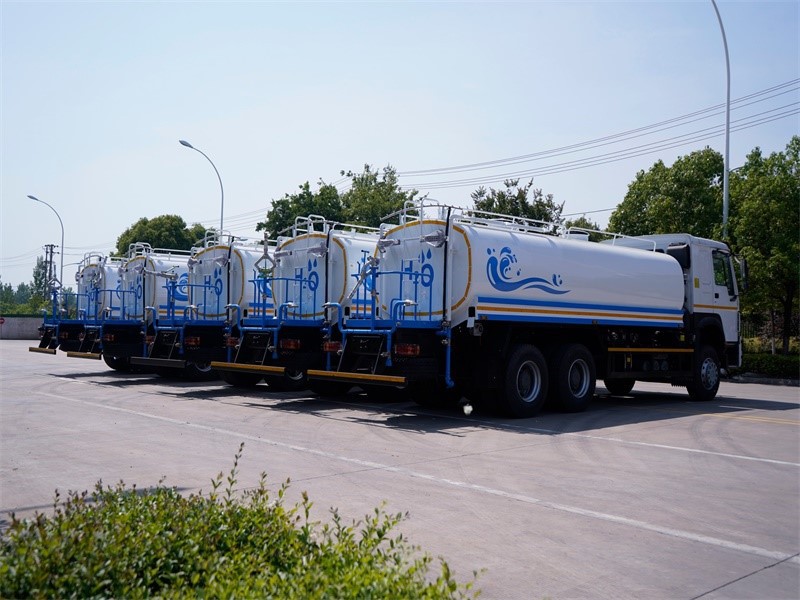

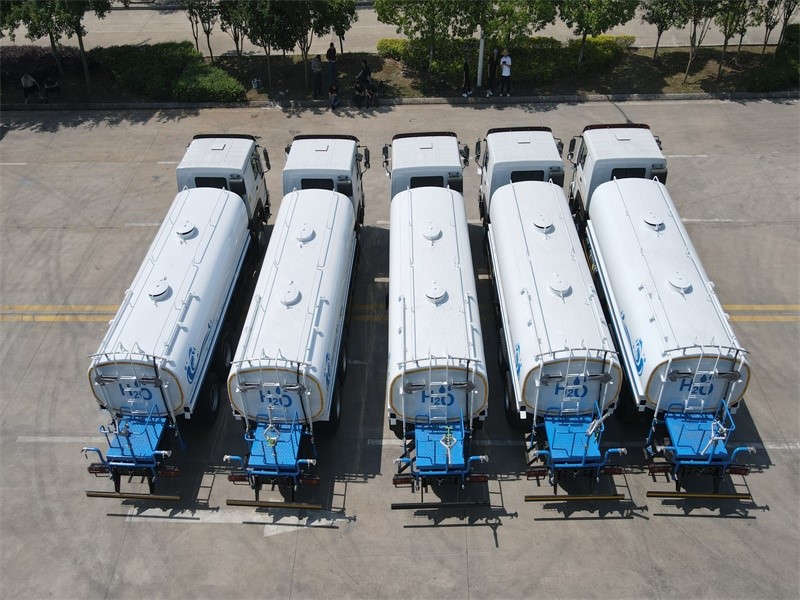

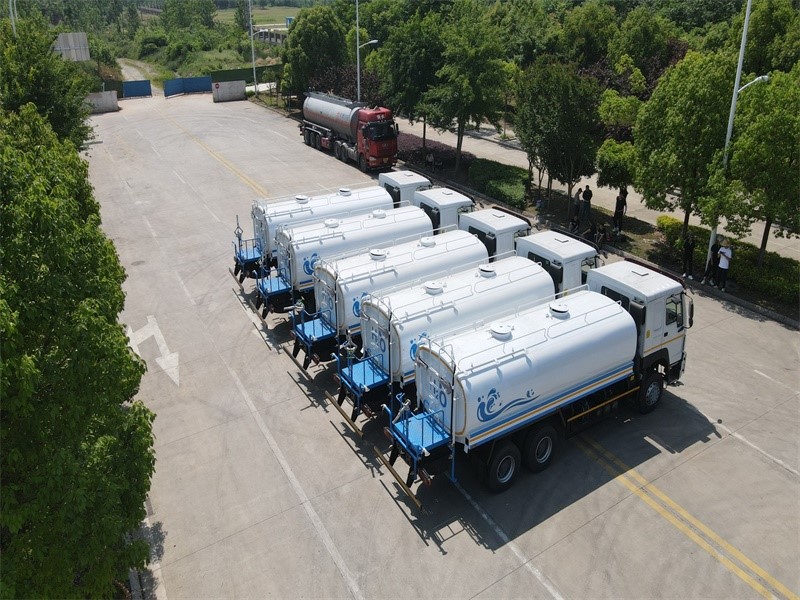

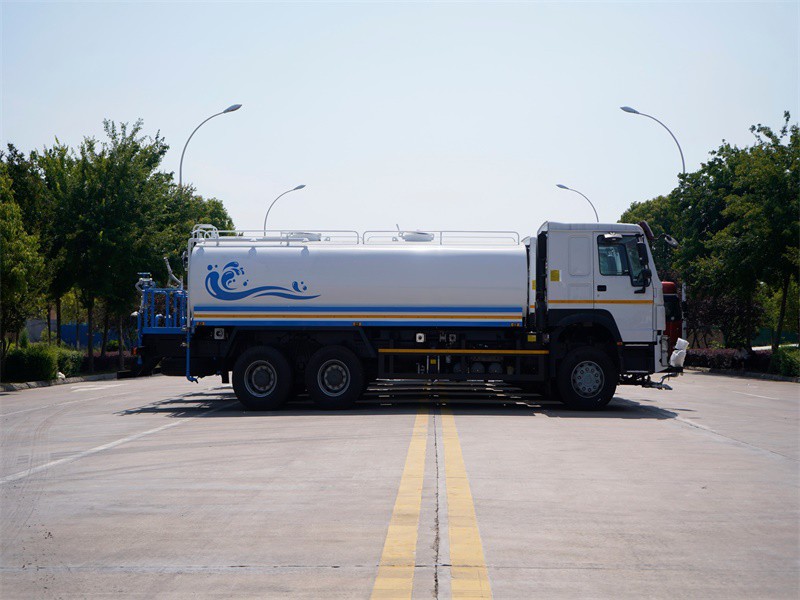

Products  Reference Image



1

2

3

4

5

6

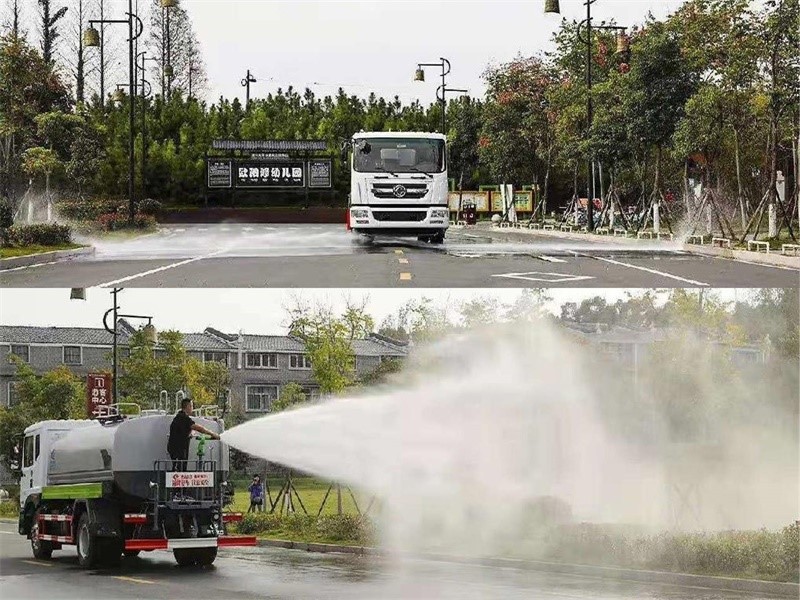

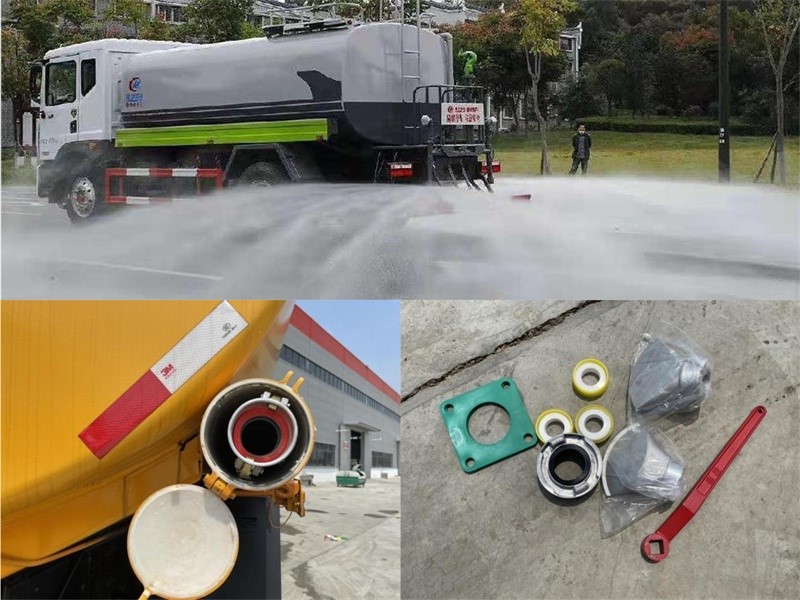

Working Pictures



7

8





what's the price and How To buy?

Please contact with us directly to get more info.
