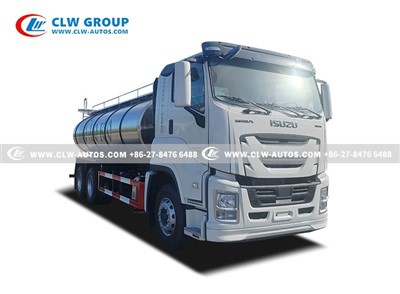

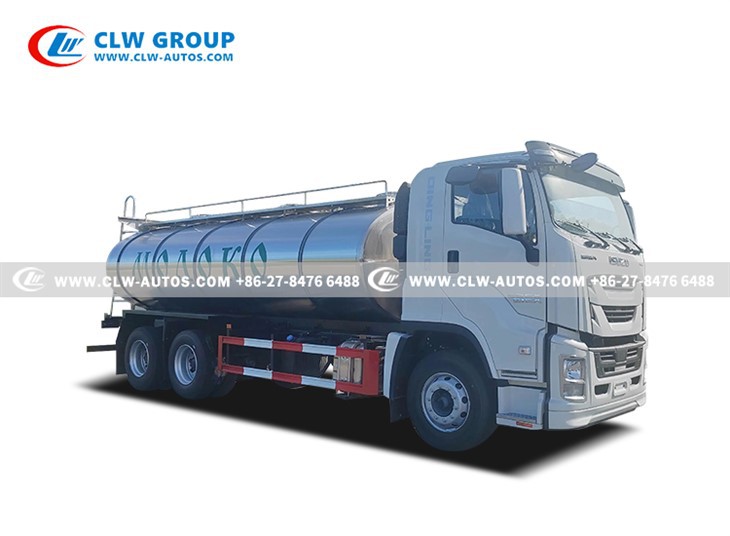

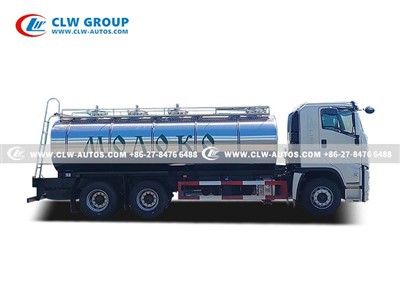

ISUZU FVZ 15Ton Milk Tank Truck
Drive Type: 6X4
Engine Power: 300 HP
Tank Capacity: 15,000kg
Left Hand Drive
ISUZU 4X Cabin
With Aluminum Alloy Tank Body
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu fvz 15ton milk tank truck in China. If you're going to buy high quality isuzu fvz 15ton milk tank truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU FVZ 10 Wheels 6X4 15Ton Milk Tank Truck With Aluminum Alloy
product key technologies
ISUZU FVZ 6x4 chassis
- Durable and Reliable Chassis
Features a high-strength steel frame for enhanced durability and load-bearing capacity.
- Excellent Mobility and Stability
Utilizes multi-leaf spring suspension to ensure stability and reliability, even under heavy loads.
- Proven Transmission and Axle
The rear axle ratio is optimized for heavy-duty and complex road conditions, delivering strong traction.
Aluminum Alloy Tank Body
- Food-Grade Hygiene & Safety
The interior wall is mechanically or electrolytically polished to a mirror finish, preventing residue buildup and enabling thorough cleaning and sterilization.
- Excellent Thermal Insulation
The tank features a layered structure with polyurethane foam filling for optimal heat retention.
- Corrosion Resistance & Durability
Stainless steel effectively resists corrosion from milk lactic acid, cleaners, and disinfectants, ensuring a long service life.
Products Parameters
|
ISUZU FVZ 6X4 Milk Tanker Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL1250FNFZY |
|
Driving Model |
4x2 |
|
Dimension |
9000 x 2500 x 3100 mm |
|
Cab |
|
|
Wheelbase |
4350+1370 mm |
|
Gross vehicle Weight |
25000 kg |
|
Curb Weight |
7505 kg |
|
Front Axle Loading Capacity |
7000 kg |
|
Rear Axle Loading Capacity |
10000 kg X2 |
|
Axle Number |
3 |
|
Tire |
385/65R22.5 315/80R22.5 |
|
10pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 6HK1-TCG60 |
|
|
Horse power: 300 HP |
|
|
Displacement: 7790ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
9 Forward & 2 Reverse |
|
|
Upper Parameters |
|
|
Tank Body Size (L*W*H) |
5700 X 2400 X 1600 mm |
|
Loading Capacity |
15m3 |
|
Tank Body Type |
Elliptical horizontal type, with the vehicle and tank integrated |
|
Compartment No. |
3 |
|
Tank Material |
SUS304-2B |
|
Inner Tank Thickness |
δ 3.0 mm |
|
Outsourcing Thickness |
δ 1.0 mm |
|
Milk Outlet Diameter |
∮ 51mm |
|
Thermal Insulation Material |
70 mm polyurethane spray +10mm rubber plastic insulation cotton |
|
Thermal Insulation Properties |
The polyurethane spray foam is adopted, and the insulation performance does not exceed 2 hours within 24 hours |
|
Tank Head Thickness |
3 mm |
|
Cleaning Method |
CIP automatic cleaning, each warehouse is equipped with cleaning balls to meet 360° cleaning requirements |

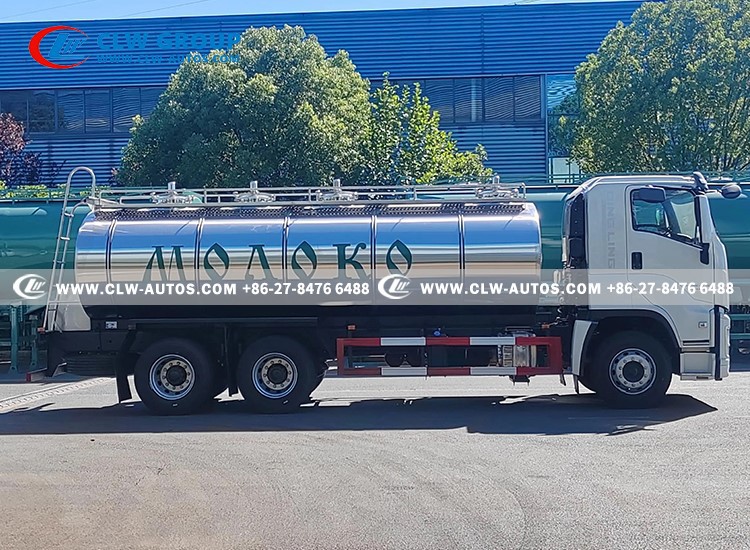

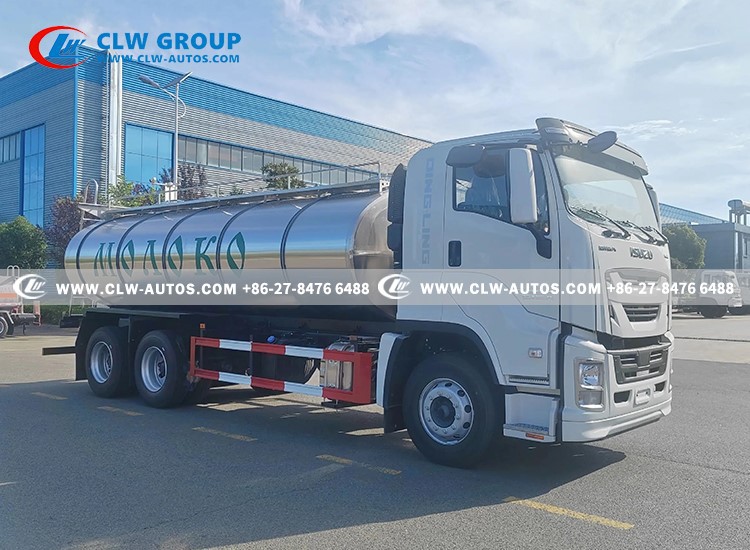

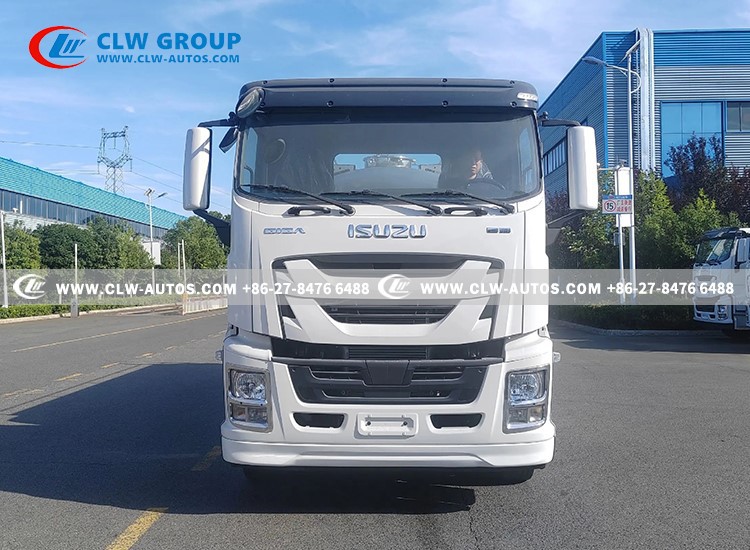

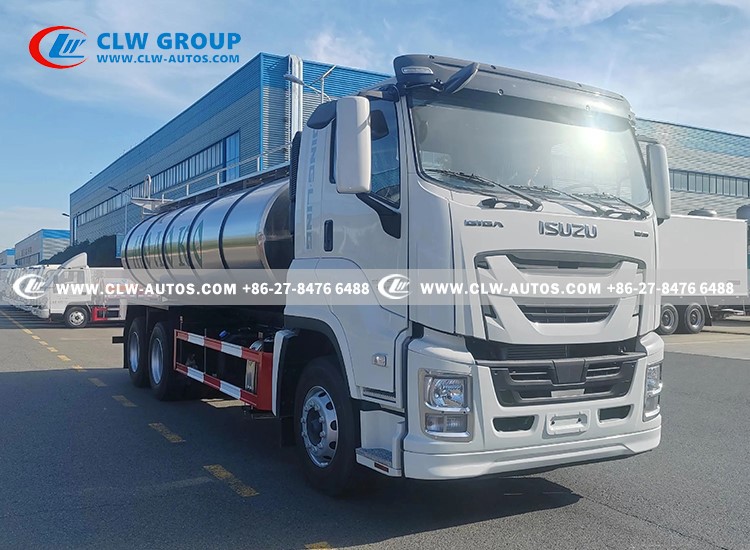

Chassis Pictures
Features Of ISUZU FVZ Milk Tank Truck
Isuzu FVZ Chassis (4350+1370mm wheelbase, 300 HP):
1. Tank Type
- Horizontal elliptical, monocoque structure. Three evenly divided compartments (customizable) with three food-grade stainless steel manholes.
2. Inner Shell
- 3.0mm SUS304-2B food-grade stainless steel. Fully automated CNC welding, polished seams, and one-piece elliptical rolling.
3. Internal Head
- 3.5mm stainless steel dished head, formed in one piece for impact resistance and durability.
4. Baffles / Anti-Surge Plates
- 3.5mm dished stainless steel plates, fully welded with polished edges and reinforced rinsing rings for smooth, crevice-free interiors.
5. Support Structure
- Internal skeleton and reinforcing ribs welded to the inner shell for enhanced load-bearing capacity and structural integrity.
6. Insulation
- 70mm sprayed polyurethane foam + 10mm rubber sponge. Maintains temperature within 2–3°C over 24 hours.
7. Outer Cladding
- 1mm overlapping stainless steel panels, welded-free for easy replacement and a clean, paint-free appearance.
8. CIP System
- Food-grade stainless steel spray balls (two per compartment) enable 360° no-dead-angle cleaning. Independently controlled valves.
