Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 10ton front-top dump truck in China. If you're going to buy high quality isuzu 10ton front-top dump truck, welcome to get more information from our factory. For price consultation, contact us.

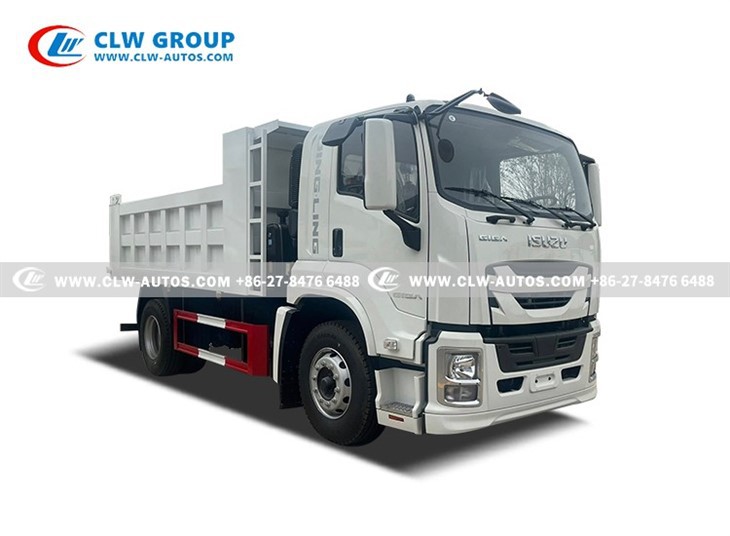

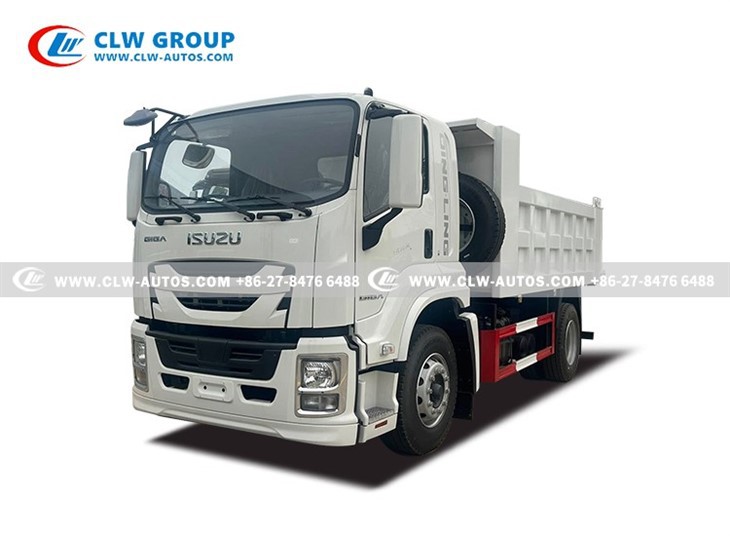

ISUZU FTR 10Ton Dump Truck 6 Wheels 4x2 / Front-top Lift / 4X VC61 Cabin

Products Introduction

Wheelbase Design (3900mm)

The moderate wheelbase strikes a balance between maneuverability and load stability, making it suitable for Africa's complex road conditions (e.g., narrow roads, unpaved surfaces).
The shorter wheelbase version features a smaller turning radius, ideal for urban construction sites or confined mining areas.

Front-top Dumping Structure

Equipped with front-mounted hydraulic cylinders for lifting, offering strong lifting capacity (typically 8-12 tons payload) and fast unloading, ensuring efficient operations.
The robust cargo bed is impact-resistant, suitable for heavy-duty scenarios like transporting ores and gravel.

Power and Reliability

Powered by Isuzu's 4HK1 turbocharged diesel engines, with displacements ranging from 5.2L, delivering robust power (205 HP) and high torque at low RPM, ideal for climbing and off-road conditions.
Features Isuzu's proven chassis technology, known for durability, ease of maintenance, and relatively accessible spare parts in African markets.

Adaptive Configurations

Optional reinforced suspension, dust-proof cooling systems, and increased ground clearance to withstand high temperatures and dusty environments.
Some models come with dual fuel tanks to extend range, making them suitable for remote areas.

Products Parameters

ISUZU FTR 4X2 Dump Truck
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	7000 x 2500 x 2900 mm
Cab	Original FTR 4X VC61 cabin With air conditioner
Wheelbase	3900 mm
Gross vehicle Weight	18000 kg
Loading Weight	10000 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	295/80R22.5 18PR
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1-TCG60
	Horse power: 205 HP
	Displacement: 5193 ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	6 Forward & 1 Reverse
Braking System	Air brake
Braking System	With ABS
Upper Parameters
Cargo Box
Size (LWH)	4200 X 2300 X 800 mm
Loading Capacity	10 Tons
Bottom Thickness	4 mm
Side Thickness	3 mm
Shape	Tofu block
Material	High quality Q235 carbon steel
Hydraulic Lifting System	Front-top lift
Inclination Angle	>45°
Color	White Can be customized

Products Detailed Pictures

ISUZU FTR 4X VC61 Cabin

Multi-function Steering Wheel

With One Sleeper

Tofu Block Cargo Box

With One Spare Tire

ISUZU Dump Truck Axle
