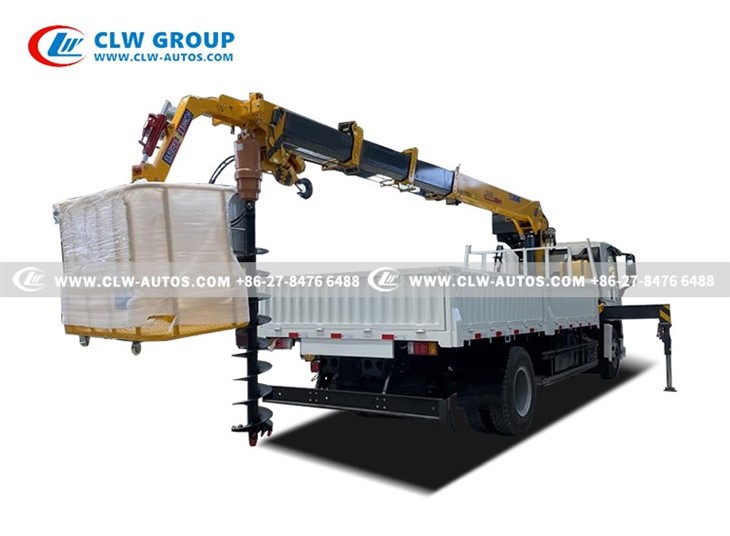

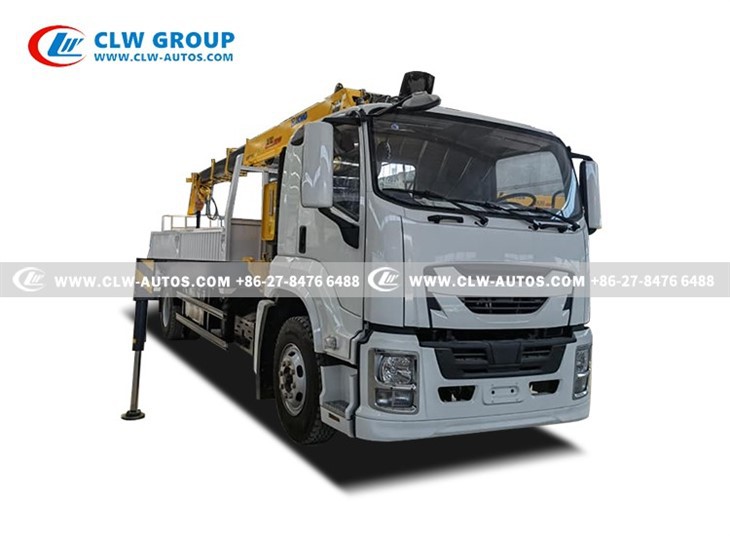

ISUZU FTR 6 Wheels 4x2 Mounted Truck With 8Ton Straight Boom Crane

With Drilling Rig / High-Altitude Suspended Basket

product key technologies

High-Altitude Suspended Basket

Expands operational functionality: Transforms the truck crane from a lifting device into a multi-purpose platform that safely delivers personnel and tools to elevated work sites.

Enhances work efficiency: Personnel can be directly transported to elevated work positions, eliminating the need for scaffolding or specialized aerial work platforms.

Ensures operational safety: Provides a stable platform (300kg capacity secures workers and tools), reducing the risks associated with working at heights.

Drilling Rig

Function integration, multi-purpose machine: Combines lifting and drilling, eliminating the need for additional cranes and drills, greatly enhancing overall functionality and work efficiency.

Self-lifting and self-drilling, efficient and flexible: The boom precisely positions the drill to work sites like slopes or rough terrain, ideal for complex or confined spaces.

Cost reduction, increased profitability: Saves costs on separate equipment and hiring, reduces mobilization time, and expands business scope like surveys and piling.

Products Parameters

ISUZU Crane Truck With 8Tons Folding Boom Crane
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	10000 x 2400 x 3800 mm
Cab	Original ISUZU FTR Wide cabin With Air Conditioner Left Hand Drive
Wheelbase	6300 mm
Gross vehicle Weight	18000 kg
Curb Weight	8200 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	295/80R22.5
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1-TCG60
	Horse power: 205 HP
	Displacement: 5193ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	6 Forward & 1 Reverse
Fuel Tank Capacity	220L
Upper Parameters
Cargo Box
Size (LWH)	6500 X 2300 X 550 mm
Loading Capacity	10 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	XCMG - SQZ160
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 4 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 8000 kg at 2.0 meters
Max. Working Radius	12.75 meters
Max. Lifting Height	15 meters
Max. Lifting Moment	168 kN.m
Max. Oil Flow of Hydraulic System	40 L/min
Max. Pressure of Hydraulic System	28 Mpa
Crane Weight	2960 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

Chassis Pictures

Features Of ISUZU FTR Crane Truck

ISUZU FTR Chassis

Mature Powertrain: Typically equipped with an Isuzu 4HK1-TCG61 high-pressure common rail turbocharged diesel engine, with a displacement of 5.2L, delivering robust power and complying with China's National VI emission standards. It is paired with a technologically mature Isuzu manual transmission, ensuring efficient and reliable power delivery.

Professional Commercial Vehicle Chassis: The FTR is a heavy-duty truck chassis built with a high-strength steel double-layer frame (beam), providing a solid foundation for mounting the superstructure. The 6,300 mm wheelbase is specifically designed as an ideal size for 8-10 ton class truck-mounted cranes.

Excellent Driving Comfort and Safety: The cab is designed with a human-centric approach, offering a wide field of vision, excellent sealing, and low noise levels. Standard safety features include ABS and exhaust brakes, while some higher-end models are equipped with air brakes, parking brakes, power steering, and other features, ensuring easy and safe driving.

XCMG - 8Ton Straight Boom Crane

Powerful Lifting Capacity: As a globally leading construction machinery manufacturer, XCMG's cranes boast robust performance parameters. The 8-ton straight-arm crane typically features a large-section pentagonal or hexagonal boom with high bending resistance, strong lifting capacity, and a large working radius (maximum reach exceeding 15 meters).

Flexible and Efficient Operating System: Hydraulically driven, the crane is operated via manual levers or more advanced electro-hydraulic proportional remote controls, offering fine control, precise handling, and smooth operation. The outrigger configuration, often front H-type and rear double or quadruple box, ensures stable support on various terrains.

Comprehensive Safety Features: Standard safety measures include relief valves (to prevent hydraulic system overload), balance valves (to prevent accidental boom descent), and wire rope overwind protection devices, ensuring safe and reliable lifting operations.

Advantage of Crane Truck

Power Performance: A lighter body allows the 205-horsepower engine to propel the vehicle more effortlessly, resulting in better acceleration and climbing performance, with a greater sense of power reserve.
Braking and Handling: Reduced mass means lower inertia during braking, improving braking effectiveness to some extent and enhancing safety. Additionally, the vehicle becomes more agile and easier to maneuver.
Tire Wear: Reduced pressure on tires helps extend their service life.
