Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman l3000 truck with crane 6.3tons in China. If you're going to buy high quality shacman l3000 truck with crane 6.3tons, welcome to get more information from our factory. For price consultation, contact us.

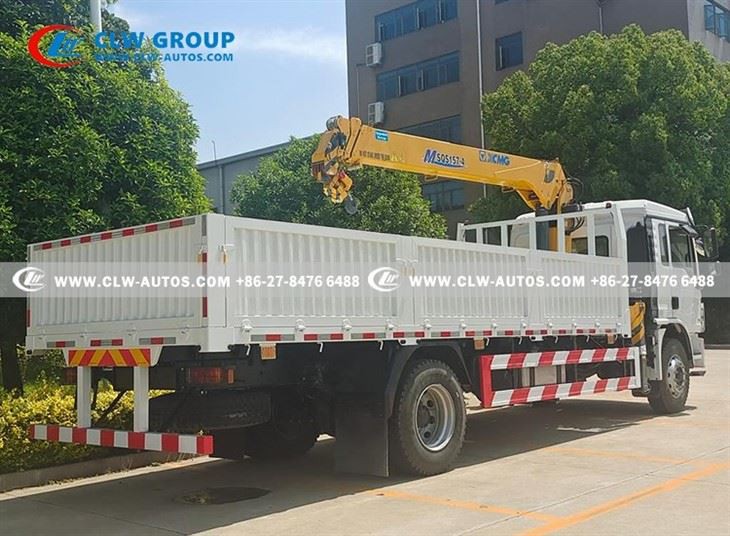

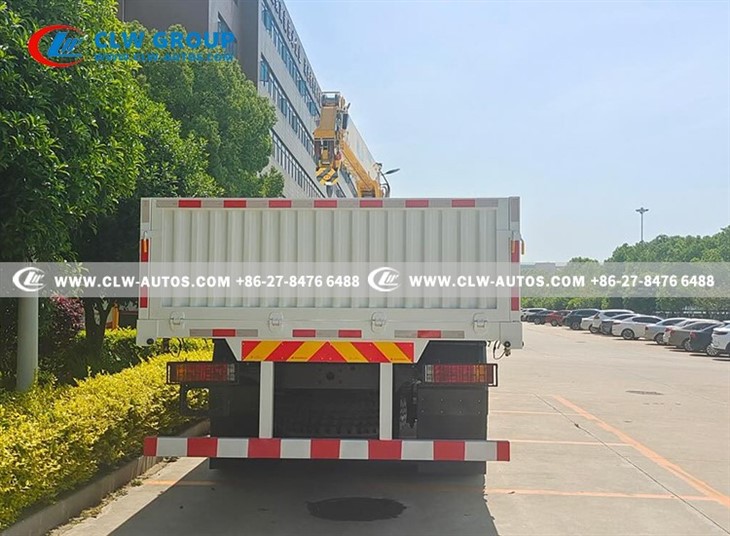

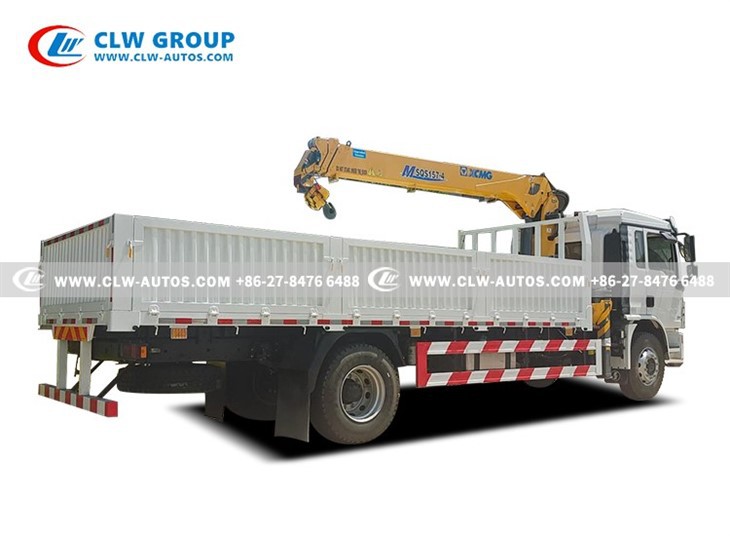

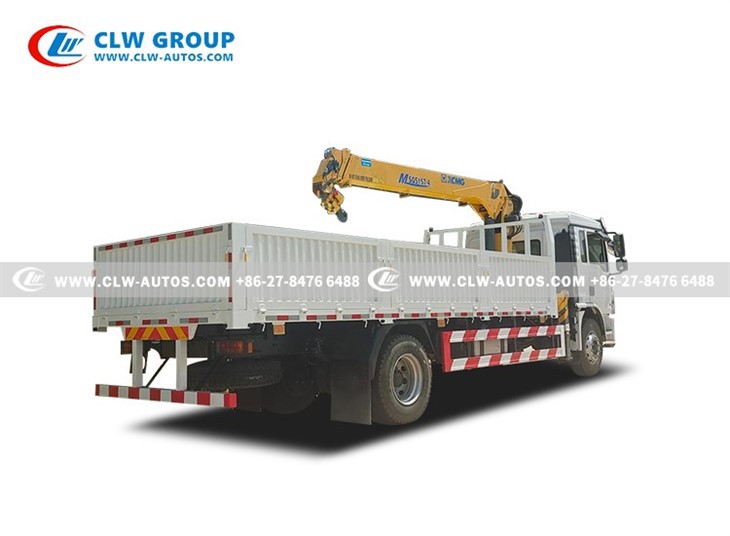

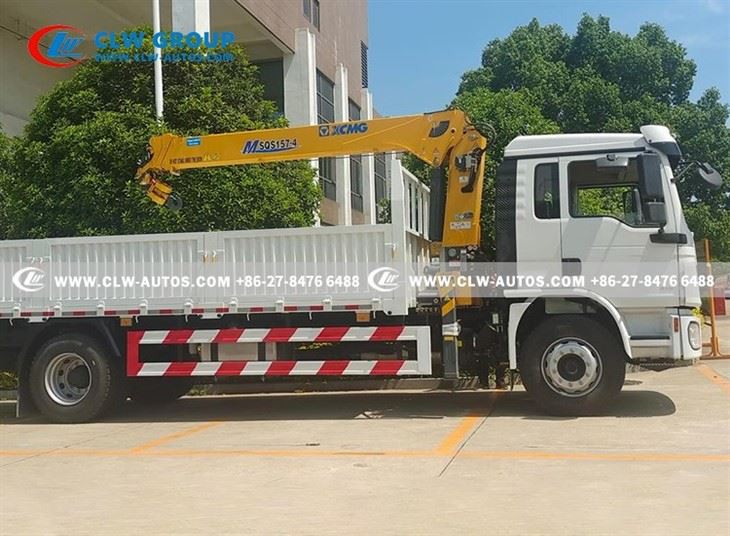

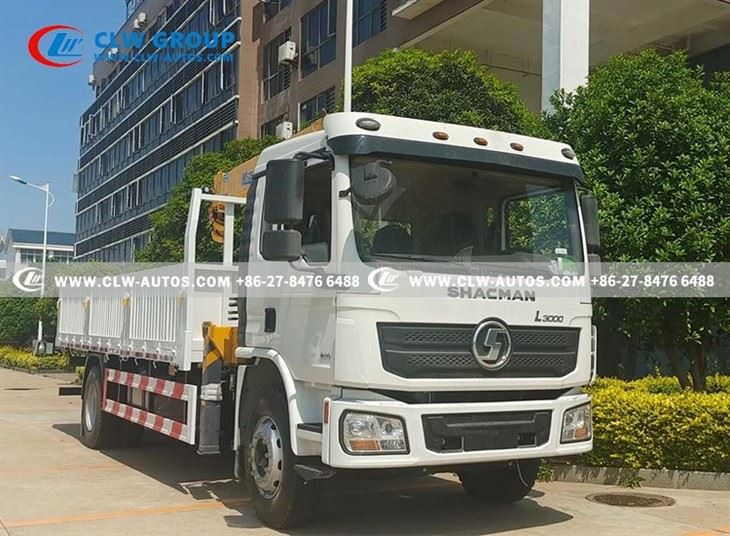

Shacman L3000 4X2 Truck With Crane XCMG 6.3T
Factory Price For Sale
We are professional special vehicle manufacturer in China since 2004
- Truck with crane, also known as the crane truck, truck-mounted cranes, utilize a hydraulic lifting and telescopic system for lifting,rotating, and hoisting goods.
- A crane truck comprises of a truck chassis, cargo compartment, power take-off, and crane.
- Advantages of truck-mounted cranes include good mobility, rapid transfer, and integration of lifting and transportation functions to enhance resource utilization.
- The boom of a truck-mounted crane can rotate 360 degrees, features a compact structure, and offers flexible operation suitable for lifting and transporting in small spaces and with irregular goods.
- Truck Chassis: Dongfeng, FAW, FOTON, SHACMAN, ISUZU, SINOTRUK HOWO, BEIBEN, JAC, JMC, etc.
- Crane Brand: CLW (Our factory brand), XCMG, SANY Palfinger, UNIC.
- Crane Lifting Ability: 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14tons, 16 tons, 20 tons,etc.
- Crane Type: Straight arm or folding arm (Folding arm usually more expensive for the same lifting capacity).
- Cargo box dimension: Customizable per client's request or our suggestion.
- Yes,our crane truck can be equipped with various grabbing tools like wood grab buckets, hanging baskets, brick clamps, and drilling tools to enable multi-scenario operations.
Whatsapp/ Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com






| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | Shacman L3000 | ||
| Cabin | Left Hand Driving, one sleeper, with A/C | |||
| Engine | Model | Weichai WP6.210E32, 6 cylinders, 250kW | ||
| Power | 210HP/155kW | |||
| Emission Standard | EURO II | |||
| Displacement | 6.23L | |||
| Fuel type | Diesel | |||
| Gearbox | Manual, 8JS85TM, 8 Forward and 2 Reverse Speed | |||
| Axle loading | Front/Rear 4.8T/10T | |||
| Tire | 10.00R20, 6 Pieces with 1 Spare Tire | |||
| Wheel base | 5700mm | |||
| Brake System | Air Brake | |||
| Fuel Tank | 200L | |||
| Superstructure | ||||
| Cargo box | Dimension | 6000×2450×600(mm) | ||
| Material | Q235 carbon steel | |||
| Material thickness | Side 2mm, Bottom 3mm | |||
| Crane | Brand | XCMG brand | ||
| Boom Model | MSQS157-4 | |||
| Boom Type | Straight arm 4 section telescopic boom | |||
| Max. lifting weight | 6,300kgs | |||
| Max. lifting height | 13m | |||
| Max. working radius | 11m | |||
| Max. lifting moment | 157.5KN.m | |||
| Recommend power | 18kw | |||
| Max oil flow of hydraulic system | 40L/min | |||
| Max pressure of hydraulic system | 22MPa | |||
| Oil tank capacity | 90L | |||
| Crane weight | 2,350kg | |||
| Rotation angle | 360° ALL Rotation | |||
Crane With Construction Basket


Crane With Brick Gripper


Crane With Drilling Machine or Wood/Steel Gripper
