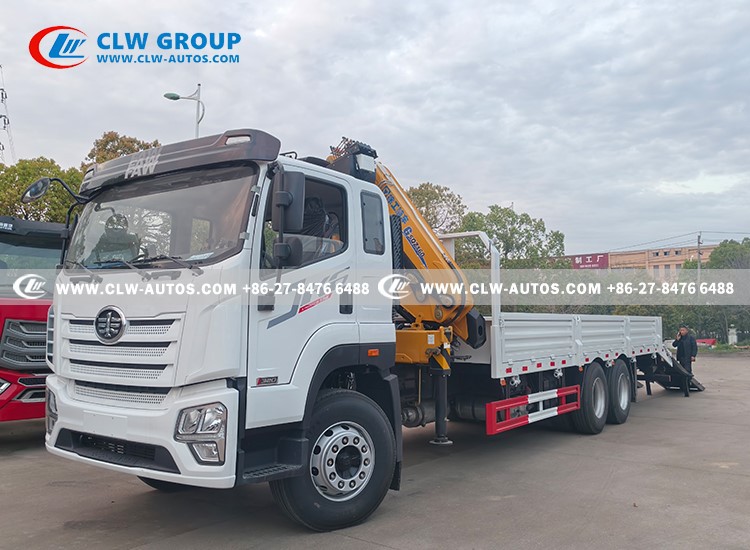

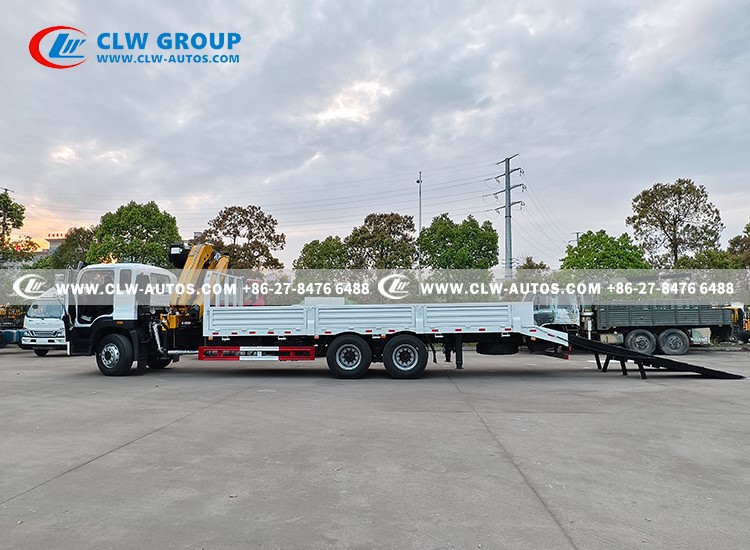

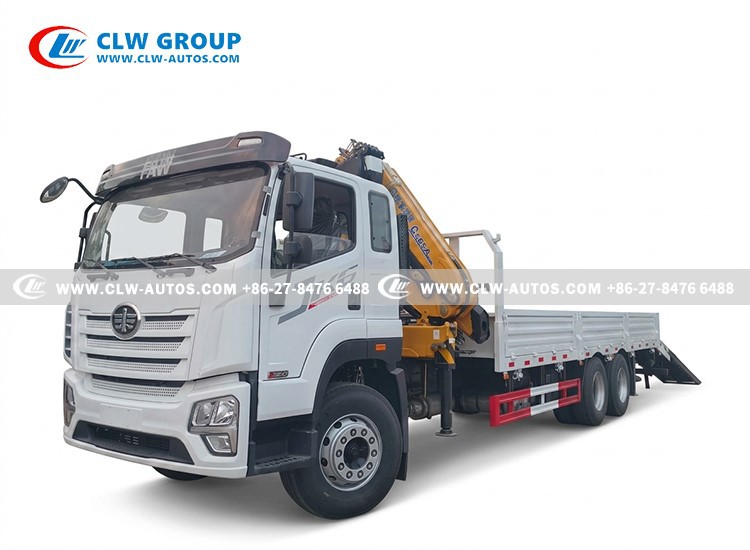

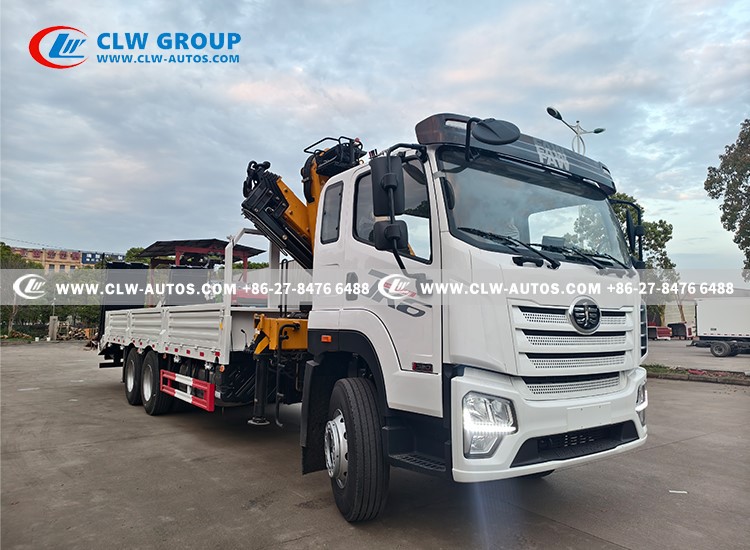

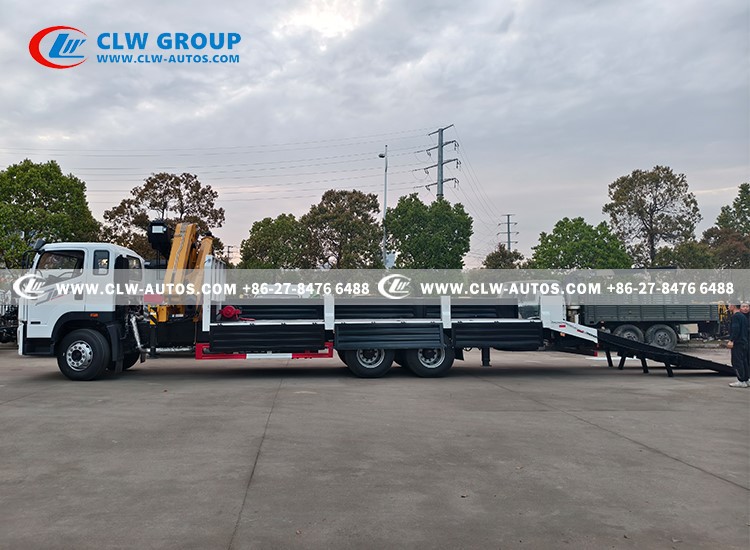

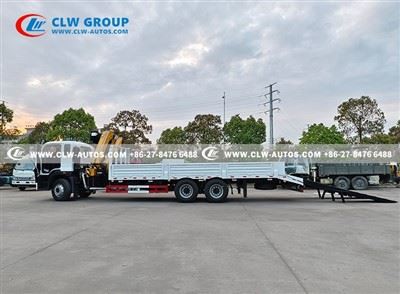

FAW 6X4 25Tons Foding Boom Truck Crane

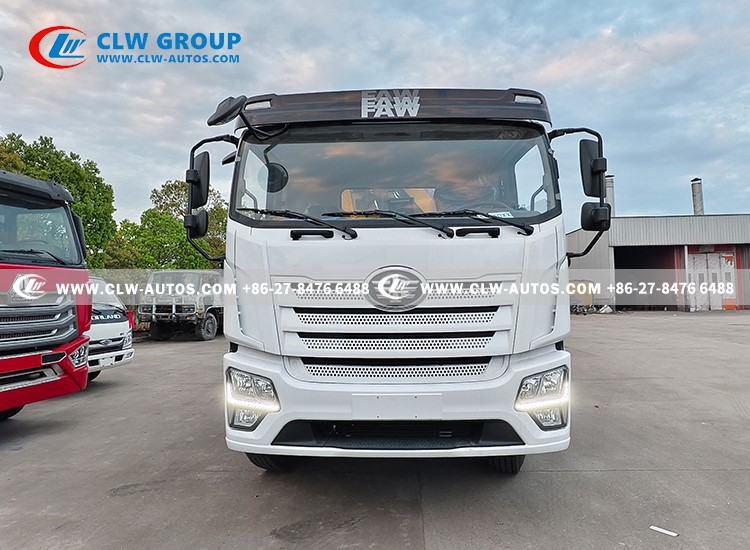

FAW JK6 6x4 Chassis

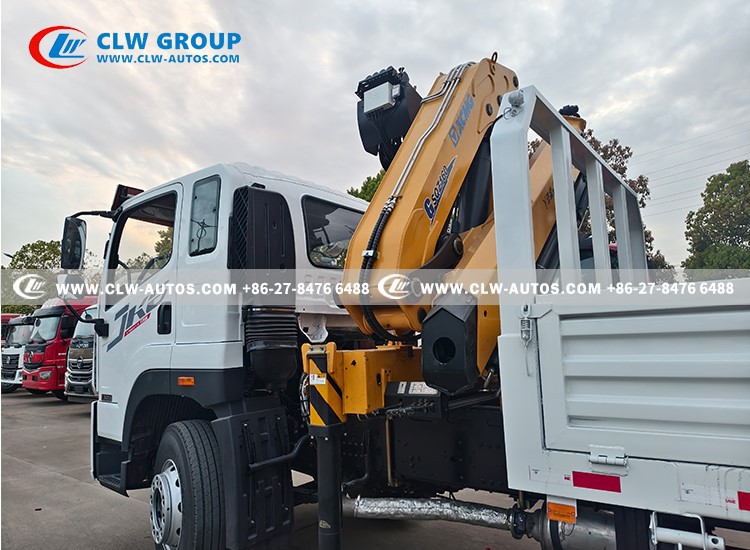

XCMG SQZ160 knuckle boom crane
Crane Max. Lifting Capacity 8Ton
8tons Hydraulic Winch

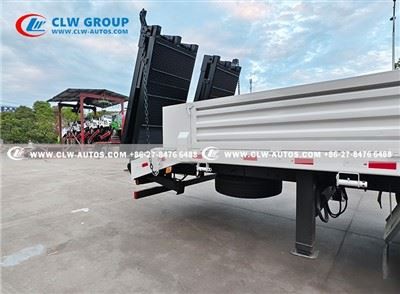

Hydraulic double-folding rear ladder
Cargo side panels is removable
Left hand drive
Dual-Compression System
Cargo size:8500x2500x400mm
Max capacity for carry 25tons excavator
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 6x4 25tons foding boom truck crane in China. If you're going to buy high quality faw 6x4 25tons foding boom truck crane, welcome to get more information from our factory. For price consultation, contact us.
FAW 25Tons Cargo Truck With Folding Boom Crane

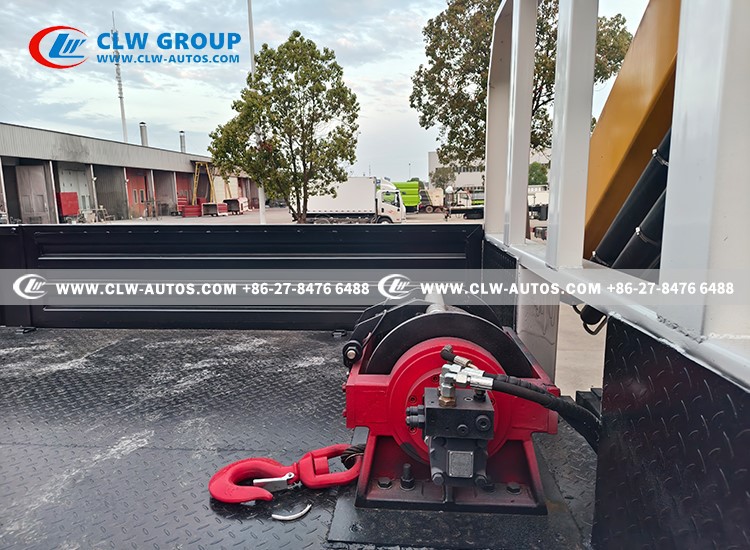

Front-mounted hydraulic pulling winch with high-tensile steel wire cable and forged safety hook!
Products Description
Crane truck is also known as a vehicle-mounted crane, a lifting truck, or a truck with a crane. A lifting truck, also called a mobile crane, is a versatile vehicle that is equipped with a crane at its rear and is used for lifting and transporting heavy objects. Trucks with cranes are mainly used by municipal companies, mining engineering departments, factory departments, and other units for lifting and transporting construction materials, equipment, or other large goods.
Our advantages- We can customize the chassis, cranes, and cargo boxes:
As a professional factory of truck cranes in China, our crane boom lifting capacity ranges from 2 tons to 160 tons. The driving methods of the truck cranes we sell include 4x2, 6x2, 6x4, 8x4, etc. The vehicle-mounted cranes we sell include telescopic arm vehicle-mounted cranes and folding arm vehicle-mounted cranes. In addition, our crane trucks can rotate 360 degrees. The products have advantages such as high quality, long lifespan, and high speed. The vehicle-mounted crane brands include XCMG cranes, Palfinger cranes, etc.
- Telescopic straight boom crane:2ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton, 14ton,16ton,20ton
- Knuckle folding boom crane: 1ton,2ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,14ton,16ton,20tons,25ton,30ton,35ton,40ton,45ton,50tons,55tons,90tons,130tons
We offer a variety of on-board cranes from different brands, including FAW on-board cranes, Foton lifting trucks, Haowo truck cranes, Isuzu commercial vehicle cranes, and Dongfeng truck cranes.
We can customize containers of different sizes and styles, including flatbed, non-removable panel box, removable panel box, box with winch, and box with ladder at the rear (single-section ladder, double-section ladder, manual ladder, hydraulic ladder etc).
Product Name: FAW 6X4 Folding boom crane truck
Application: Transport ≤25 tons of construction machinery
Advantages: It can be used as a cargo truck or as a flatbed trailer.
Cab: One row and half cabin, LHD, A/C
Wheelbase: 5600+1350mm
Engine: CA6DL1-32E5
Horsepower: 320HP
Emission standard: Euro 5
Gearbox: 9 Forwards and 1 reverse
Gross Vehicle Weight: 25000 kg
Front/Rear Axle loading: 6700kg /13000kg x2 with ABS
Tires: 12R22.5 16PR, 10 pcs with one spare
Related Operational Video
The Main Applications
Products Parameters
| Components | Parameter Item | Specifications |
|---|---|---|
| Cargo specification | Effective length | 8,500 mm |
| Inner width | 2,500 mm (side panel can be removable, can carry ultra-wide machinery) | |
| Panel height | Front panel 600 mm / Rear panel 400 mm | |
| Board structure | Removable & drop-side boards | |

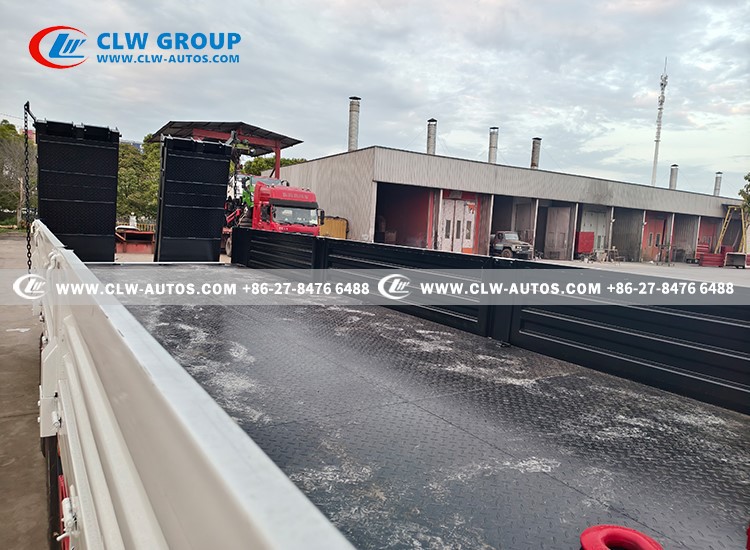

| Floor material | Heavy-duty diamond checkered steel plate | |

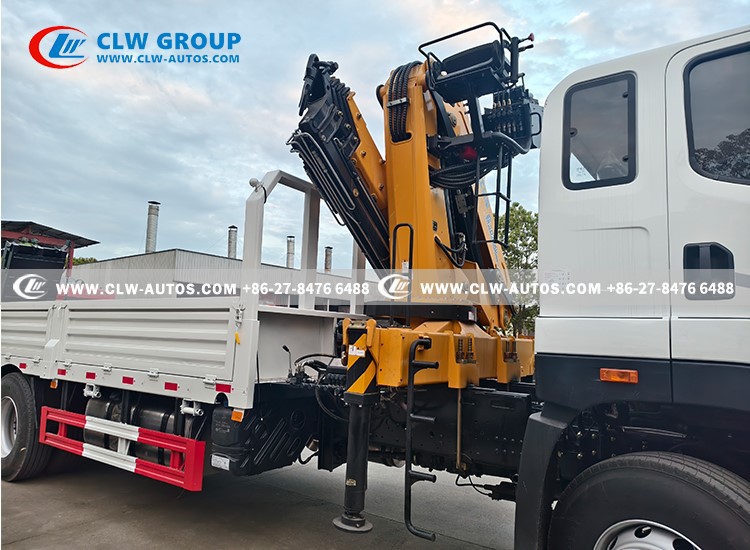

| Crane | Brand & Model | XCMG SQZ160 |
| Boom type | Knuckle boom articulated arm crane | |
| Max. lifting capacity | 8 Ton | |
| Max. lifting moment | 16.8 t·m | |
| Max. hydraulic outreach | 12.75 m (4-section hydraulic boom) | |
| Dead weight | Approx. 3000 kg | |

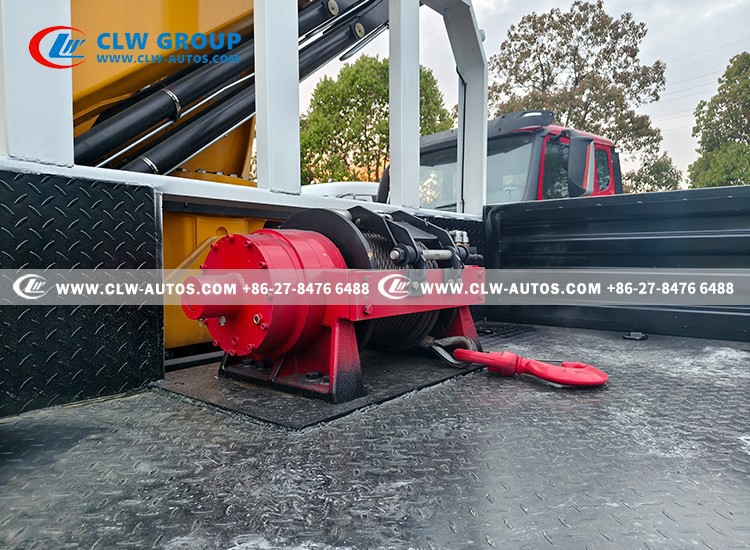

| Winch | Drive type | Heavy-duty hydraulic towing winch |
| Single line pull | 8 Ton / 18,000 lbs | |
| Cable material | High-tensile anti-twist steel wire rope with safety hook | |

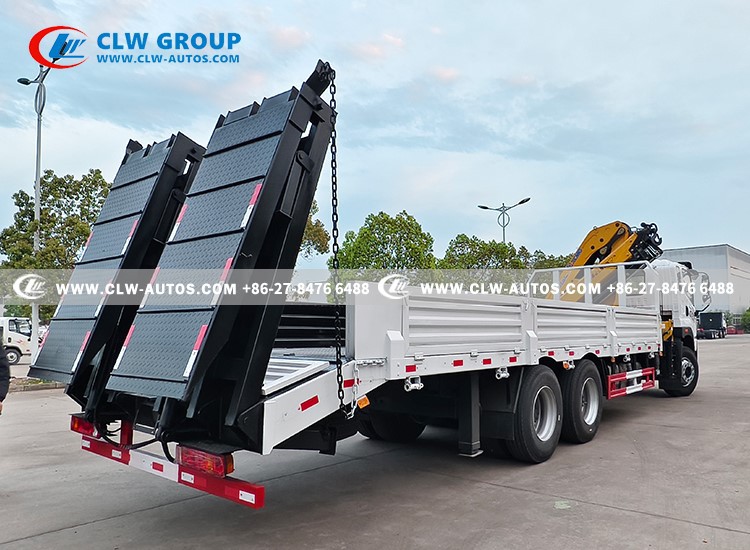

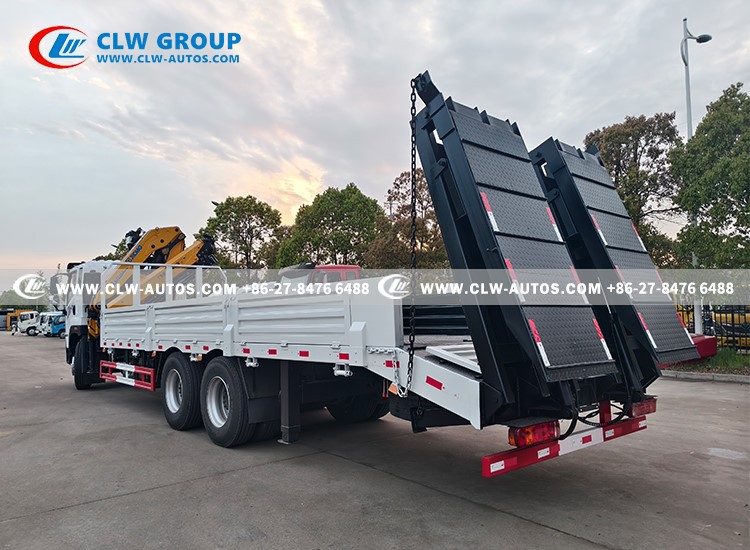

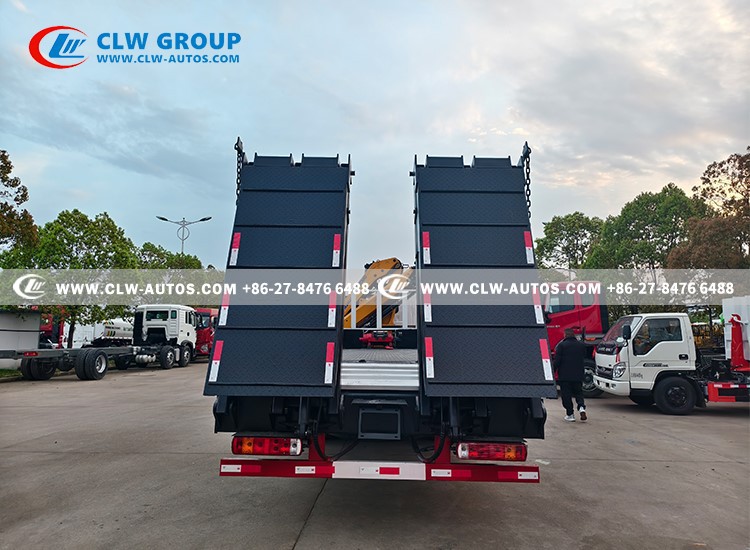

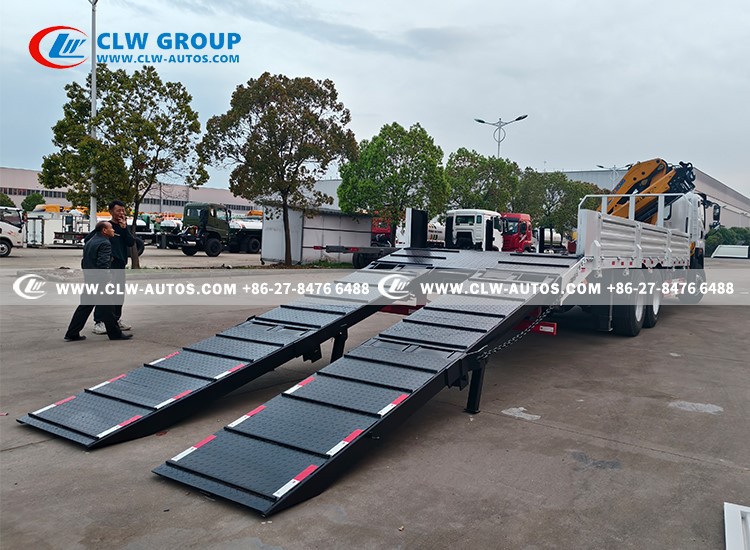

| Rear Ramps | Folding structure | Double-folding with low angle design |
| Driving mode | Fully hydraulic cylinder automatic lifting & flipping | |
| Anti-slip design | Welded anti-slip transverse steel traction bars | |
| Controls & Outriggers | Operation station | High-seat control station with panoramic view |

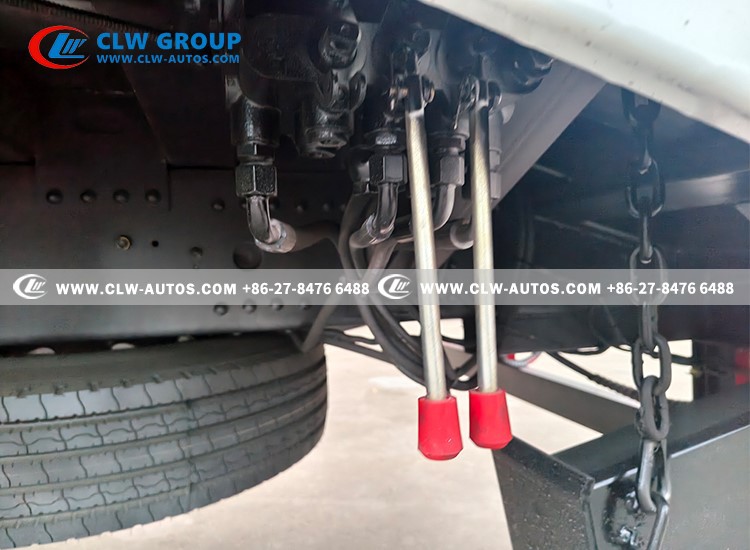

| Valve control | Hydraulic multi-way manual control levers | |
| Mid-chassis outriggers | Dual-sided hydraulic telescoping horizontal & vertical legs | |
| Rear safety outriggers | Combined hydraulic & mechanical flip-down legs | |
| Anti-tipping function | Supports 20-25 ton excavator loading protection |
Products Details
Other popular truck-mounted cranes
We offer customization services for various types of truck-mounted cranes.

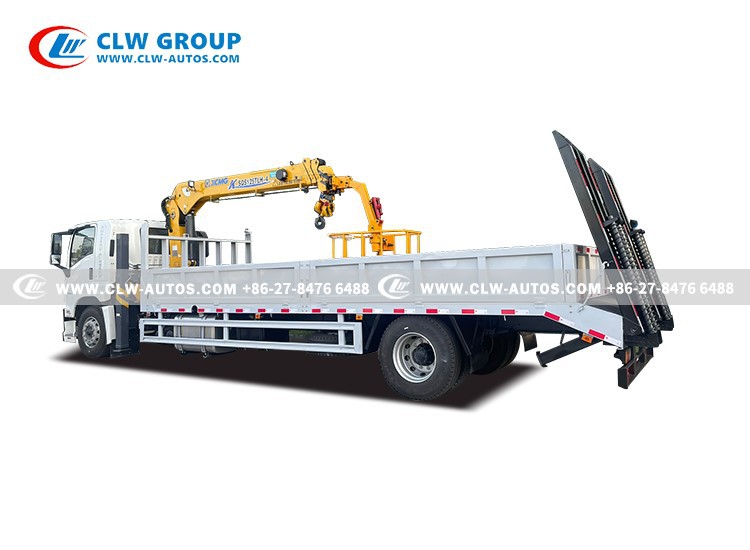

Truck Mounted Straight Boom With Aerial Bucket & Rear Ladder
3-in-1 Versatility: Combines a cargo crane(delivery goods), an equipment hauler for machinery transport, and an aerial work platform (detachable basket).

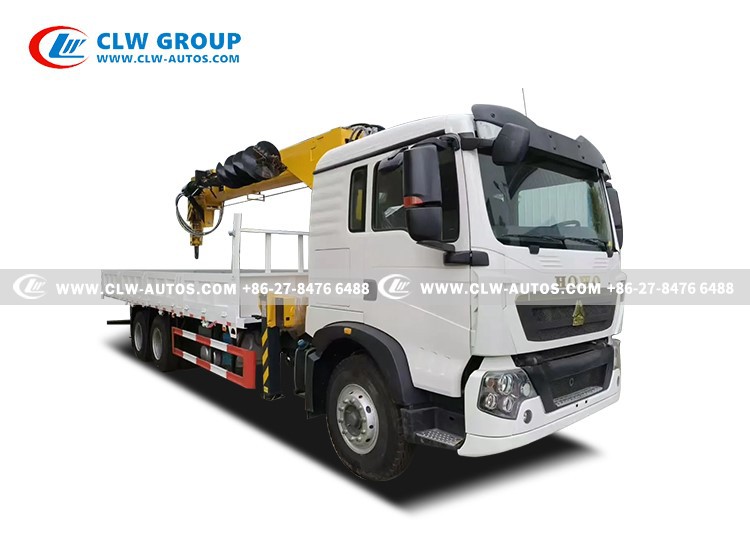

Straight Boom Crane truck with Auger Drill
Drilling & Lifting Integration: Combines an earth auger drill with standard crane functionalities.Boring holes into the earth, transporting the pole, and lifting it directly into place.
Rear Mounted Knuckle Boom Crane Truck
Maximum Rear Lifting Power: Positioned right over rear stabilizers to maximize structural leverage. For moving heavy industrial machinery, transformers, and generators.
Packaging & shipping
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
