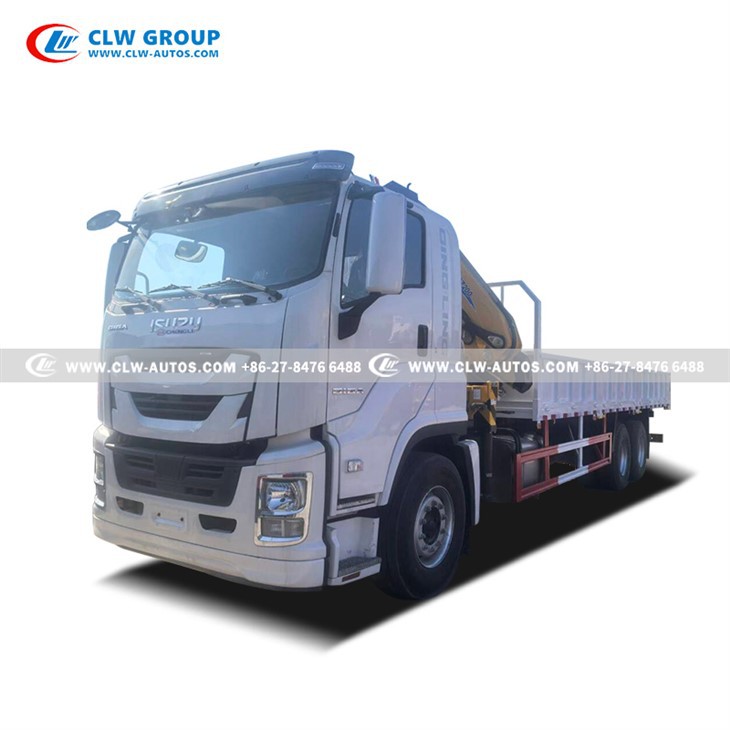

ISUZU 10Ton Folding Boom Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 10ton folding boom crane truck in China. If you're going to buy high quality isuzu 10ton folding boom crane truck, welcome to get more information from our factory. For price consultation, contact us.

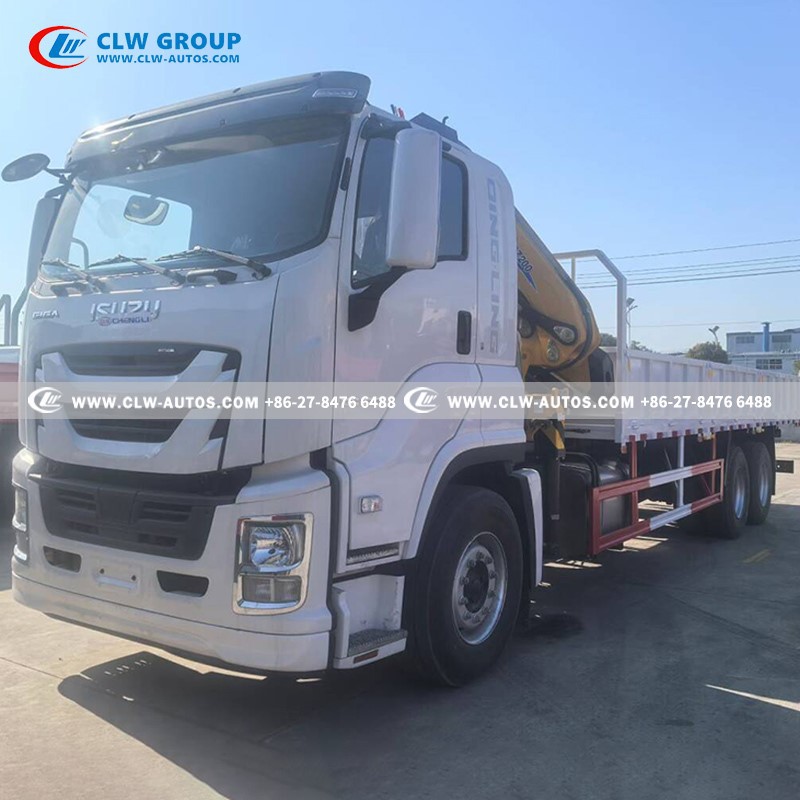

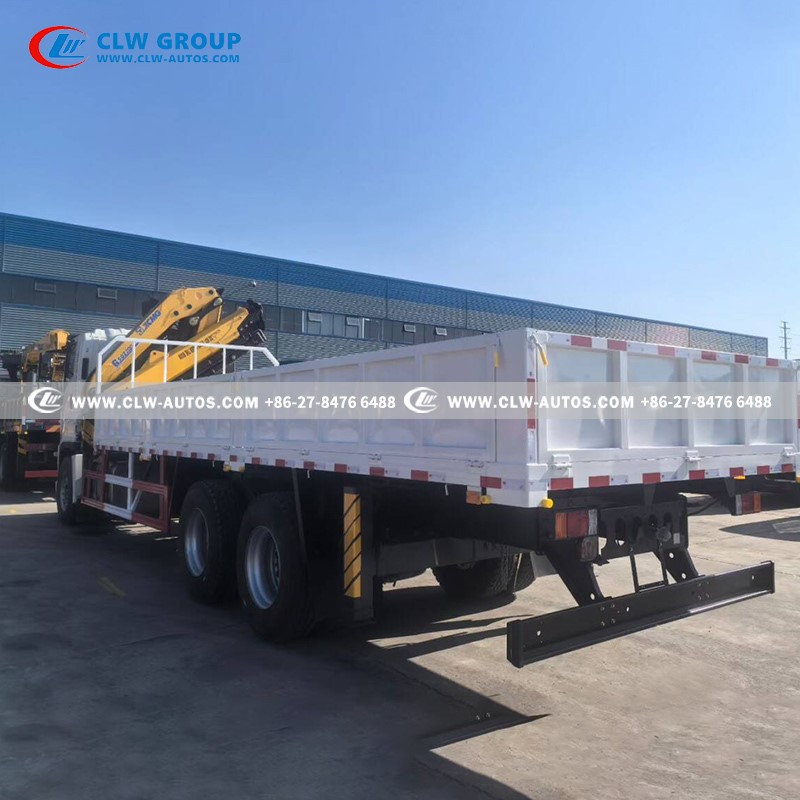

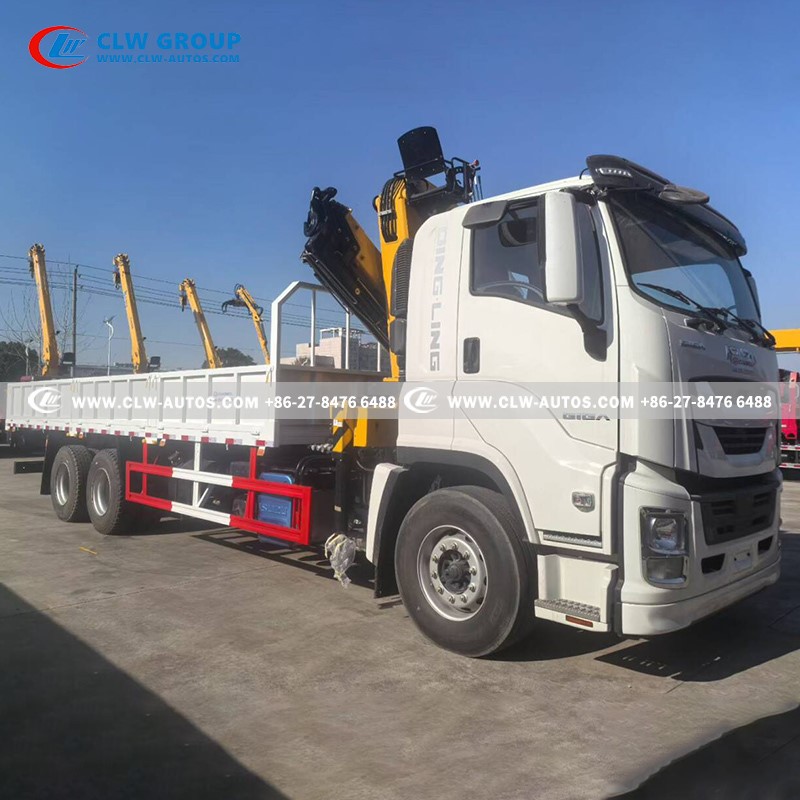

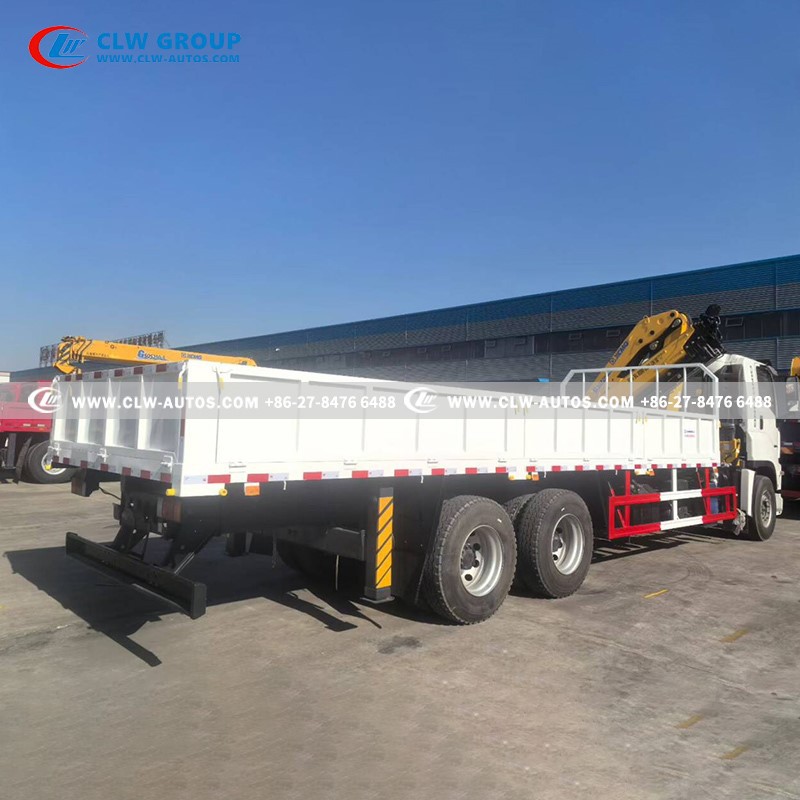

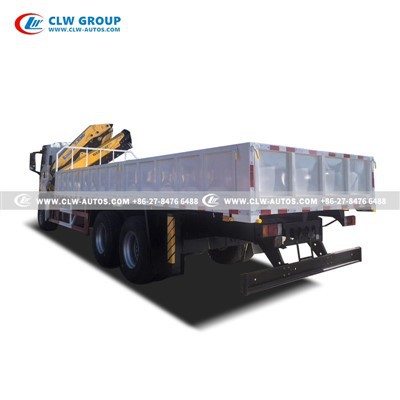

ISUZU 6X4 GIGA FVZ Crane Truck With 10Ton Folding Boom Crane
For Dominica

1. Chassis Advantages: Isuzu FVZ 300 HP, 4600+1370mm Wheelbase
Power and Adaptability

• The 300 HP engine provides ample power reserves for the mountainous and complex road conditions in the Dominican Republic (such as hilly areas, construction sites, and rural roads), delivering strong climbing and heavy-load starting capabilities.
• Isuzu engines are renowned for their low failure rate and fuel efficiency, making them suitable for areas in the Dominican Republic where fuel quality may be unstable and maintenance resources are limited.

Wheelbase and Mobility

• The 4600+1370mm wheelbase strikes a balance between load capacity and maneuverability:
• The shorter front wheelbase enhances steering flexibility, making it suitable for narrow streets (such as those in the old city of Santo Domingo).
• The longer rear wheelbase improves chassis stability, meeting the anti-tipping requirements during crane operations.
• The higher ground clearance enables it to handle unpaved roads and bumpy construction site environments.

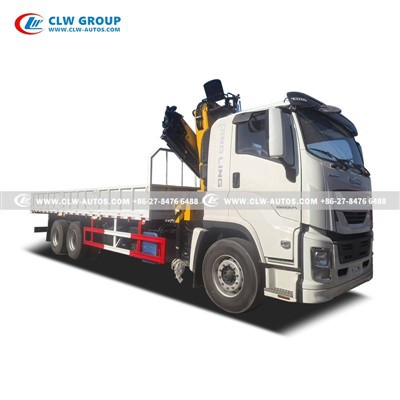

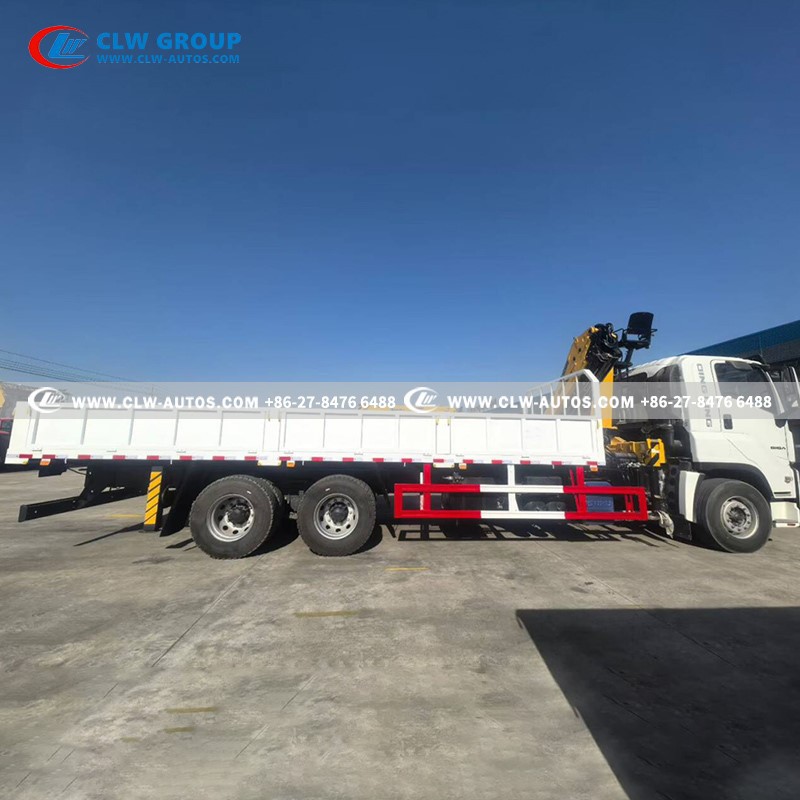

ISUZU Crane Truck With 10Tons Folding Boom Crane
Chassis Specification
Chassis Model	QL125
Driving Model	6 x 4
Dimension	12000 x 2540 x 3900 mm
Cab	Original ISUZU FVZ Cabin with air conditioner
Wheelbase	4600+1370 mm
Gross vehicle Weight	25000 kg
Curb Weight	10350 kg
Front Axle Loading Capacity	7000 kg
Rear Axle Loading Capacity	13000 x2 kg
Axle Number	3
Tire	295/80R22.5
	12pcs with 1 spare tire
Engine	ISUZU diesel engine 6 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 6HK1
	Horse power: 300 HP
	Displacement: 7790 ml
	Emission standard: Euro 6
Transmission	Model: ZF8
	9 Forwards & 1 Reverse
Upper Parameters

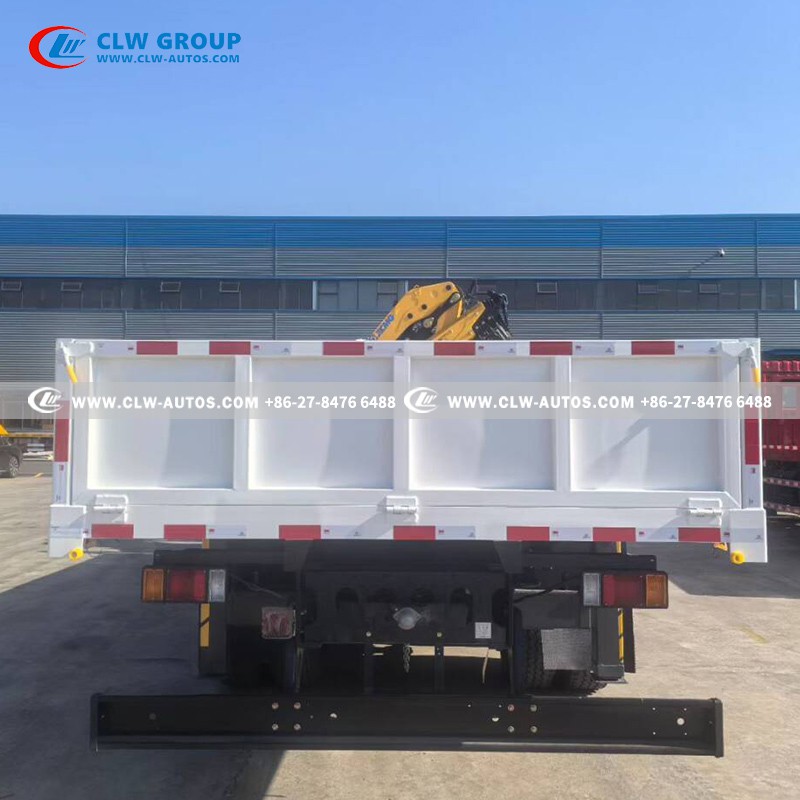

Cargo Box
Size (L*W*H)	6500 X 2400 X 550 mm
Loading Capacity	20 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel

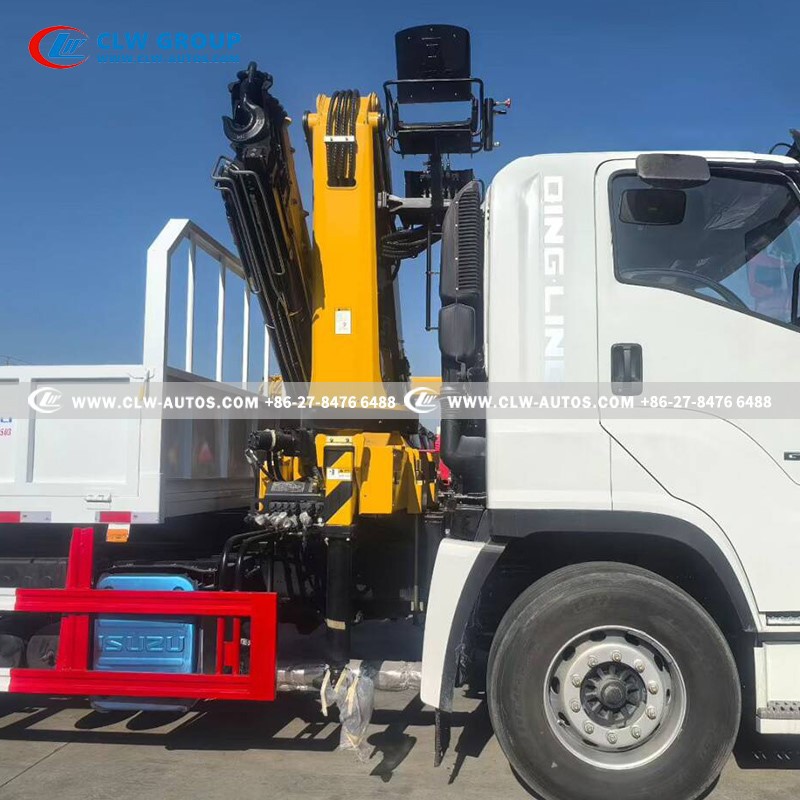

Crane

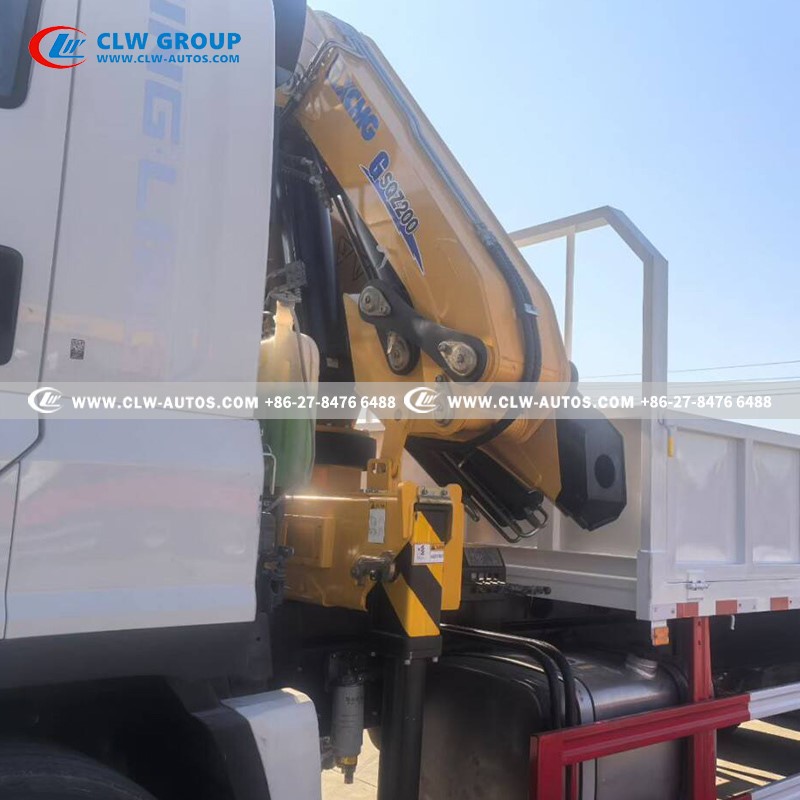

Model	SQZ200
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 4 extendable boom
Crane Type	Folding Boom Crane
Max. Lifting Capacity	Effectively: 10000 kg at 2.0 meters
Max. Working Radius	12.75 meters
Max. Lifting Moment	210 kN.m
Max. Oil Flow of Hydraulic System	40 L/min
Max. Pressure of Hydraulic System	30 Mpa
Crane Weight	3100 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color



2. Advantages of the Crane: XCMG 10-Ton Folding Boom Crane

Operational Flexibility

• The folding boom crane has a compact footprint, making it suitable for loading and unloading in narrow alleys, indoor operations, or confined worksites in densely populated urban areas of the Dominican Republic, such as Santo Domingo and Santiago.

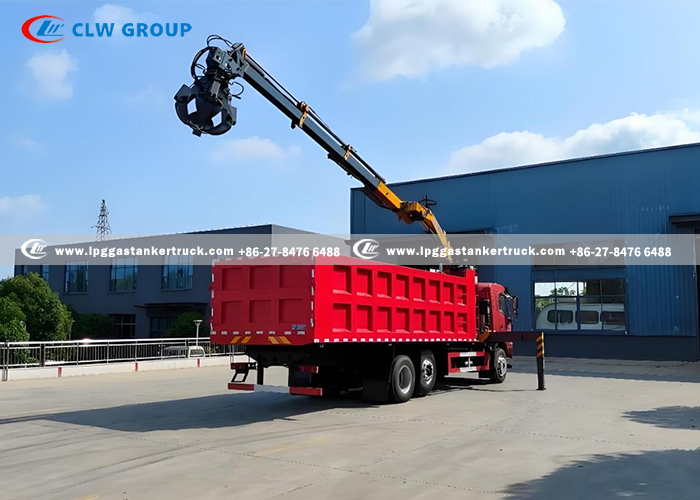

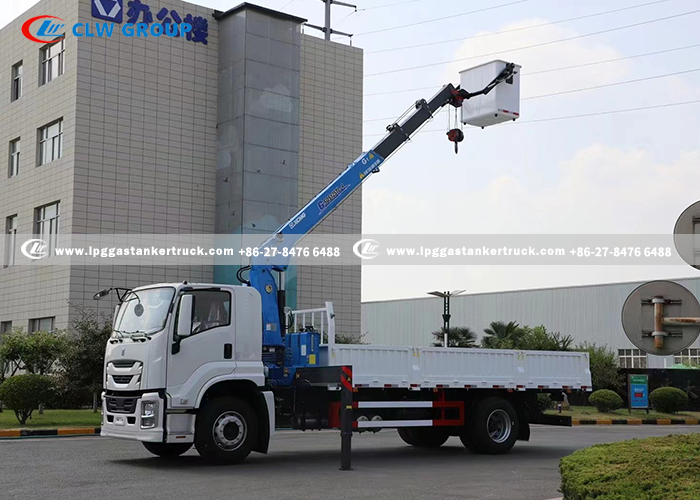

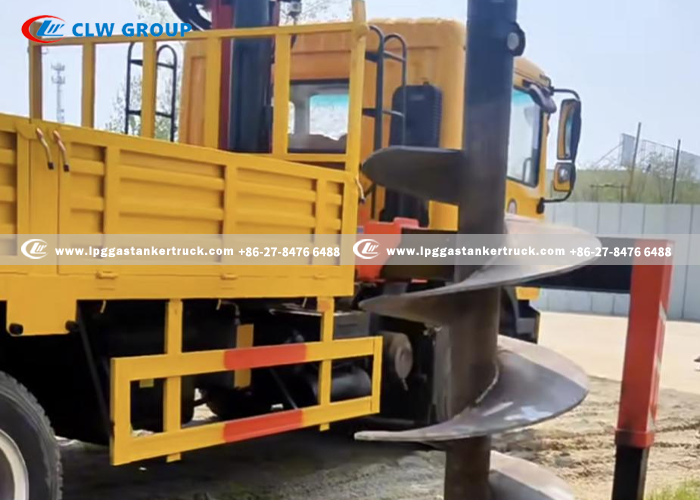

• It can be equipped with hydraulic attachments, lifting baskets, and other accessories to adapt to various scenarios, such as handling construction materials, pipelines, and tree relocation.

Performance Adaptability

• The 10-ton lifting capacity meets common demands in the Dominican Republic, including small-scale construction projects (e.g., steel bars, precast concrete slabs), logistics loading and unloading (e.g., containerized bulk cargo), and municipal engineering tasks (e.g., streetlight maintenance, tree transplantation).
• XCMG cranes offer high cost-effectiveness, with mature technology in the low-to-medium tonnage market and lower maintenance costs compared to European and American brands.



3. Climate and Terrain Adaptability

• The Isuzu chassis features good anti-corrosion treatment, making it suitable for the high-humidity, high-salinity environment of coastal areas in the Dominican Republic.
• The high-torque engine is well-suited for the frequent stops and starts required on mountainous roads (such as those in the Cordillera Central mountain range).

Economic Efficiency and Investment Return

• The overall vehicle procurement cost is lower than that of European and American brands, making it suitable for small and medium-sized enterprises or individual owners in the Dominican Republic.
• Low fuel consumption and ease of maintenance provide long-term cost advantages in the local market, where fuel prices are volatile and labor costs are relatively low.

Multi-Scenario Application Potential

• It can be used for containerized bulk cargo handling at ports (such as the ports of Haina and San Pedro de Macorís), construction sites (amid the capital's real estate construction boom), agricultural equipment lifting (in sugarcane-producing regions), and more, meeting diverse needs.
• The precise lifting capability of the folding boom crane makes it suitable for niche applications such as urban billboard installation and vehicle rescue operations.
