Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of philippines isuzu 8ton truck mounted crane in China. If you're going to buy high quality philippines isuzu 8ton truck mounted crane, welcome to get more information from our factory. For price consultation, contact us.

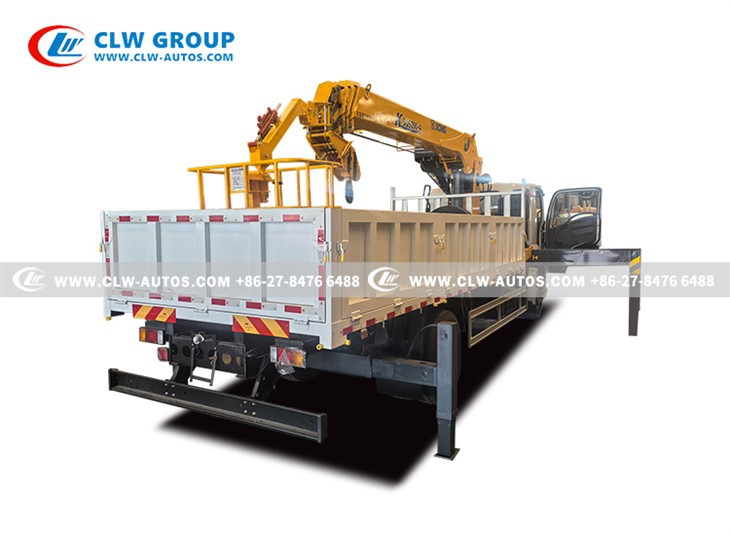

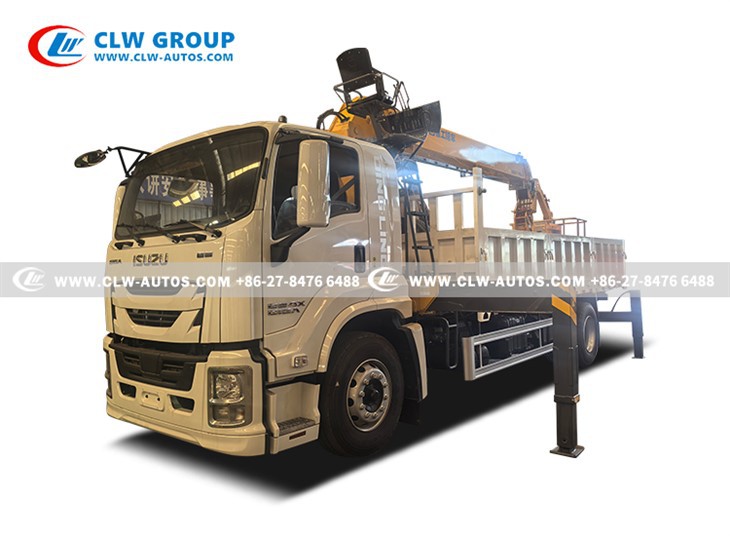

ISUZU FTR 6 na Gulong 8-toneladang Trak na May Mounted-crane

at High-altitude Suspended Basket

We are 100% Straight Factory Manufacturer

We have 100% Quality Assurance

Products Description

Crane Truck Application

Adding a high-altitude hoist basket to a truck-mounted crane is a multi-functional modification solution. By integrating the hoist basket with the lifting equipment, it significantly expands the working range and safety performance, and has wide application value especially in a multi-island region like the Philippines where infrastructure is developing rapidly.

Urban Development

Manila urban work: High-rise cleaning, glass install, no road closures.
Bridge maintenance: Cebu-Córdoba fixes with flexible gondolas.

Agriculture & Forestry

Farm pruning: Coconut/banana crops need aerial work.
Rubber tapping: Gondola ensures safe harvesting.

Power & Communications

Typhoon recovery: Luzon power repairs avoid ground obstacles.
5G setup: Mountain base stations simplified with gondolas.

Tourism & Public Facilities

Resort upkeep: Boracay, Palawan repairs protect nature.
Festive lights: Christmas decor hung quickly.

Products Operation Video

For quick inquiry, please contact Ms. Hedy He:

WhatsApp / Wechat: +86 188 2740 1066

Hedy@clw-autos.com.

Products Specification

Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	9000 x 2500 x 3900 mm
Cab	Original FTR 4X cabin With air conditioner
Wheelbase	5000 mm
Gross vehicle Weight	18000 kg
Curb Weight	9650 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	295/80R22.5 18PR
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1-TC60
	Horse power: 205 HP
	Displacement: 5200ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	6 Forward & 1 Reverse
Upper Parameters
Cargo Box
*Size (LWH)*	5200 X 2300 X 550 mm
Loading Capacity	15 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel
Crane
Model	XCMG - SQS200-4
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 5 extendable boom
Crane Type	Straight Boom Crane
Max. Lifting Capacity	Effectively: 8000 kg at 2.5 meters
Max. Working Radius	11.75 meters
Max. Lifting Height	15 meters
Max. Lifting Moment	200 T.m
Max. Oil Flow of Hydraulic System	63 L/min
Max. Pressure of Hydraulic System	26 Mpa
Crane Weight	3520 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color
Crane Rated Lifting Load

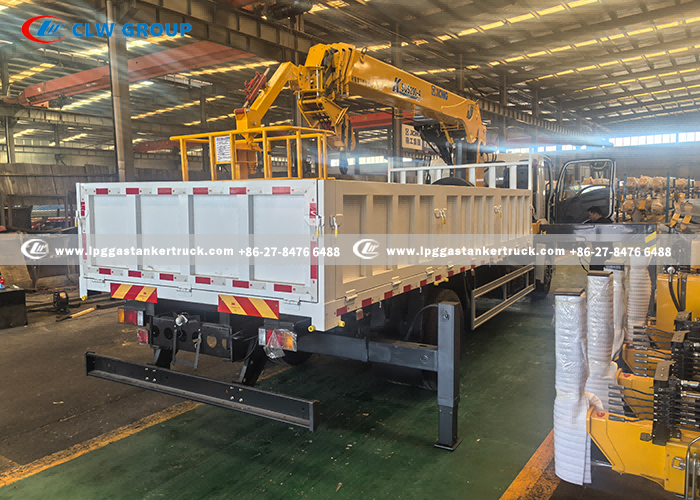

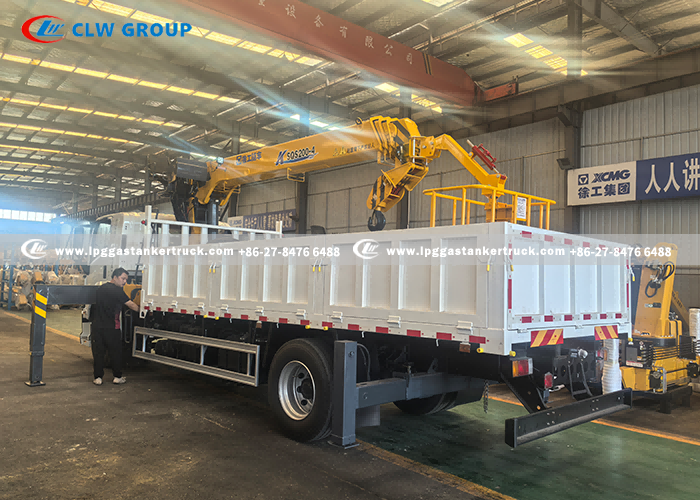

Products Factory Pictures

High-quality Chassis

ISUZU 205hp diesel engine
6 Forwards Transmission
295/80R22.5 Tire

The core role of installing a high-altitude gondola

Synchronous transportation of people and goods
Replace traditional climbing equipment
Emergency versatility

Practical Cargo Compartment

Economical and durable, strong transportation power
Exclusive use of lightweight design to improve the vehicle's greater carrying capacity, more fuel-efficient and improve transport capacity, higher annual payback rate.

Comfortable Drive

ISUZU Giga FTR VC61 4X Cabin
With air conditioner
Motorized windows and doors
Multifunction steering wheel

Core Advantages of High-altitude Suspended Basket
High Mobility	Remote access: Fits rural/island areas and narrow roads.
Cost-effective	Cost-effective: No extra aerial platform needed, low mod cost.
Operational efficiency is improved	Sync work: Lift materials and workers together.
Adapt to complex enviroments	Flexible use: Rotating/retractable for trees and cables.
