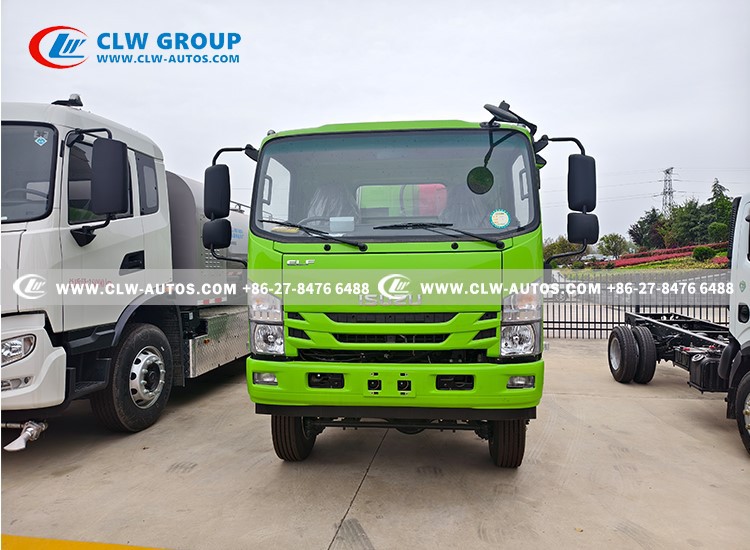

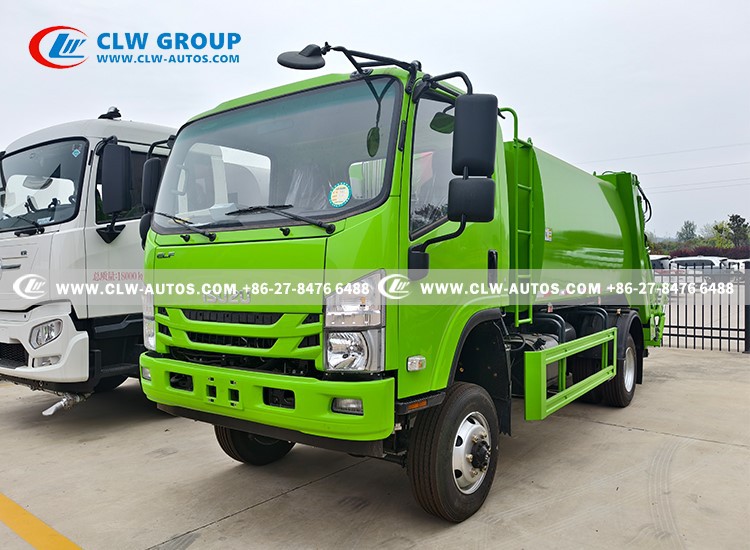

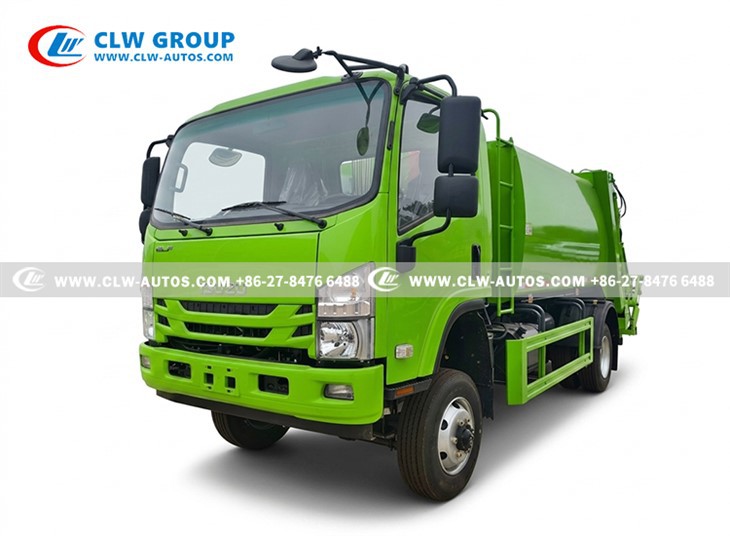

ISUZU 4x4 9CBM Compactor Garbage Truck
ISUZU 700P 4x4 Compressed Garbage Truck
Tank volume:9m³/9CBM/9,000L
6-7Tons Garbage Tanker
4×4 off-road drive
0.6-0.75 High compaction efficiency
Zero leakage
Right hand drive
Dual-Compression System
PLC-controlled hydraulic system
Compatible with 120L/240L/660L rubbish bins
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4x4 9cbm compactor garbage truck in China. If you're going to buy high quality isuzu 4x4 9cbm compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.

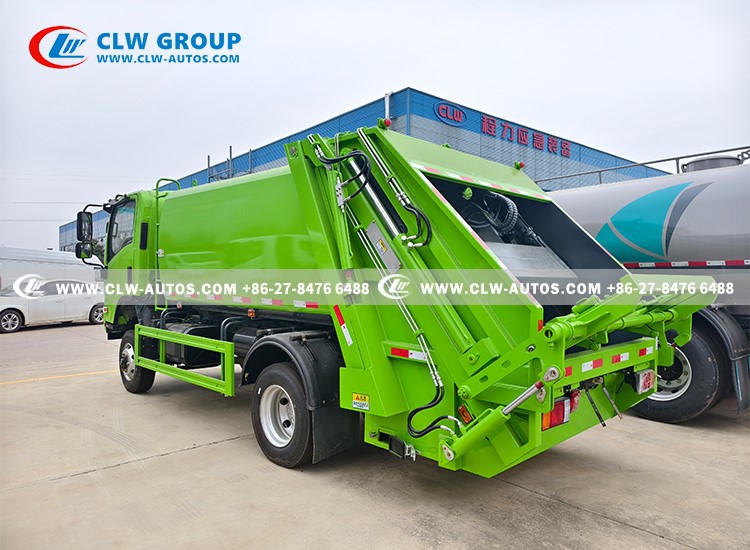

All Wheels Drive 9,000L Compaction Garbage Truck
Rubbish lorries specialize in high-density compaction, achieving a compression ratio of 0.6-0.75!
Products Description

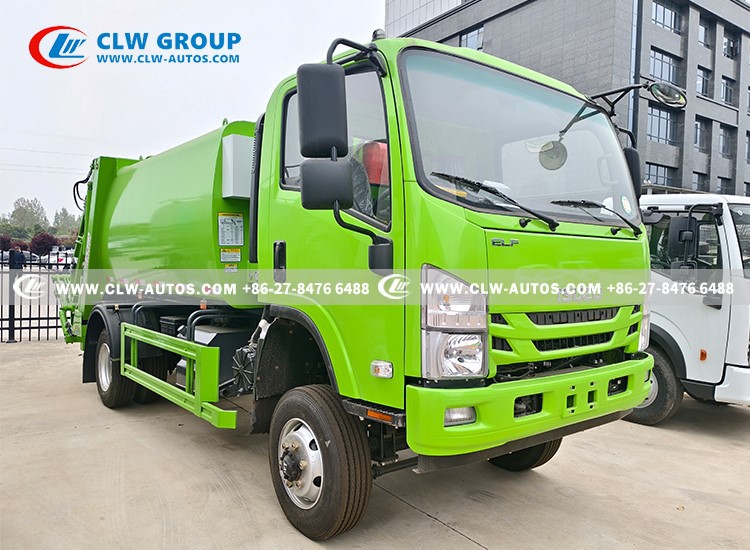

1. Off-Road Chassis (4x4 AWD)
- Drive Configuration: Genuine 4x4 All-Wheel Drive with high-low range transfer case. It effortlessly handles steep inclines, deep mud, and snow-covered streets where standard 4x2 trucks fail.
- Powertrain: Powered by the ultra-reliable ISUZU diesel engine (typically 4HK1 series), delivering high torque at low RPMs for maximum pulling power under full payload.

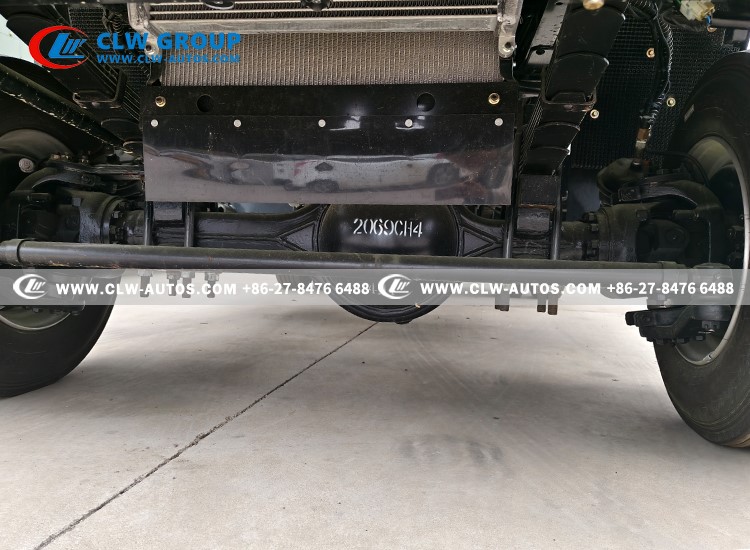

- Tires & Hubs: Heavy-duty 235/75R17.5 16PR radial steel tires mounted on a robust 4.11 final drive axle, offering the perfect balance between highway fuel economy and maximum off-road traction.
2. High-Capacity Compaction Tank (9m³)
- Body Capacity: 9 cubic meters (handles up to 6–7 tons of compressed domestic waste).
- Premium Steel Build: The curved, seamless, and skeleton-free body is fabricated from high-strength manganese steel (Q345 or NM450 wear-resistant steel) to prevent deformation under immense pressure.
- High Compression Ratio: Achieves a powerful 1:2.5 to 1:3 volume reduction using an advanced two-way peristaltic compression mechanism (slider and scraper system).
3. Smart Control & Operator Safety
- Tri-Mode Control System: Features a reliable In-Cab Control Box for driver-seat operation, a Tailgate PLC Electronic Panel for ground workers, and a Wireless Remote Handset for safe, long-range mobile maneuvering.
- Safety First: Equipped with highly accessible, heavy-duty Emergency Stop buttons on all control interfaces to instantly cut hydraulic power in case of hazards.
4. Advanced Eco & Anti-Pollution Design
- Dual Wastewater Collection: Built-in large-capacity sewage tanks with leak-proof rubber seals completely isolate foul odors and prevent secondary pollution (leachate dripping) during transit.
- High-Mounted Hydraulic Tank: The signature red, high-mounted hydraulic oil tank optimizes chassis space for the 4x4 drivetrain while offering superior heat dissipation for continuous heavy-duty cycles.
Product Name: ISUZU 4x4 Compactor garbage truck
Application: Transporting garbage in poor road conditions
Advantages: Urban, rural & harsh environment waste collection

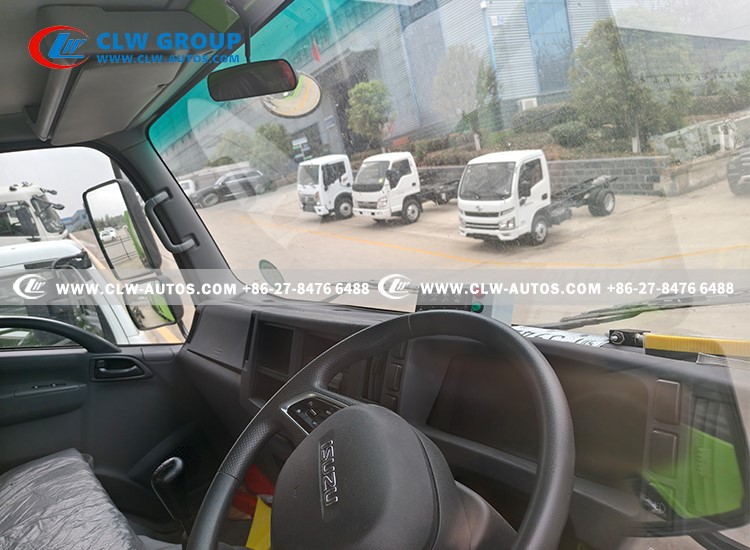

Cab: Single row cabin, RHD, A/C
Wheelbase: 3815mm
Engine: 4HK1-TCG61
Horsepower: 190HP
Emission standard: Euro VI
Gearbox: 6 Forwards and 1 reverse
Gross Vehicle Weight: 11000 kg
Front/Rear Axle loading: 4000kg /7000kg with ABS
Tires: 235/75R17.5 16PR, 6 pcs with one spare
Related Operational Video
The Main Applications
Products Parameters
| 9m³ Waste Compactor Superstructure Technical Specifications | |
| Parameter Item | Specification Value |
| 1. Structure & Capacity | |
| Garbage Box Volume | 9 m³ (Cubic Meters); Accommodates 6 - 7 tons of highly compressed domestic waste |
| Body Design | Curved & Skeleton-free design; Modern streamlined smooth side-walls without external rib reinforcement, expanding effective volume and ensuring elegant aesthetics |
| Body Material | High-tensile manganese steel; Side-walls & Top: 4mm Q345; Bottom-plate: 5mm NM450 wear-resistant steel; Ensures excellent resistance to severe impact, deformation, and acidic corrosion |
| 2. Compaction & Mechanism | |

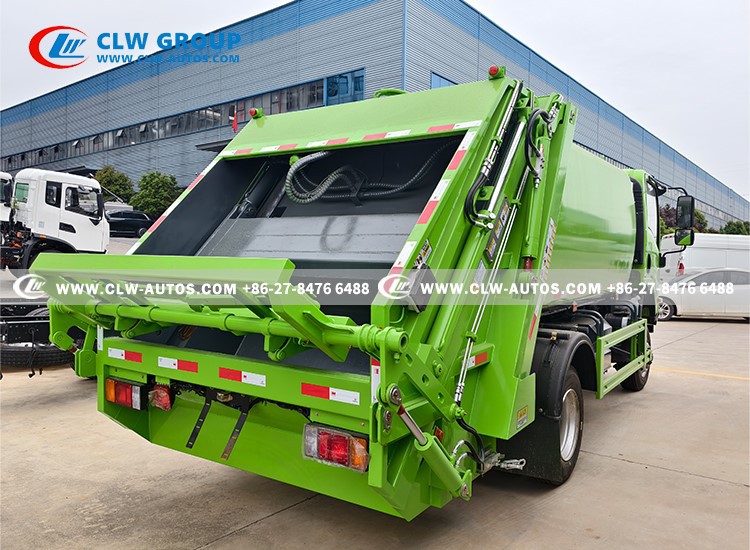

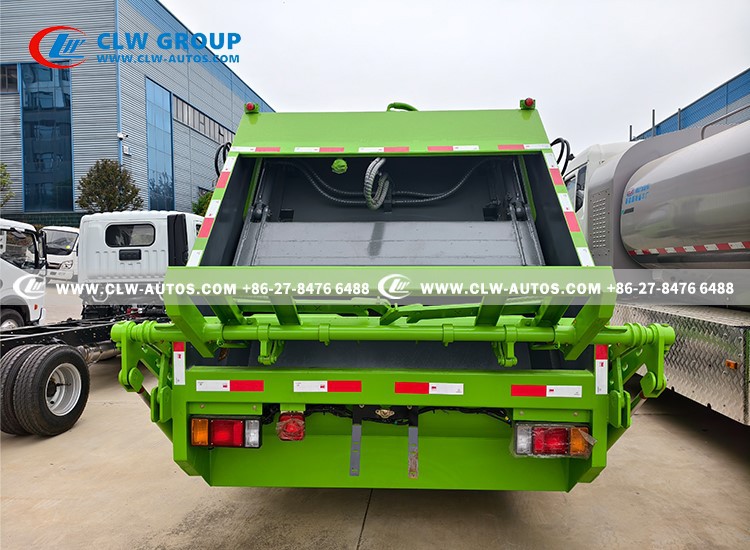

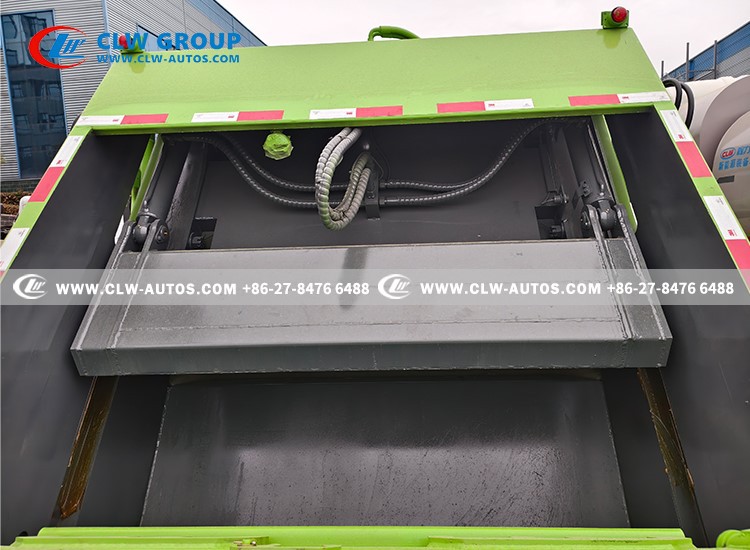

| Compactor Assembly | Heavy-duty slider and arc-shaped scraper blade mechanism driven by double-acting hydraulic cylinders |
| Compression Ratio | 1:2.5 to 1:3 volume reduction |
| Compacted Density | 600 – 800 kg/m³ (Depending on waste categories) |
| Single Compaction Cycle Time | ≤ 25 seconds (Complete cycle of "Scraper Open → Slider Down → Scraper Close → Slider Up") |
| Discharging Method | High-pressure internal ejector plate (push-plate) with multi-stage telescopic cylinder, achieving complete residue-free waste unloading |
| 3. Hydraulic System | |

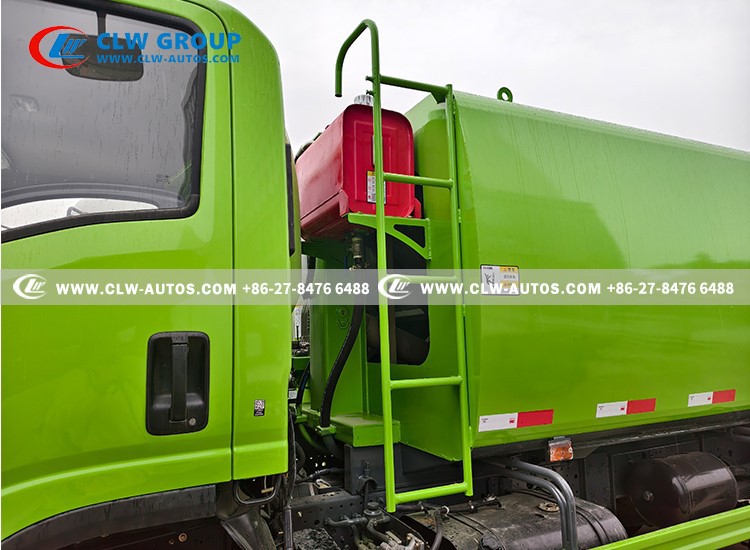

| Hydraulic Oil Tank | High-mounted design (Red) installed behind the cab, maximizing chassis clearance for the 4x4 drivetrain and offering optimized airflow for superior heat dissipation; Equipped with a green service climbing ladder for safe oil level inspection |
| Hydraulic Pump | High-pressure heavy-duty gear pump linked with a synchronized PTO (Power Take-Off) |

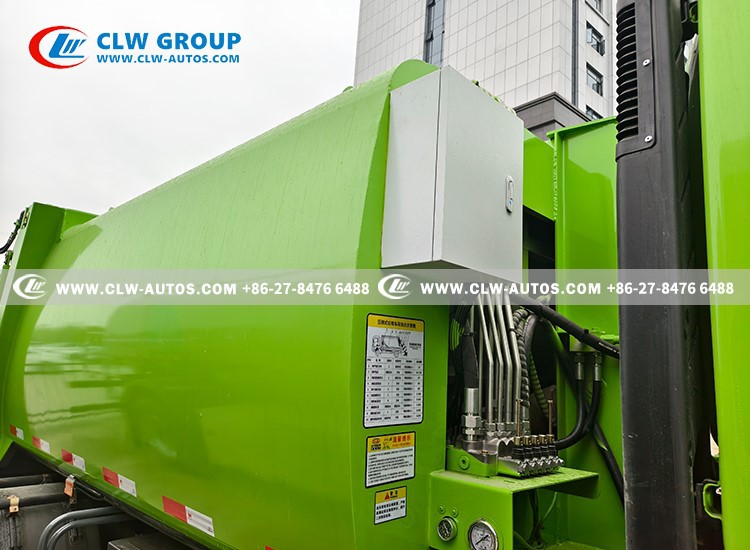

| Control Valve | Multi-way directional control valve block integrated with an overload relief safety valve to automatically discharge pressure and protect lines from bursting |

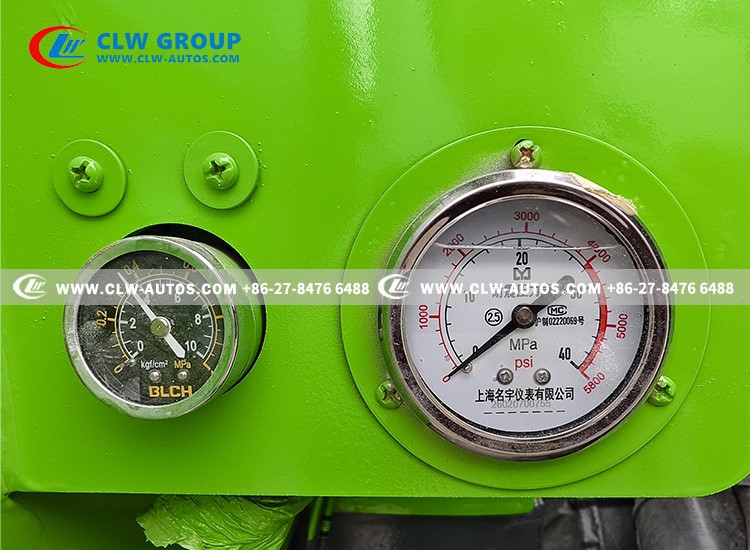

| Pressure Monitoring | Equipped with premium fluid-filled shockproof monitoring gauges (dual system for pneumatic and hydraulic loop tracking) |
| System Rated Pressure | 16 – 20 MPa |
| 4. PLC Control Network | |
| Control Center | Weatherproof main PLC electronic control logic box with integrated relays and fuses |

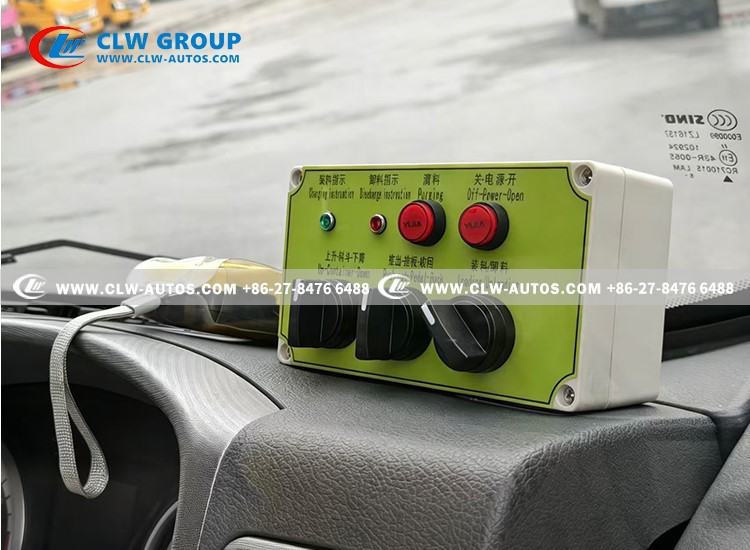

| In-Cab Front Operation Box | Driver-side push-buttons for automated tailgate lifting and internal push-plate waste discharging |

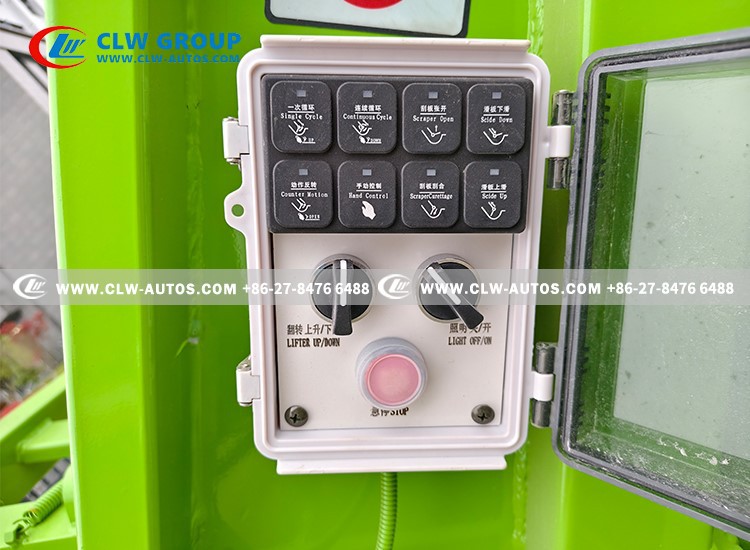

| Tailgate PLC Rear Panel | Dustproof ground-worker station for automatic single-cycle, continuous compaction, and manual micro-adjustment |

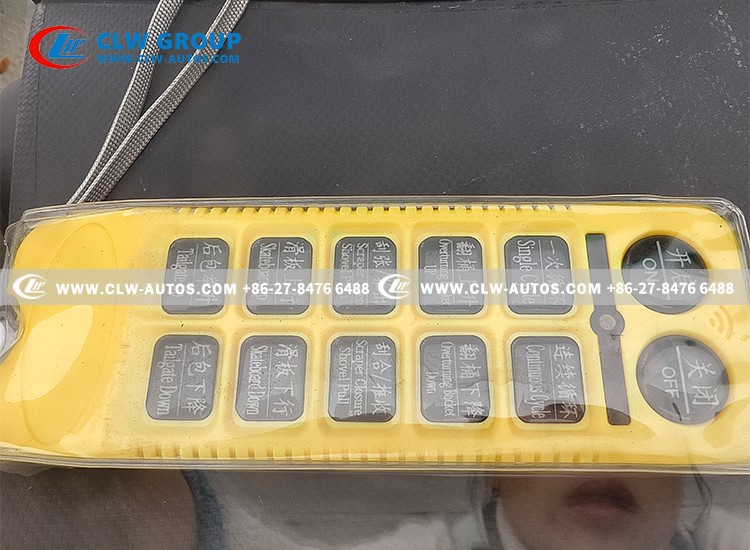

| Wireless Remote Handset | Ergonomic mobile controller allowing operators to safely maneuver all mechanisms within a 30-50m range, away from odors and moving machinery |
| Emergency Interventions | Highly visible, heavy-duty red Emergency Stop buttons installed on the cab box, tailgate panel, and remote handset to instantly kill all hydraulic activities |
| 5. Eco-Protection & Anti-Pollution | |
| Dual Leachate Collection | Fully sealed joints between the body and tailgate using acid-resistant rubber strips; Equipped with two interconnected large-capacity Recovery Water Tanks (Sewage Tanks) at the bottom of the hopper and mid-chassis to capture 100% of leachate during compression and transit |

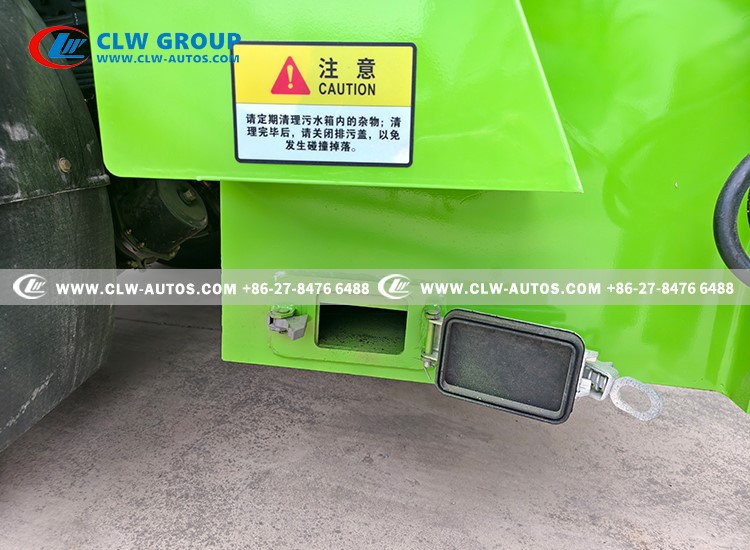

| Tailgate Flushing & Maintenance | Equipped with a dedicated Sewage Tank Cleanout Hatch secured with heavy-duty locking clamps for rapid debris flushing and silt evacuation |
| 6. Waste Loading Customization | |
| Standard Lifting Mechanism | Highly customizable rear lifting interface compatible with: |
| Compatible Bin Types | 240L / 660L / 1100L Standard international plastic/steel trash bins |
| Compatible Hopper Types | Ground tipping hopper for manual/tricycle loose waste dumping |
| Compatible Loader Mechanism | Skip loader arm mechanism |
Products Details
Packaging & shipping
There are various modes of transportation for you to choose from!
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
