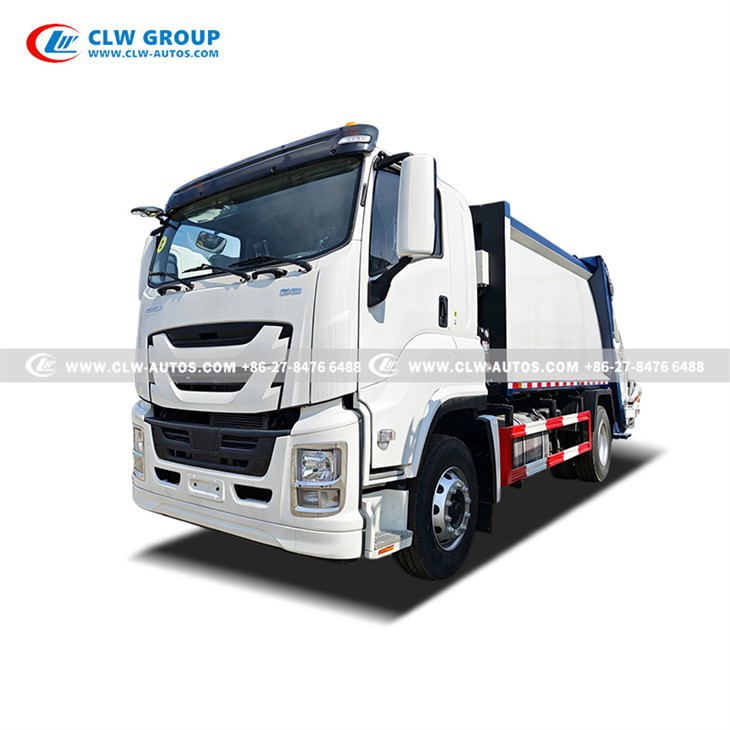

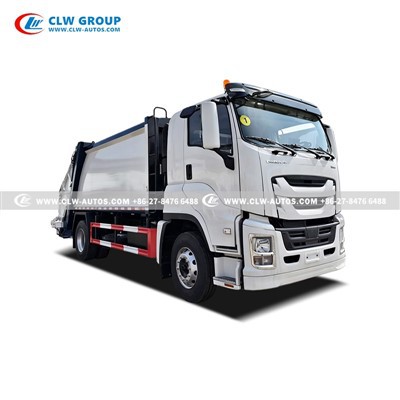

ISUZU FTR 12CBM Compressed Garbage Truck
Drive Type: 4X2
Wheelbase: 4500mm
Engine Power: 205hp
With 12CBM Garbage Bin
With more roof lamp
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu ftr 12cbm compressed garbage truck in China. If you're going to buy high quality isuzu ftr 12cbm compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU 4X2 FTR 12CBM Compressed Garbage Truck With More Roof Lamp
Products Description
ISUZU FTR 12CBM Compactor Garbage Truck
The Isuzu FTR chassis features a 4,500 mm wheelbase and is equipped with a 205-horsepower engine, powering a 12-cubic-meter compactor garbage truck. Features: The chassis is reliable, offering strong load-bearing capacity and durability; the engine is fuel-efficient, with 205 horsepower sufficient for daily waste collection; the design is compact and agile, with a long wheelbase that balances maneuverability and cargo volume; the compression system is highly efficient, with a 12-cubic-meter body and compression mechanism that increases loading capacity; and the vehicle features excellent sealing to minimize secondary pollution during transport. It is suitable for narrow roads in towns, villages, and residential communities, providing integrated waste collection and compression.
Products Description
Products Parameters
|
Specification of Truck Chassis |
||
|
Chassis Model |
QL118 |
|
|
Driving Model |
4 X 2 |
|
|
Cab |
|
|
|
Wheel Base |
4500 mm |
|
|
Axle Loading (front/rear) |
6300/13000 kg |
|
|
External Dimensions (L x W x H) |
9000×2500×2800 mm |
|
|
Net weight (Kg) |
8875 |
|
|
Approach / Departure angle |
23/12° |
|
|
Max. driving speed |
105 km/h |
|
|
Engine |
Model |
4HK1-TC60 |
|
Type |
ISUZU diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
205Hp |
|
|
Emission standard |
Euro VI |
|
|
Displacement |
5193ml |
|
|
Gearbox |
|
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
295/80R22.5, 6 pieces with 1 spare tire. |
|
|
Fuel box |
200L |
|
|
Garbage Truck Body(12m3) |
||
|
Tanker body material |
Quality high tensile Q235B carbon steel |
|
|
Shape |
rectangular box, arc-shaped rear |
|
|
Thickness |
Side 4mm, Bottom 4mm |
|
|
Garbage Container Size |
12 CBM |
|
|
Filling hopper volume |
1 CBM |
|
|
Sewage box of filling hopper |
180L |
|
|
Working rotation speed |
1400 r/min |
|
|
Idle Speed |
800 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤35 s |
|
|
Loading cycle time |
≤15 s |
|
|
Unloading cycle time |
≤52 s |
|
|
Oil pump displacement |
63 ml/r |
|
|
Hydraulic oil box size |
120 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Others |
With Pneumatic cover to avoid waste flying away during driving |
|
|
Optional parts |
Garbage Compactor whole body will be Electrophoresis treated for long time painting With remote control function |
|
Products Photos
Overall Core Advantages and Applicable Scenarios
- Chassis + Body Golden Combination: The reliability of the Isuzu chassis combined with the mature modification craftsmanship of Chengli's body offers both durability and functionality, making it a popular choice in overseas sanitation markets.
- High Cost-Effectiveness: Compared to imported complete vehicles, domestically modified compression garbage trucks offer more competitive pricing while meeting the performance and configuration needs of most countries, making them an extremely cost-effective option.
- Strong Customization Capability: Adjustable based on customer requirements, including container volume (e.g., 8–16 cubic meters), compression ratio, loading method (bin or hopper loading), cab configuration, emission standards, etc., to suit different regional use cases.

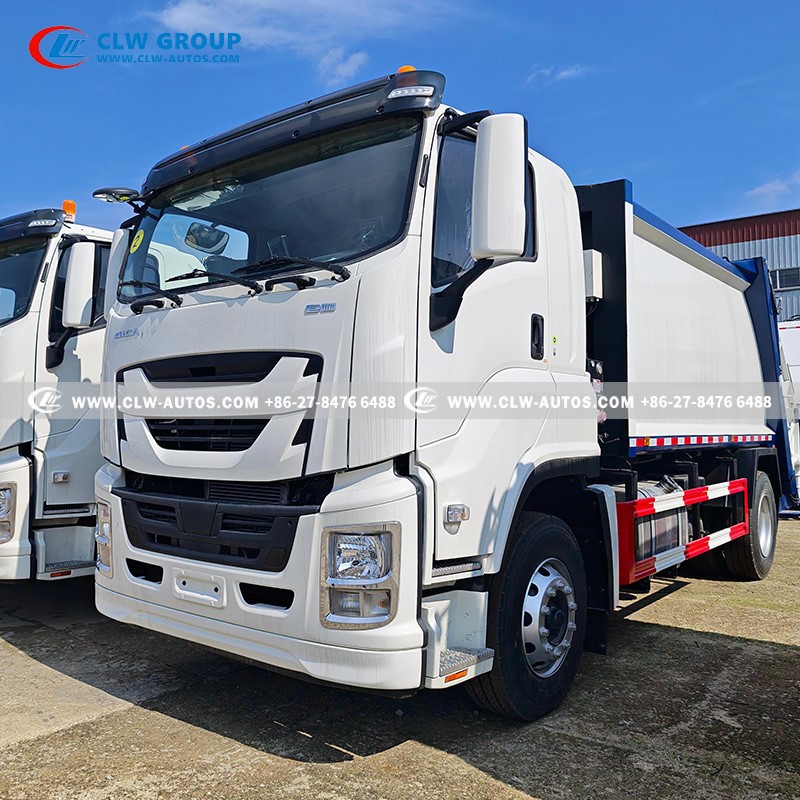

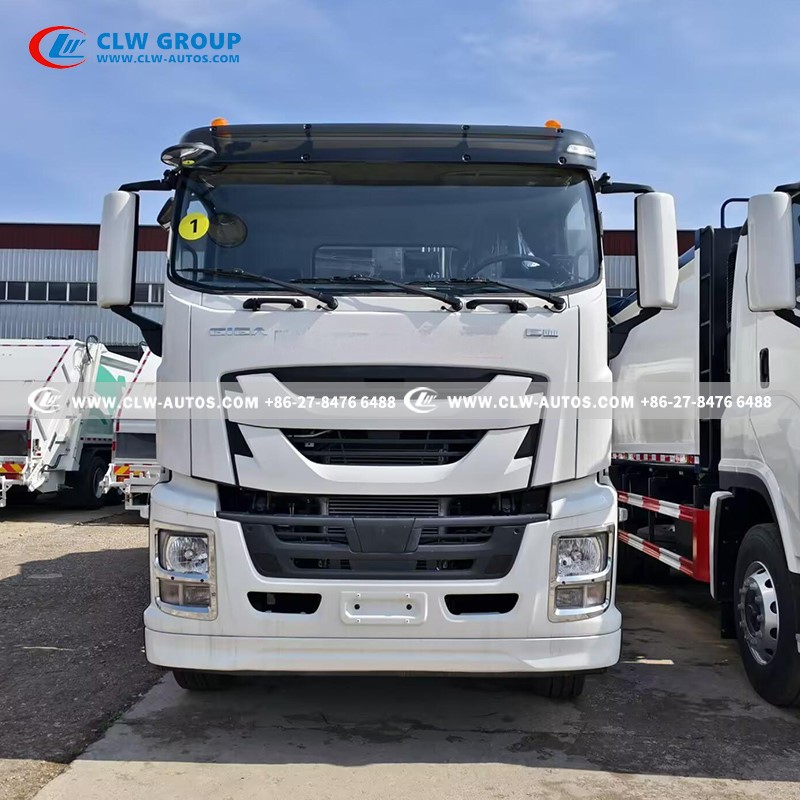

Cab and Exterior -- Body Paint and Safety Design:
- The main body is coated with engineering-grade white paint, which is corrosion-resistant, UV-resistant, and not prone to fading during long-term outdoor operation.
- Red and white reflective strips are added to the lower sides of the vehicle body to improve road visibility during nighttime operations, reduce traffic accident risks, and comply with road safety regulations in most countries.

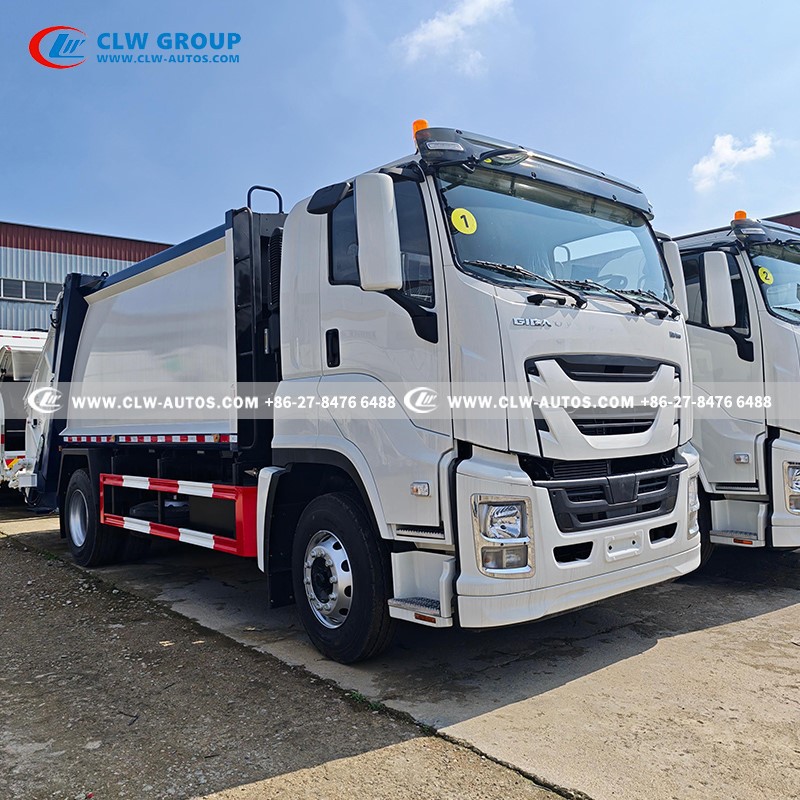

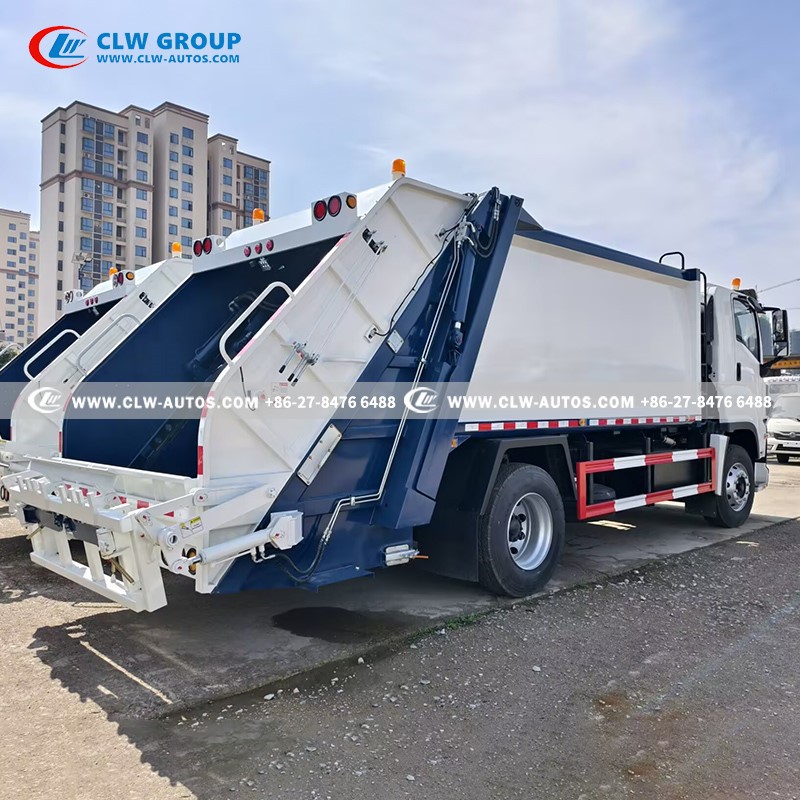

- Side Structure of the Vehicle Body
- The visible part is the sealed waste container of the compression garbage truck, welded from high-strength steel plates with anti-rust and anti-corrosion treatment to prevent corrosion from waste leachate and extend the service life.
- The side of the container is equipped with maintenance access points and hydraulic pipeline interfaces for convenient future maintenance.

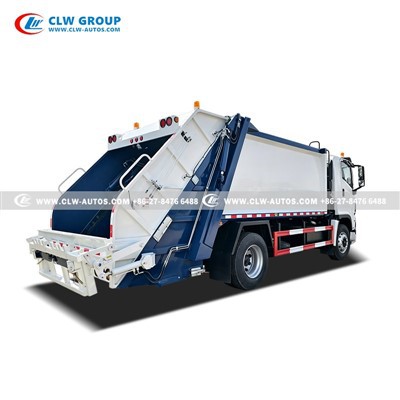

Core Mechanism Components
- Compactor Assembly (Blue + White Structure): The blue and white parts at the rear of the vehicle are the waste receiving and compressing unit, consisting of three core components: a scraper, a slide plate, and a push plate.
- Hydraulic Drive System: Powered by high-pressure hydraulic cylinders, this system delivers strong and stable force, serving as the core power source for waste compression.
- Bin Tipping Mechanism: The white mechanical arm at the lower rear of the vehicle can automatically pick up standard waste bins, tip the waste into the compactor assembly, enabling unmanned loading.
Products Details

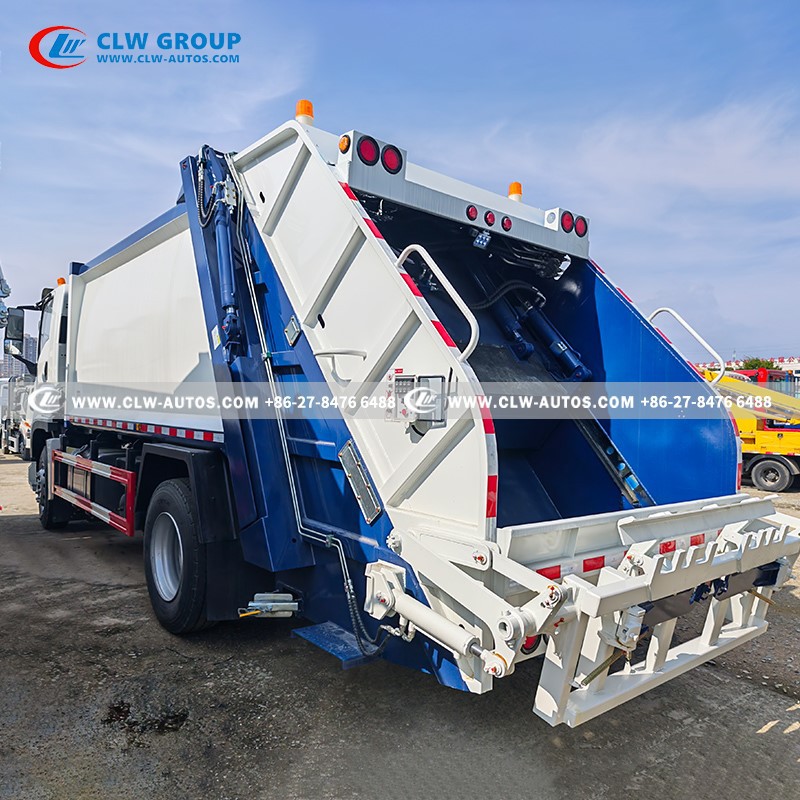

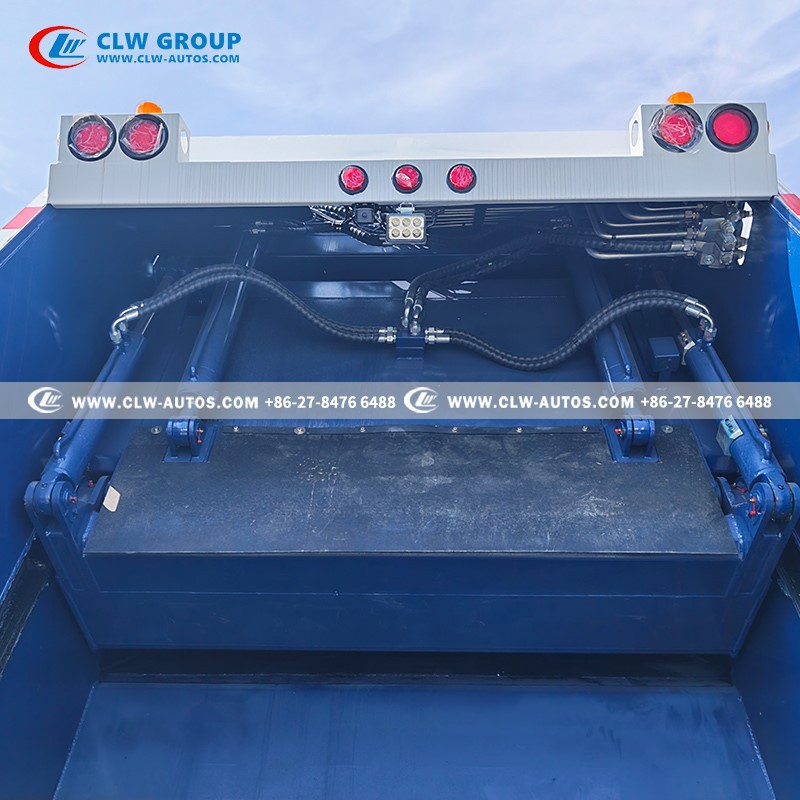

Tail mechanism
Rear Light & Warning Light System
- Configuration & Layout: Two large round tail lights on each side (4 total) and three small round tail lights in the middle – 7 tail lights in total, providing all-round rear visibility to meet night operation and reversing safety requirements, compliant with vehicle lighting regulations in most countries.Orange strobe warning lights mounted at both top ends, activated during operation to alert surrounding vehicles in day/rain/fog conditions, enhancing sanitation work safety.
- Design Features: Recessed-mounted tail lights with high-strength engineering plastic housings, waterproof and dustproof, durable in harsh outdoor environments.
- Hydraulic Lines: Multiple high-pressure hydraulic hoses visible, featuring double-wire braided high-pressure hoses with quick-connect couplings – excellent sealing, high pressure resistance, able to withstand compression shocks without leakage or bursting.
- Work Light: Square LED work light in the middle, designed for night/low-light operation – high brightness, long service life, illuminating the compactor interior and bin-lifting mechanism for clear operator visibility, preventing misoperation.

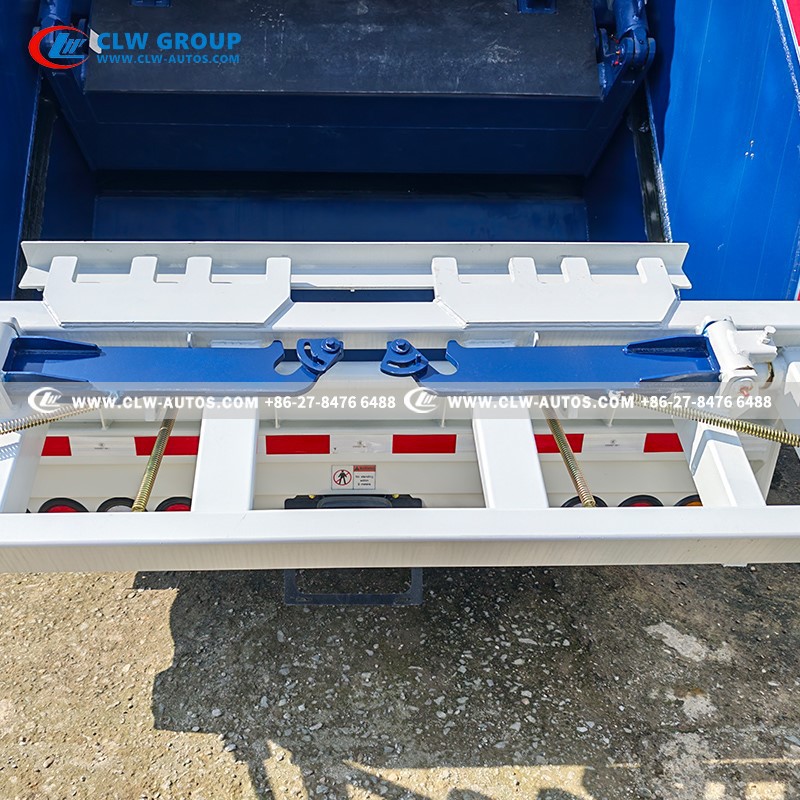

Barrel Hanging Mechanism
- Strong Compatibility: The standard bin gripper adapts to globally mainstream 240L/360L waste bins without any additional modification, allowing customers to directly interface with existing sanitation facilities.
- Anti-Drop Design: The bin gripper features a self-locking mechanism that prevents accidental release during lifting and tipping, avoiding bin falls and waste spillage - safe and reliable.
- Easy Maintenance Structure: Self-lubricating bearings are used at key rotating points, eliminating the need for frequent greasing. The bin gripper is detachable and can be replaced individually after wear, reducing maintenance costs.
- Anti-Scratch Design: The contact points of the bin gripper are rounded to avoid scratching the bin rim, extending the service life of the waste bins and reducing consumable costs for customers.

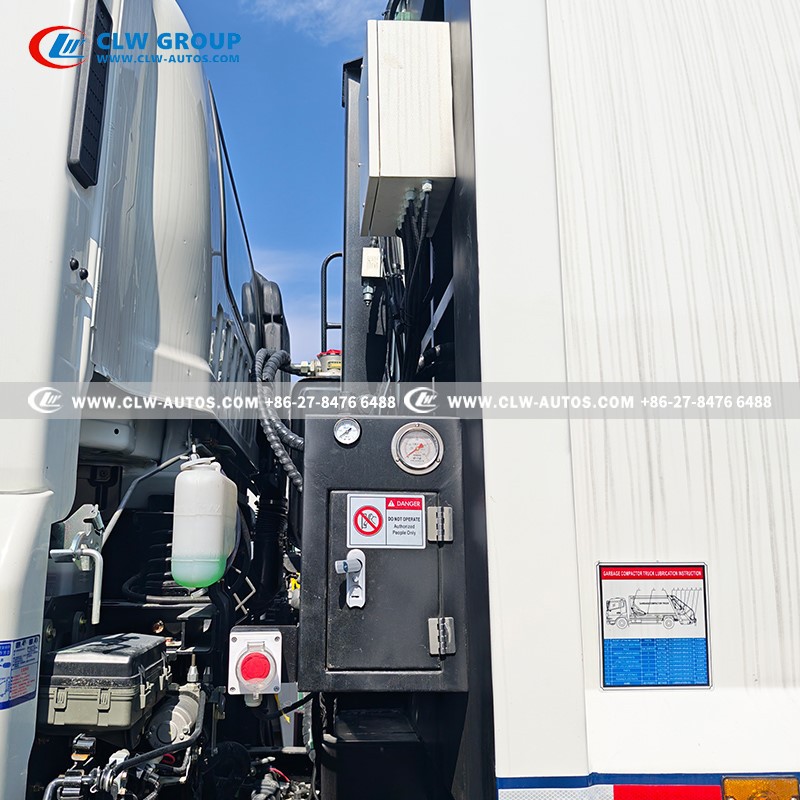

Hydraulic Control System & Operating Unit
Dual Pressure Gauges:
- The large gauge on the right is the main system pressure gauge, used for real-time monitoring of the hydraulic system's working pressure. It serves as the core reference for determining whether the compression mechanism is operating normally or is overloaded.
- The small gauge on the left is the auxiliary pressure gauge, used to monitor return line or control circuit pressure, assisting in troubleshooting hydraulic system faults.

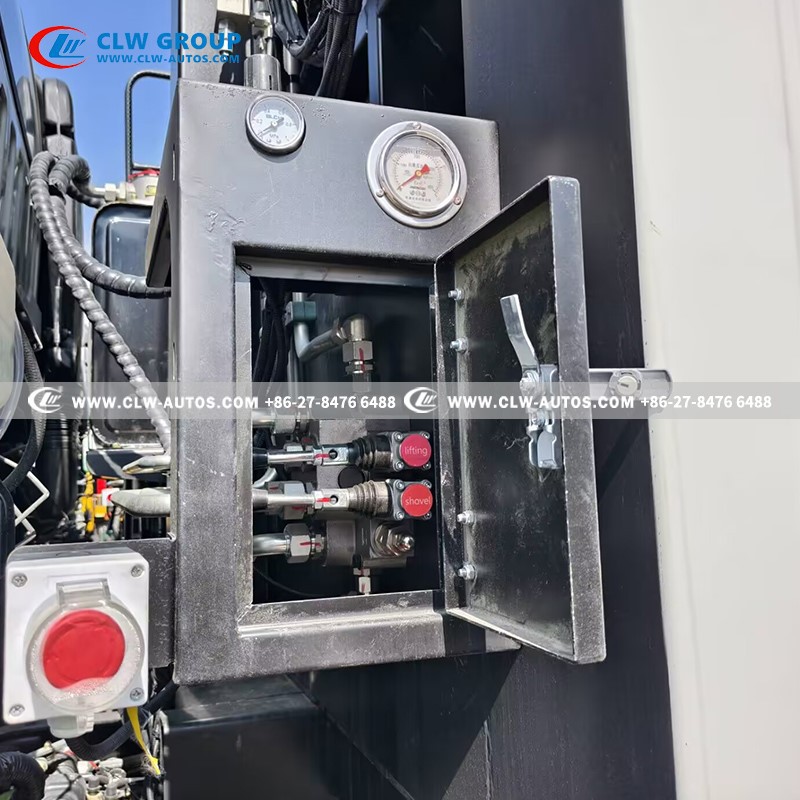

Hydraulic Solenoid Valve Group
- Piping & Interfaces: The solenoid valves are connected to high-pressure hydraulic hoses. The fittings adopt a standard quick-connect design, offering good sealing, high pressure resistance, and convenient maintenance and replacement in the future, reducing after-sales costs for customers.
- Protection Rating: The lockable metal cabinet door effectively prevents dust, water, and accidental contact, protecting the delicate internal hydraulic valve group and wiring, and adapting to harsh outdoor sanitation working environments.
- Maintenance Convenience: Once the cabinet door is opened, the internal solenoid valves and piping are clearly visible. Maintenance personnel can directly observe and operate without needing to disassemble complex components, greatly improving the efficiency of fault diagnosis and repair.

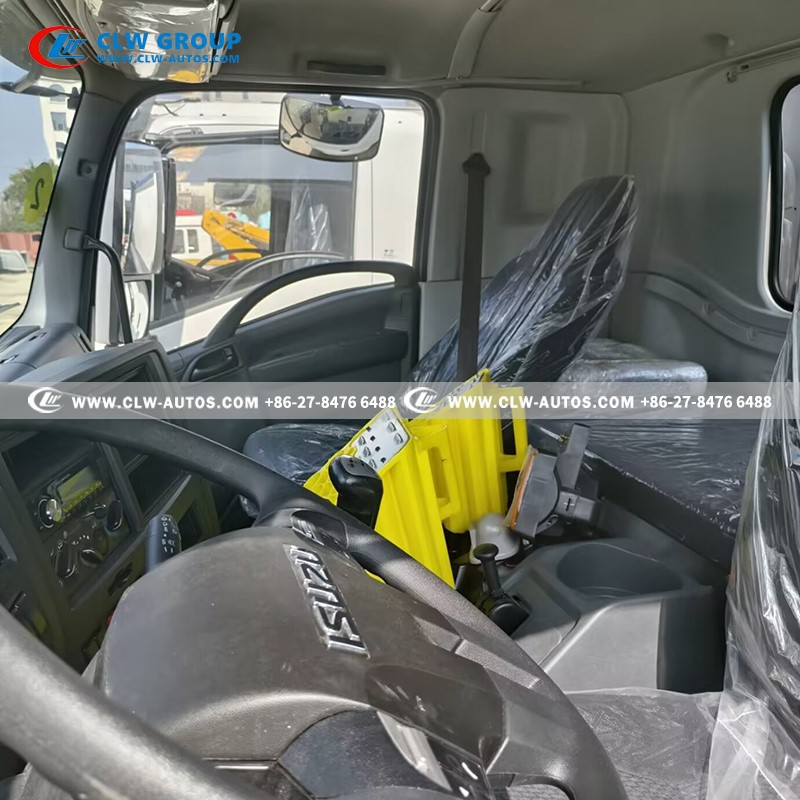

Control Level
- Yellow Control Box: The yellow plastic box inside the cab is one of the main operating units of the compression garbage truck. It allows the driver to control core actions such as bin lifting and compaction directly from the cab, enabling most operations without getting out of the vehicle, thereby improving efficiency and safety.
- Cab Layout Advantages: The layout features "driver seat + co-driver seat + sleeper berth," providing ample space that prevents discomfort even during long-term operation. It also reserves sufficient room for modifications, making it easy to add auxiliary equipment such as cameras and reversing displays in the future.
Cabin
- Three-Position Selector Switch (Up/Stop/Down): Controls the "raise/stop/lower" actions of the bin lifting mechanism, adapting to different bin heights and operating scenarios.
- Red Emergency Stop Button: When pressed, it immediately cuts off power to the hydraulic system, serving as an emergency shutdown device in case of sudden failure or dangerous situations to ensure operational safety.
- Control Box Protection Design: The transparent, waterproof, and dustproof cover effectively protects the internal circuits and buttons, adapting to harsh outdoor working environments such as rain and dust, and extending the service life of the control box.
