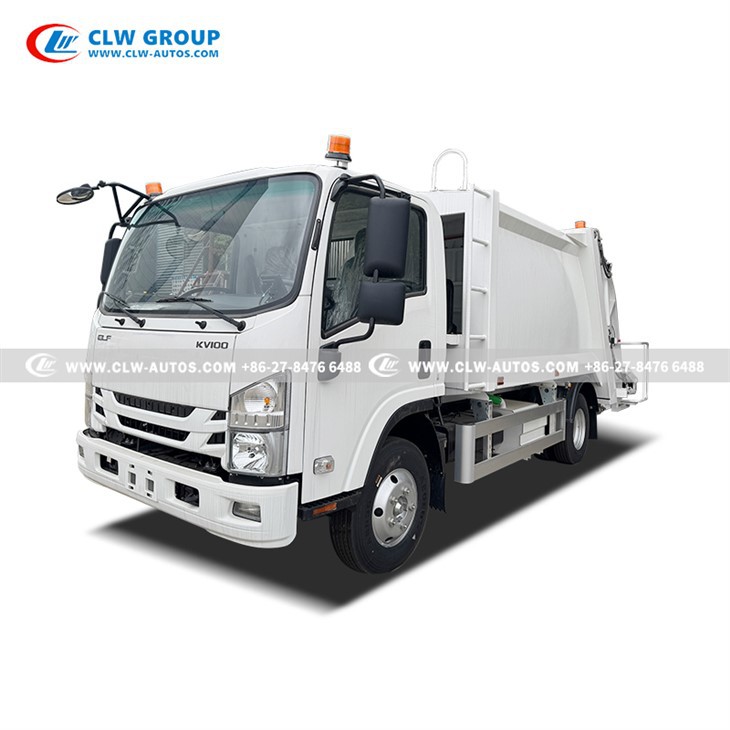

ISUZU KV100 5CBM Compressed Garbage Truck
Drive Type: 4X2
Wheelbase: 3360mm
Engine Power: 120hp
With 5CBM Garbage Bin
With Aluminum Alloy Side Protection
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu kv100 5cbm compressed garbage truck in China. If you're going to buy high quality isuzu kv100 5cbm compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU 4X2 KV100 5CBM Compressed Garbage Truck With Aluminum Alloy Side Protection
Products Description
ISUZU KV100 5CBM Compactor Garbage Truck
The Isuzu KV100 chassis features a 3,360 mm wheelbase and is equipped with a 120-horsepower engine, powering a 5-cubic-meter compactor garbage truck. Features: The chassis is reliable, offering strong load-bearing capacity and durability; the engine is fuel-efficient, with 120 horsepower sufficient for daily waste collection; the design is compact and agile, with a long wheelbase that balances maneuverability and cargo volume; the compression system is highly efficient, with a 5-cubic-meter body and compression mechanism that increases loading capacity; and the vehicle features excellent sealing to minimize secondary pollution during transport. It is suitable for narrow roads in towns, villages, and residential communities, providing integrated waste collection and compression.
Products Description
Products Parameters
|
Specification of Truck Chassis |
||
|
Chassis Model |
QL1080BUKAY |
|
|
Driving Model |
4 X 2 |
|
|
Cab |
|
|
|
Wheel Base |
3360 mm |
|
|
Axle Loading (front/rear) |
2000/4000 kg |
|
|
External Dimensions (L x W x H) |
7000×2320×2750 mm |
|
|
Net weight (Kg) |
4495 |
|
|
Approach / Departure angle |
23/12° |
|
|
Max. driving speed |
105 km/h |
|
|
Engine |
Model |
4HK1CN6LB |
|
Type |
ISUZU diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
120Hp |
|
|
Max output power |
88kW |
|
|
Emission standard |
Euro VI |
|
|
Displacement |
2999ml |
|
|
Max. Torque |
290 N.m |
|
|
Gearbox |
|
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
7.50R16LT 14PR, 6 pieces with 1 spare tire. |
|
|
Fuel box |
100L /steel material |
|
|
Garbage Truck Body(5m3) |
||
|
Tanker body material |
Quality high tensile Q235B carbon steel |
|
|
Shape |
rectangular box, arc-shaped rear |
|
|
Thickness |
Side 4mm, Bottom 4mm |
|
|
Garbage Container Size |
5 CBM |
|
|
Filling hopper volume |
0.5 CBM |
|
|
Sewage box of filling hopper |
120L |
|
|
Working rotation speed |
1100 r/min |
|
|
Idle Speed |
750 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤23 s |
|
|
Loading cycle time |
≤10 s |
|
|
Unloading cycle time |
≤45 s |
|
|
Oil pump displacement |
40 ml/r |
|
|
Hydraulic oil box size |
60 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Others |
With Pneumatic cover to avoid waste flying away during driving |
|
|
Optional parts |
Garbage Compactor whole body will be Electrophoresis treated for long time painting With remote control function |
|

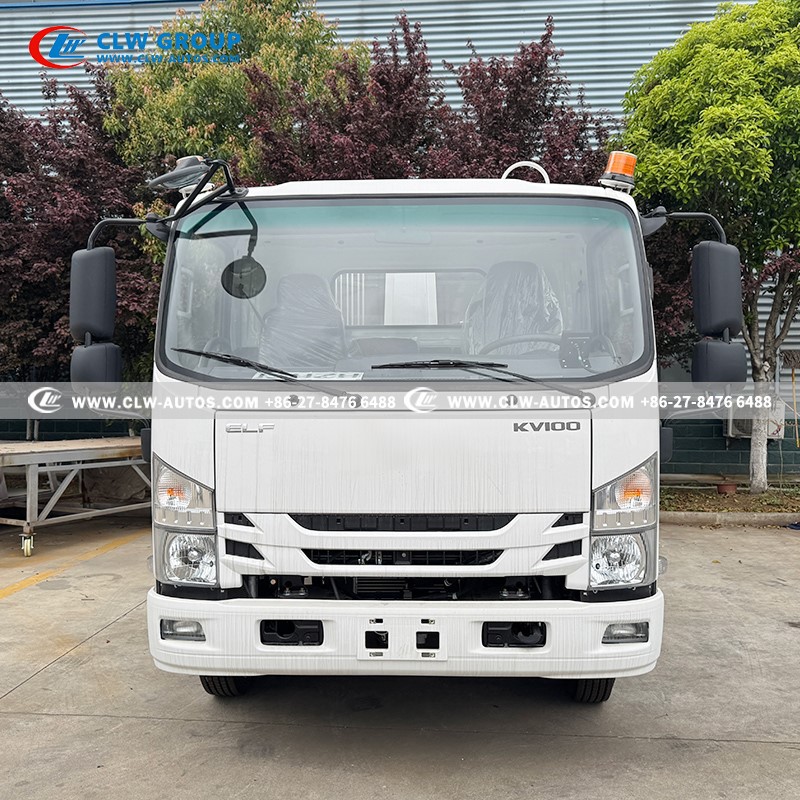

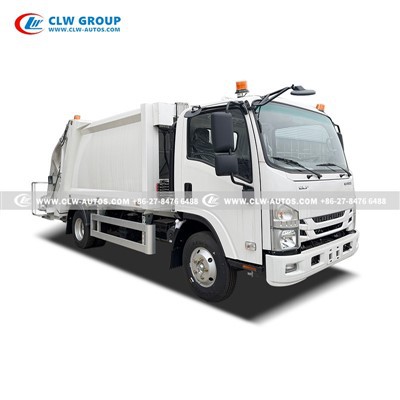

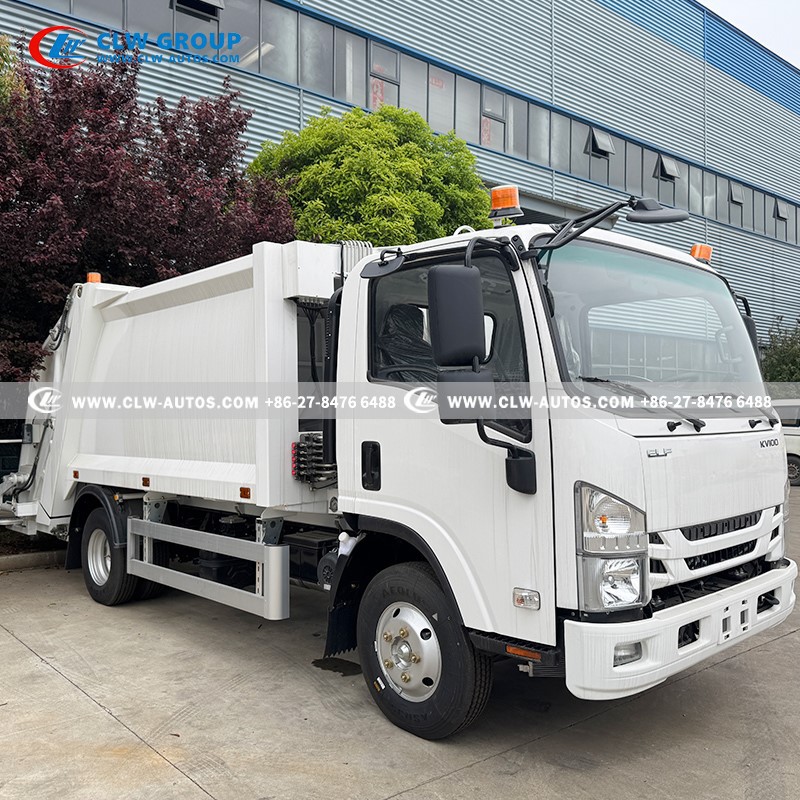

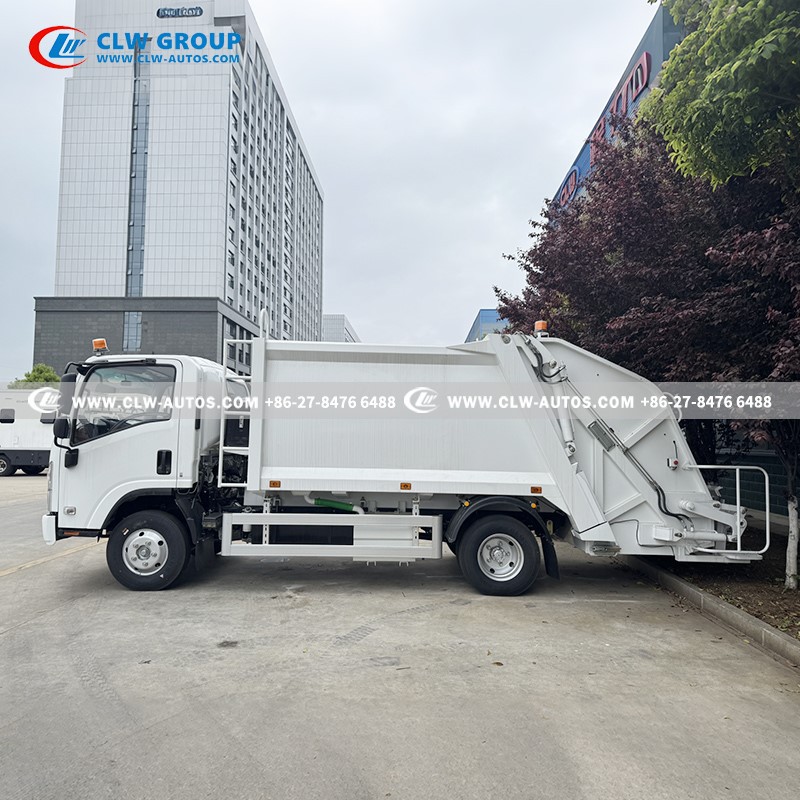

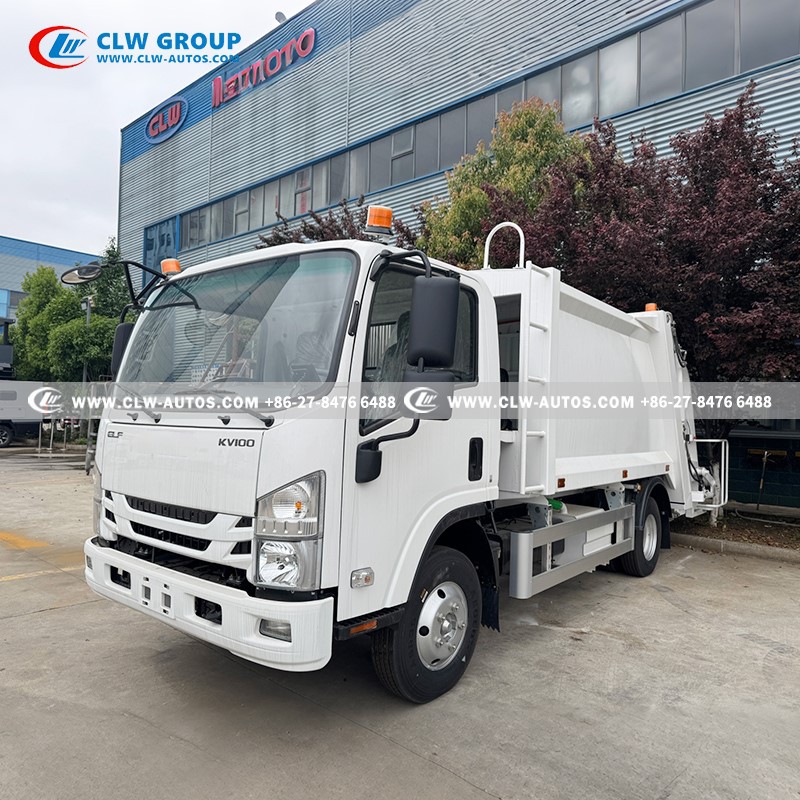

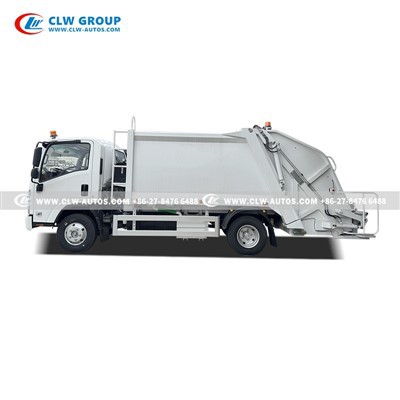

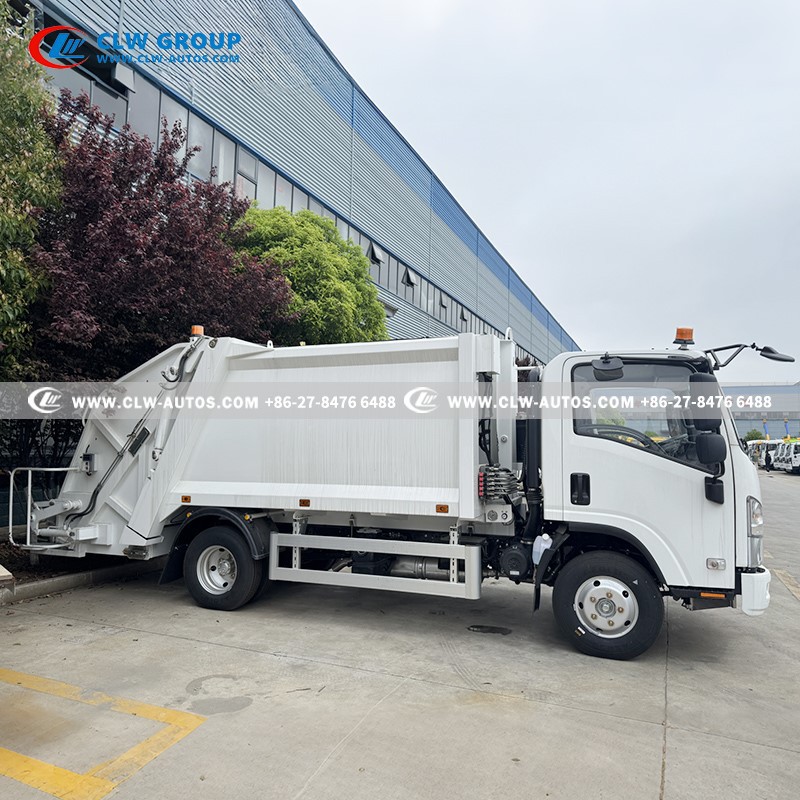

Products Detailed Photos
🚀 Chassis Advantage: Mature and Reliable Global Model
- Proven Isuzu Technology: The chassis is equipped with the Isuzu 4KH1CN6LB engine (120 hp, China VI emission standard), renowned for its durability and low failure rate. Combined with a 5-speed transmission and a robust chassis frame, it can easily handle harsh road conditions and heavy-duty operations in many overseas regions.
- Wheelbase (3360mm) for Superior Stability: Compared to short-wheelbase models, the 3360mm wheelbase provides more room for superstructure modifications and ensures greater stability when cornering, making it especially suitable for stop-and-go, heavy-load garbage collection operations.
🔧 Export Adaptability: Flexible Compliance with Global Regulations
- Flexible Emission Standards: Supports multiple emission standards from China III to China VI, as well as clean natural gas and pure electric versions, seamlessly adapting to environmental and emission requirements in different regions such as Asia, Africa, and Latin America.
- Full Lifecycle Services: Manufacturers typically offer one-stop services covering product manufacturing, domestic transportation, export customs clearance, and licensing. They also have the capability for bulk rapid delivery, supporting large orders ranging from 100 to 2,000 units.
🚛 Modification Highlights: Efficient and Reliable Operational Performance
- Large 5m³ Capacity and High Compression Ratio: The superstructure has an effective volume of 5 cubic meters. With a powerful compression system, it delivers high waste loading capacity and compression ratio, significantly reducing the frequency of trips to landfill sites and effectively lowering operational costs.
- Comprehensive Customization Options: For countries with left-hand traffic, the factory supports customization of right-hand drive vehicles, and the superstructure functions can be optimized according to local habits.
💰 Overall Value: A Cost-Effective Money-Maker
- Economic Advantages: The Isuzu powertrain offers excellent fuel economy, with lower fuel consumption per 100 km compared to similar products, saving users considerable fuel costs over long-term use.
- High Return on Investment: The Isuzu chassis holds its value well, offering good resale value. In addition, the lightweight design of the whole vehicle reduces its tare weight while remaining compliant, allowing for more legal waste load per trip, further improving transport efficiency.
