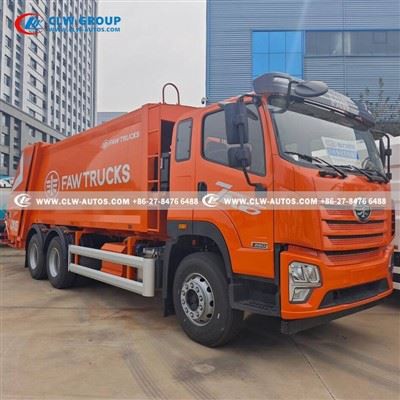

Heavy-duty Compactor Garbage Truck 20CBM
Rear-Loading Compactor Garbage Truck
Powerful 260HP Engine
Winch-equipped design
high-capacity
FAW JK6
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of heavy-duty compactor garbage truck 20cbm in China. If you're going to buy high quality heavy-duty compactor garbage truck 20cbm, welcome to get more information from our factory. For price consultation, contact us.
Products Description

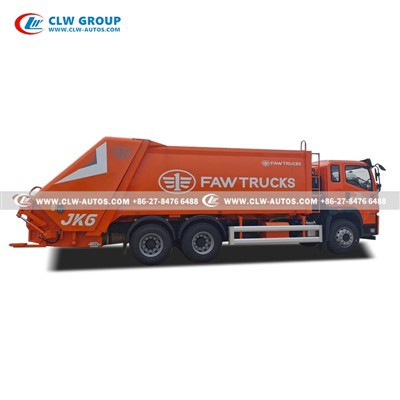

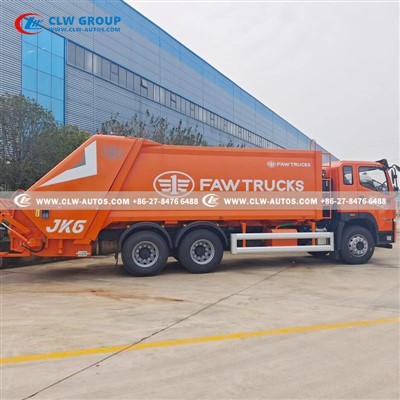

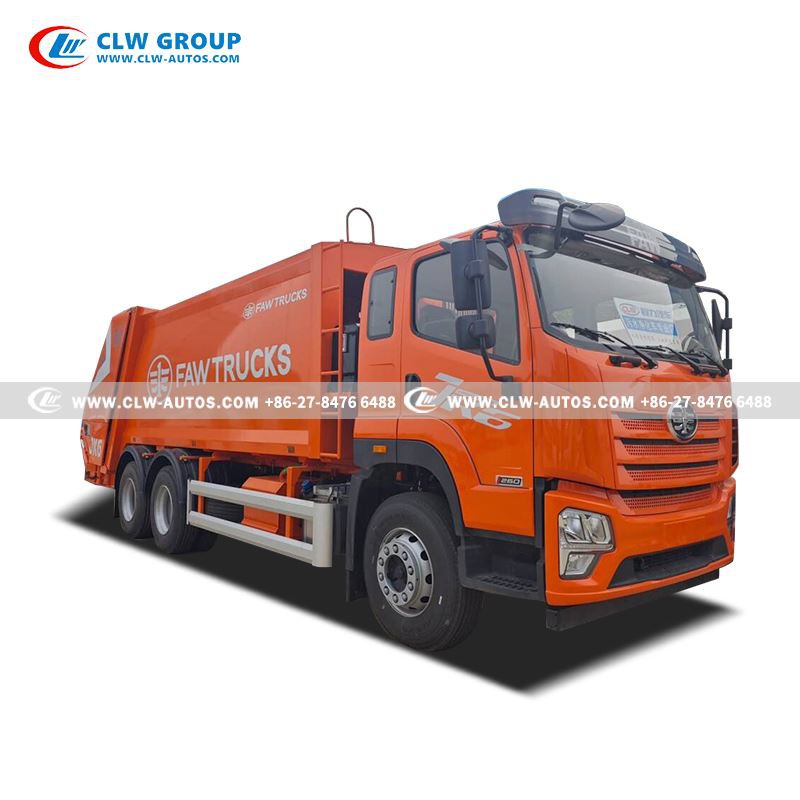

The FAW JK6 20CBM compactor garbage truck features a 260HP engine, high-efficiency rear-loading compaction system, and integrated winch for handling heavy waste. Built on a durable JK6 chassis, it is designed for high-volume municipal waste collection and reliable daily operation.
Key Features
Powerful 260HP Engine
Delivers strong and stable performance for continuous urban waste collection operations.
Large 20 CBM Compaction Capacity
High-volume compactor body increases transport efficiency and reduces collection frequency.

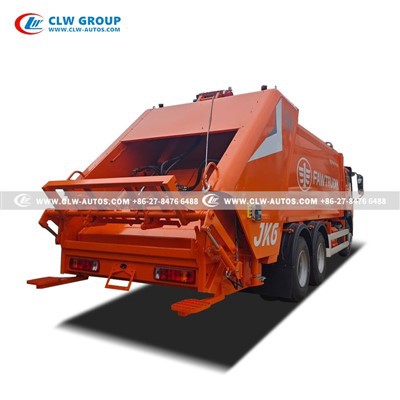

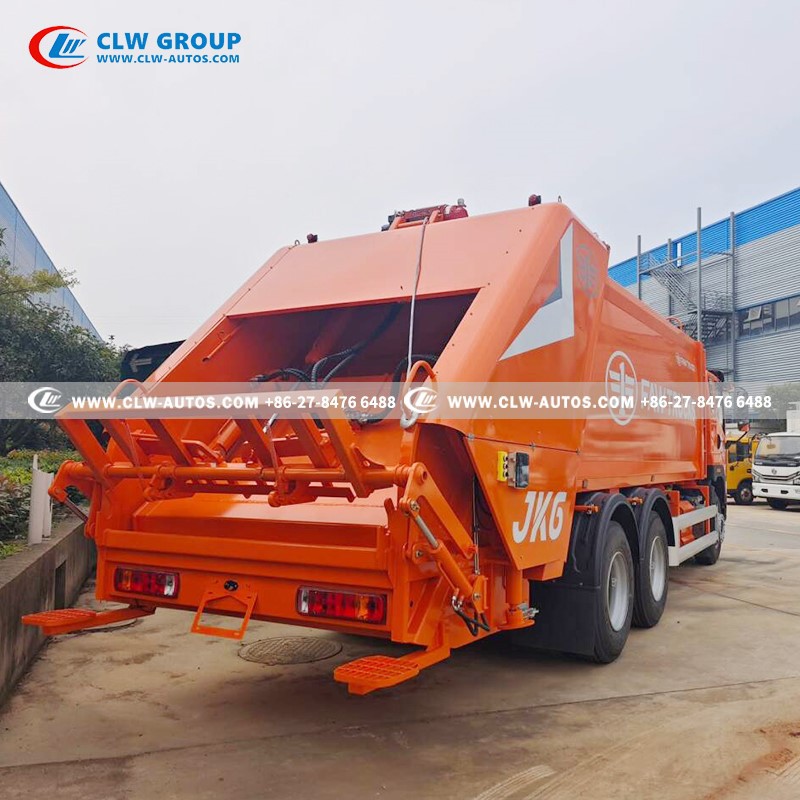

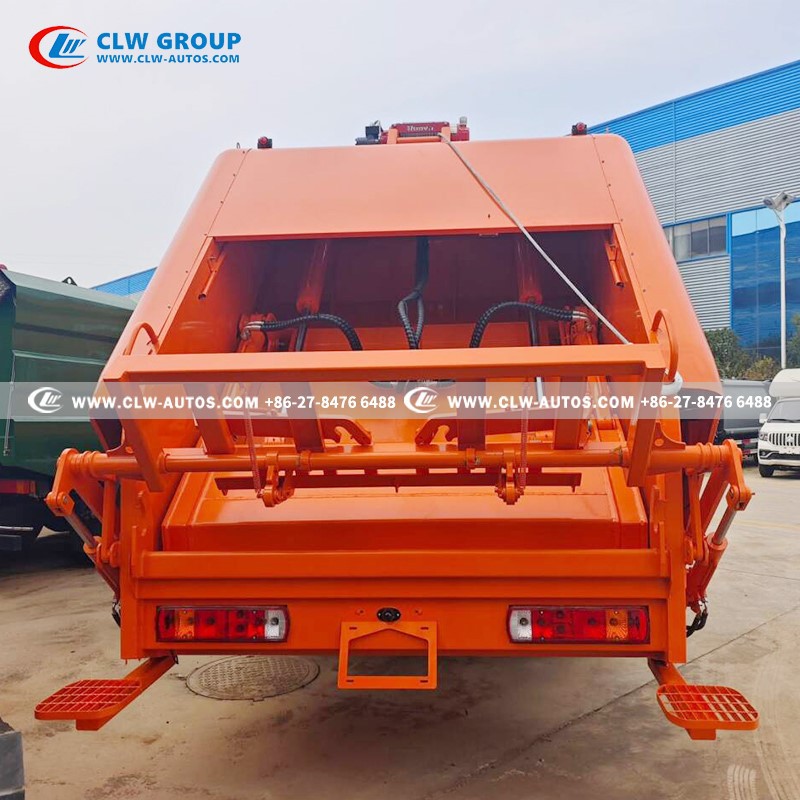

Rear-Loading Compaction System
Ensures effective waste compression and smooth, reliable loading.

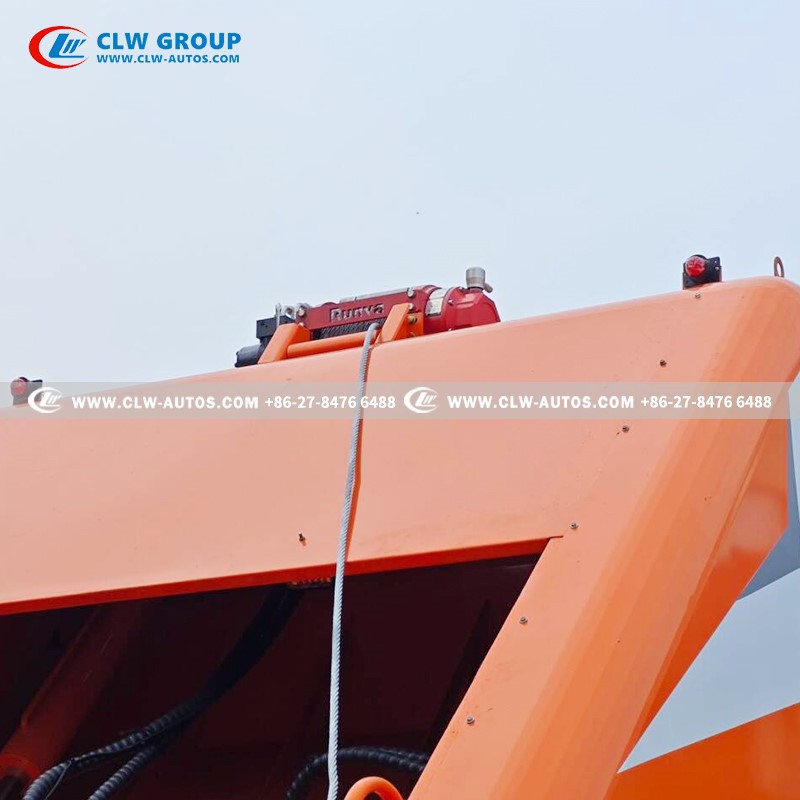

Integrated Winch System
Allows easy handling of heavy or bulky waste containers, improving operational flexibility.
Durable FAW JK6 Chassis
Engineered for heavy-duty sanitation work with excellent load-bearing capacity and long service life.
Robust Steel Compactor Body
Designed for high structural strength and resistance to wear in daily municipal use.

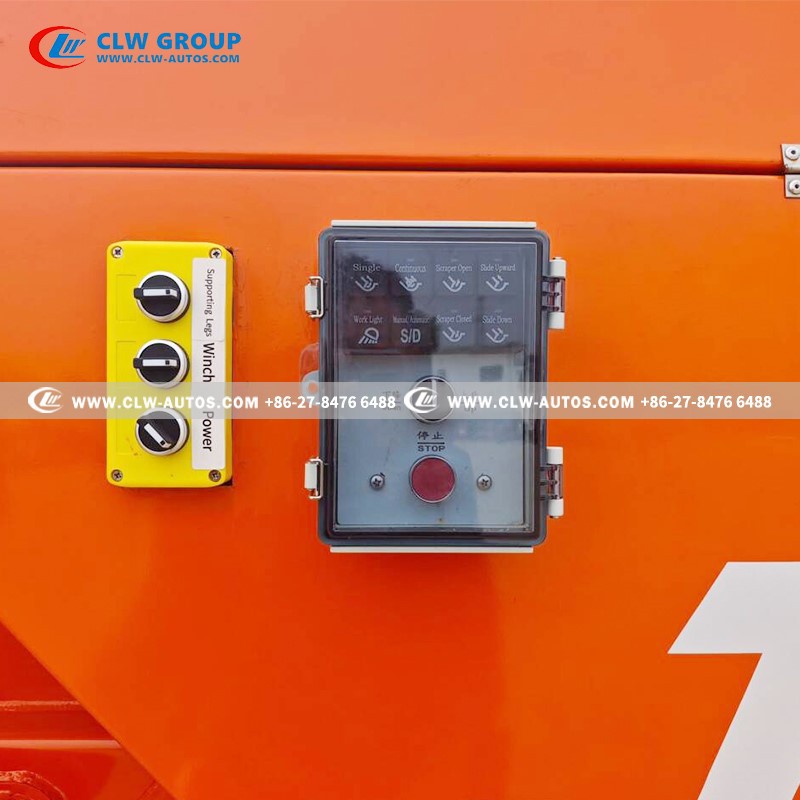

Operator-Friendly Design
Rear working platform and controls enhance safety and ease of operation.
Adaptable for Different Markets
Optional configurations available to meet local regulations and customer requirements.
Product Parameters
|
Truck Chassis |
||
|
Condition |
New condition/Left hand drive/6x4 |
|
|
Chassis |
Brand |
Faw |
|
|
Gross Vehicle Weight (kg) |
25000 |
|
|
Curb weight(kg) |
8530 |
|
|
Loading Weight (kg) |
16470 |
|
|
Wheelbase(mm) |
4350 +1350mm |
|
|
Dimensions(mm) |
11000X2500X3420 mm |
|
|
Front/Rear Axle loading(kg) |
6700kg/11500kg |
|
|
Wheel track (front/rear) (mm) |
1745/1630mm |
|
|
Front/Rear overhang(mm) |
1412/2516mm |
|
|
Approach/Departure angle(°) |
21/13 |
|
|
Clutch |
Ф430 |
|
|
Rear Axle Speed Ratio |
5.143 |
|
|
Max.driving speed |
102 km/h |
|
|
Frame |
270*80*(7+5) |
|
Tire |
12R22.5 |
|
|
Fuel box |
400L aluminum alloy fuel tank |
|
|
Transmission |
Manual type, 8Forwards and 2 reverse |
|
|
Cab |
Features include: middle seat and air spring seats; cruise control; power windows; multi-function steering wheel; central locking; and ABS. |
|
|
Engine |
Brand |
XiChai |
|
|
Model |
CA6DLD-26E5 |
|
|
Fuel type |
Diesel |
|
|
Displacement(ml) |
6.6L |
|
|
Power(kw) |
195kw |
|
|
Horsepower(HP) |
260HP |
|
|
Max. Torque(N.m) |
1050 |
|
|
Cylinder number |
in-line 6-cylinder |
|
|
Emission standard |
Euro 5 |
Superstructure Specification
|
Material |
Carbon steel Q345 |
|
|
Tanker volume |
20 cbm |
|
|
Thickness of Tanker |
5mm side 6mm bottom |
|
|
Filling times |
8-10s |
|
|
Discharge type |
Rear Discharging |
|
|
Time for Discharging |
30-40S |
|
|
Hydraulic pressure |
20Mpa |
|
|
Controlling way |
Manualy and electrical control |
|
|
Optional parts |
With winch |
|
|
orange color chassis |
||
