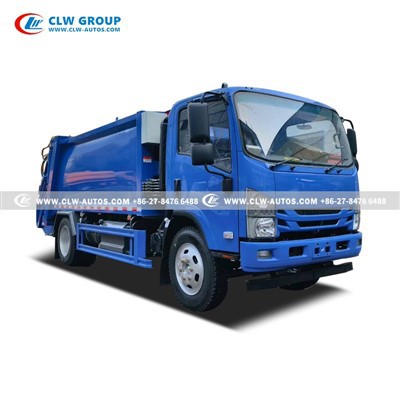

ISUZU 9m3 Compressed Garbage Truck
Drive Type: 4x2
Engine Power:132hp
Garbage Box Capacity:9m³
Garbage Box Thickness: Side 5mm, Bottom 5mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 9m3 compressed garbage truck in China. If you're going to buy high quality isuzu 9m3 compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
ISUZU KV600 ELF 4x2 6 Wheels 9m3 Compacotor Garbage Truck
Products Description
Meet the Isuzu KV600 9-cubic meter compression garbage truck – engineered for durability, efficiency, and peak performance in Southeast Asia's demanding urban and suburban environments. Featuring a robust 132 HP engine and a optimized 3815mm wheelbase, this truck delivers the perfect balance of power, maneuverability, and high waste-load capacity.
Why Choose the Isuzu KV600 Garbage Compactor for Southeast Asia?
✔ Power & Reliability: The proven 132 HP diesel engine ensures strong performance even in high temperatures and on challenging routes, reducing downtime and maintenance costs.
✔ Ideal Size for Urban Roads: With a 3815mm wheelbase and compact design, this truck navigates narrow streets and busy areas with ease, making it ideal for city waste collection.
✔ High-Efficiency Compression: The 9-cubic meter compactor body features advanced compression technology, allowing more waste to be collected per trip-saving fuel, time, and operational costs.
✔ Built for Tropical Climate: Enhanced cooling, corrosion-resistant components, and a durable chassis ensure long-lasting performance in high humidity, rain, and coastal conditions.
✔ Driver-Focused & Safe: Comfortable cabin, excellent visibility, and safety-oriented design help operators work efficiently and safely during long collection shifts.
Perfect for: Municipal waste management, private waste collection companies, and industrial facilities across Thailand, Vietnam, Indonesia, Philippines, Malaysia, and beyond.
Searching for a reliable garbage compactor truck in Southeast Asia? The Isuzu KV600 9m³ model with 3815mm wheelbase and 132 HP is your cost-effective, high-productivity solution for modern waste management.
Contact us today for pricing, specifications, and tailored financing options for your region!

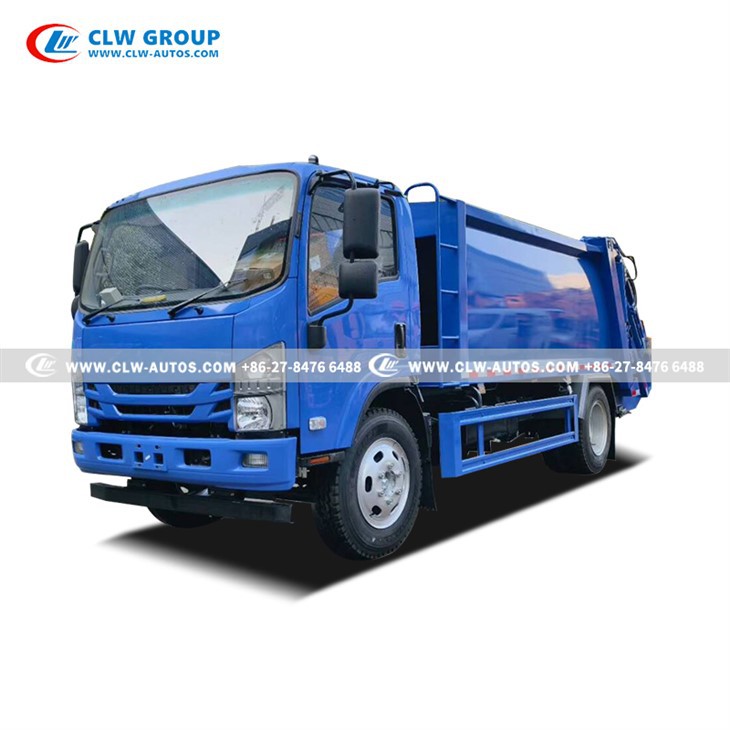

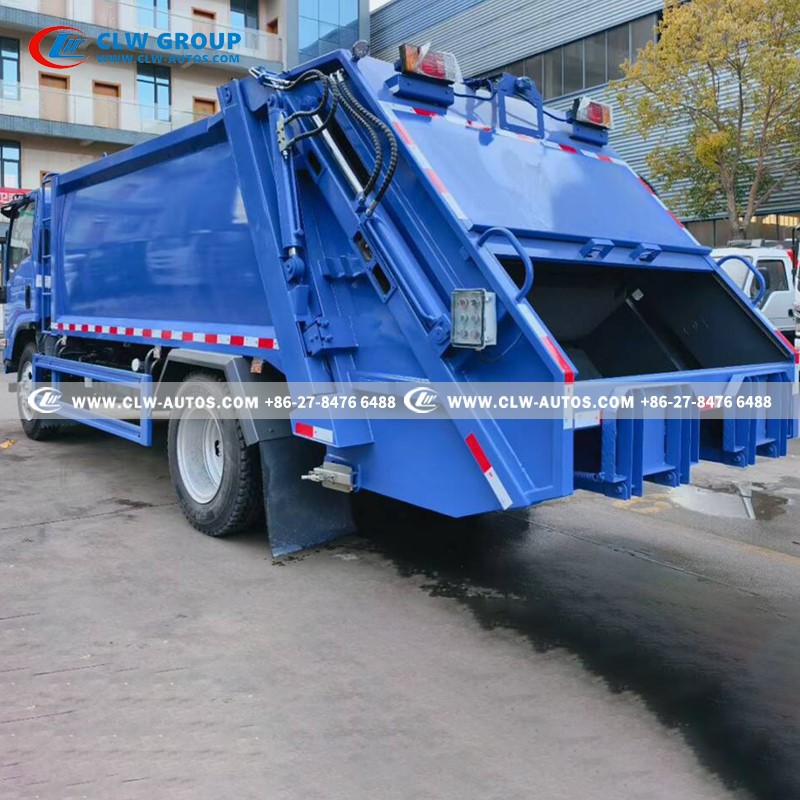

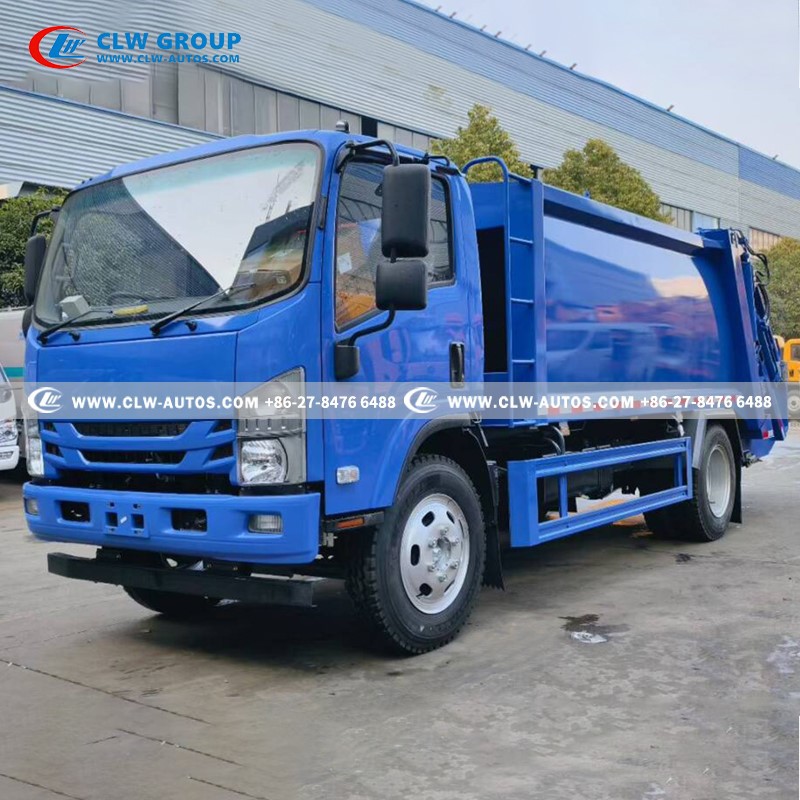

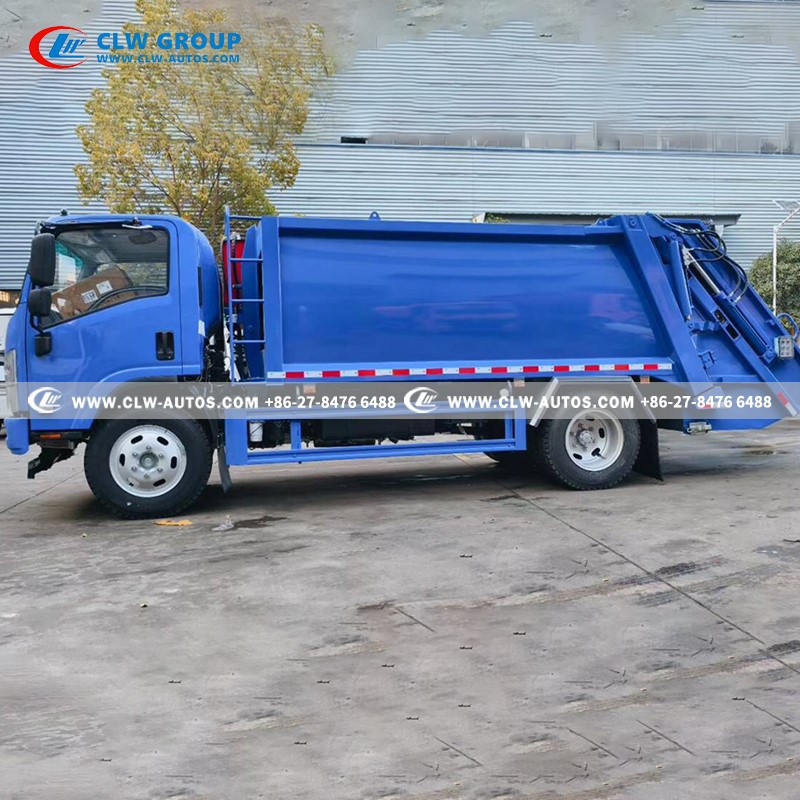

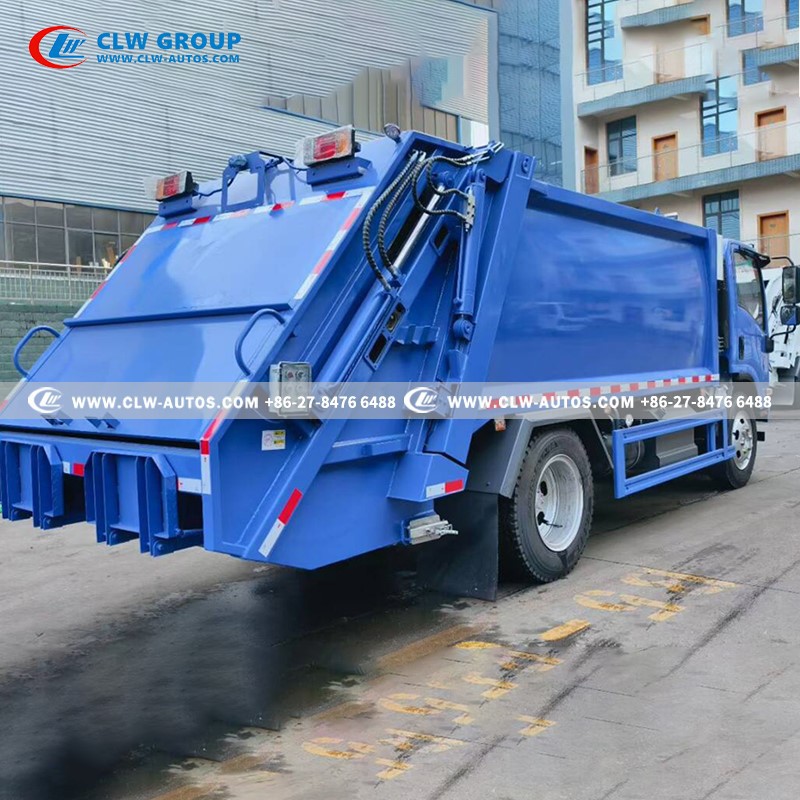

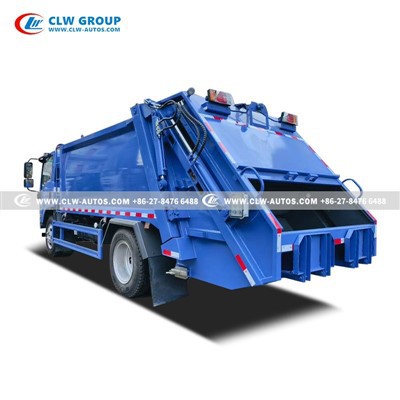

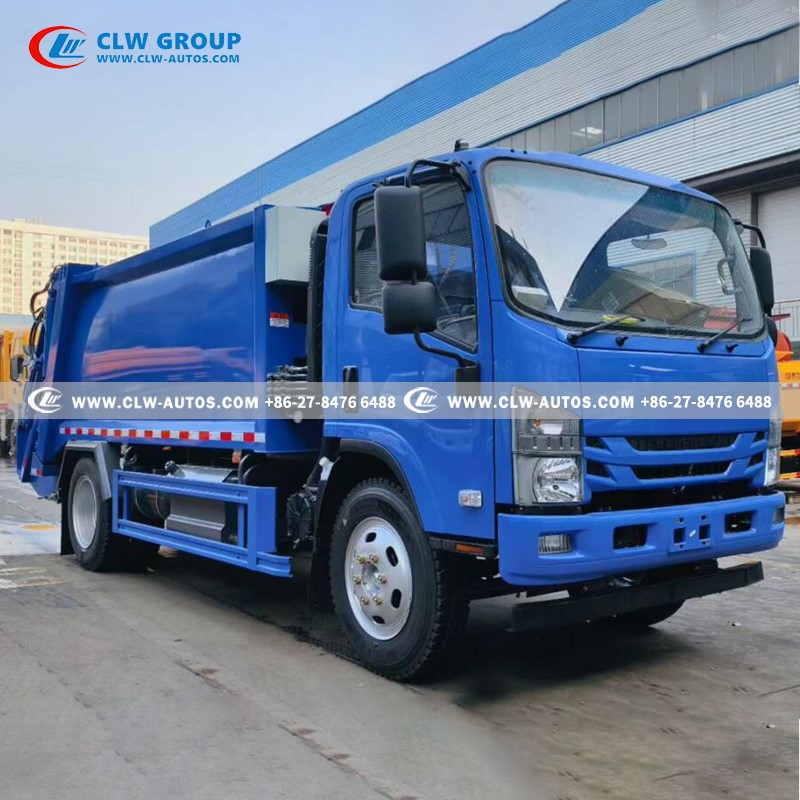

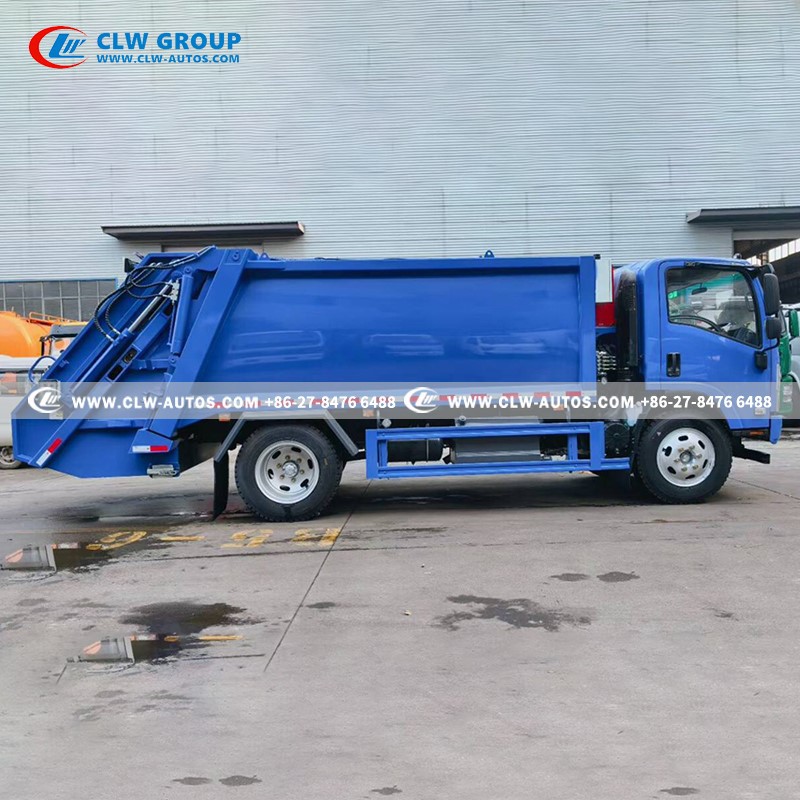

Products Photos
ISUZU Compressed Garbage Truck






Products Parameters
|
ISUZU 9m³ Compressed Garbage Truck |
||
|
Chassis Model |
QL111 |
|
|
Driving Model |
4X2 |
|
|
Cab |
|
|
|
Wheel Base |
3815 mm |
|
|
Axle Loading (front/rear) |
3000 / 5500 kg |
|
|
External Dimensions (L x W x H) |
9000×2550×3280 mm |
|
|
Net weight (Kg) |
5060 |
|
|
Approach / Departure angle |
20/12° |
|
|
Max. driving speed |
105 km/h |
|
|
Engine |
Model |
4KH1CN6LB |
|
Type |
ISUZU diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start. |
|
|
Horse Power |
132Hp |
|
|
Emission standard |
Euro 2 |
|
|
Displacement |
2999 ml |
|
|
Gearbox |
Manual type 6 forwards & 1 reverses |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
7.00R16 |
|
|
6 Pcs with 1 spare tire |
||
|
Fuel box |
120L /steel material |
|
|
Garbage Truck Body(16m3) |
||
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
|
Shape |
rectangular box, arc-shaped rear |
|
|
Thickness |
Side 5mm, Bottom 6mm |
|
|
Garbage Container Size |
9 CBM |
|
|
Filling hopper volume |
0.8 CBM |
|
|
Sewage box of filling hopper |
180L |
|
|
Working rotation speed |
1300 r/min |
|
|
Idle Speed |
750 rpm |
|
|
Compaction ratio |
0.7-0.85T/m³ |
|
|
Compacting cycle time |
≤28 s |
|
|
Loading cycle time |
≤10 s |
|
|
Unloading cycle time |
≤48 s |
|
|
Oil pump displacement |
50 ml/r |
|
|
Hydraulic oil box size |
80 L |
|
|
System pressure |
16 Mpa |
|
|
PTO operation method |
Pneumatic |
|
|
Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
|
|
Others |
With Pneumatic cover to avoid waste flying away during driving |
|
|
Optional parts |
Garbage Compactor whole body will be Electrophoresis treated for long time painting With remote control function |
|
Products Video
Optional Configuration

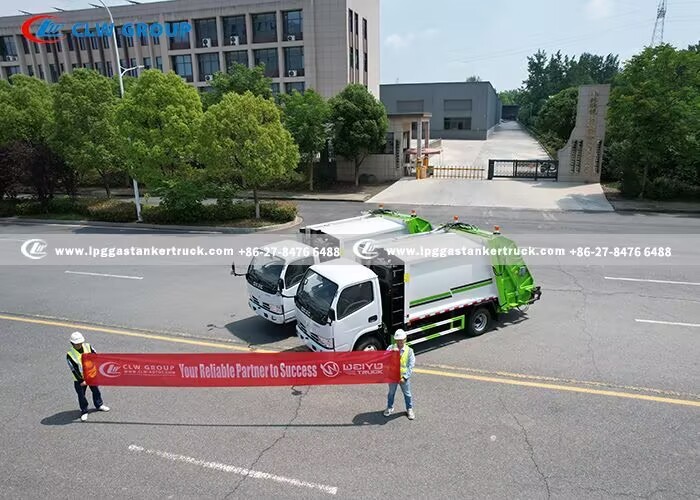

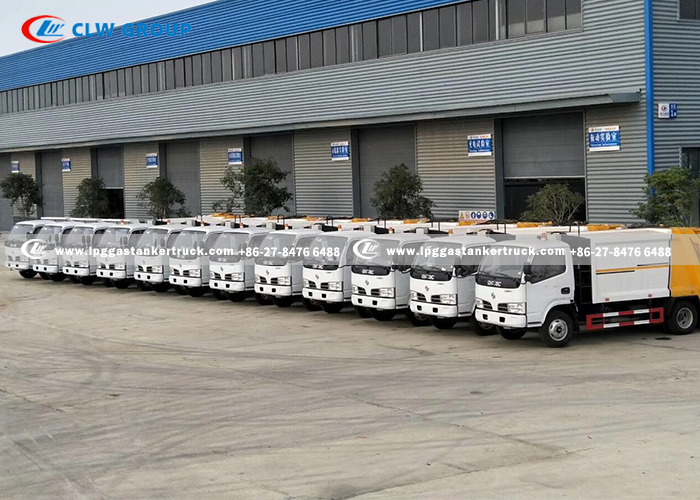

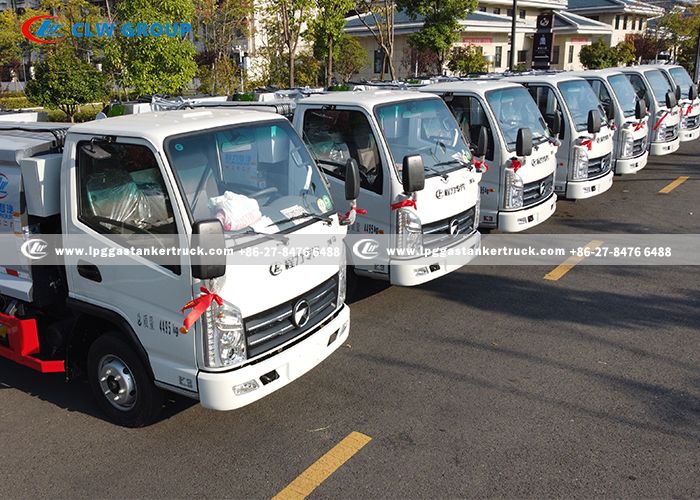

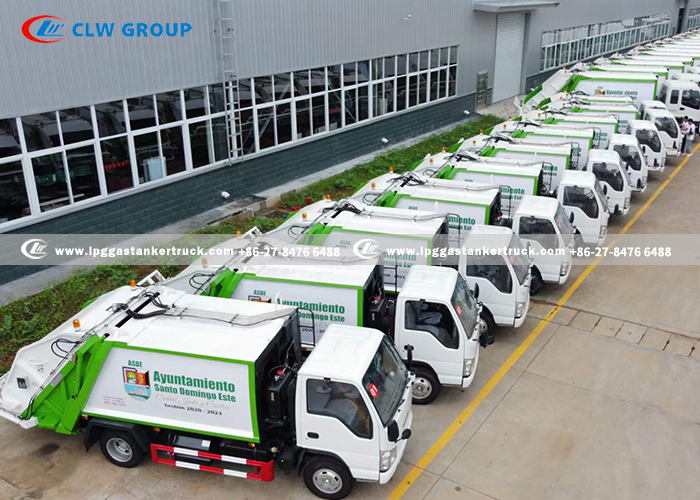

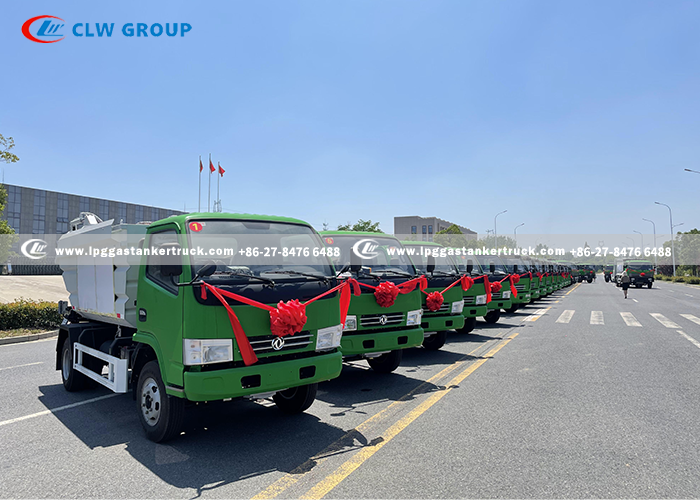

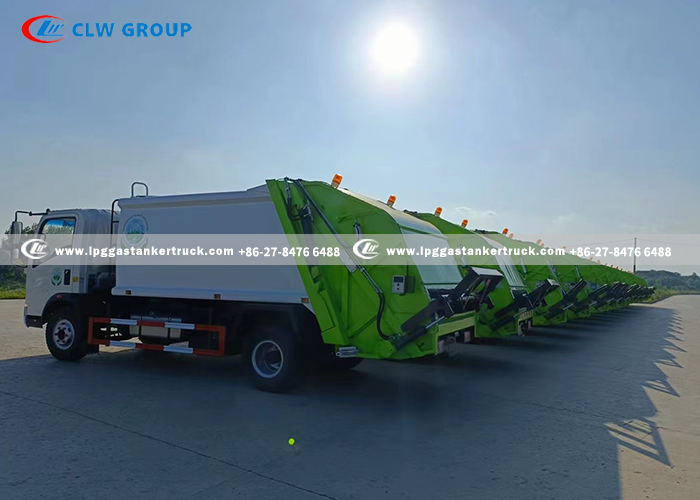

Batch Delivery

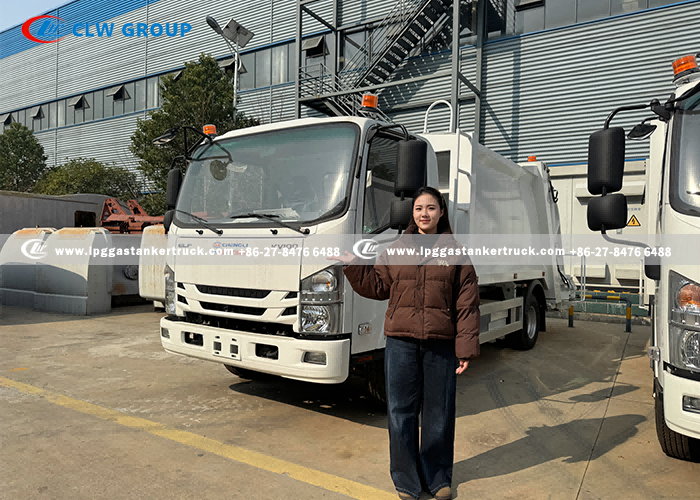

For quick inquiry, please contact Ms. Hedy He:
