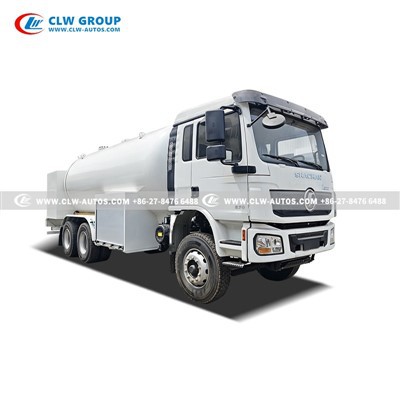

  • 2LPG (Liquefied Petroleum Gas) truck

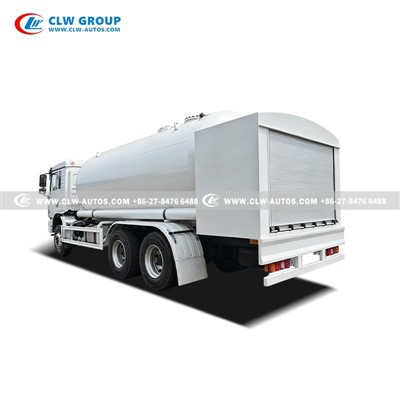

  • 3LPG (Liquefied Petroleum Gas) truck
  • LPG Bobtail Trucks8
  • LPG Bobtail Trucks10
  • LPG Bobtail Trucks11
  • LPG Bobtail Trucks12
  • LPG Bobtail Trucks13

20CBM LPG Cylinder Refilling Truck

Shacman 6x4 LPG Tank Tanker Truck
Tank volume:20m³/20CBM/20,000 Liters
10Tons Cooking Gas
Transport medium: LPG,Propane,Butane
Pumps for filling gas tanker
Weichai engine 270hp
Left hand drive
1pc flow gas dispensers and injection gun
DN50 gas and liquid loading/unloading ports
Euro 2 emission standard

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20cbm lpg cylinder refilling truck in China. If you're going to buy high quality 20cbm lpg cylinder refilling truck, welcome to get more information from our factory. For price consultation, contact us.



LPG Tanker Truck - Delivery and filling gas !


we are not proud that our LPG products is the cheapest,but the safest, most durable and functional.

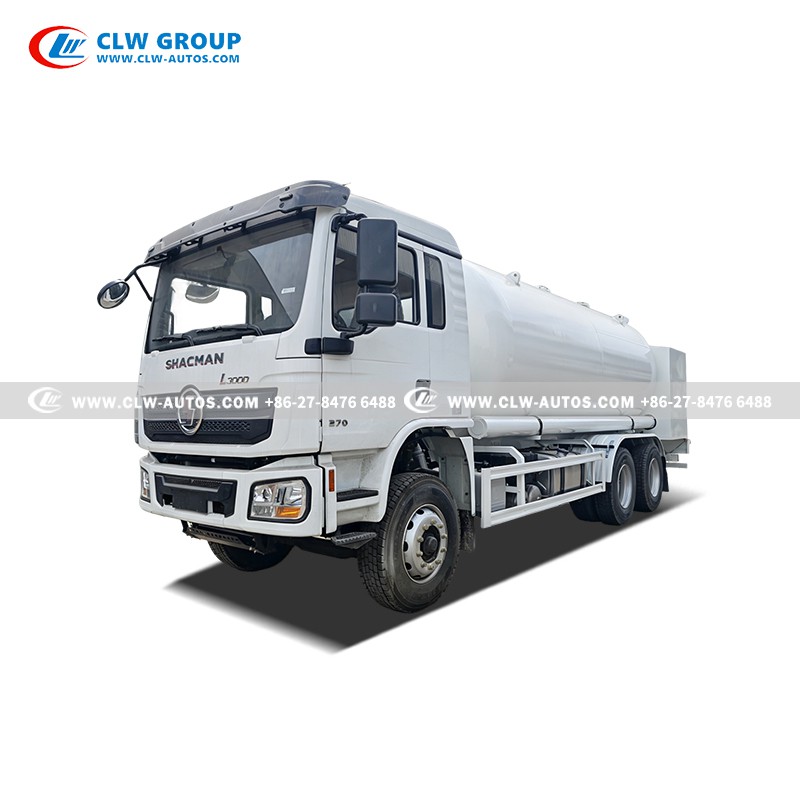

1LPG Liquefied Petroleum Gas truck

How to choose a suitable LPG Tank truck?


  • Truck Brand Optional For Lpg Bobtail :

     Sinotruk Howo, Dongfeng, FAW, ISUZU, Foton and other brands.

  • Tank Capacity: 5,000L/8,000L/10,000L/12,000L/15,000L/20,000L/25,000L/30,000L/35,500L
  • Drive Mode:

    4x2,  6wheels  5.5-15CBM, 2.5-7.5Tons

    6x4, 10wheels 20-25CBM, 7.5-12.5Tons

    8x4, 12wheels 25-35.5CBM, 12.5-17.5Tons

  • Usage:

1. For delivery LPG

2. For filling the gas cylinders used for cooking (with gas dispenser)

3. As a mobile refueling station, refueling gas for cars or small storage tank(with flow meter)

4. Both filling the gas cylinder and filling the cars (Dual filling system)

  • Optional Equipment:

1. Pump System to Fill Tanker or Cylinder
2. LPG Dispenser or Flow meter to monitor discharging volume
3. Sun shade on Top

4.Corken pump, Rochester level gauge, Neptune flowmeter

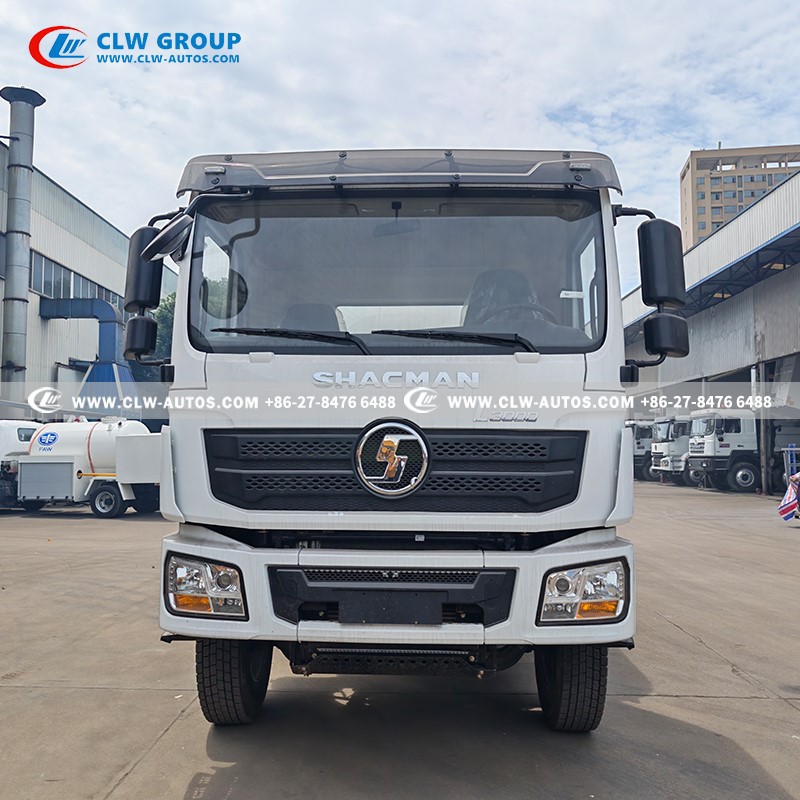

LPG Bobtail Trucks10

Product Name: Shacman 270HP LPG Bobtail Truck (20m³)

Application: Refueling and transport LPG gas

Advantages: For fiiling gas cylinder used for cooking

Cab: Single row and half cabin, LHD, A/C

Wheelbase: 4375+1400 mm

Engine: WP10.270E22

Horsepower:  270HP

Emission standard: Euro II

Gearbox: 9 Forwards and 2 reverse

Gross Vehicle Weight: 25,000 kg

Front/Rear Axle loading: 7500kg /1300kg*2

Tires: 12.00R20, 10 pcs with one spare



Related Operational Video



Products Pictures

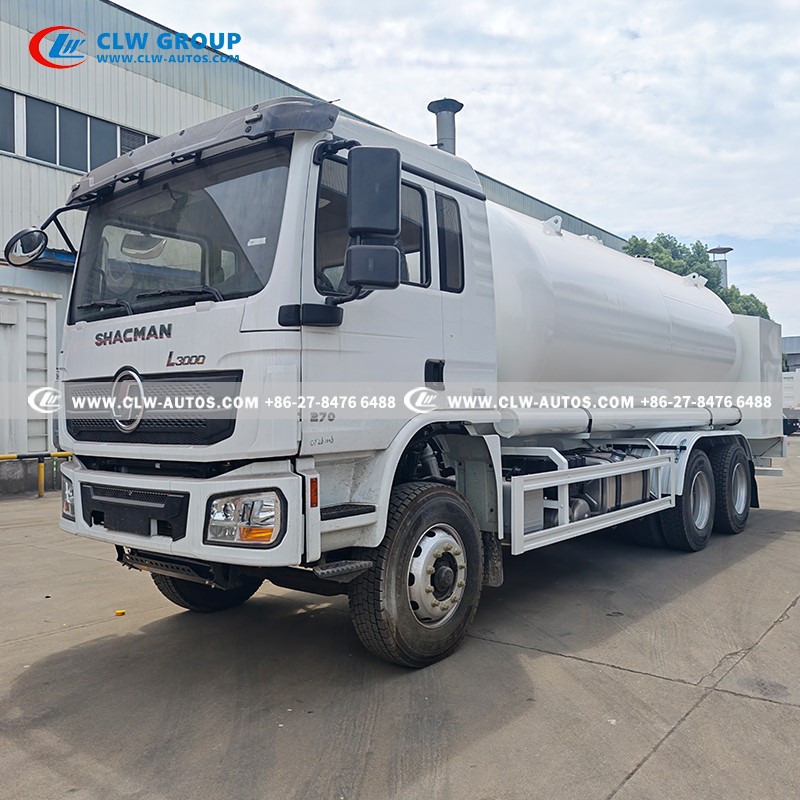

LPG Delivery Trucks6

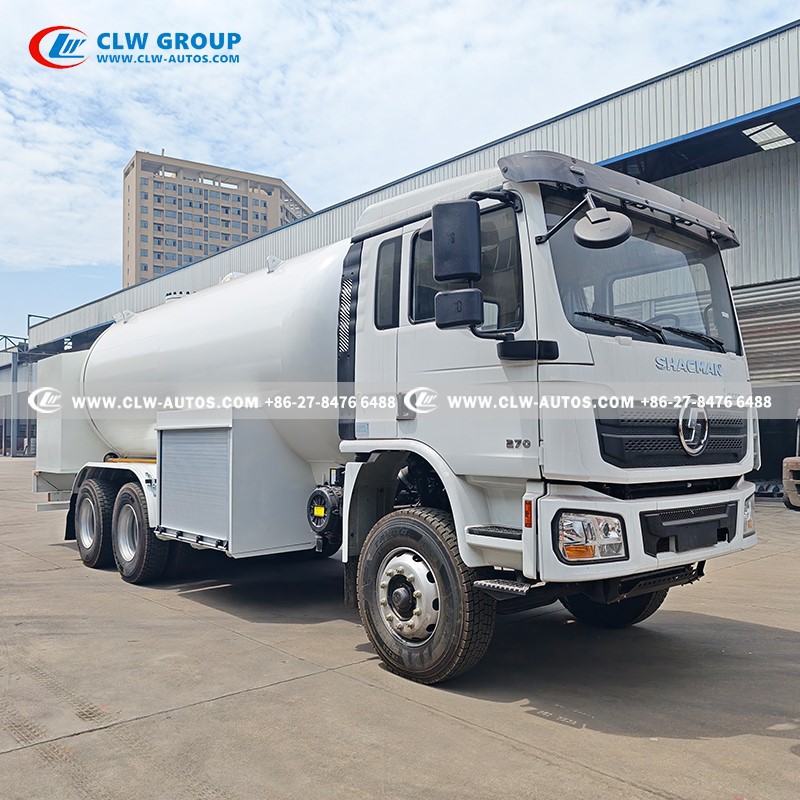

LPG Delivery Trucks7

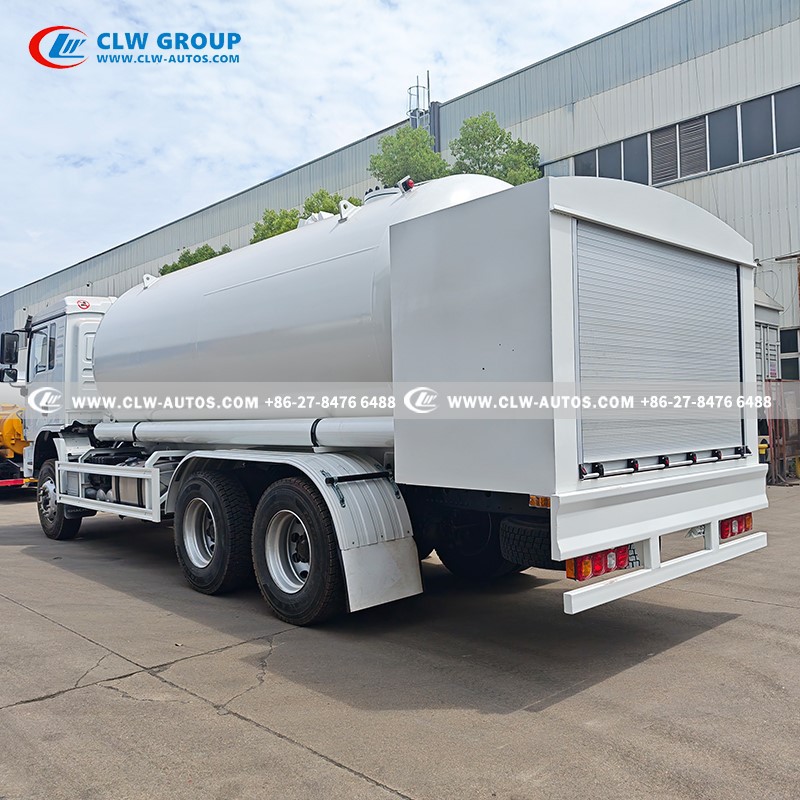

LPG Bobtail Trucks9
LPG Bobtail Trucks8

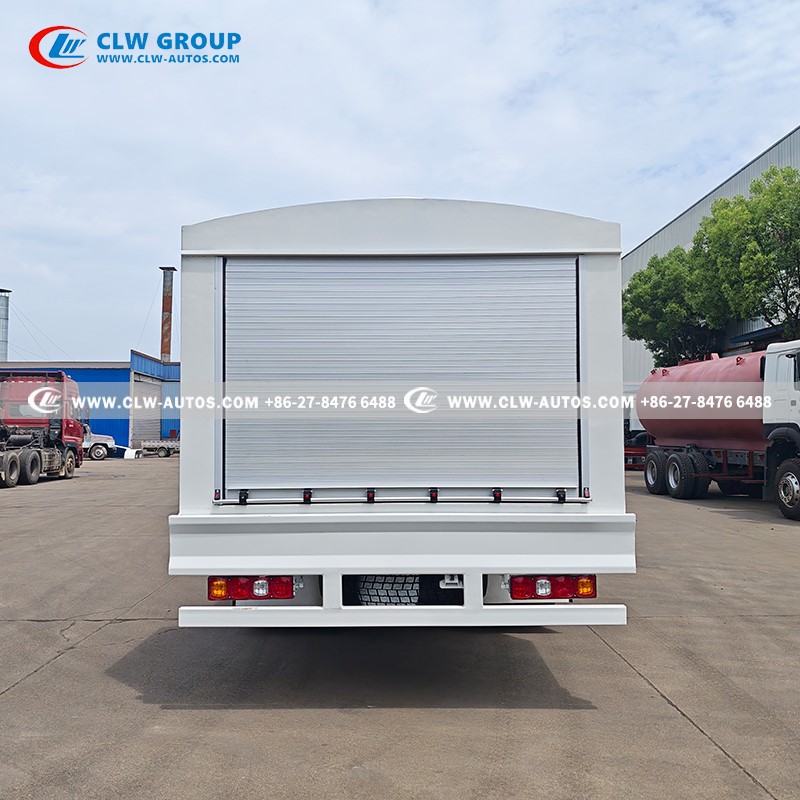

LPG Bobtail Trucks11

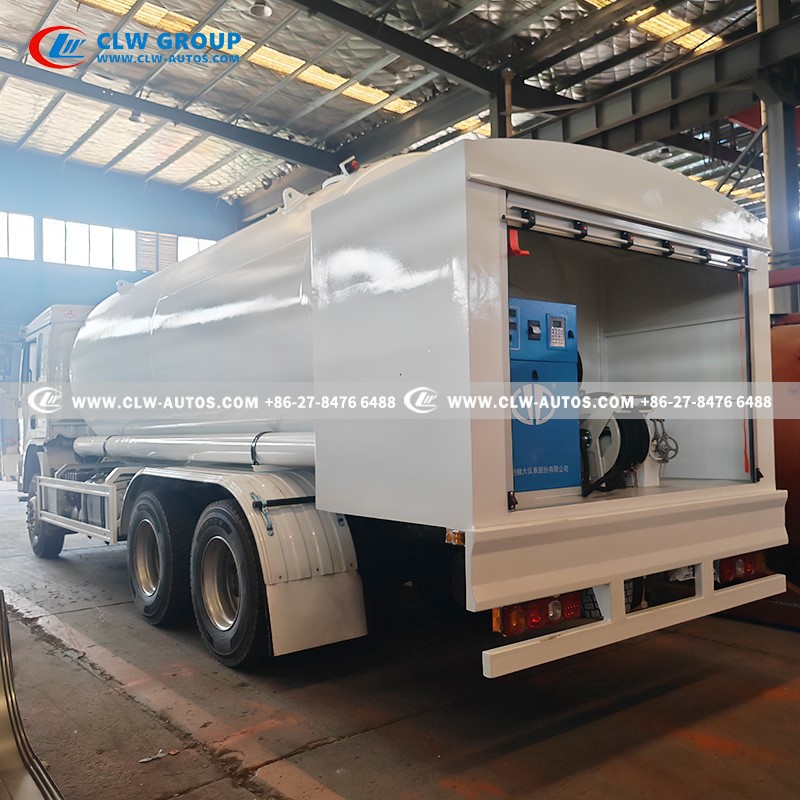

LPG Truck China14

Products Parameters

LPG Tank

Overall size 9109x2480x3420mm

Tank volume

20 CBM / 20,000 Liters

Filling weight

10Tons/10,000kg

Tank material

Q345R carbon steel
Filling medium Liquefied Petroleum Gas (Propane)
Working temperature(ºC) -40/+55 oC

Tank thinkness

10mm of tank and end plate

Tank shape

Horizontal Cylinder Shape

Manhole(mm) DN450 (18 inch)
Valve boxes
Safety Valves DN80
Liquid Line DN50 or DN80
Gas Line DN50
Level Gauge Ball floating type, at the tank rear
Standard equipment

1pc Pressure Gauge

1pc Thermometer

2pc Emergency Shut-off Valve

1pc Tool Boxes,

1pc Anti-static Grounding Tape

1pc valve boxes

1pc LPG pump

2pc Steel fender

2pc Fire Extinguisher holder

Specification Designed Pressure: 1.61Mpa / 16.1 Bar
Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar
Air Tightness Pressure: 1.61Mpa / 16.1Bar
Medium Density: 500-590 kg/m3
Working Temperature: under 50 centi-degree
Corrosion Allowance: 1mm
Filling System
LPG dispenser 1pc , precisely fill the liquefied petroleum gas into the cylinder
Hose Reel 15m self-retracting filling hose
Filling gun REGO adapter A7791A(1 inch) for large tank no greater than 2cbm
Printer  Integrated Mechanical Ticket Printer,prints transaction receipts and delivery records

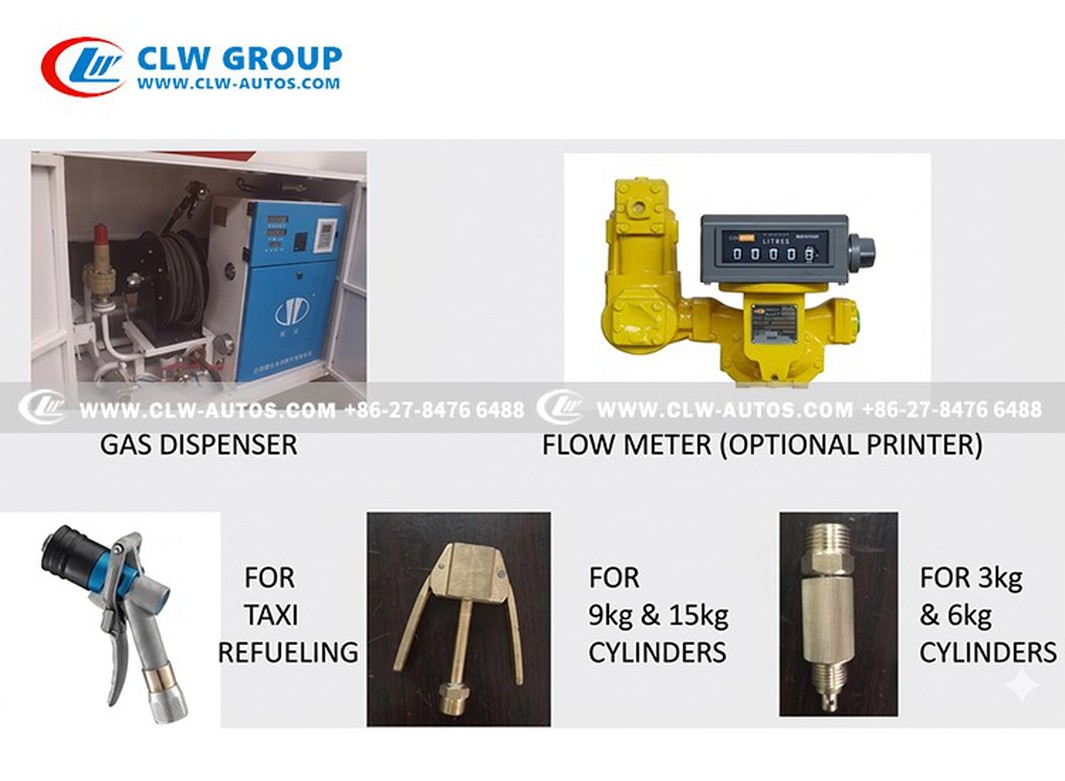

LPG Truck Filling Devices

LPG truck1

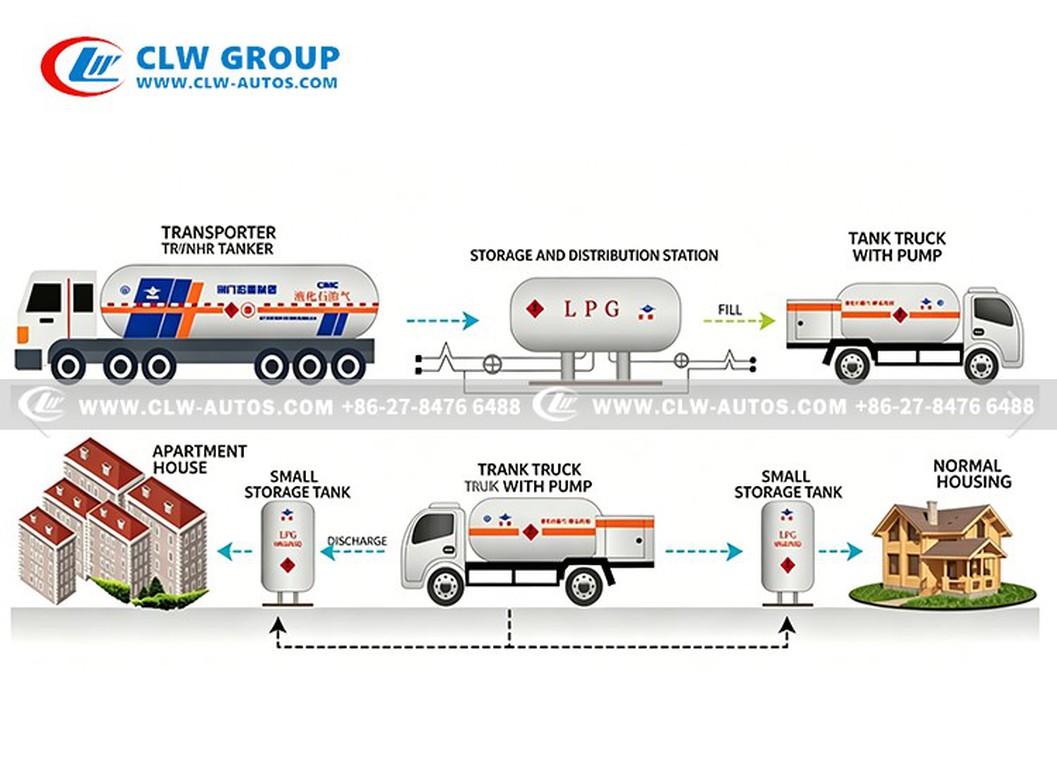

LPG Truck Usage

LPG truck2





Upper Structure System



• 20m³ Large Tank Volume: 20,000 Liters / 10 tons LPG . 10mm carbon steel construction. Anti-corrosion zinc-rich primer and custom topcoat, for transport and filling LPG to cylinder.



• LPG Dispenser: Microcomputer-controlled system with an explosion-proof LCD screen displaying volume, amount, and price. Includes a built-in receipt printer for commercial retail.



• Hose Reel: High-pressure LPG hose with an automatic retraction reel for wide-reach and neat storage.



• LPG Pump: Integrated for efficient loading/unloading operations



• Safety Accessories: Floating level gauge (tank content), pressure gauge (system pressure),temperature gauge (cargo temp), safety valve (overpressure protection), emergency shut-off valve (incidentresponse), ball valves (flow control)

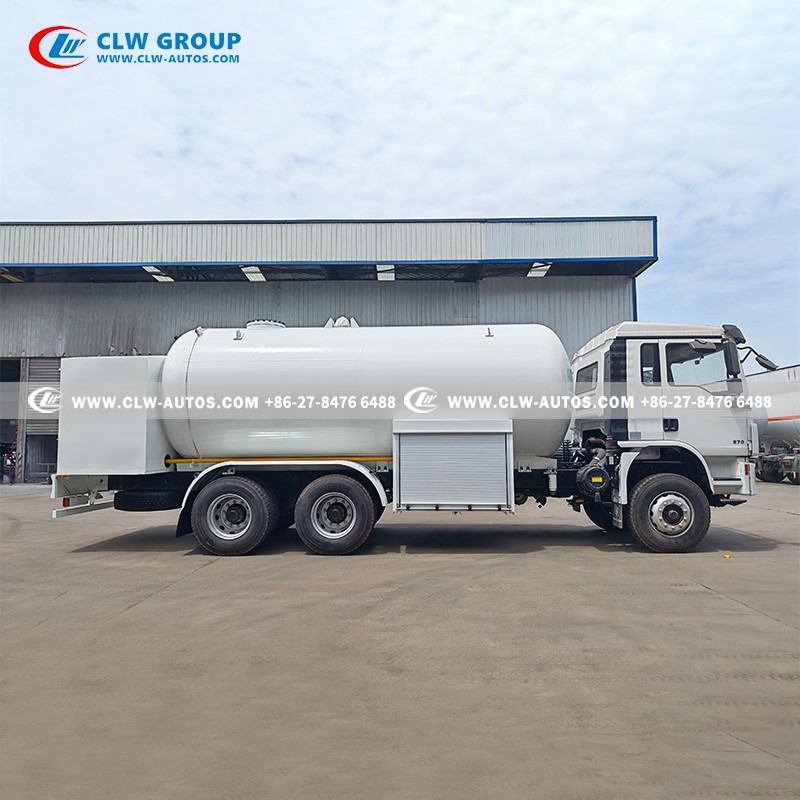

LPG Bobtail Trucks12

                       Shacman L3000 10 wheels 270hp chaissis, Exhaust pipe special installed at the front of the truck.

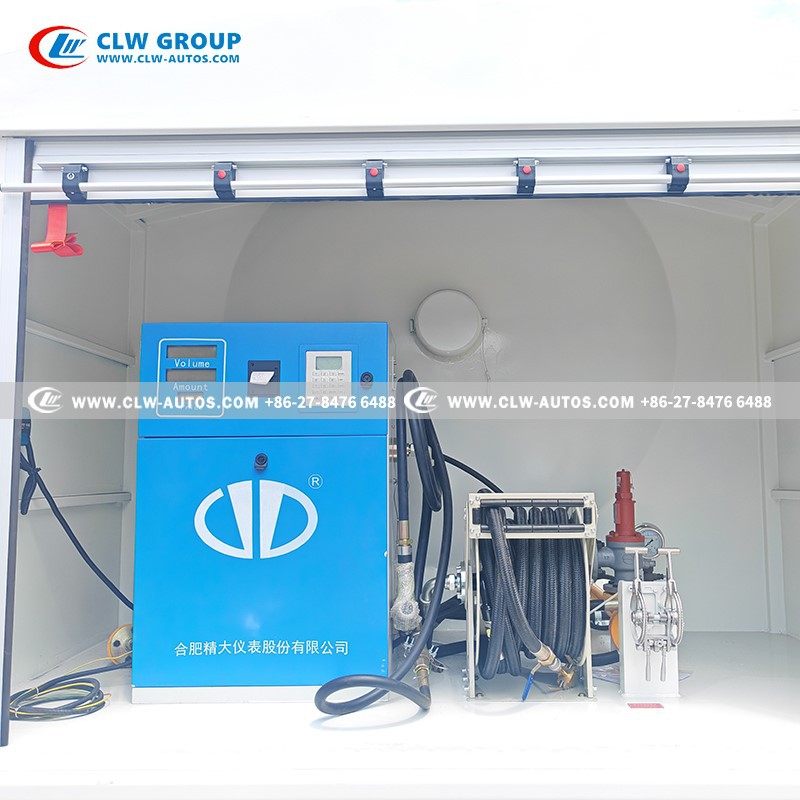

LPG Tanker Truck 15

                Filling system: LPG dispenser with digital display screen, 15m hose reel, refueling nozzle,pressure gauge



LPG Tanker Truck 16

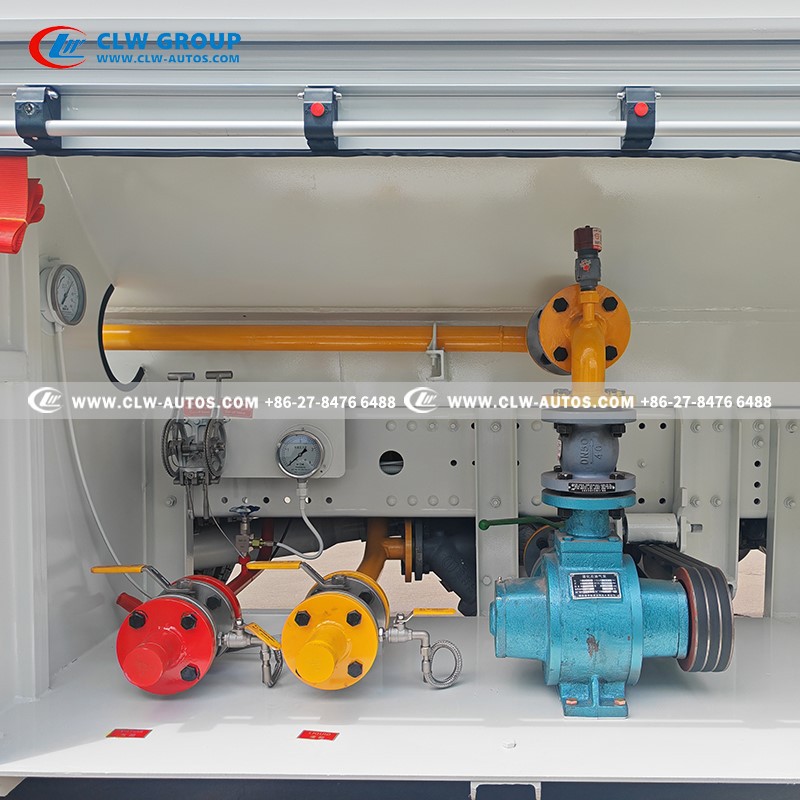

                            Valve box: LPG Pump, pressure gauge, flanged pump valve, safety relief valve

application of LPG Truck

Shacman 6x4 10 Tons Mobile LPG Refilling Truck for Cooking Gas Cylinders!

Door-to-Door Cylinder Refilling

Many remote villages and suburban areas in Africa lack fixed LPG stations. Residents with empty 5kg or 12.5kg cooking gas cylinders often have to travel long distances to the city to refill them. The LPG Bobtail acts as a "mobile gas station," traveling on a regular schedule into these villages, local markets, or residential communities.

Mobile Autogas Fueling

In major African cities (such as in Egypt, South Africa, or Nigeria), there is a massive volume of ride-hailing cars, taxis, and minibuses running on LPG. To save drivers from wasting time queuing at fixed stations, taxi associations or fleet companies purchase these Bobtail trucks for direct supply.

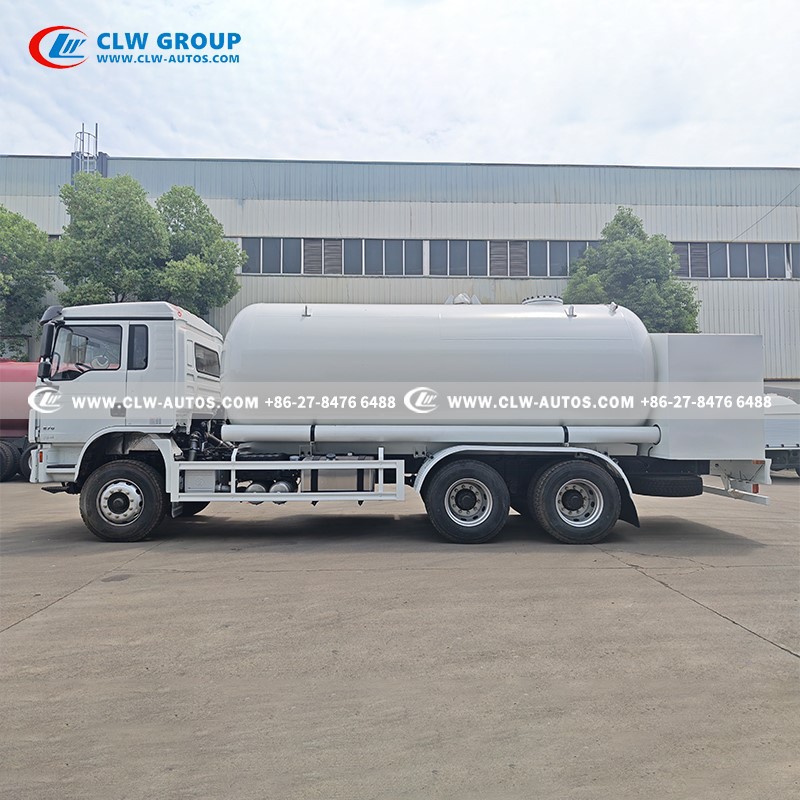

LPG Bobtail Trucks13

Commercial & Industrial Clients

Local industries (such as factories operating LPG forklift fleets), large hotels, resorts, school cafeterias, hospitals, and commercial bakeries usually install small-to-medium fixed LPG storage tanks (1 to 5 tons) on their premises.

Off-Grid Joint Operations

Many traditional fuel stations along highways or in newly developed remote areas cannot afford the high civil construction costs or long permit processes required to build underground LPG tanks or fixed skid stations, yet they do not want to miss out on the growing gas market.


Packaging & shipping


There are various modes of transportation for you to choose from!

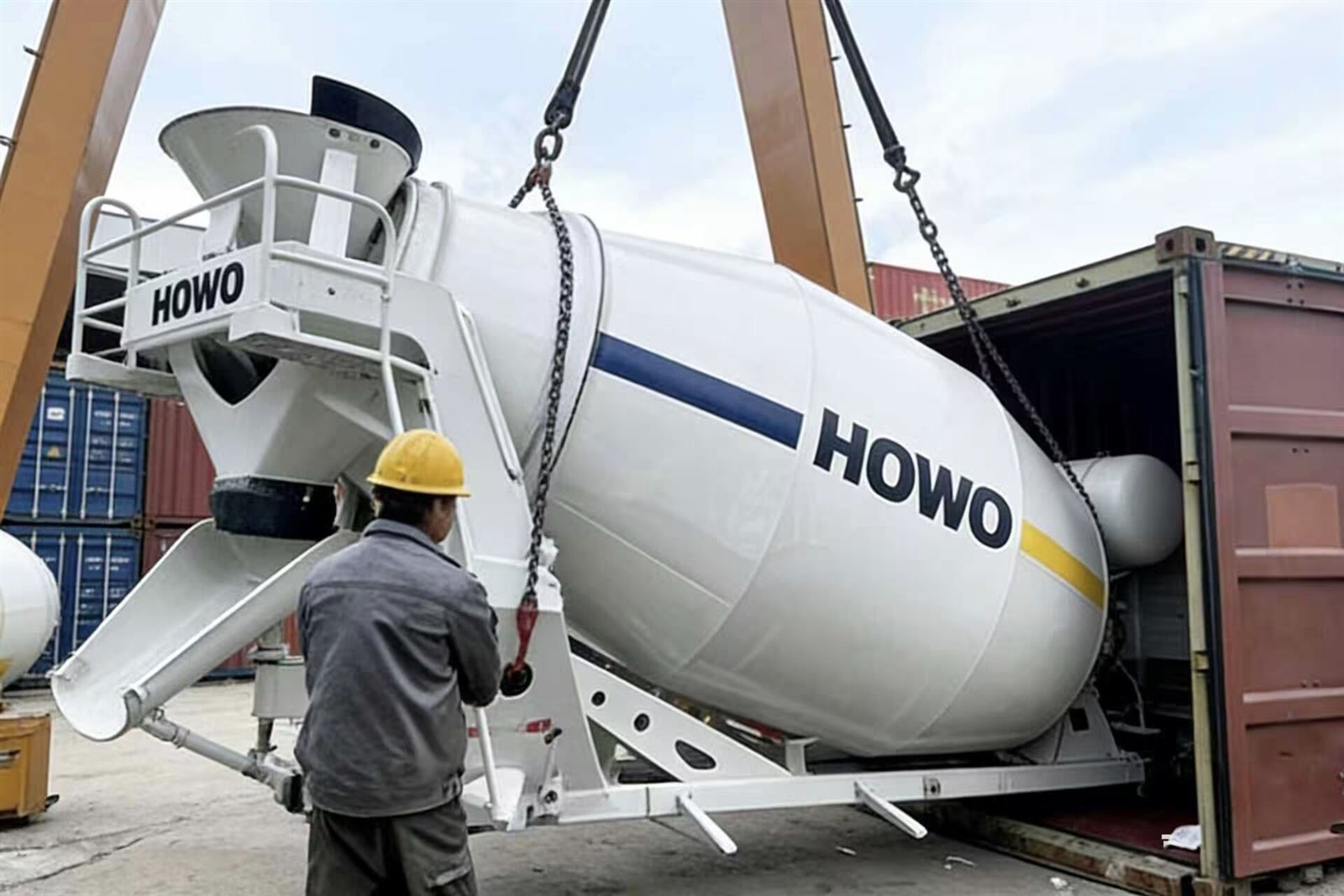

12CBM Concrete Mixing Truck
by 20" or 40" container

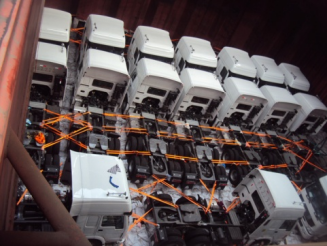

truck shipping by bulks
by bulk carrier

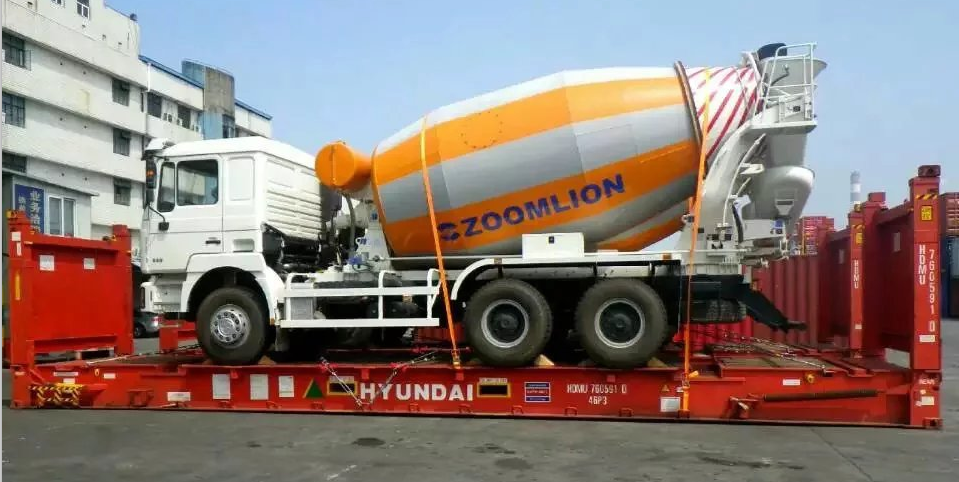

truck shipping by frame
By Flat Rack
truck shipping by Ro-ro
By Ro-ro ship
