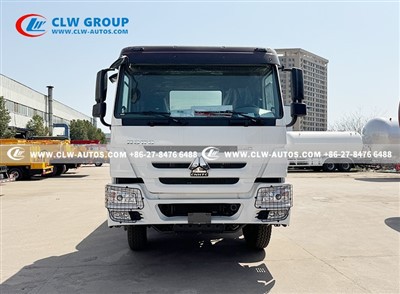

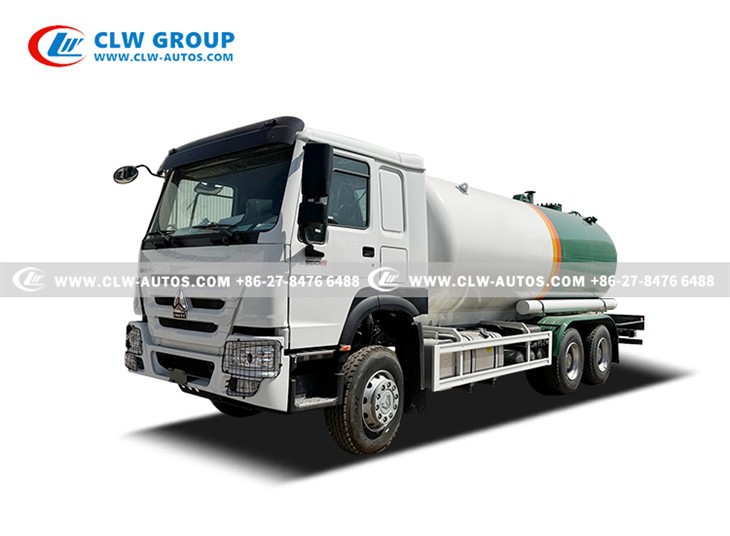

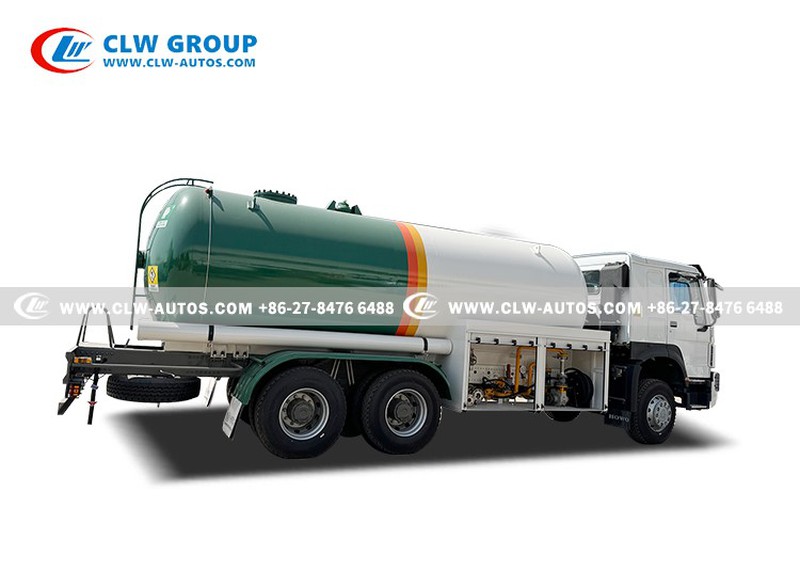

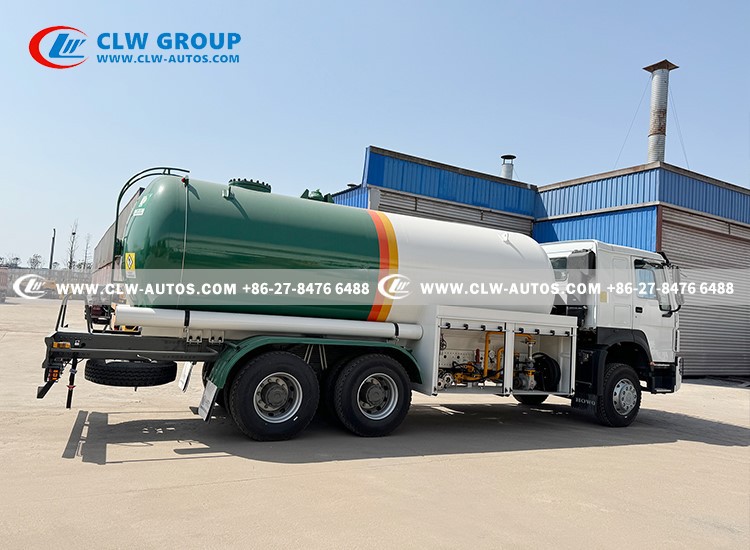

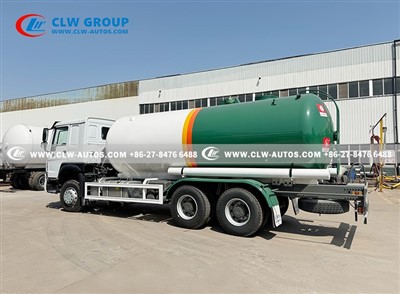

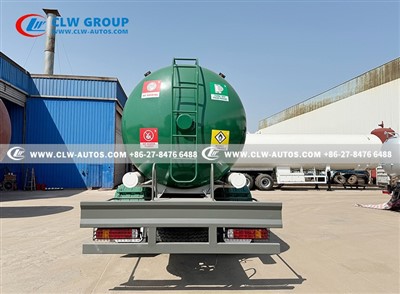

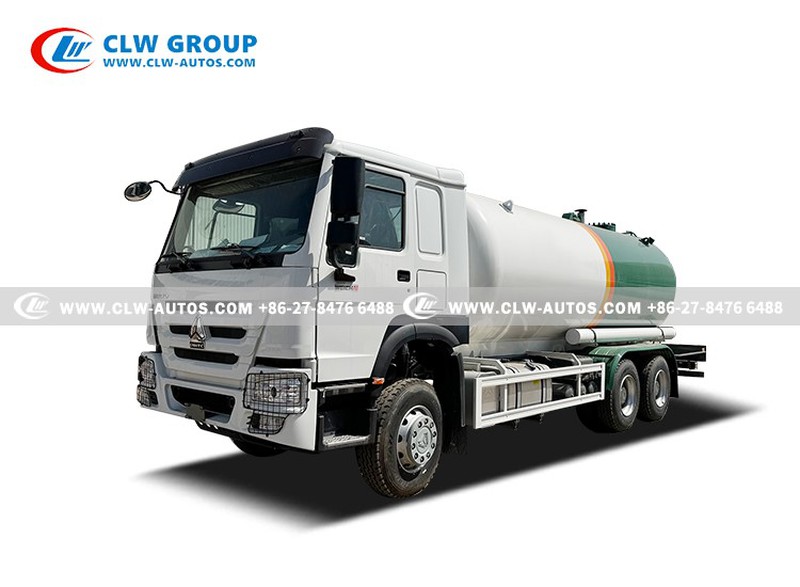

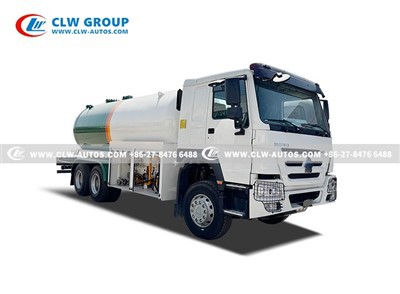

Nigeria 10 MT Propane Tanker Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of nigeria 10 mt propane tanker truck in China. If you're going to buy high quality nigeria 10 mt propane tanker truck, welcome to get more information from our factory. For price consultation, contact us.



Porpane gas tanker truck/lpg bobtail truck/butane delivery truck/LPG tanker trucks are mainly used to transport liquefied petroleum gas, which is a mixture of hydrocarbons that is gaseous at normal temperature and pressure, but can be converted into liquid form by compression or cooling, which is convenient for storage and transportation.



The design and manufacture of LPG tanker trucks follow strict safety standards to ensure safety during transportation.



Design features:

--The tank body material generally uses steel plates that can withstand low temperatures, such as Q345R, Q370R, Q420R etc., to ensure the stability and safety of the tank body under low temperature conditions.

--The manufacture of the tank body includes processes such as steel plate coil welding and head stamping or spinning to ensure the structural strength and sealing of the tank body.



Safety equipment:

--LPG tankers are equipped with a variety of safety equipment, including safety valves, liquid level gauges, temperature measuring devices, emergency cut-off devices, static-conducting grounding devices, and fire extinguishers.

--These devices can effectively monitor and control the pressure, temperature and liquid level in the tank, prevent gas leakage or overheating of the tank, and ensure transportation safety.



Quality inspection:

--The manufacture of liquefied petroleum gas transport bobtail trucks/vehicles follows standards such as GB150-1998 "Steel Pressure Vessels" and undergoes strict quality inspections. This includes physical and chemical inspections of tank materials, non-destructive testing of weld quality, and testing of multiple technical indicators such as product sealing and pressure resistance to ensure product safety and reliability.







LPG  tank truck,also called lpg bobtail,propane gas delivery truck,cooking gas transport truck,gas cylinder refilling truck,mobile gas station,mobile lpg tanker truck is used for

• Type 1--transporting LPG/Propane/Butane gas only from lpg depot to lpg station

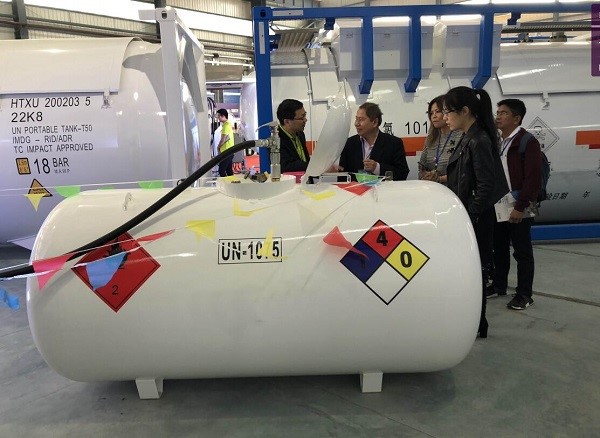

• Type 2-- Delivering and refueling propane/lpg gas/liquid petroleum gas into smaller hotel lpg tanks with REGO nozzle as follows
•

  REGO Filling Nozzle

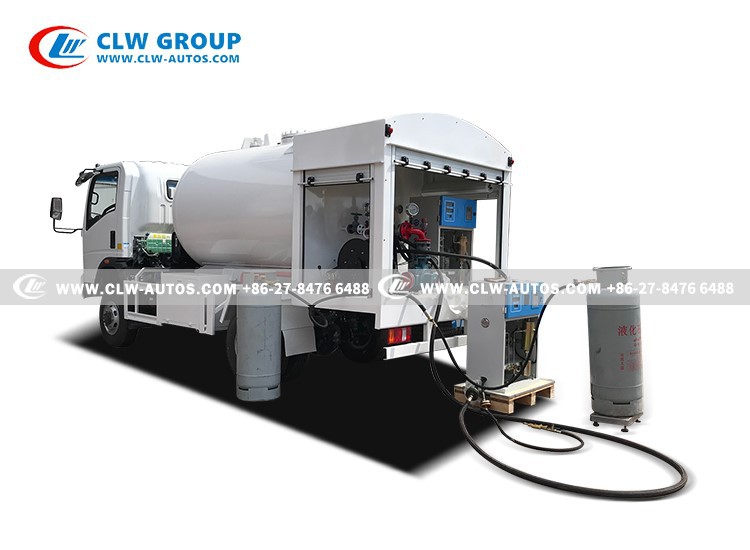

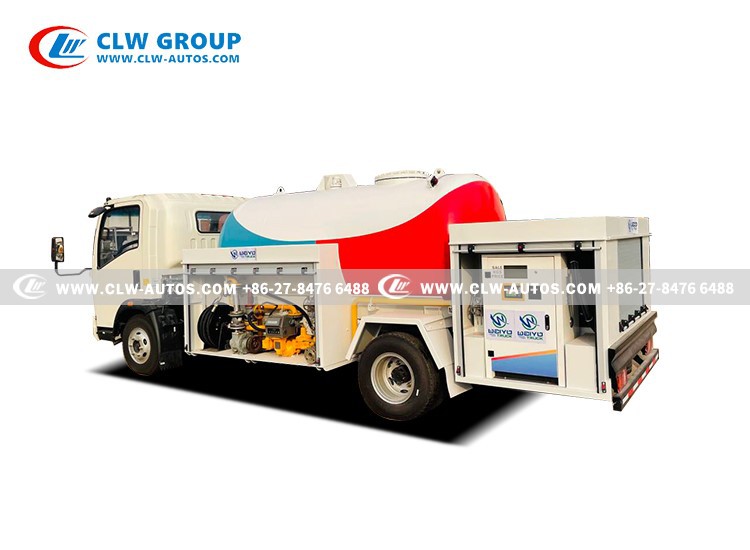

• Type 3--Refueling home use lpg cylinders with different size.

•

























Optional propane truck chassis brand:

--SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other brands.

Optional propane truck tanker size:

• --2 Tons propane truck

• --5 Tons propane truck

• --7 Tons propane truck

• --8 Tons propane truck

• --10 Tons propane truck

• --12 Tons propane truck

• --15 Tons propane truck

• --17 Tons propane truck



Main Truck Spec.

• HOWO HW76 cabin with one sleeper
• with Air Conditioner
• Wheelbase: 4600+1350 mm
• Diesel engine WD615.47,371HP
• VGD95 front axle,HC16 rear axle
• 12.00R20 tires,10 pcs with one spare
• LPG tank material: Q345R,Chinese GB713~2011 standard
• Thickness: 10 mm for tank shell and 12 mm for end plate
• CORKEN Z2000 VANE LPG PUMP FROM AMERICA
• Direct driven by PTO
• volume flow meter
• 15 meters reel with filling nozzle















Technical Parameter
Item No.		Parameters
Overall Dimension		10200x2500x3450 mm
Driving Model		Left hand drive
Gross Vehicle Weight		25000 kg
Curb Weight		15000kg
Payload		10000kg(10Ton)
Wheel Base		4600+1350 mm
Axle	Front Axle	VGD95,9500kg
	Rear Axle	MCX16ZG,16000kgX2
Suspension	Front Axle	1500 mm
	Rear Axle	2445 mm
Max. Speed		≥ 90 km/h
Min. Turning Diameter		19 m
Max. Grade-ability		30%
Fuel Box		400L
Engine Model		WP10.340E22
Engine Type		4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower		340HP EUROII
Displacement		9760mL (Diesel)
Max. Torque		1250 N.m
Gearbox		HW19710,10-speed forward and 2 reverse
Clutch		Φ430 pull-type diaphragm clutch
Cabin		Standard HW76 cabin with one sleeper 2~3 Passenger allowed with Air Conditioner
Tire		12R22.5 (10 pcs with one spare)
Fuel box		400 L
Exhaust Pipe		At front of Cabin for safety
LPG tank
Volume:		20,000liters
Tank material:		Q345R
Tank diameter:		2050mm
Tank thickness:		10mm
End plate thickness:		10mm
Tank length:		7644mm or as designed
Gas phase		Flange type,DN50/2" or according to customer request
Liquid Phase		Flange type,DN50/2" and DN80/3"
Filling gas		Propane(LPG)
Design Pressure:		1.61Mpa
Testing pressure		2.21Mpa
Anti Static line		1 set
Pumping System
CORKEN Vane pump		USA brand CORKEN Z2000EGAEE
		Inlet 2 inch NPT and out 2 inch NPT

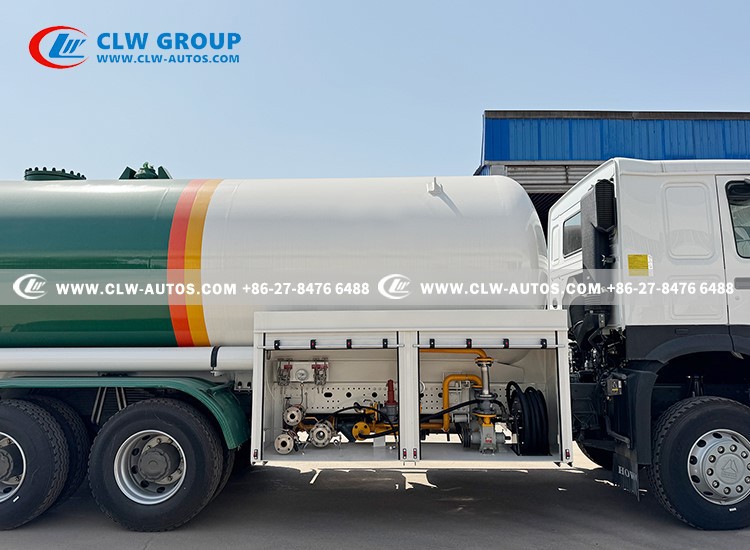

Lockable filling cabinet		Located at right side of truck
Discharge hose		2 Nos of 4 meters DN50 soft discharge hose
Level Gauge(optional for Rochester level gauge)		Chinese brand YWJ-25 Float Ball type at the rear of tank Nominal Pressure 2.5 mpa Showing in percentage
Safety Valve		Model No.	A412F-25-16
		Type	Built-in
		Nominal Pressure	2.5 Mpa
Tool and Valve Box		Lockable cabinet at side of LPG bobtail truck
Safety return valve		1 PC
Pipeline safety valve		1 PC
Manhole		DN450
Thermometer		1 pc WTQ-280
Pressure Gauge		2 pc YN-100T
Emergency shut off Valve		3 pcs with switch handle inside valve box at rear of truck
Fender		Steel
Fire Extinguisher Holder		1 set
Static conductive tape		1 pc
