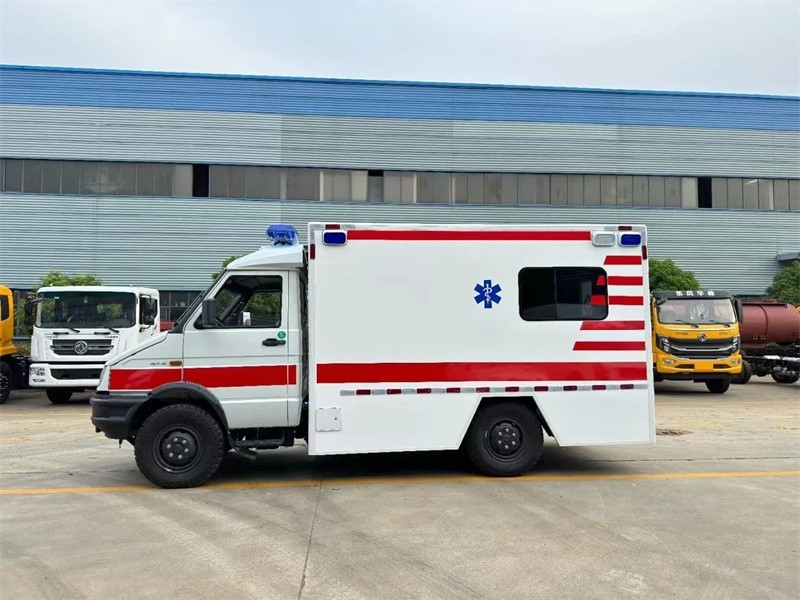

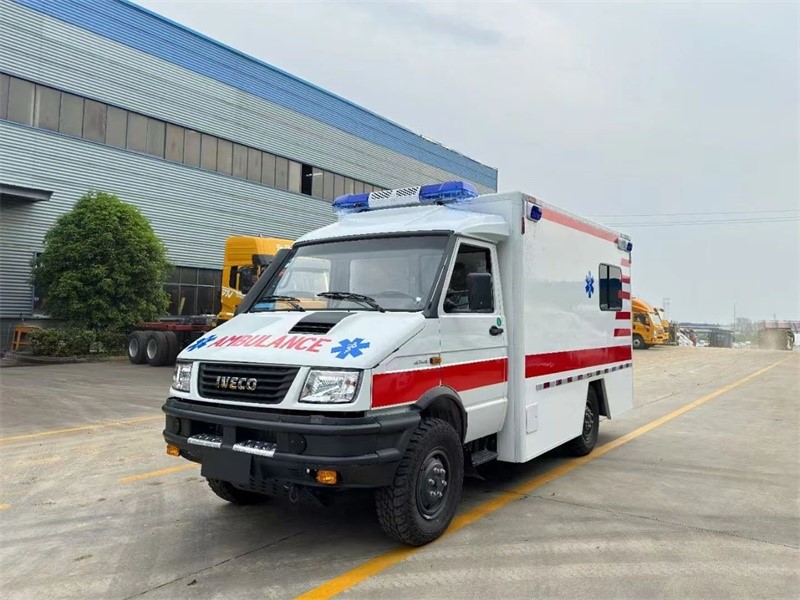

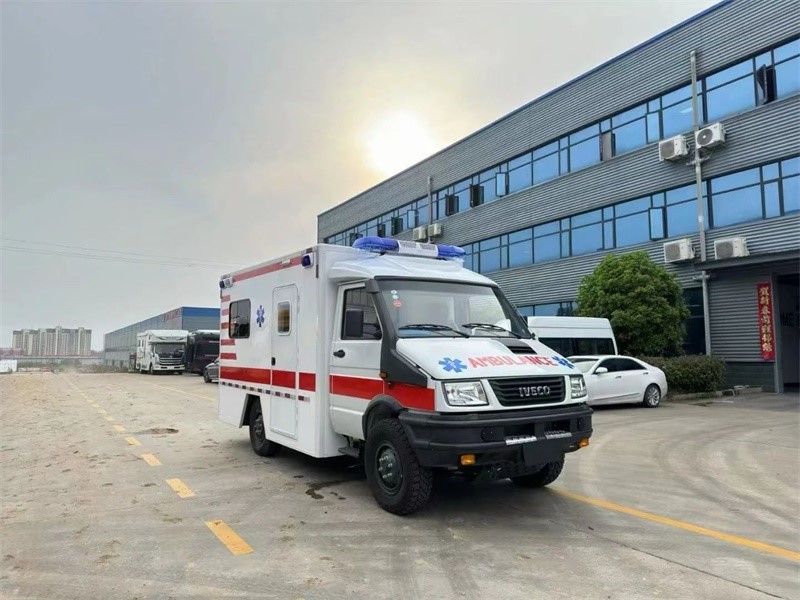

Mobile ICU Capability: New CLW Group-IVECO Off-Road Ambulance Features Expandable Cabin



The IVECO Eurocargo 4×4 module-type ambulance, built on the IVECO chassis, stands out with its European SOFIM diesel engine (inline four-cylinder), BOSCH electronically controlled high-pressure common rail system (1,800 bar), and efficient CCDPF+SCR system, achieving speeds up to 90km/h.

Key features include:

• Boron steel chassis: Durable and robust, utilizing European chassis technology for strong load-bearing.
• Low center of gravity: Enhances stability and safety.
• Rust-proof aluminum medical module: Offers a spacious, well-designed interior for smooth operations in harsh conditions.
• Leading medical vehicle modification technology: Ideal for medical rescue in dangerous and challenging environments.











Body & Appearance

• Structure: Reinforced steel frame, right-side flat doors, rear double doors for easy access.
• Color: White with red cross decals and body stripes for high visibility.
• Privacy: Black privacy film on medical cabin windows.



Warning Lights

• LED System: Integrated LED warning lights, 100W siren, blue strobe lights on sides and rear.



Rescue Facilities

• Stretcher: High-strength aluminum alloy with adjustable PVC mattress, easy one-person loading.
• Platform: Stainless steel for stretcher handling.
• Infusion Rack: Aluminum alloy guide-rail rack with two folding hooks.



Oxygen System

• Cylinders: Two 10L steel cylinders (15MPA), manifold with pressure reducer, controlled oxygen flow, humidifier.



Electrical System

• Lighting: Six 12V cabin lights, two infusion shot lights.
• Inverter: 1000W sine wave inverter, multifunctional socket (220V/12V, AC/DC).
• Disinfection: Intelligent timed UV light for cabin hygiene.



Air Circulation System

• Air Conditioning/Heating: 1 rear AC and heating unit for independent temperature control.
• Ventilation Fan: 1 DC 12V multi-functional fan on the ceiling for efficient air circulation.

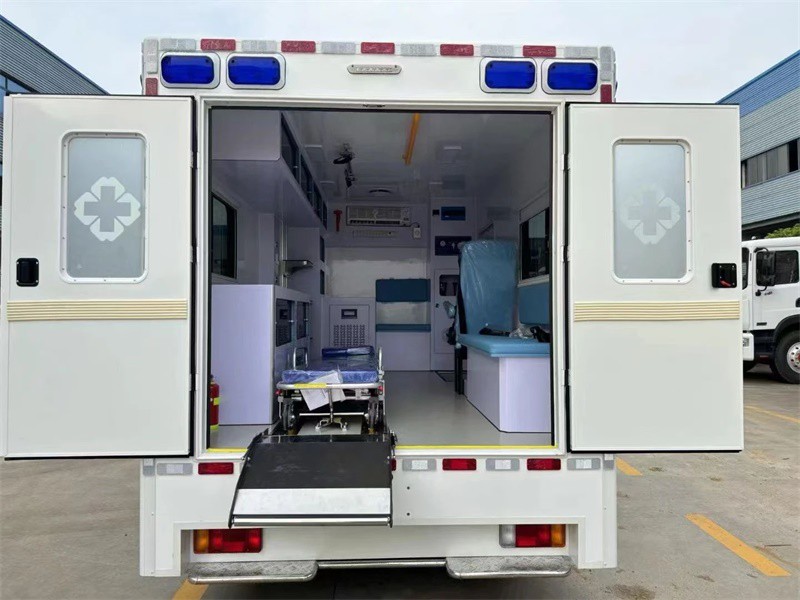

Medical Cabin Configuration

1. Cabinet Structure: Aluminum alloy, rear doors open to 180°, sturdy and durable.

2. Cabinet Assembly:

• Equipment cabinet with drawers and grid storage.
• Oxygen cylinder cabinet for two 10L cylinders.
• Hanging cabinet with sliding door.
• Seat cabinet with cushion, backrest, and safety belts.

3. Interior: Lightweight, waterproof, mold-resistant, antibacterial, easy-to-clean materials.

4. Flooring: Medical-grade, slip-resistant, waterproof, easy-to-clean.



Auxiliary Equipment

• Intercom: Hands-free microphones in both cabins.
• Fire Extinguisher: 1kg dry powder extinguisher.
• Waste Bin: Covered foot-pedal bin.
• Handrail: Long handrail at the cabin top.
• Emergency Hammer: Installed in the cabin.



Optional Configurations

Negative Pressure Purification System:

• High-efficiency filtration unit with a filter material of ultra-fine glass fiber, effective area of 0.15M², maximum air throughput of 0.8M/S.
• Filtration efficiency: For particles of 0.3 microns, achieves over 99.995% (standard 99.7%).
• When the negative pressure system is activated, the cabin's relative pressure is between -30Pa and -10Pa.



Driving Assistance System:

• Dashcam, reverse camera.



Shovel-Type Stretcher:

• 1 unit (optional from stretcher storage).



Stair Stretcher:

• 1 unit, with a load capacity of 160kg.
