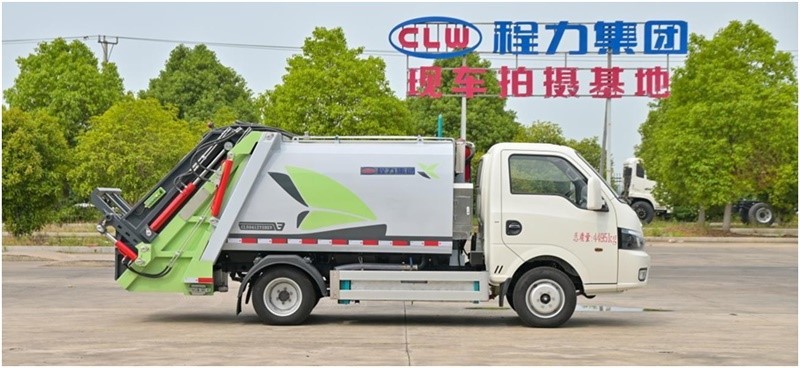

Chengli Launches CL5041ZYSBEV - Pure Electric Mini Refuse Compactor For Urban Waste Collection
Products Description
A compressed garbage truck (also known as a garbage compactor truck, refuse compactor, or waste collection vehicle) is a specialized vehicle designed for efficient urban waste management. It plays a pivotal role in maintaining cleanliness and hygiene in cities by collecting, transporting, and compacting municipal solid waste (MSW).
product parameters
| Announced Model | CL5041ZYSBEV Pure Electric Compactor | Chassis Model | EQ1040BTZEVJ |
| Gross Weight (kg) | 4495 | Tare Weight (kg) | 3580, 3750 |
| Wheelbase (mm) | 2800 | Number of Axles | 2 |
| Battery Type | Lithium Iron Phosphate Battery | Battery Brand | CATL (Contemporary Amperex Technology Co. Limited) |
| Fuel Type | Pure Electric | Loading Capacity (m³) | 3-4 |
| Rated Power of Loading Motor (KW) | 20 | Hourly Power Consumption During Loading (KWH) | 15 |
| Recommended Charging Pile Power (KW) | 120 | Charging Time (at recommended power) | Approximately 1 hour |
| Maximum Range on Full Charge (KM) | 220 | Maximum Power of Chassis Motor (KW) | 100 |
| Rated Voltage of Battery Pack | 322V | Battery Capacity (KWH) | 55 |
| Tare Weight (Kg) | 1850 | Maximum Allowable Gross Weight (Kg) | 4490 |
| Front/Rear Axle Load at Tare Weight (Kg) | 750/1100 | Front/Rear Axle Load at Maximum Allowable Gross Weight (Kg) | 1800/2695 |
| Maximum Speed (Km/h) | 90 | Maximum Gradeability (%) | 20 |
| Minimum Turning Radius (m) | 14 | Range (Km) | 220km [GVW4495kg] (at a constant speed of 40km/h) |
| External Dimensions | Length 5300, Width 1650, Height 1960, 2560 | Wheelbase (mm) | 3000 |
| Front/Rear Suspension (mm) | 1180/1320 | Track Width (Front/Rear) (mm) | 1390 |
| Minimum Ground Clearance (mm) | 190 | Distance from Top of Driver's Cabin to Wing Surface (mm) | 1260 |
| Approach/Departure Angle (°) | 21 | Rear Wheel Center Distance from Frame Plane (Empty/Loaded) (mm) |
700 |
| Battery Type | Lithium Iron Phosphate | Manufacturer | Contemporary Amperex Technology Co. Limited (CATL) |
| Total Battery Capacity (kWh) | 55.7 | Rated Total Voltage and Range (V) | Rated 322, 250~365 |
| Energy Density of Power Battery System (Wh/kg) | 146.3 | Charge/Discharge Rate (C) | 1 |
| Battery Layout | Battery Layout | Container Thickness / Coating Layer | 4.5mm / (Anti-corrosion coating applied inside the container) |
| Container Volume | 3-4m³ | Container Material | Q235 Carbon Steel |
Mounted Motor |
Permanent Magnet Synchronous Motor | Cooling Method | Water-cooled |
Features & Highlights
- Design: Built on Dongfeng electric chassis with integrated mechanical, hydraulic, and electrical systems for waste handling.
- Operation: Fully sealed, self-compressing and dumping, with wastewater collection to prevent pollution. High pressure, good sealing, and user-friendly.
- Applications: Suitable for urban areas, highways, communities, factories, and waste centers.
- Container: Curved design for increased capacity and aesthetics.
- Power: Permanent magnet synchronous motor for direct drive, reducing steps and failures.
- Hydraulics: High-quality pump and compaction valve for higher density and capacity (2.5x non-compressed).
- Reliability: Large oil tank, filtered hydraulic oil, and joint venture multi-way valves for low failure rates. CAN bus control for easy maintenance.
- Automation: Dual control (photoelectric/timer), one-touch unloading, and remote operation. Single-driver mode reduces labor.
- Control: Dual computer/manual systems for reliability.
- Options: Flip mechanism for bins/hoppers available.
Precautions
- Keep clear during operation.
- Distribute garbage evenly.
- Avoid compressing non-compressible objects.
- Ensure safety when lifting/lowering the mechanism.
- Drive only when the mechanism is locked.

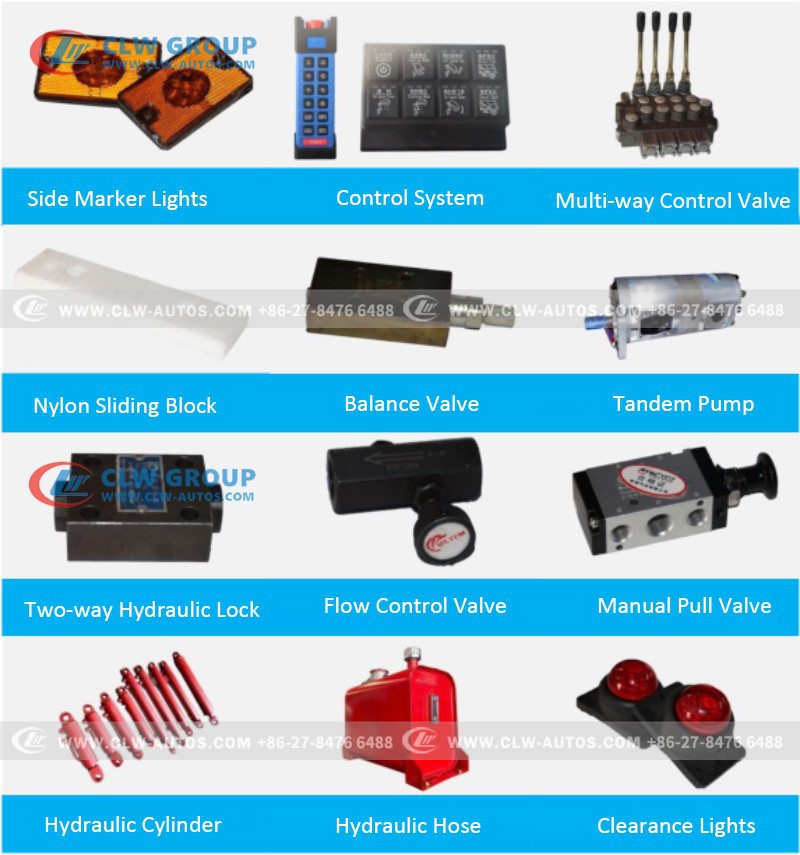

Common Water Sprinkler Truck Parts

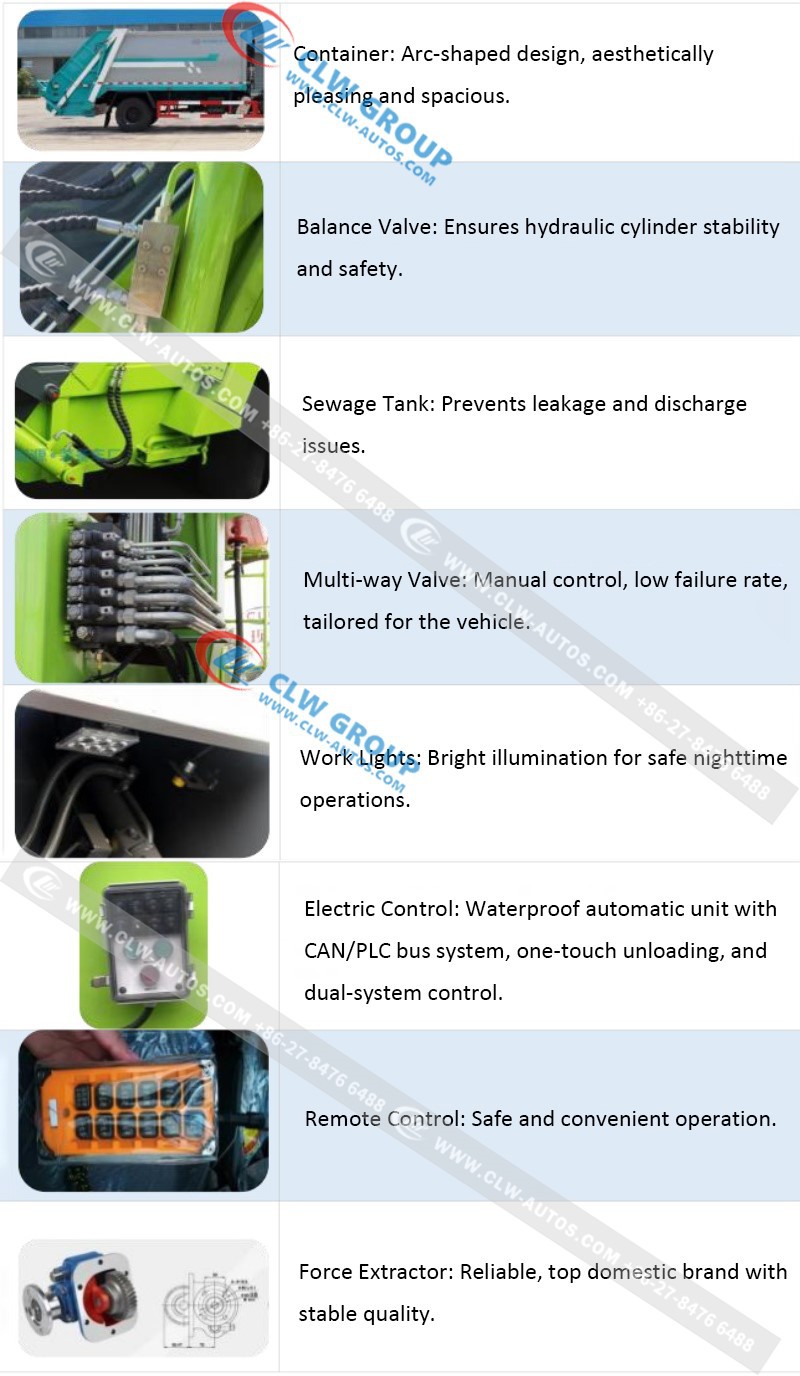

Product Standard Configuration

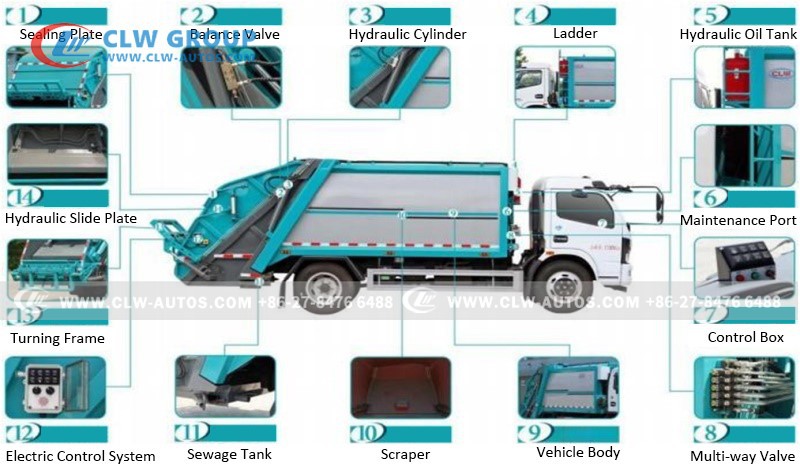

Products Structure
Find About More

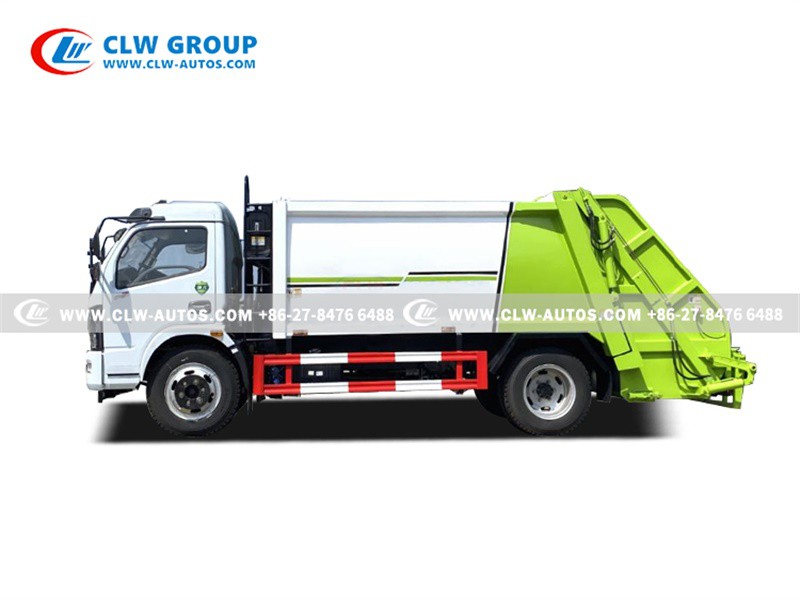

Dongfeng Compactor Garbage Truck

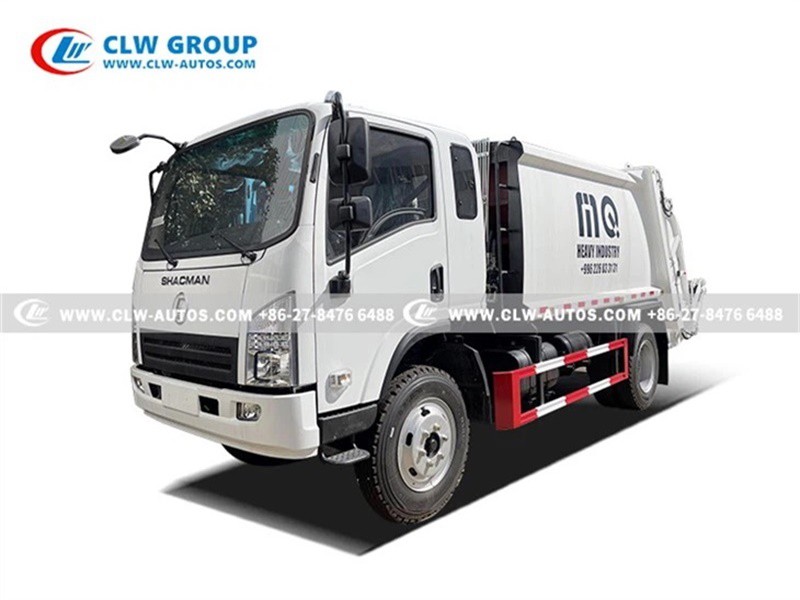

Shacman Garbage Compression Truck

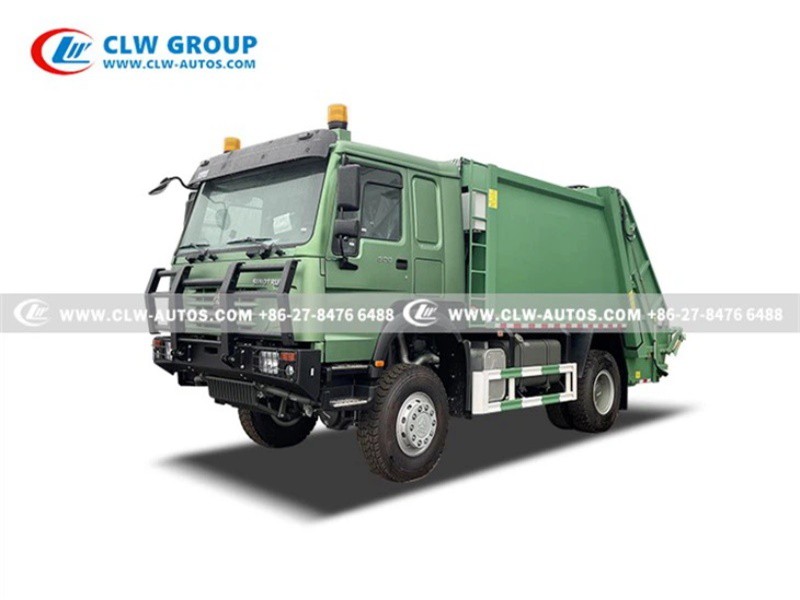

HOWO Garbage Compactor Truck

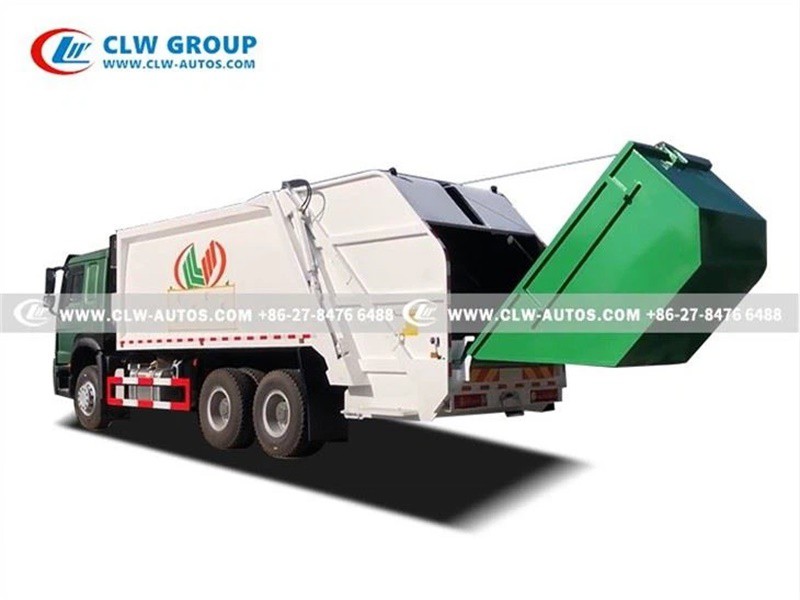

Garbage Compactor Truck 20CBM

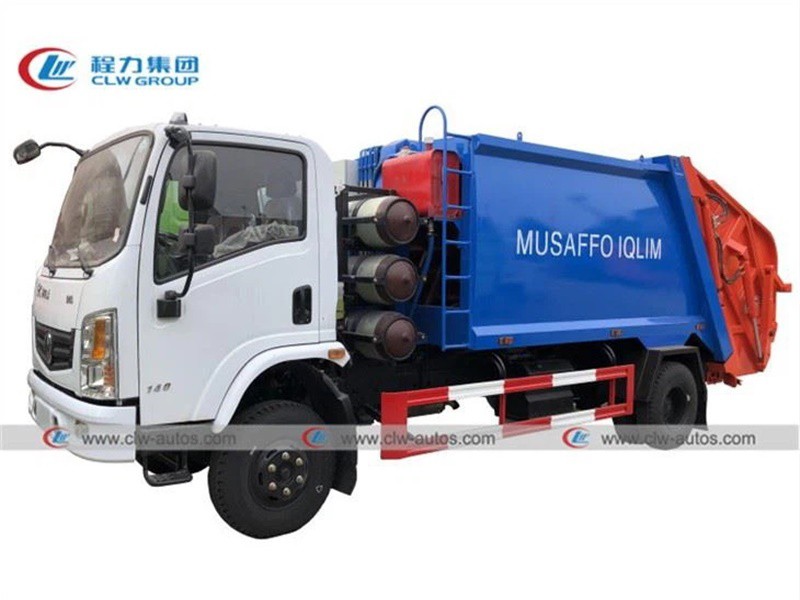

Dongfeng CNG Engine Garbage Compactor Truck

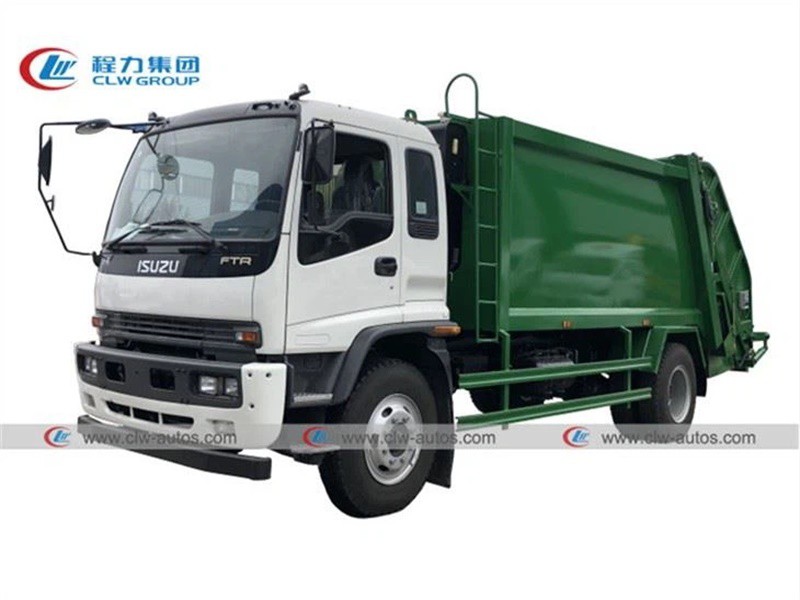

ISUZU Compression Waste Collection Truck
